      Descrizione del prodotto Markaudio Alpair-11MS Gold Woofer a Gamma Completa

      The advanced design Alpair 11MS (mono suspension) is a radical departure from previous models. The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibre chassis and dedicated ultra light voice coil.



      Highlights

      • Latest model
      • The run-in time for the 11MS is significantly reduced compared to previous models. Ten hours of light music at moderate volumes is sufficient for the suspension to reach its optimal operating pattern.
      • An Arrestor (as deployed in previous Alpair models) provides an audible warning of accidental excess excursion.
      • The low-mass coil has a vented former and the motor employs custom made copper plating to reduce distortion.
      • The MS11 is a bass capable audio driver with comparable performance to light-medium load traditional mid-bass units.



      Product details

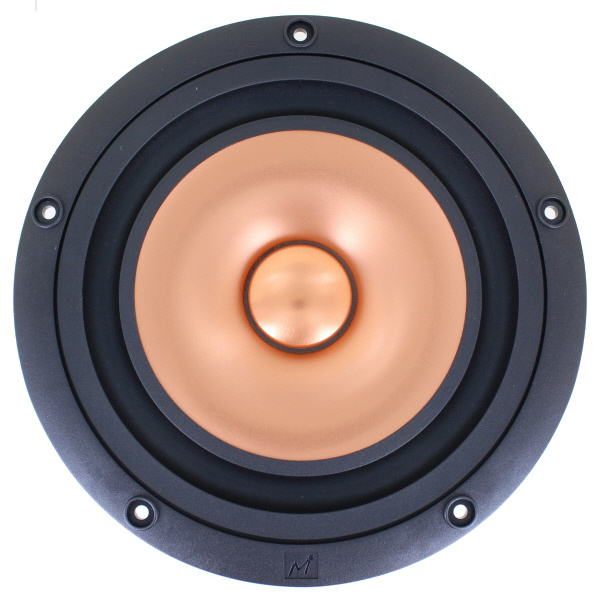

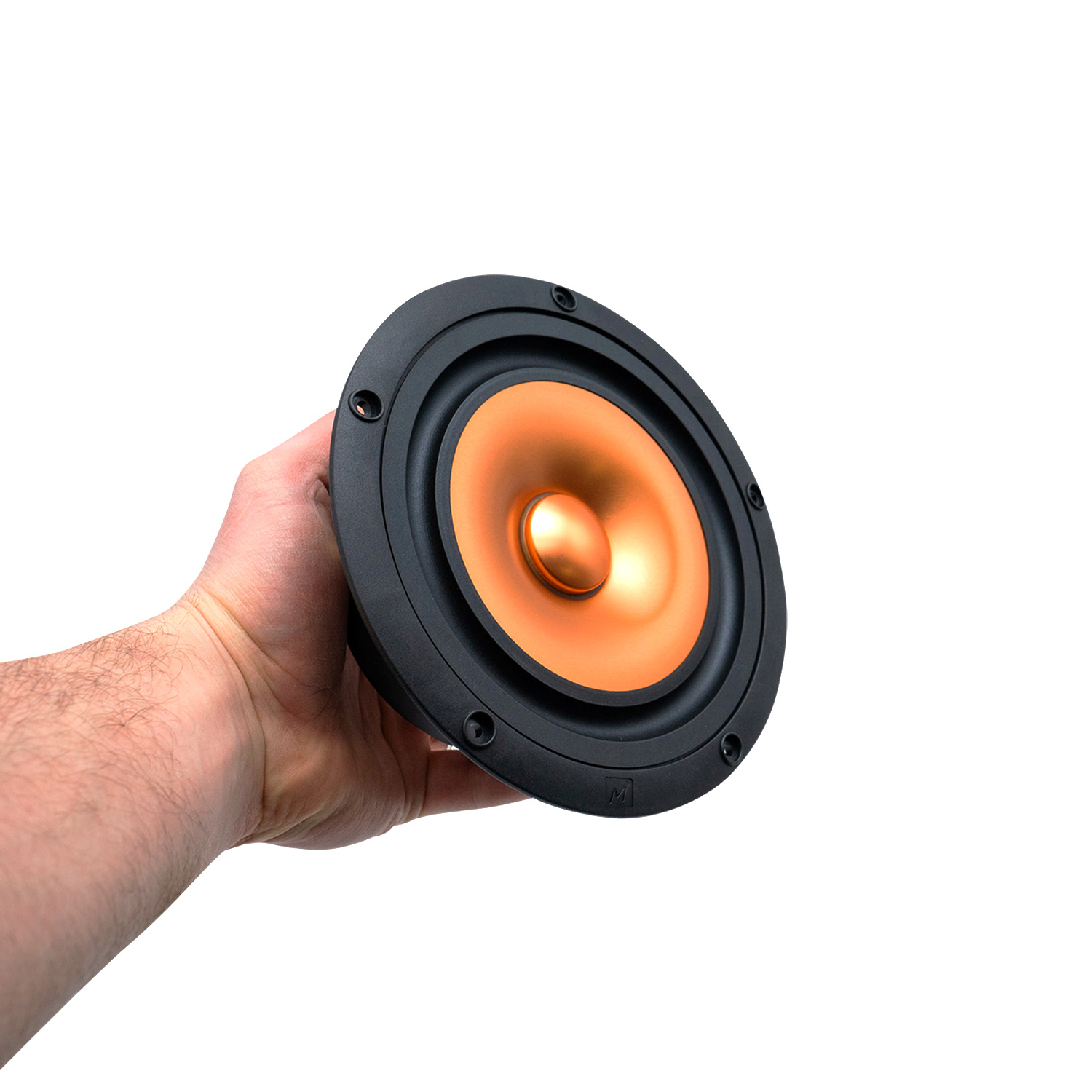

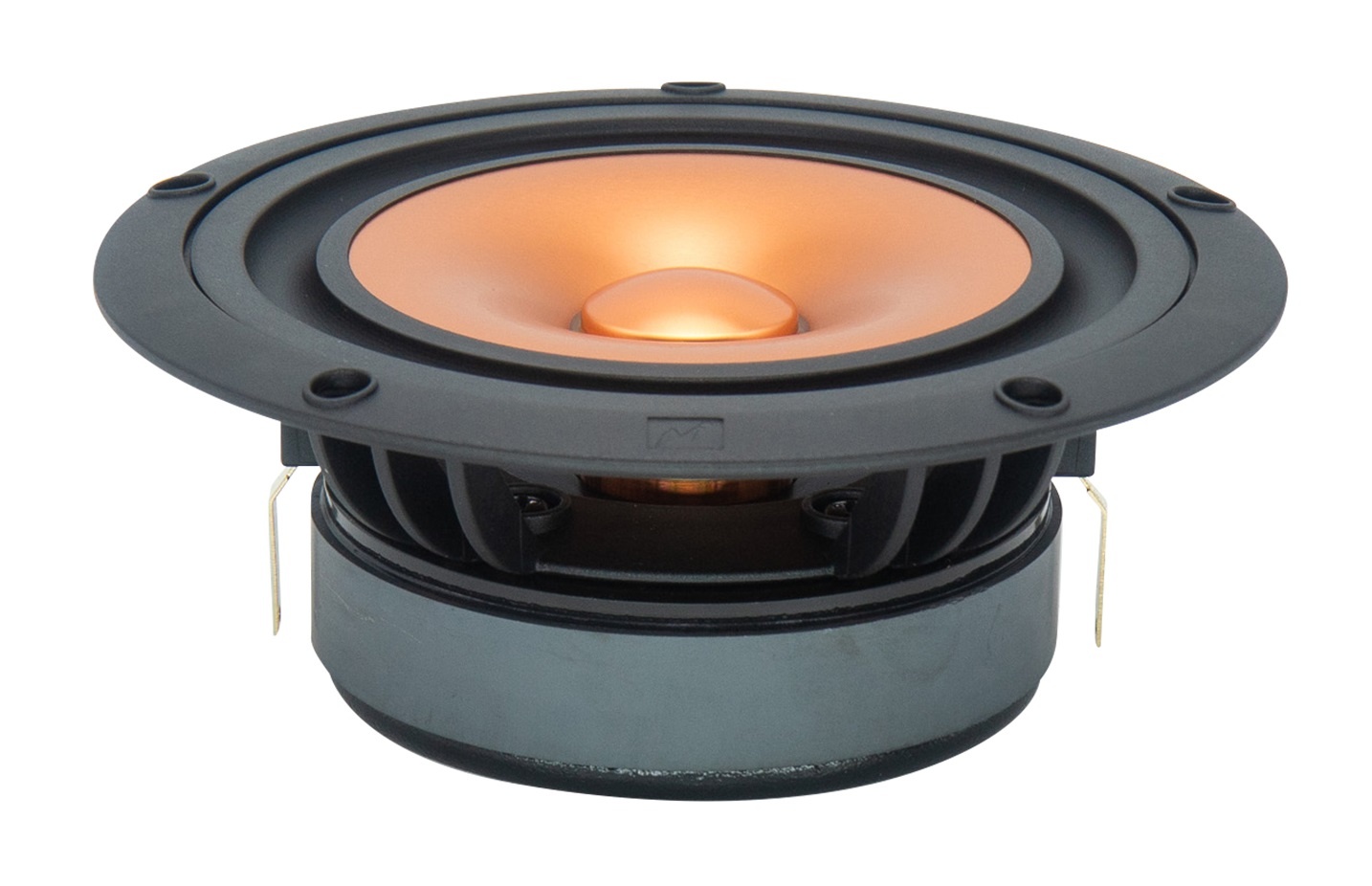

      Markaudio Alpair-11MS Gold 6,5" Full Range Woofer



      After releasing the Pluvia range of drivers, which have been well received, Mark set about the next design evolution. As some of you will know Mark’s design ethos is mechanical efficiency, adding lightness and simplifying where possible. In these new drivers Mark has managed to achieve much more with much less.



      The advanced design Alpair 11MS (mono suspension) is a radical departure from previous models. The 11MS is completely new, utilising many new design components and manufacturing processes. The two main features are the patent-pending Negative Camber Cone and Mono suspension system. Other key features include a custom designed, gas-flowed glass-fibre chassis and dedicated ultra light voice coil.



      The 11MS cone is an ultra shallow design affording a wide dispersion pattern. The outer section of the cone profile is angled backwards creating a +180 degrees emittance pattern to help optimise stereo imaging. Vocals from quality sources sound more natural and detailed as the central cap and cone profile are geometrically close-aligned.



      Much technical research has been done to balance the driver’s powertrain (cone, cap, coil and suspension) between its axis of travel and the corresponding centre of gravity. The new negative-camber cone facilitates the repositioning of the coil to avoid the need for a traditional rear suspension (spider). This new mono suspension design frees the coil from having a restrictive spider bonded to it, improving the transfer of energy from the driver’s motor to its cone. The new suspension employs an all new custom mix of four synthetic materials, resulting in improved linearity under low frequency loads.

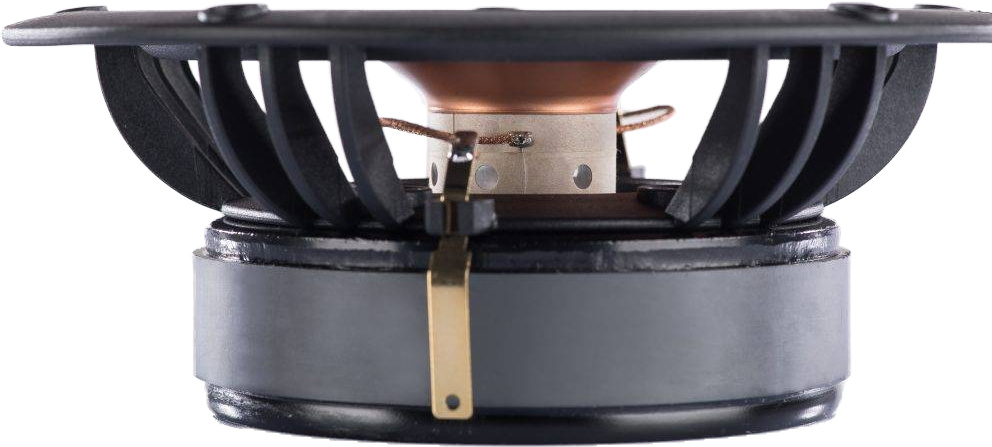

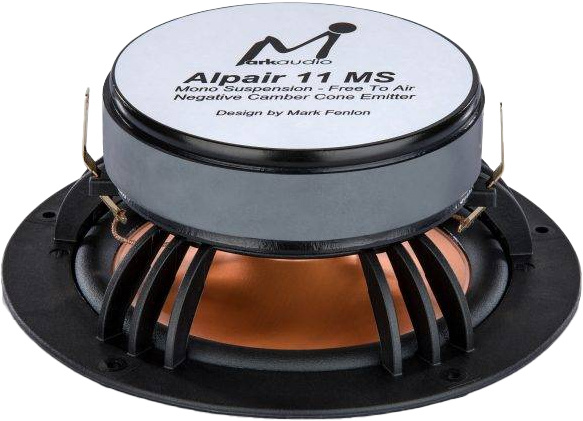

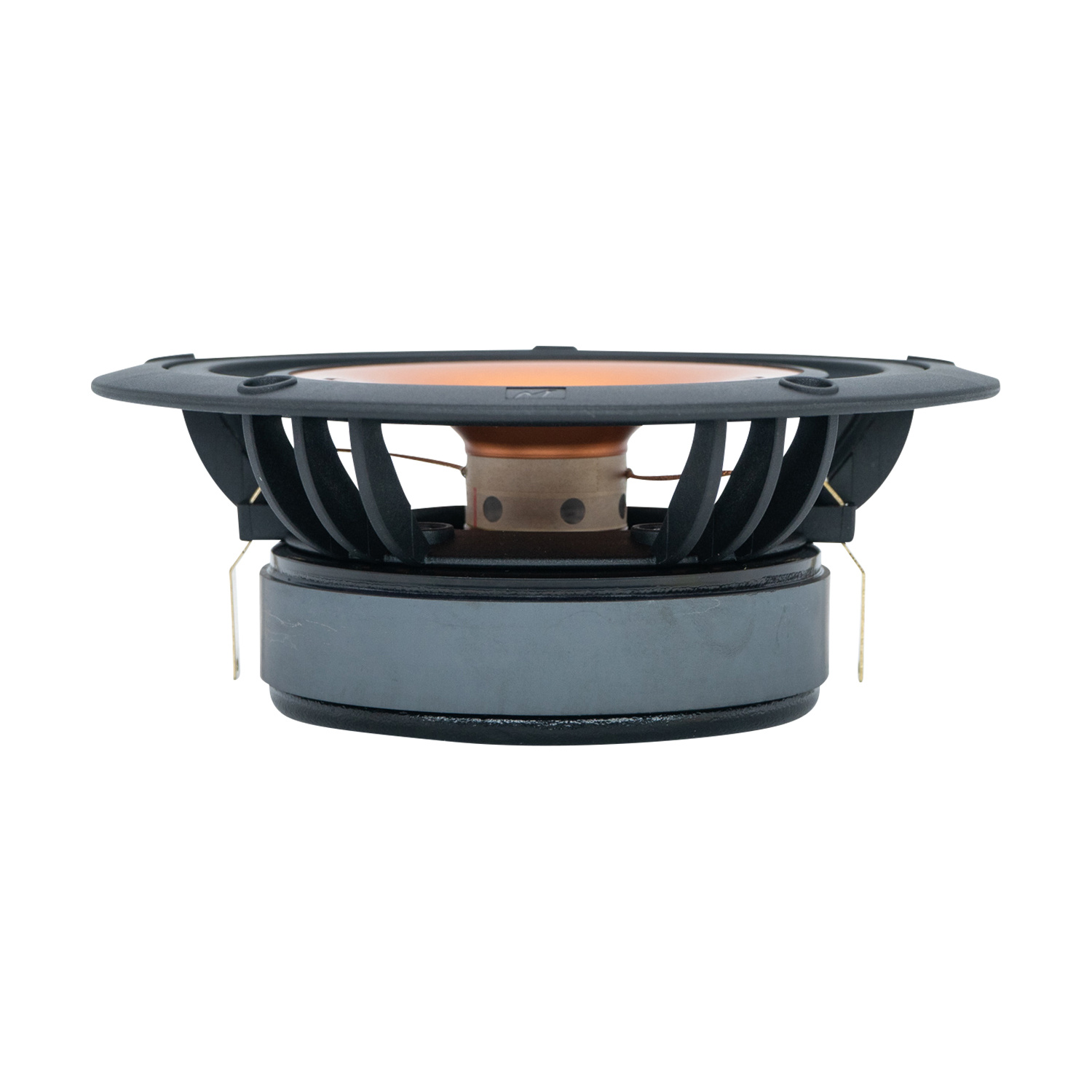

      The 11MS all new chassis is optimised to enhance airflow. The various slopes and rounded angles help improve sound wave emittance. Custom extended terminals are provided for push-on connectors or light-soldering for cables up to 1.5mm diameter.



      The 11MS is an audio driver designed for the dedicated music lover and High-Fidelity enthusiast. Attention to design detail along with an close tolerance manufacturing standard to +/- 0.05mm on most component alignments make this new generation of Markaudio transducers stand out from the crowd.

      Show more

      Specifiche

      Numero dell'articolo:
      Alpair-11MS Gold
      EAN
      0691046947567
      Serie del woofer
      Markaudio Alpair series
      Tipo di woofer
      Full-range
      Diametro nominale
      5"
      Gestione della potenza (RMS)
      35 Watt
      Gestione della potenza (max)
      35 Watt
      Potenza continua del programma
      1400 Watt
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      88.1 dB
      Risposta in frequenza
      40 - 22.000 Hz
      Diametro della bobina mobile
      76 mm
      Resistenza DC (Re)
      7.2 Ω
      Induttanza della bobina mobile (Le)
      1.00 mH
      Frequenza di risonanza (Fs)
      44 Hz
      Fattore di merito meccanico (Qms)
      2.22
      Fattore di merito totale (Qts)
      0.34
      Massa del diaframma incl. la massa dell'aria (Mms)
      12 g
      Cedevolezza meccanica della sospensione (Cms)
      1.01 mm/N
      Superficie del cono (Sd)
      111 cm²
      Prodotto BL (BL)
      7.8 Tm
      Volume equivalente di cedevolezza (Vas)
      17.7 L
      Escursione lineare massima (Xmax)
      8 mm
      Supporto della bobina mobile
      Copper
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      171.45 mm
      Profondità complessiva
      66.04 mm
      Diametro del ritaglio del pannello frontale
      144.02 mm
      # Numero di fori di montaggio
      5
      Diametro dei fori di montaggio
      6.5 mm
