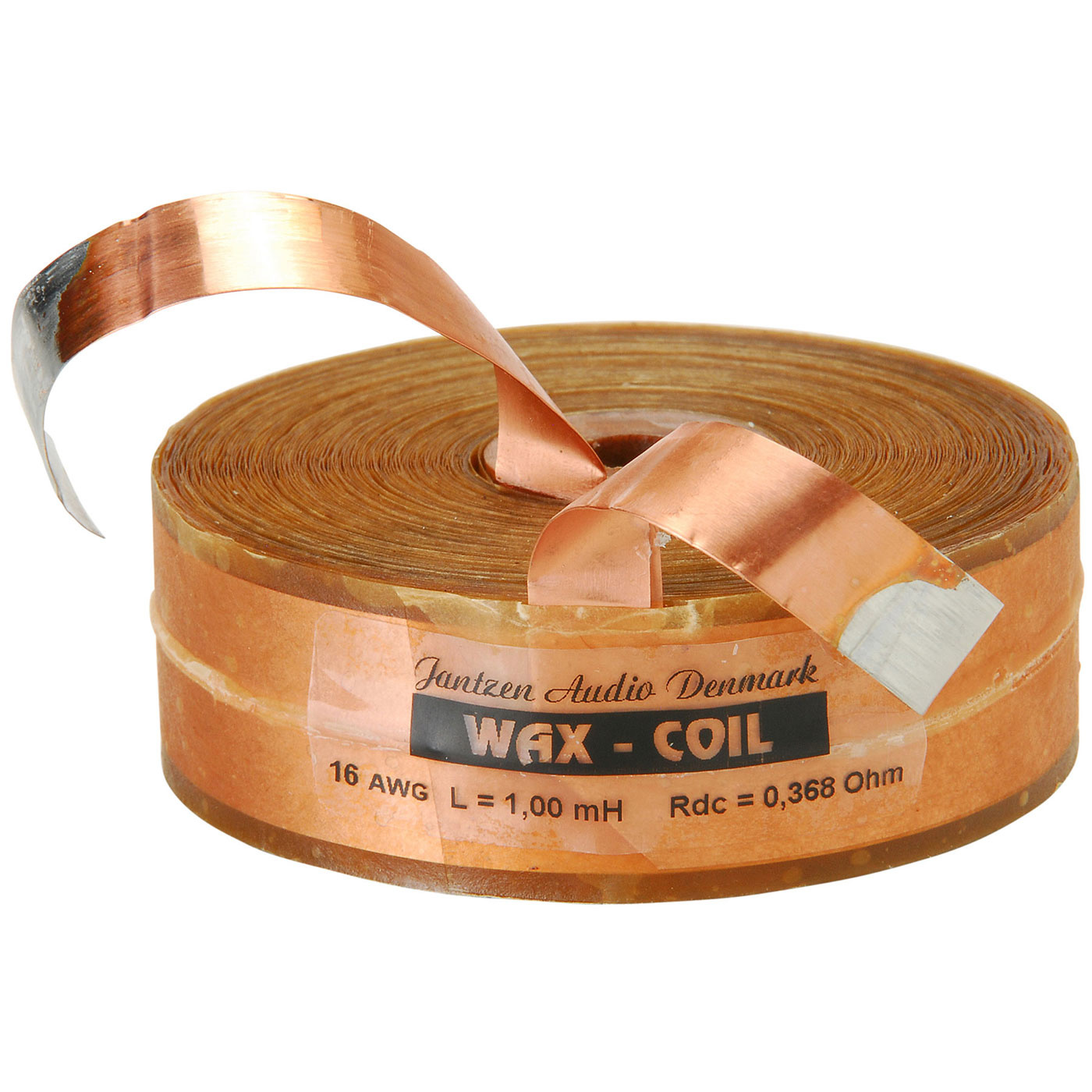

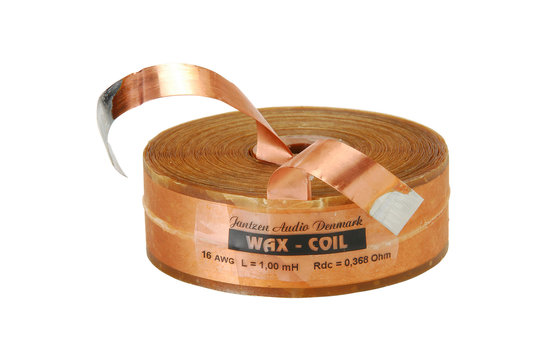

Name: Jantzen Audio 000-8630 | 1 mH | 0,36 Ω | 2% | 16 AWG | Wax Induttore
Brand: Jantzen Audio
SKU: 000-8630
Price: 39.45 EUR
Availability: BackOrder
Rating: 5 (2 reviews)

000-8630 | 1 mH | 0,36 Ω | 2% | 16 AWG | Wax Induttore

€ 32,60€ 39,45 Esaurito

Backorder

Spedizione gratuita a partire da € 199
Presto di nuovo disponibile
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Jantzen Audio 000-8630 | 1 mH | 0,36 Ω | 2% | 16 AWG

The insulation used for Wax Coils consist of a specially produced paper type and then the whole coil is impregnated with a unique paraffin wax, especially developed for Jantzen Audio. Superior to natural waxes, this special paraffin wax ensures that there are no air-pockets trapped in the wax and has a higher temperature tolerance, compared to i.e. beeswax.

Highlights

Made from ETP (Electrolytic-Tough-Pitch) copper foil
The copper foil is C11000 / IACS certified
The coil is impregnated with a special parafine wax
Each Wax Coil is tested with the Clio system as part of quality control
Insulation: Special paper

Product details

Jantzen Audio 000-8630 | 1,0 mH | 0,37 Ω | 2% | 16 AWG | Wax Coil

The Wax Coil is the innovation level for foil based audio-grade inductors. It is a high performance foil inductor offering improved power handling and dynamic head room. The wax impregnation insures the copper foil and winding integrity for decades of high performance. Using pure copper foil we have insured a better surface for electron travel and a better distortion reduction compared to single-wire based inductors. The Wax Coil is a further development of the Cross Coil, using the wax impregnation to further secure the tightness of windings.

All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.

Specifications: Power handling: 16 AWG – approx. 350 watts RMS • RDC tolerance: +/- 5% • Resistance Inductance tolerance: +/- 2%.
