      000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Induttore

      Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Induttore

      €120,45

      Non disponibile

      Aggiungi al carrello

      Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Induttore

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Jantzen Audio
      Mostra tutti Induttori foglia di rame
      000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Induttore
      € 99,55€ 120,45 Esaurito
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Induttore

      Descrizione del prodotto Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG

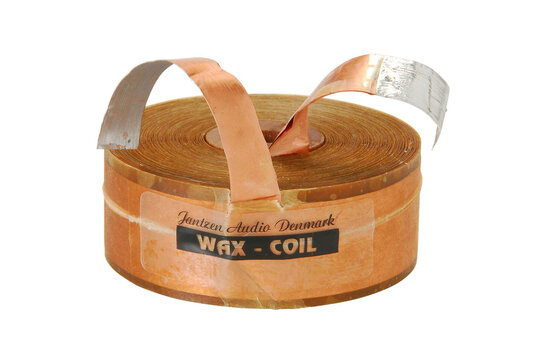

      Compact 2.0 mH Jantzen Audio Wax Coil with premium copper foil and paraffin wax impregnation.



      Highlights

      • Made with high-purity ETP copper foil
      • Special paraffin wax impregnation for durability
      • Precision inductance tolerance of +/- 2%
      • Low DCR of 0.28 Ω with a tolerance of +/- 5%



      Product details

      Jantzen Audio 000-8140 | 2,0 mH | 0,28 Ω | 2% | 12 AWG | Wax Coil



      The Jantzen Audio Wax Coil is engineered for audio enthusiasts seeking exceptional sound clarity and durability in crossover components. Boasting a 2.0 mH inductance with a tight tolerance of +/- 2%, this coil is designed to preserve the integrity of the audio signal, ensuring high-fidelity sound reproduction. The coil's low direct current resistance (DCR) of 0.28 Ω, with a tolerance of +/- 5%, minimizes energy loss and maintains efficiency. Crafted from Electrolytic-Tough-Pitch (ETP) copper foil, certified C11000/IACS, the Wax Coil offers a substantial surface for electron travel which significantly reduces distortion. Jantzen Audio's special paraffin wax impregnation process eliminates air pockets and increases temperature tolerance, outperforming natural waxes and securing the coil windings over time. The meticulous construction of the coil includes a specially produced paper insulation that, along with the wax, protects the copper foil. This creates a component that not only enhances audio quality but is also built to last, maintaining performance for decades. The Jantzen Audio Wax Coil is an evolution of the Cross Coil, further refined with wax impregnation to excel in high-performance audio systems.

      Show more

      Specifiche

      Numero dell'articolo:
      000-8140
      EAN
      9502813816454
      Tipo di avvolgimento
      Copper foil coils
      Induttanza
      2 mH
      Resistenza DC (DCR)
      0.28 ohms
      Tolleranza
      2%
      Diametro del filo
      12 AWG
      Dimensioni: Ø × H (mm)
      99 x 55
