Name: ICEpower 300A2 Modulo Amplificatore
Brand: ICEpower
SKU: 300A2
Price: 149.95 EUR
Availability: InStock

2 x 300 W

€ 123,93€ 149,95 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato prima delle 16:00, spedito oggi
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto ICEpower 300A2 Modulo Amplificatore

Highlights

Can be configured as a two-channel SE-amplifier or a single channel BTL-amplifier
Flexible mounting
Designed as hanger module for 1500S-57V
Thermal, over-current, over- and under-voltage protection
Fits 1U enclosures
Fully differential audio inputs
Amplifier Disable function
Clip detect signals for both channels
Real-time voltage monitor output for both channels

Product details

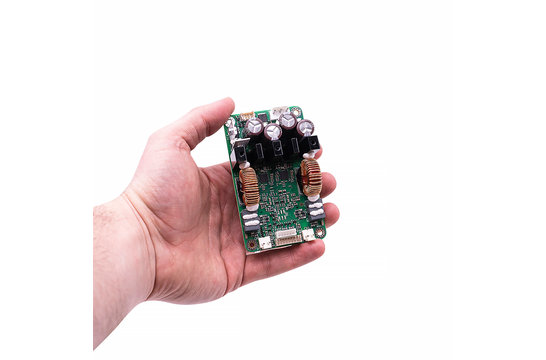

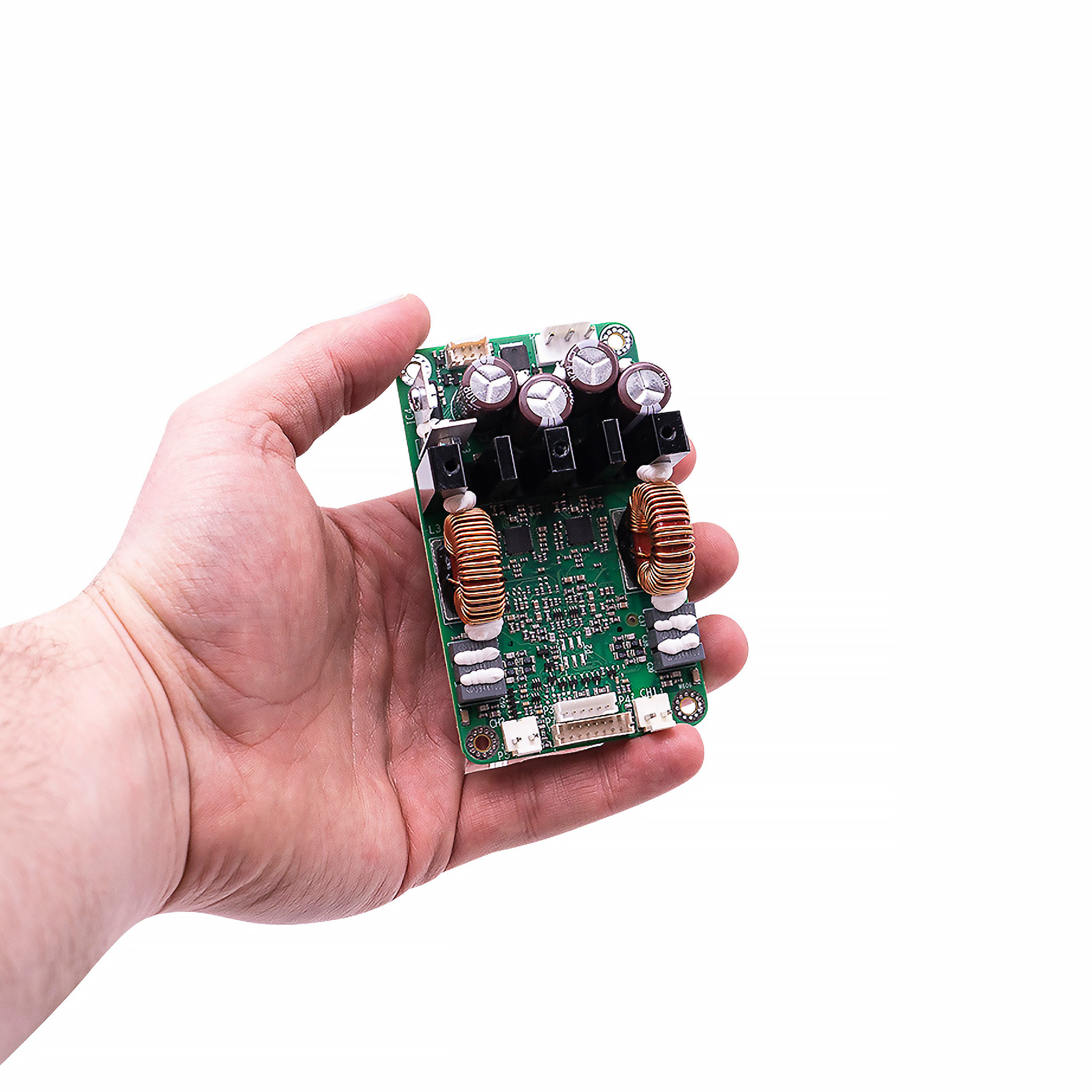

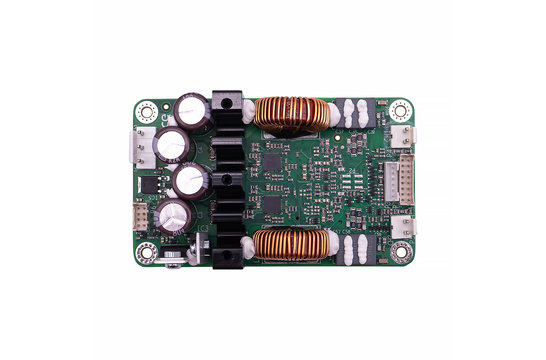

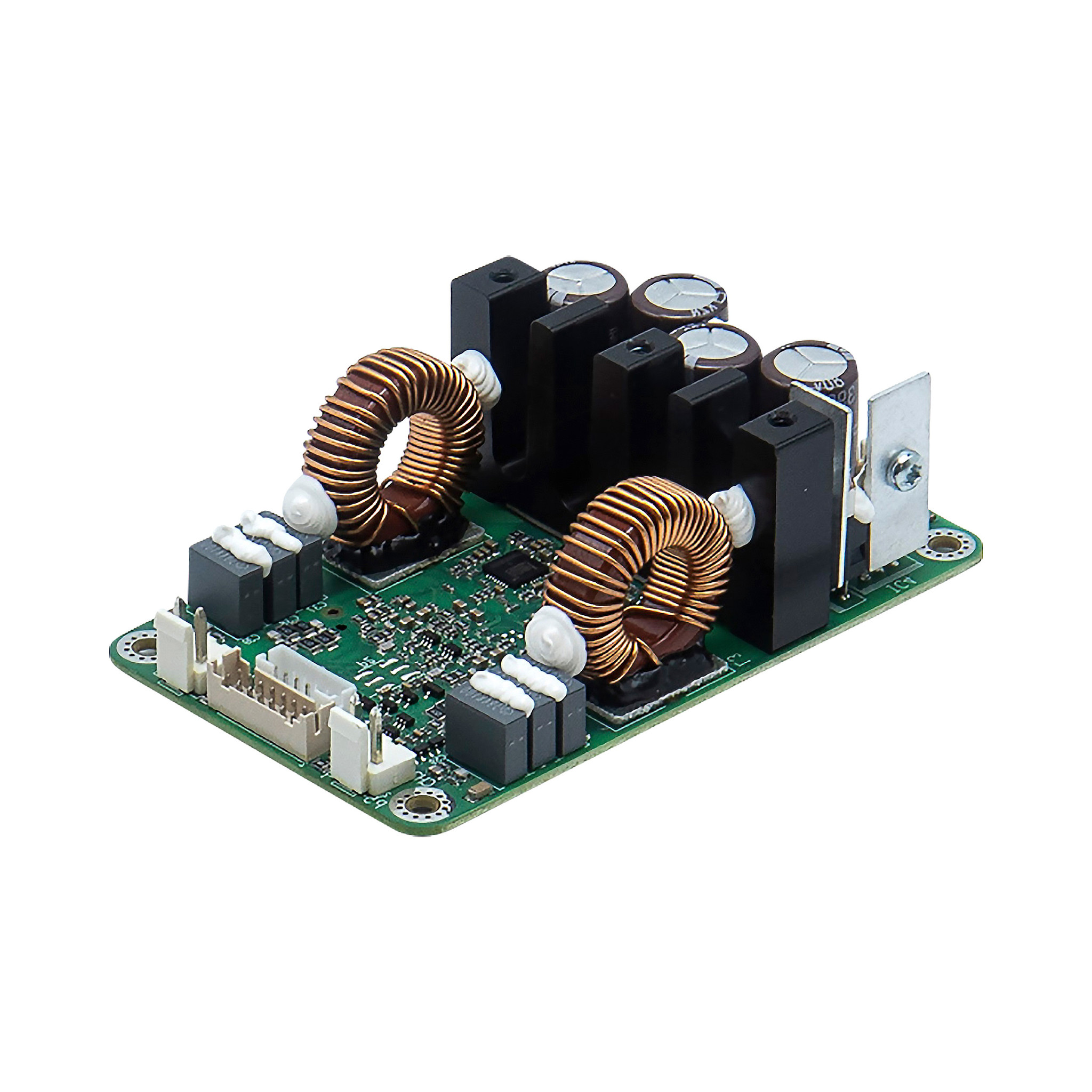

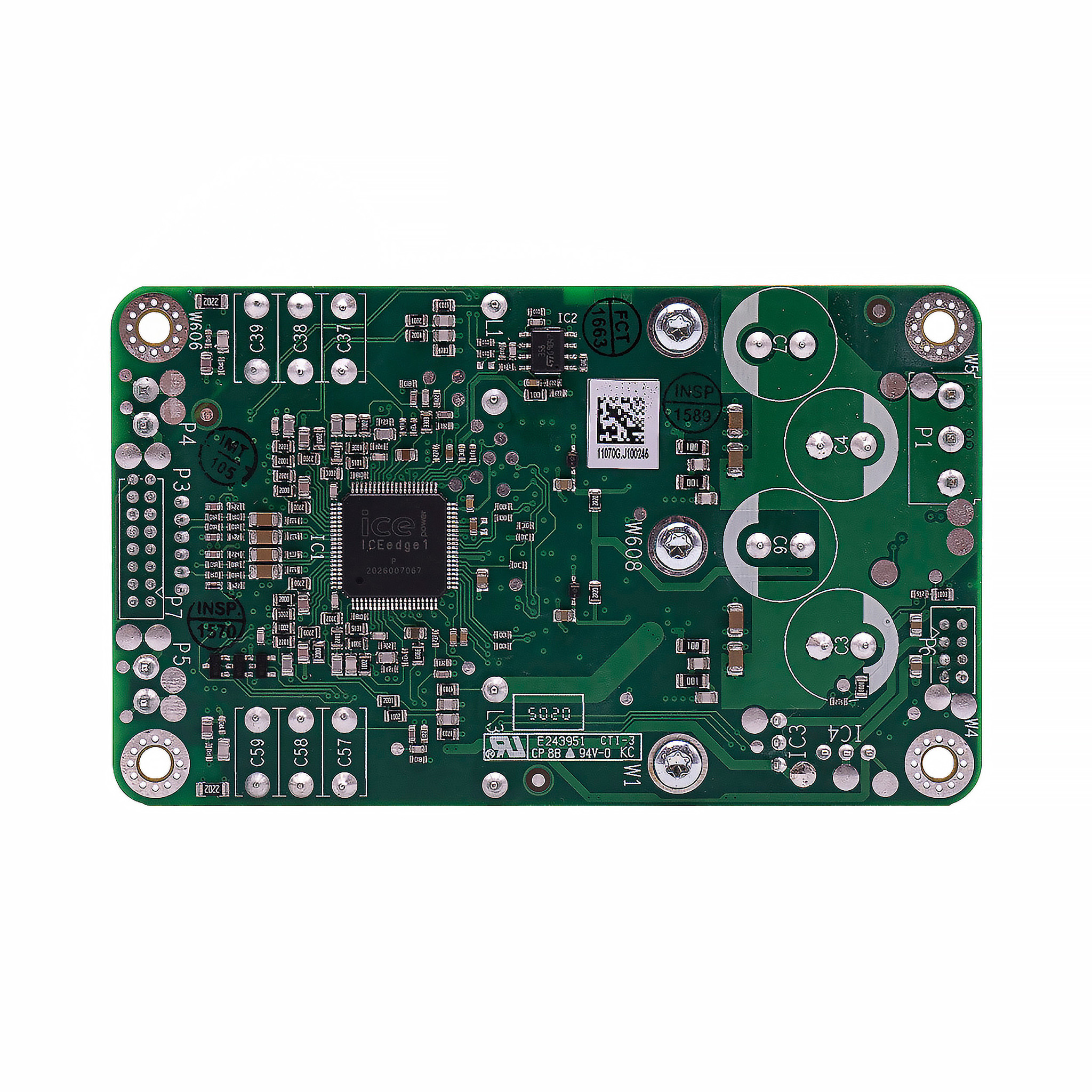

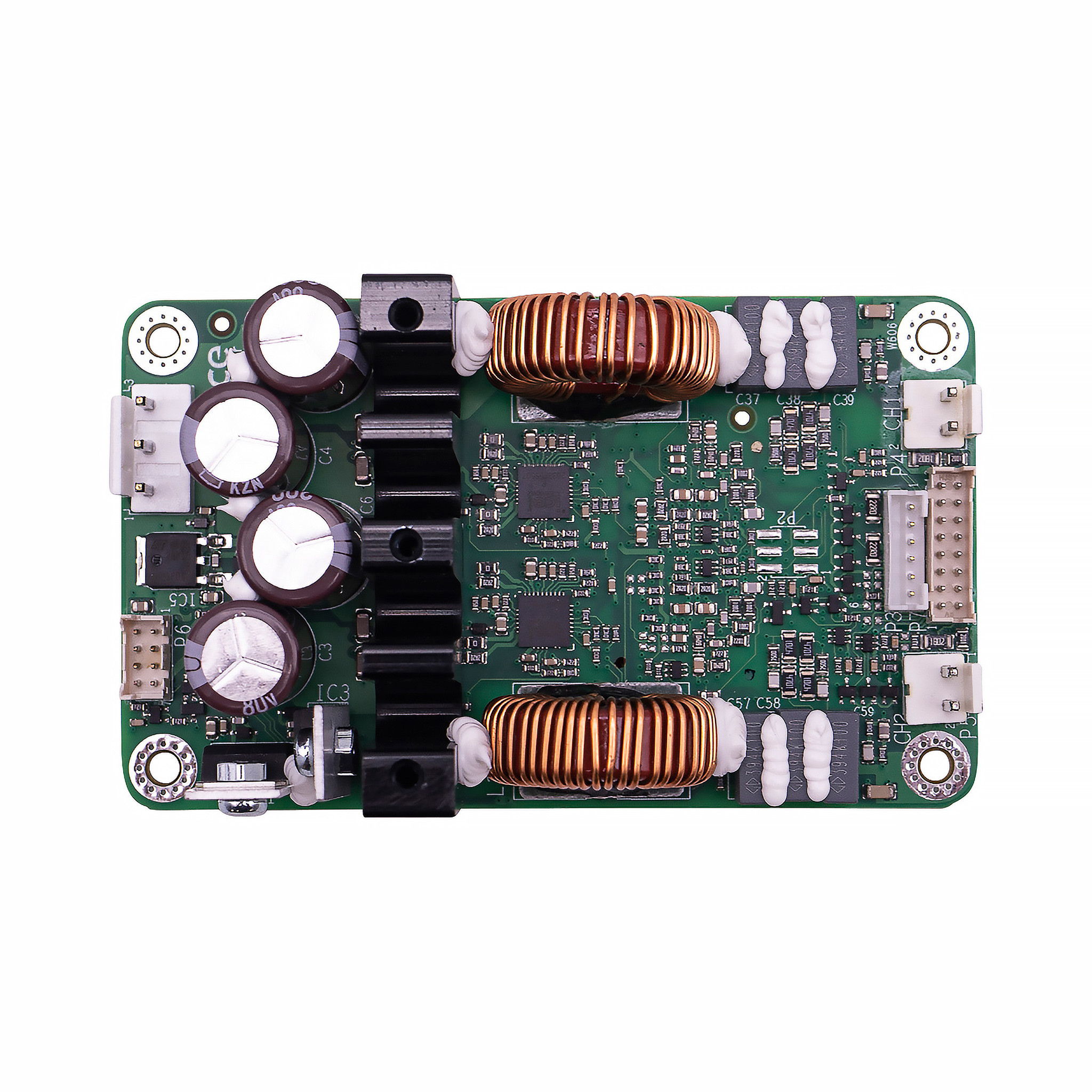

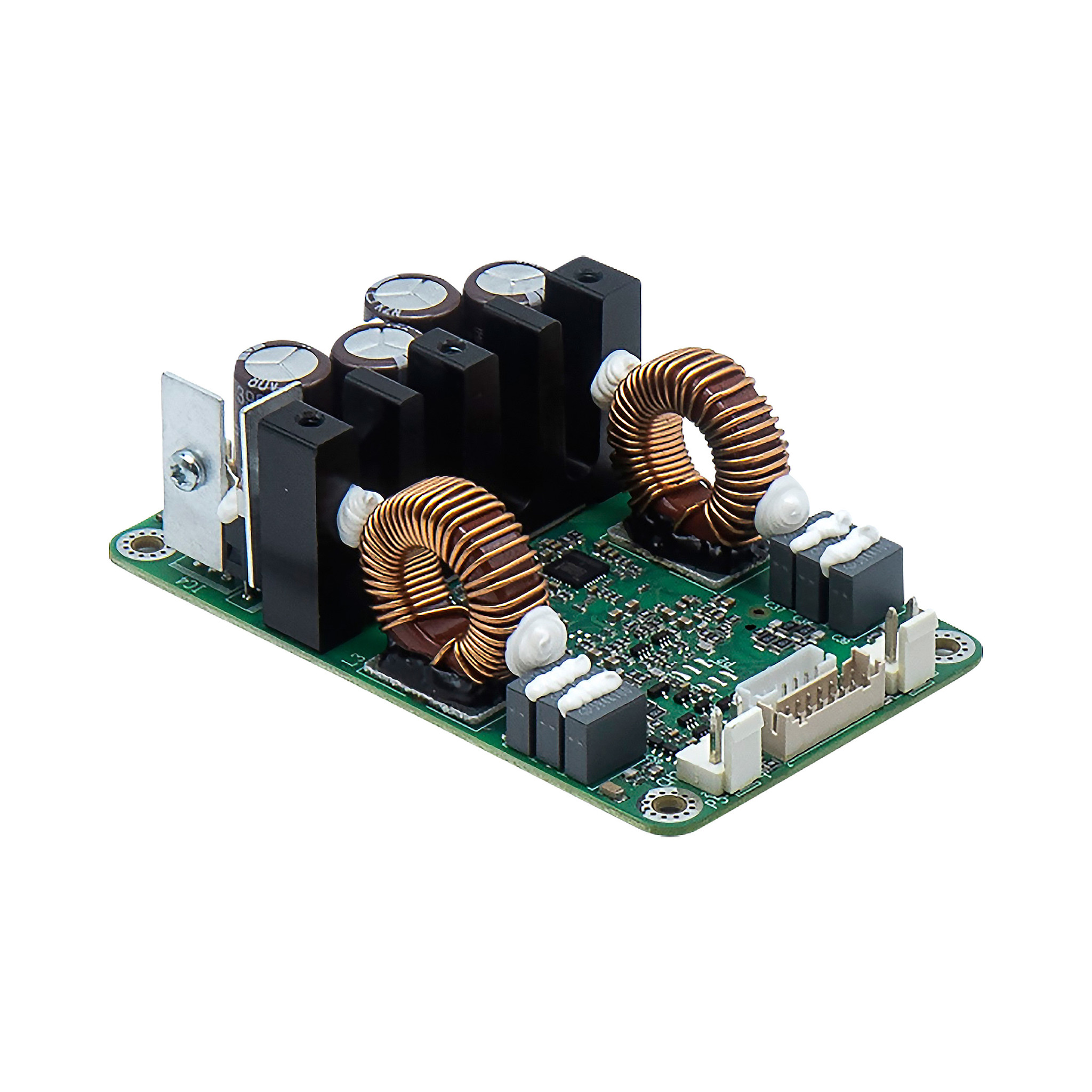

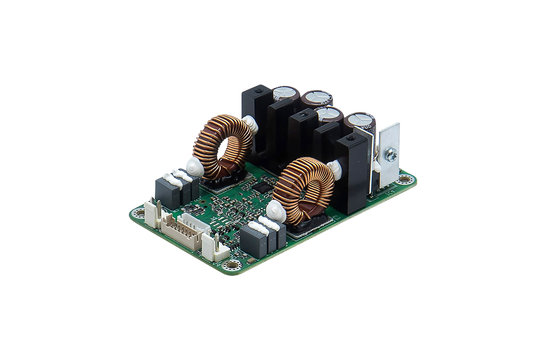

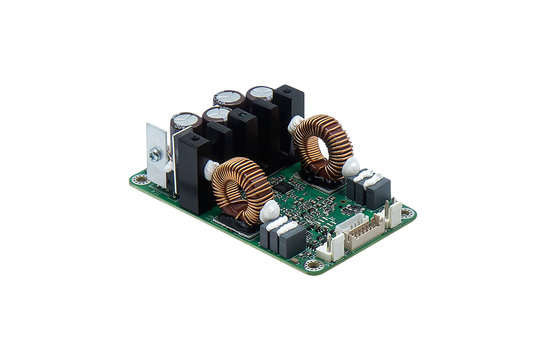

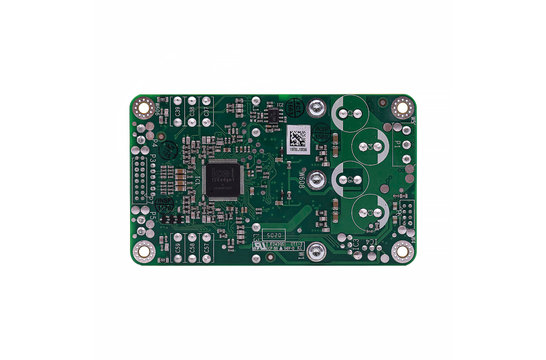

ICEpower 300A2 Amplifier Module

The 300A2 provides two channels with the outstanding audio quality from a small footprint. This module incorporates the state of the art ICEedge Chipset technology, enabling superior sound quality with an ultra-low noise floor, of a typical 22 µV for a signal-to-noise ratio of 123.5 dB. It may be used as a singled ended two-channel power amplifier for driving two 4Ω loudspeakers or as one channel amplifier to drive an 8Ω speaker in BTL mode.

The 300A2 provides comprehensive protection and monitoring functions with a user-friendly control interface. The dedicated monitor outputs allow for a real-time protection system on the loudspeaker output voltage. The module is designed for high continuous output power making it ideal, not only for home audio but also for more demanding applications such as studio monitors and high-performance amplifiers for PRO audio speakers. The integrated aluminium heatsink can easily be extended to an external heatsink for improved long term output power.

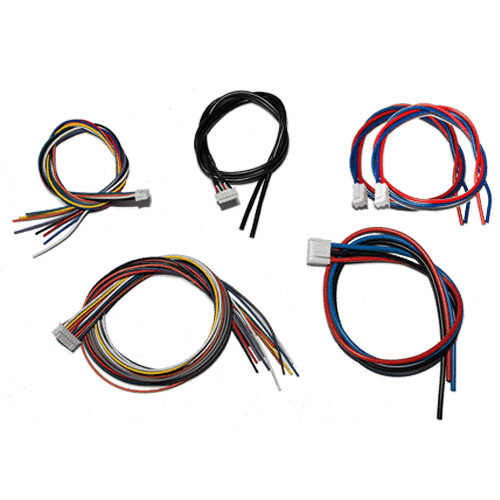

Cable Set

The included cable set allows access to all features of the 300A2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

What’s In The Box?

1 x 300A2 amplifier module
Cable set:
- 1 x (NA) Audio input 2 channel
- 1 x (NH) Hanger Small Signal Supply
- 2 x (F) 2pole Universal Speaker
- 1 x (NK) Basic+ control/features (16 pins)
- 1 x (NG) Hanger Rail Supply
