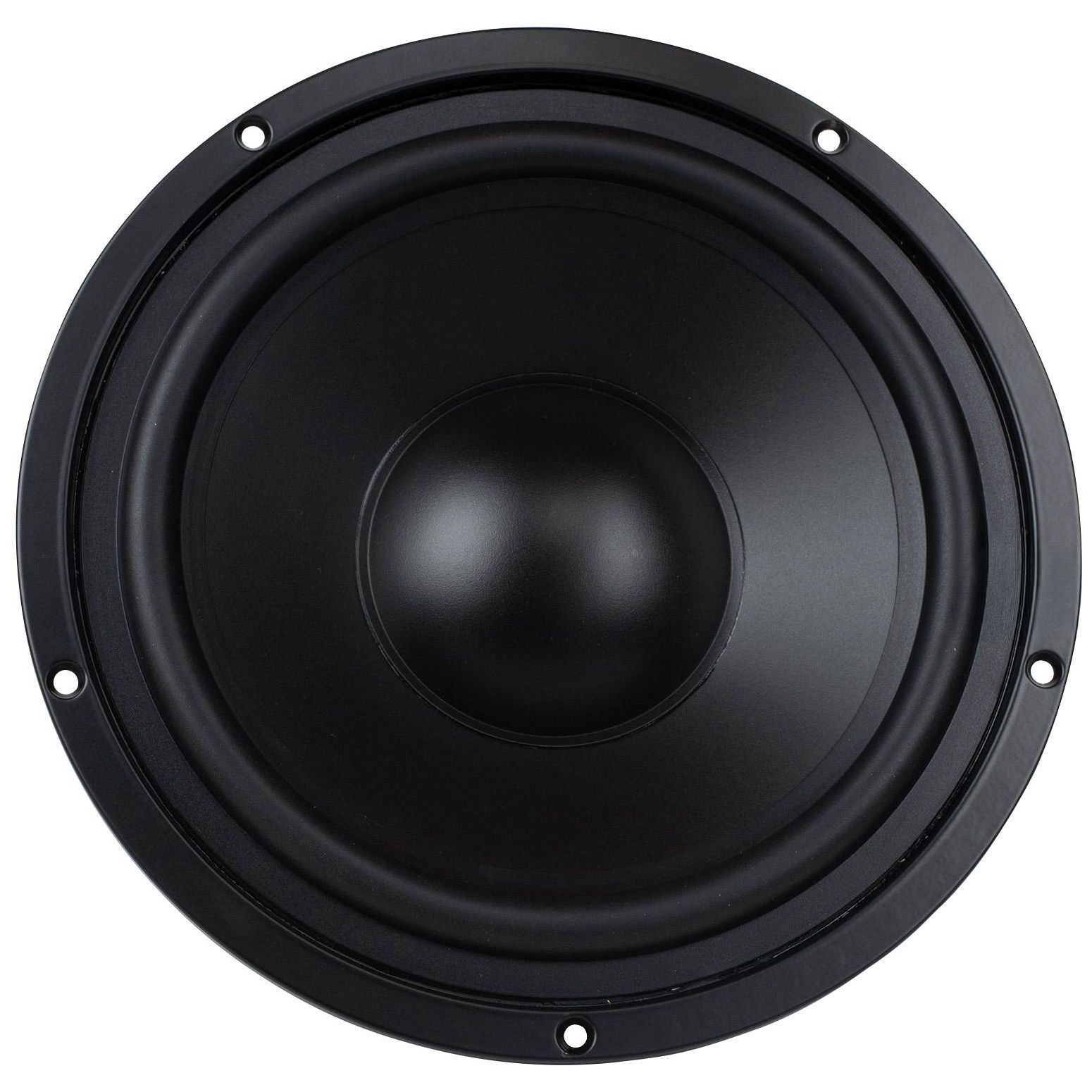

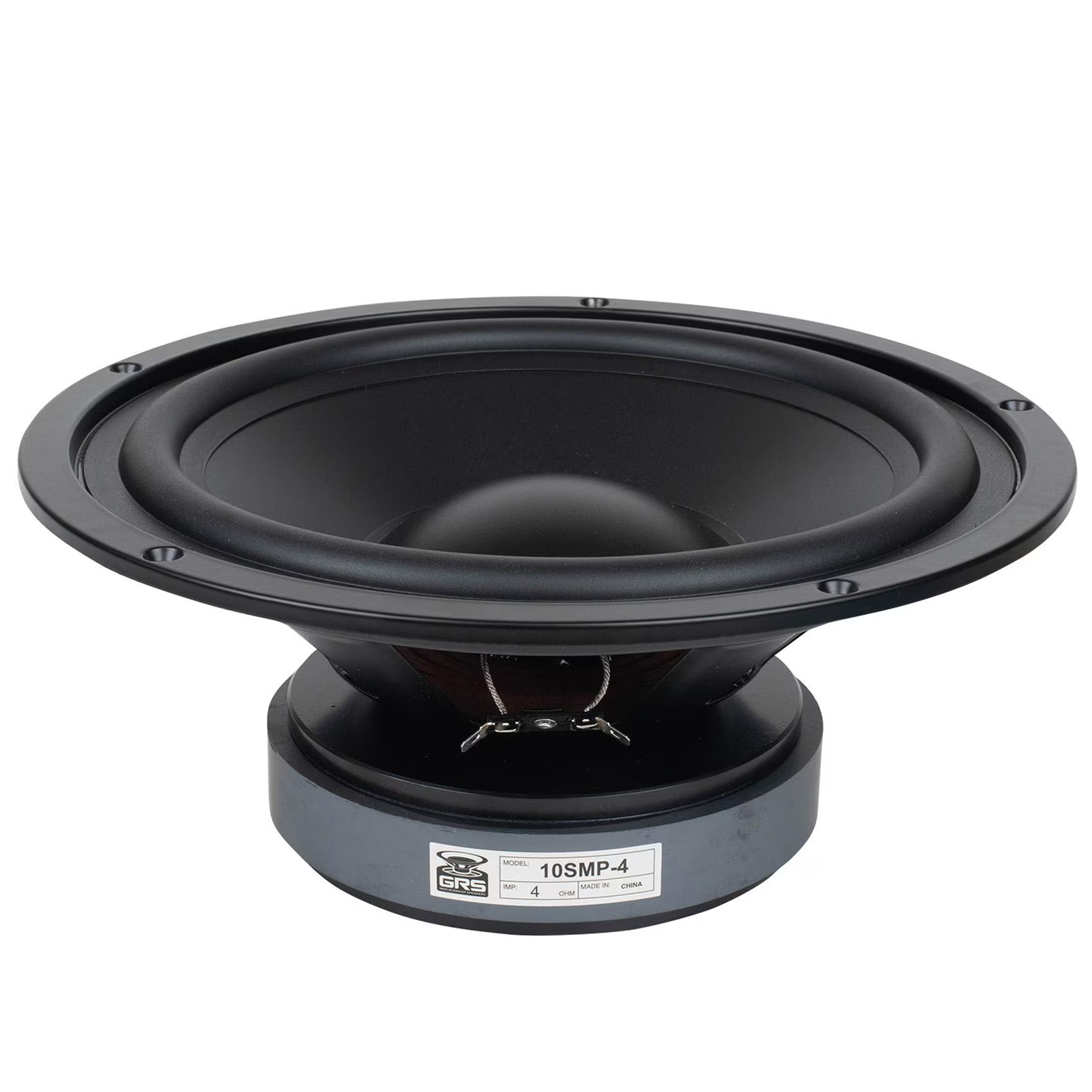

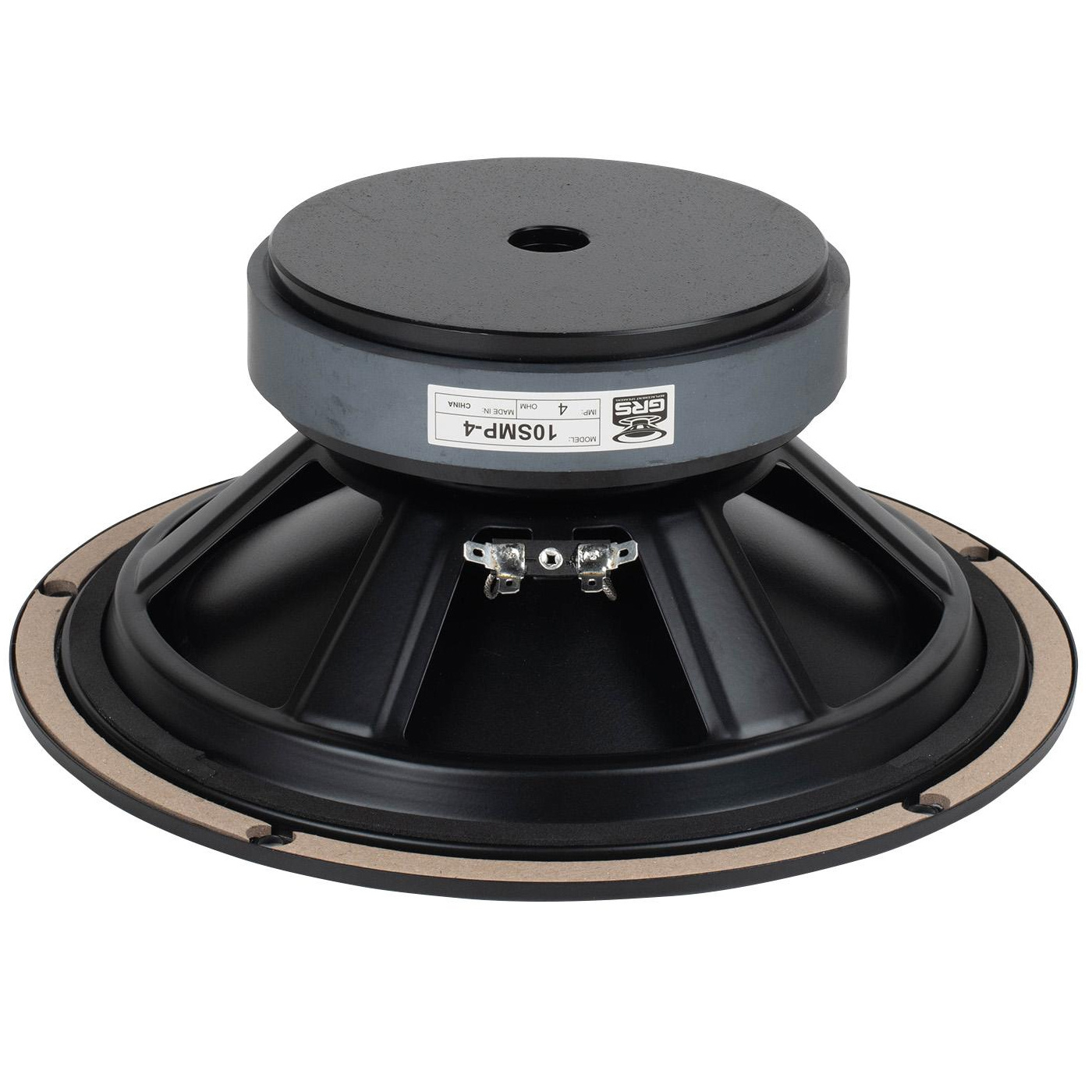

      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

      GRS 10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

      €69,95

      6 In magazzino

      Aggiungi al carrello

      GRS 10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

      1 klantbeoordelingen
      5 da 5
      1 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: GRS
      10" | 4 Ω
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      € 57,81€ 69,95 6 In magazzino
      • -5% Acquista 4 per soli € 66,45 per pezzo
      € 69,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito domani
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer
      10SMP-4 10" Surface Mount Poly Cone Bass-midwoofer

      Descrizione del prodotto GRS 10SMP-4 Bass-midwoofer

      The GRS 10SMP-4 is a high-performance 10" surface-mount woofer engineered for deep bass extension and efficient low-frequency reproduction. With a large cone area, 70W RMS power handling, and low Fs of 28 Hz, this 4-ohm driver delivers impactful bass in compact enclosures without compromising on clarity or control.



      Highlights of the GRS 10SMP-4

      • Extended low-frequency response down to 24 Hz with a low resonance frequency (Fs) of 28 Hz
      • High displacement (Vd 170 cm³) and 5 mm Xmax enable deep, clean bass output
      • Aluminum voice coil former and copper cap provide thermal stability and reduced distortion
      • Surface-mount frame with integrated foam gasket for airtight cabinet sealing



      Product details GRS 10SMP-4

      GRS 10SMP-4 Surface Mount Woofer



      The GRS 10SMP-4 is a 10" poly cone woofer designed for surface-mount installation, offering powerful low-frequency performance in shallow speaker enclosures. With a 4-ohm impedance and 70W RMS power handling, this woofer features a vented pole piece for enhanced cooling, a copper cap to reduce inductance and distortion, and an aluminum voice coil former for excellent heat dissipation. It has a high-efficiency design with a sensitivity of 90 dB @ 2.83V/1m and supports a usable frequency range of 24 Hz to 2,000 Hz. The large cone area (Sd 340 cm²) and generous displacement volume (Vd 170 cm³) make it ideal for deep bass response, while its controlled Qts of 0.51 and low Le of 0.34 mH ensure tight, articulate sound reproduction. A perfect fit for DIY home theater subs, compact full-range towers, or automotive installs demanding slim profile and big sound.

      Show more

      Specifiche

      Numero dell'articolo:
      10SMP-4
      EAN
      0848864079868
      Serie del woofer
      Peerless by Tymphany SDF series
      Tipo di woofer
      Bass-midwoofer
      Gestione della potenza (RMS)
      70 Watt
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      90 dB
      Risposta in frequenza
      24 - 2000 Hz
      Diametro della bobina mobile
      39 mm
      Resistenza DC (Re)
      3.8 Ω
      Induttanza della bobina mobile (Le)
      0.34 mH
      Frequenza di risonanza (Fs)
      28 Hz
      Fattore di merito meccanico (Qms)
      2.72
      Fattore di merito elettromagnetico (Qes)
      0.63
      Fattore di merito totale (Qts)
      0.51
      Massa del diaframma incl. la massa dell'aria (Mms)
      63 g
      Cedevolezza meccanica della sospensione (Cms)
      0.51 mm/N
      Superficie del cono (Sd)
      340 cm²
      Volume di spostamento (Vd)
      170 cm³
      Prodotto BL (BL)
      8.2 Tm
      Volume equivalente di cedevolezza (Vas)
      86 L
      Escursione lineare massima (Xmax)
      5 mm
      Materiale del cono / diaframma
      Paper
      Materiale della sospensione
      Rubber
      Materiale del filo della bobina mobile
      Copper
      Materiale del cestello / telaio
      Cast Aluminum
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      269 mm
      # Numero di fori di montaggio
      5
      Diametro dei fori di montaggio
      5.0 mm

      Show more

      Recensioni

      1 klantbeoordelingen
      Recensisci questo prodotto
      5 di 5
      Super Teil
      Da Marcus on 1 Aprile 2026
