      HF106-8F Driver a Compressione

      FaitalPRO HF106-8F Driver a Compressione

      €229,95

      2 In magazzino

      Aggiungi al carrello

      FaitalPRO HF106-8F Driver a Compressione

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: FaitalPRO
      1" | 8 Ω
      HF106-8F Driver a Compressione
      HF106-8F Driver a Compressione
      HF106-8F Driver a Compressione
      HF106-8F Driver a Compressione
      € 190,04€ 229,95 2 In magazzino
      • -5% Acquista 4 per soli € 218,45 per pezzo
      € 229,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      HF106-8F Driver a Compressione
      HF106-8F Driver a Compressione
      HF106-8F Driver a Compressione
      HF106-8F Driver a Compressione

      Descrizione del prodotto FaitalPRO HF106-8F Driver a Compressione

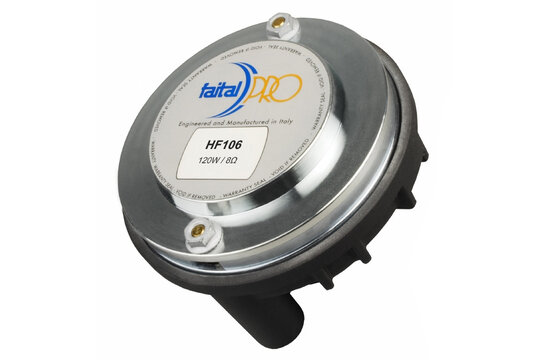

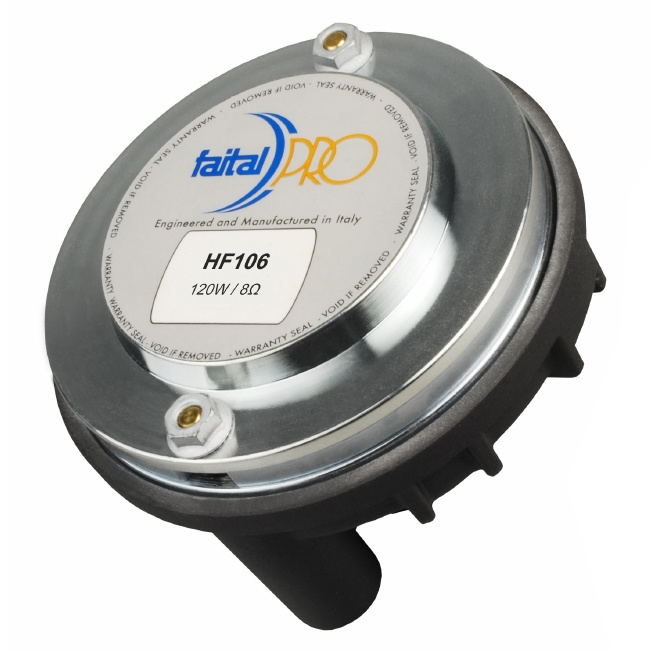

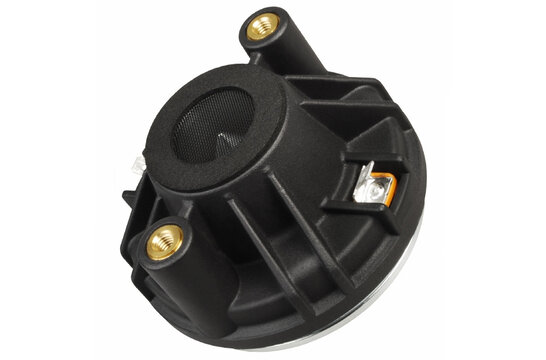

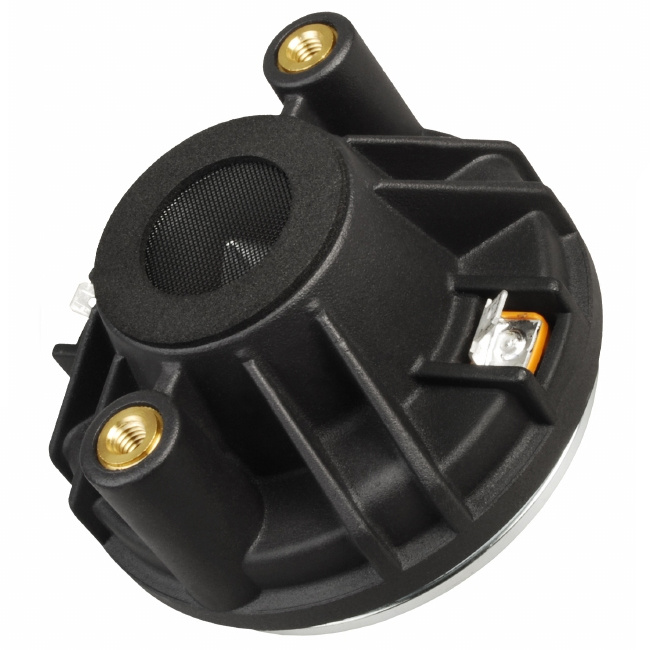

      The FaitalPRO HF106 is a compact but powerful 1-inch high-frequency compression driver, optimized for maximum output and clarity in professional audio applications. With its high 110 dB sensitivity, neodymium magnet, and 60 W AES power rating, it delivers articulate high-frequency reproduction with outstanding efficiency.



      Highlights of the FaitalPRO HF106

      • Extremely high 110 dB sensitivity for unmatched output in compact systems
      • 60 W AES and 120 W peak power handling via 1.73" aluminum voice coil
      • Neodymium ring magnet with 2.1 T flux density ensures low weight and strong motor force
      • Annular diaphragm and phase plug design for smooth response from 1.3 kHz to 20 kHz



      Product details FaitalPRO HF106

      FaitalPRO HF106 High-Frequency Compression Driver – 8 Ohm Version



      The FaitalPRO HF106 is a high-efficiency 1” exit compression driver delivering exceptional clarity, output, and control in the high-frequency range. Its 44 mm (1.73 in) aluminum voice coil on a Kapton former handles 60 W AES and up to 120 W peak, while offering a wide frequency range from 1.3 kHz to 20 kHz. This makes it suitable for both two-way and three-way systems where a low crossover point and high output are essential.

      Built around a lightweight neodymium ring magnet, the HF106 generates an impressive 2.1 T of flux density. The annular diaphragm and phase plug configuration ensure smooth and detailed high-frequency reproduction with excellent phase coherence. Weighing just 1.1 kg and with a depth under 60 mm, it integrates well into compact horns and cabinet designs where performance must be maximized within a limited space.

      Show more

      Specifiche

      Numero dell'articolo:
      HF106-8F
      EAN
      9505268581557
      Tipo di tweeter
      Compression Driver
      Gestione della potenza (RMS)
      10 Watt
      Gestione della potenza (max)
      20 Watt
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      110 dB
      Risposta in frequenza
      1300 - 20.000 Hz
      Frequenza di risonanza (Fs)
      85 Hz
      Resistenza DC (Re)
      6.2 Ω
      Induttanza della bobina mobile (Le)
      0.62 mH
      Fattore di merito meccanico (Qms)
      7.65
      Fattore di merito elettromagnetico (Qes)
      0.88
      Fattore di merito totale (Qts)
      0.79
      Diametro esterno complessivo
      95.7 mm
      Profondità
      58.8 mm
      Tipo di montaggio
      Holes 2, 6 mm

      Show more
