Descrizione del prodotto Dayton Audio Ultimax UM15-22 Subwoofer

Please note that the Dayton Audio UM15-22 has been replaced with the Dayton Audio UMII15-22

Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design.

Highlights

Sweeps massive amounts of air!
Over 1-1/2" of total cone travel
800 watts RMS power handling
The latest in subwoofer technology
Dual linear stiffness spiders limit distortion and rocking modes
Dual 2 ohm, 2-layer copper voice coils
Large vented pole piece and under-spider venting

Product details

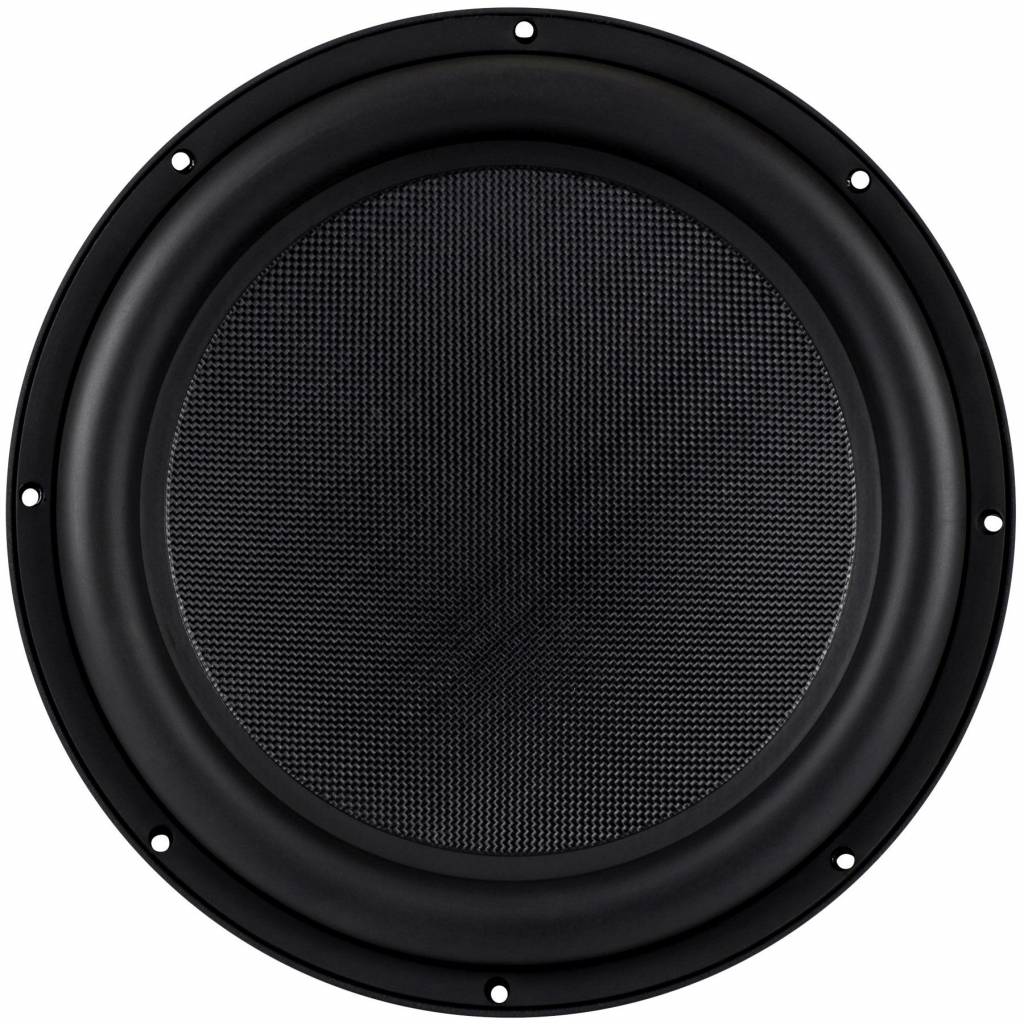

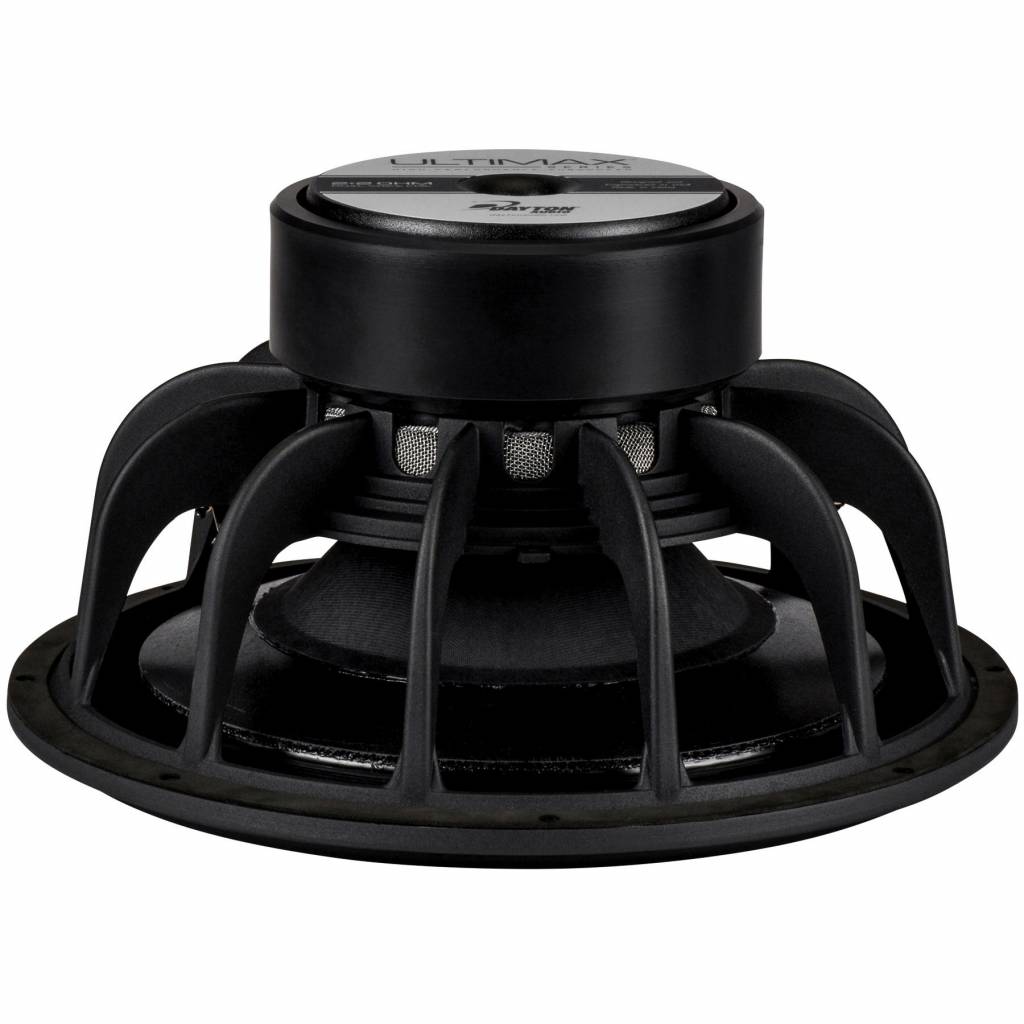

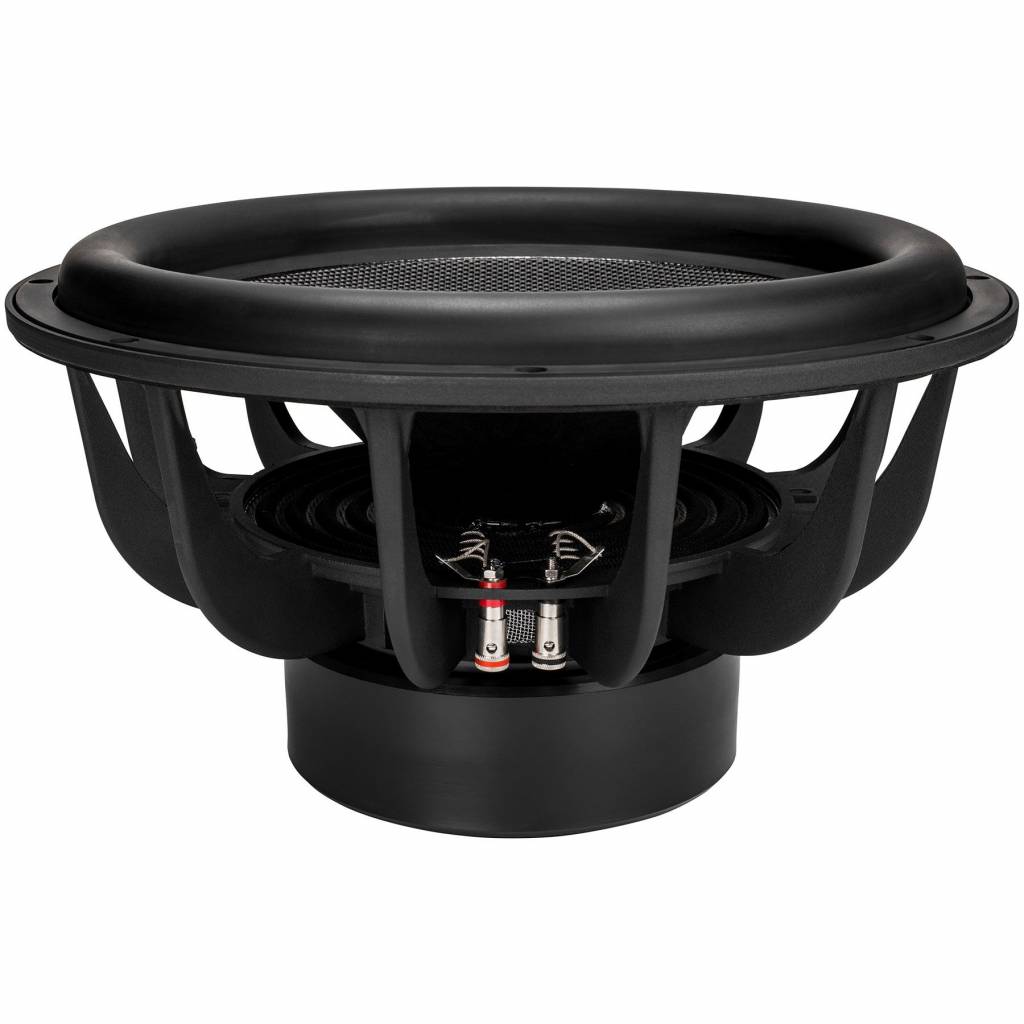

Dayton Audio UM15-22 15" Ultimax DVC Subwoofer 2 ohms Per Coil

If you want outrageous amounts of bass, you gotta move some air

The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.

The versatility you need for mobile, home, or pro subwoofer excellence

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.

Built to produce massive low frequency output and keep on doing it

To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.

A strong motor takes you to wherever you want to be

A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

width=

Cabinet recommendations:

Sealed: 3.8 cubic ft. (net internal, not including driver volume) with 3 lbs. of Acousta-Stuf polyfill produces an f3 of 34 Hz with a 0.83 Qtc alignment
Vented: 4.5 cubic ft. (net internal, not including driver or port volume) produces an f3 of 24 Hz. Larger cabinets and lower tuning frequencies are possible.

Note: All parameters derived with voice coils wired in series.

Recensioni

9 reviews

Recensisci questo prodotto

5 di 5

Aivan mahtava sq käytössä autossa 125l suljetussa

Da Tero on 29 Marzo 2023

This is a very, very well built woofer who delivers exactly what it says! Oddly there is no exaggeration in the selling text, And it delivers more. Built towers 40 by 40 cm and 1,2M high wit 2x4"x66cm vents. and it is digging very, very deep in the octaves. It was almost hard to beleive the room analyzer :D going down to 16Hz and feeling it all the way. I have built woofers for 35+ years and this must be the (for the money) best of them! Thanks S...

Da Andreas Karlsson on 18 Luglio 2022

Super!!!

Da Jani K. on 27 Ottobre 2020

No description was given

Da Attila G. on 19 Ottobre 2020

answer to Nesho N
Are you sure with that volume, thats 0.43cubic meter means 430liters.....
in simulation in closed cabinet its about qtc 0,535 and F3 at 34HZ....
IN 120liter cabinet youre at qtc 0,715, F3 at33 HZ....

Da jano K. on 14 Aprile 2020

2 di 5

It doesnt sound very deep I placed it in a 0.43 m3 sealed box. Used behringer nx3000dsp and have tuned it down to 20hz. But the dpund does not sound deep. Any advice?

Da Nesho N. on 27 Marzo 2020

These subwoofers are beasts. I bought two pieces I'm so happy. I made DIY boxes for them with an internal volume of 170 liters, which I powered with a Behringer NX3000D amplifier . Oh holy shit ... these things make me shaky ... For my home theater sizes which are 3.40 x 5 x 2.60 meters, they make enough sound pressure to feel it with every part of my body. You can't buy stock home theater subwoofers for that price. It cost me less than € 1300 ...

Da Ivan Andonov on 16 Febbraio 2020

Da Henrik B. on 17 Ottobre 2019

Arrived quickly, within a week to the UK. The UM15 sounds awsome, I havnt "broke in" the Sub yet but I'm sure it can only get better. It's a great purchase but is often out of stock due to Dayton not being able to keep up with demand (assumption). Thanks SoundImports.

Da Mahbub R. on 14 Aprile 2018
