      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil

      Dayton Audio SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil

      €569,95

      10 Arrivo previsto il 19-12-2025

      Aggiungi al carrello

      Dayton Audio SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Dayton Audio
      Mostra tutti Nuovi prodotti
      18" | 2+2 Ω
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      € 471,03€ 569,95 Esaurito10 Arrivo previsto il 19-12-2025
      • -5% Acquista 4 per soli € 541,45 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo cinque anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil
      SS18-22 Signature Series 18" DVC Subwoofer 2 ohms Per Coil

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • 3" 4-layer CCAW voice coil for high power handling

      Descrizione del prodotto Dayton Audio Signature SS18-22 DVC Subwoofer

      The SS18-22 is an 18" Signature Series subwoofer built for uncompromising low-frequency performance. With massive displacement, dual 2-ohm voice coils, and an ultra-powerful motor system, it’s designed to deliver reference-level bass in high-output home theater, professional audio, or car audio systems.



      Highlights of the SS18-22 Signature Series Subwoofer

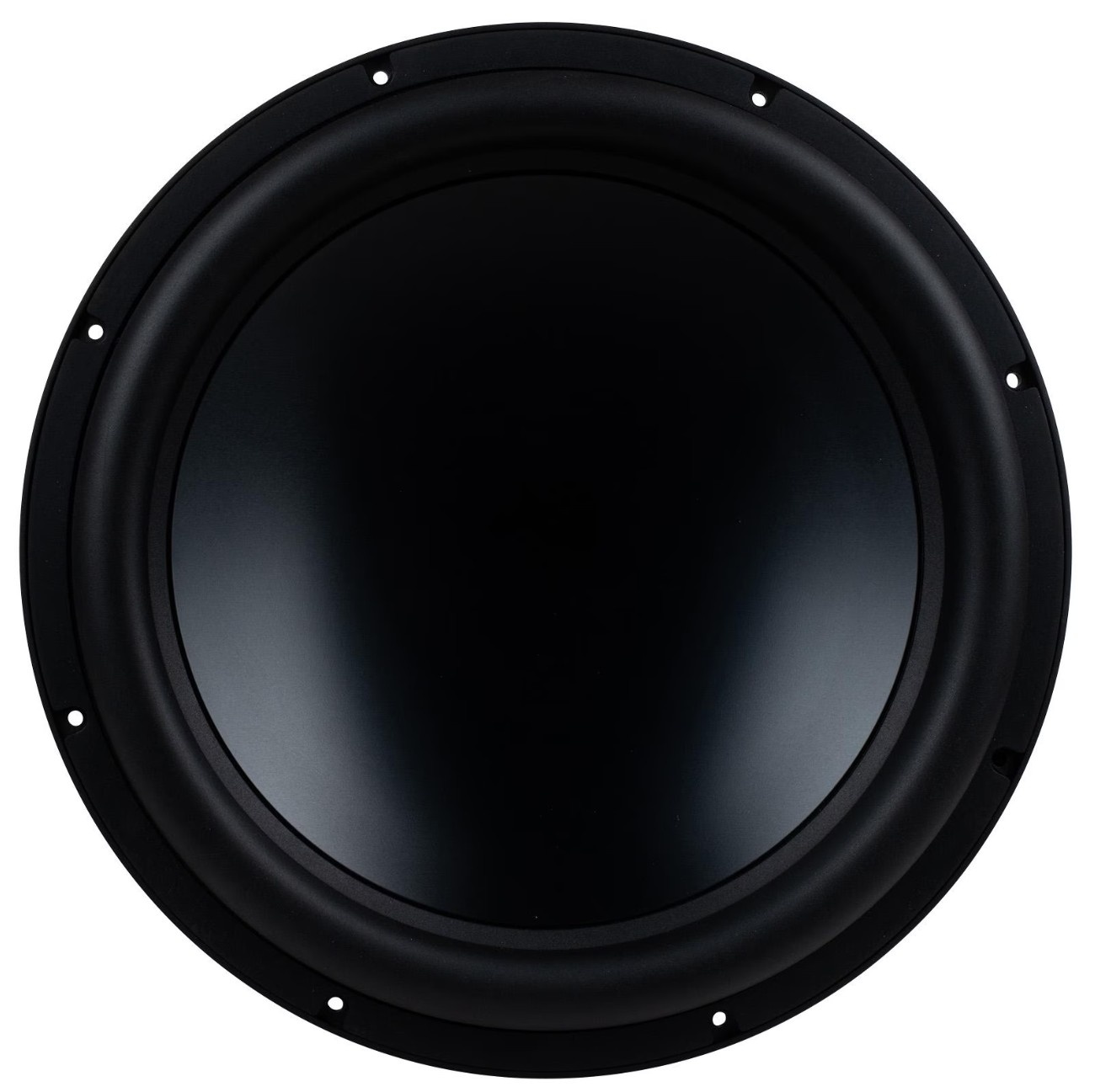

      • Huge 18" aluminum cone with rubber surround for strength and controlled excursion
      • 1300W RMS power handling with a 3" 4-layer CCAW voice coil
      • 26 mm Xmax and an enormous 3038 cm³ of air displacement for extreme bass output
      • Triple magnet motor and shorting paths minimize distortion and improve linearity



      Product details SS18-22 Signature Series Subwoofer





      The SS18-22 represents the ultimate subwoofer in the Signature Series, engineered for maximum impact and ultra-deep bass reproduction. Its 18" aluminum cone is reinforced by a compliant rubber surround, designed to withstand the stresses of high excursion while maintaining accuracy and control.

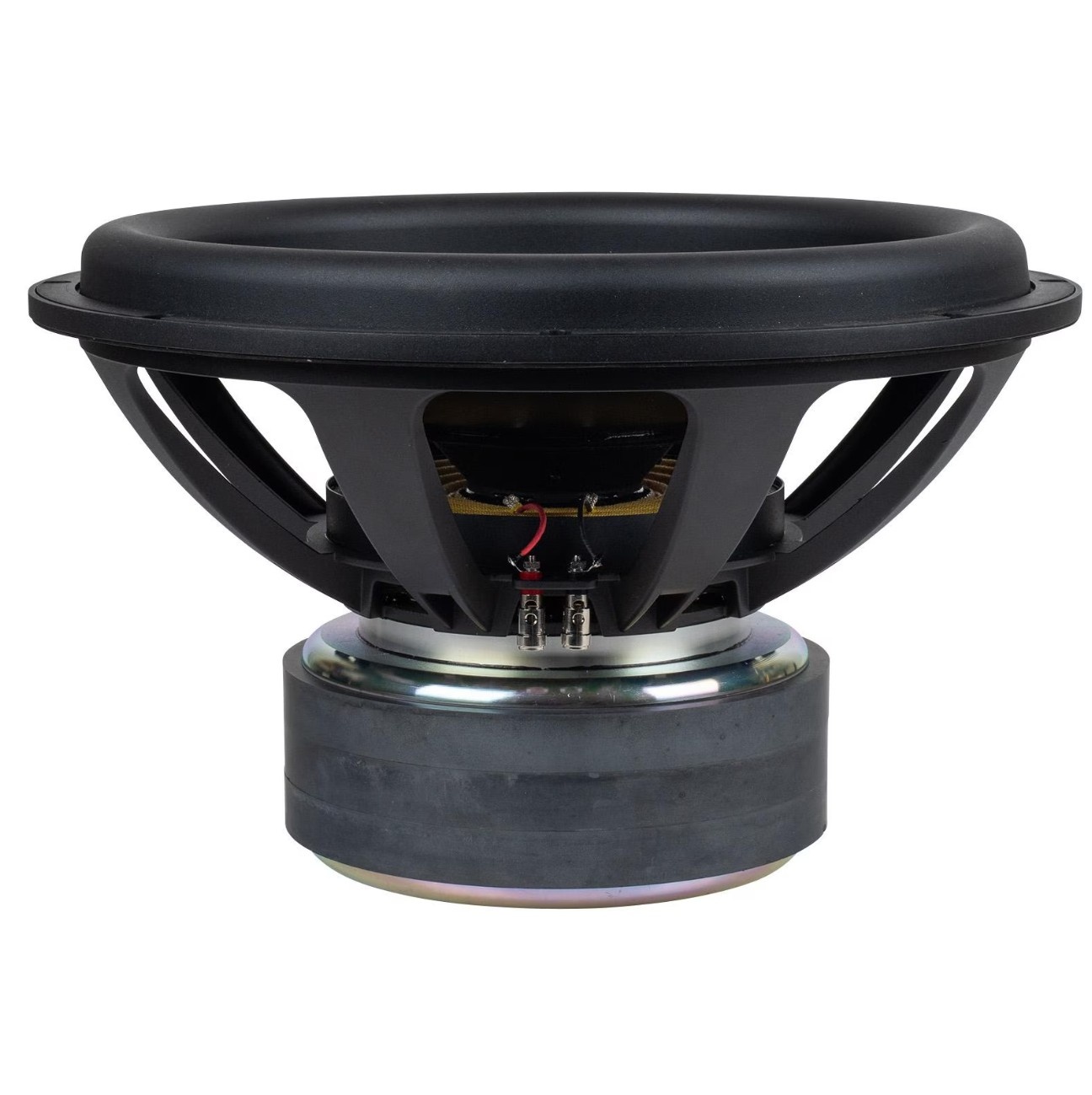

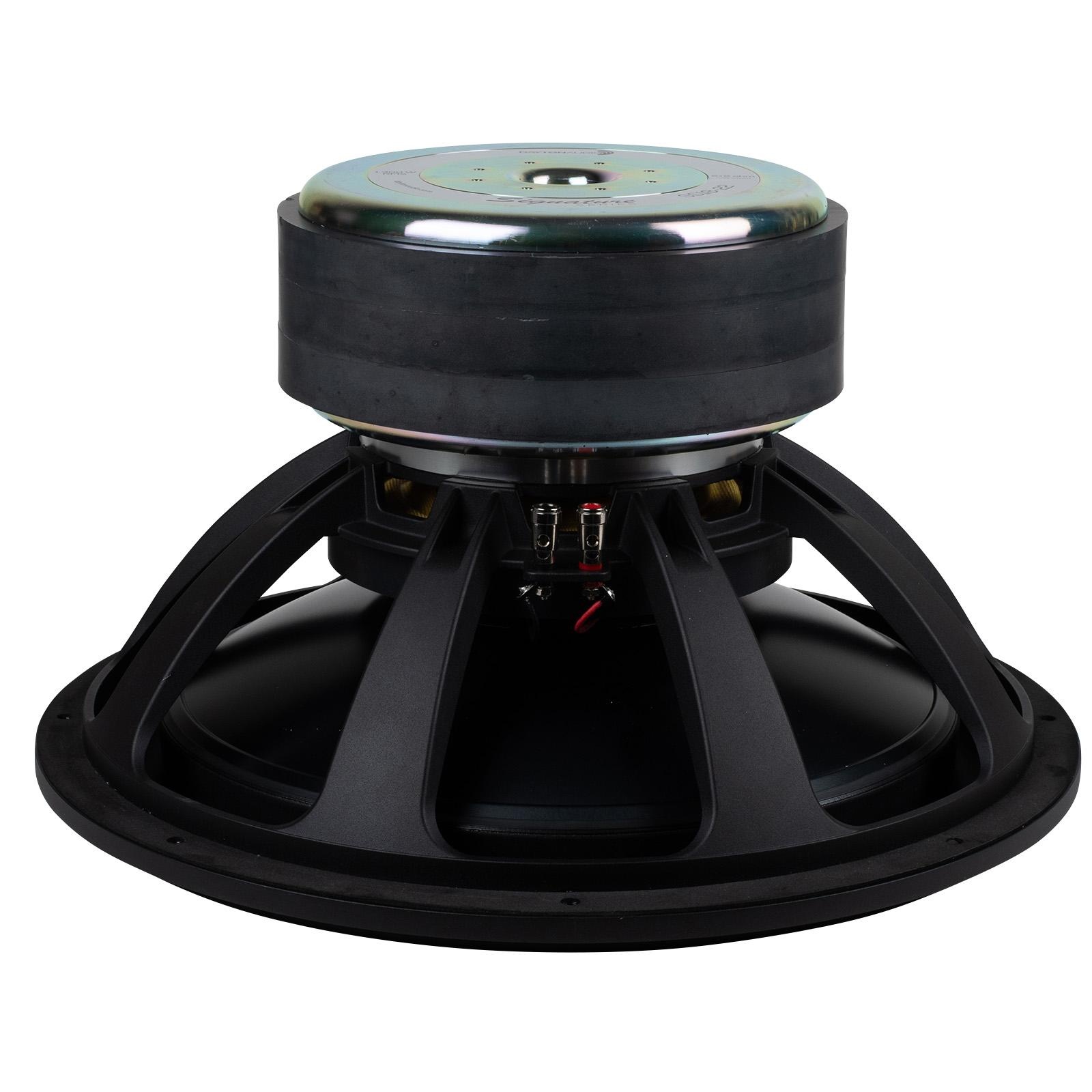

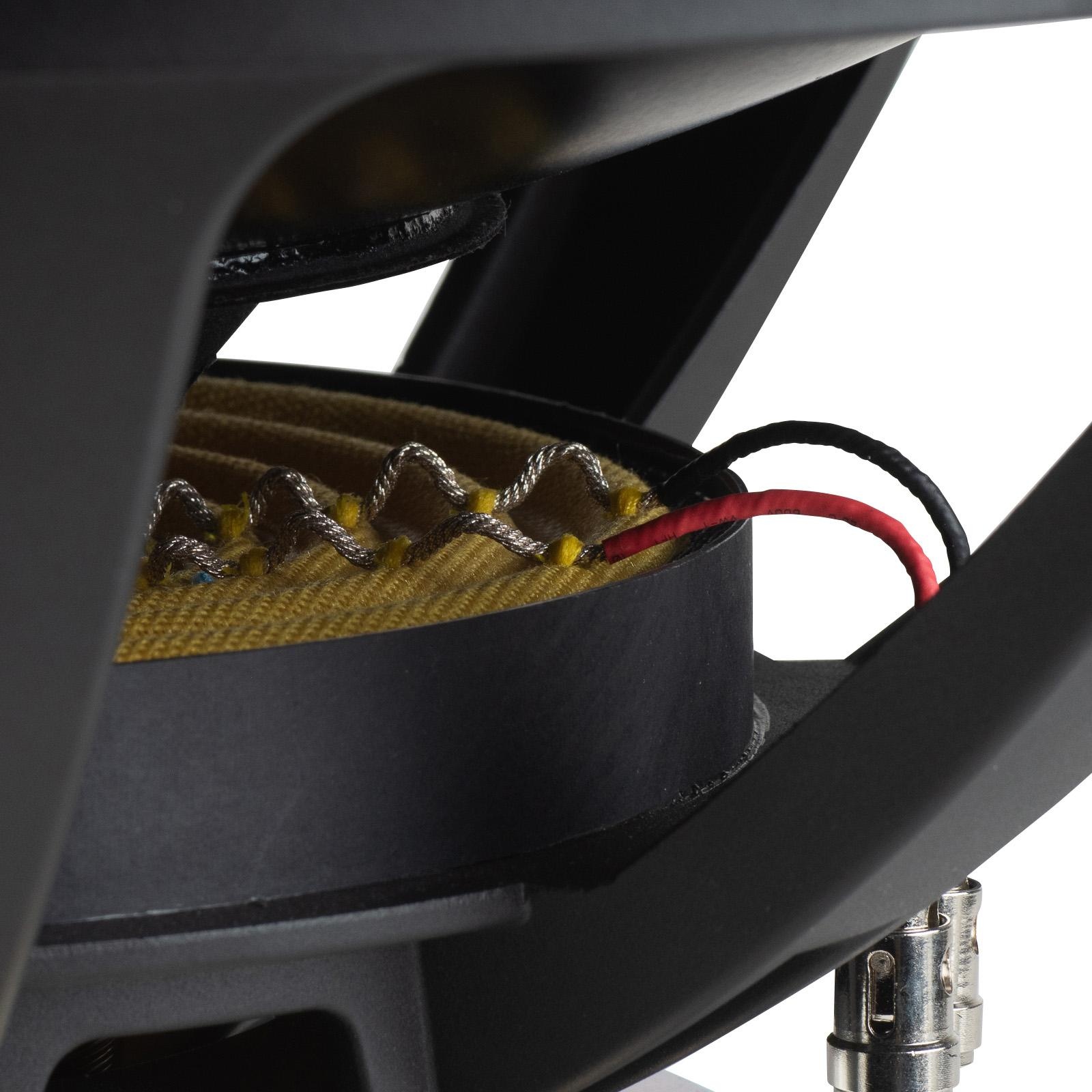

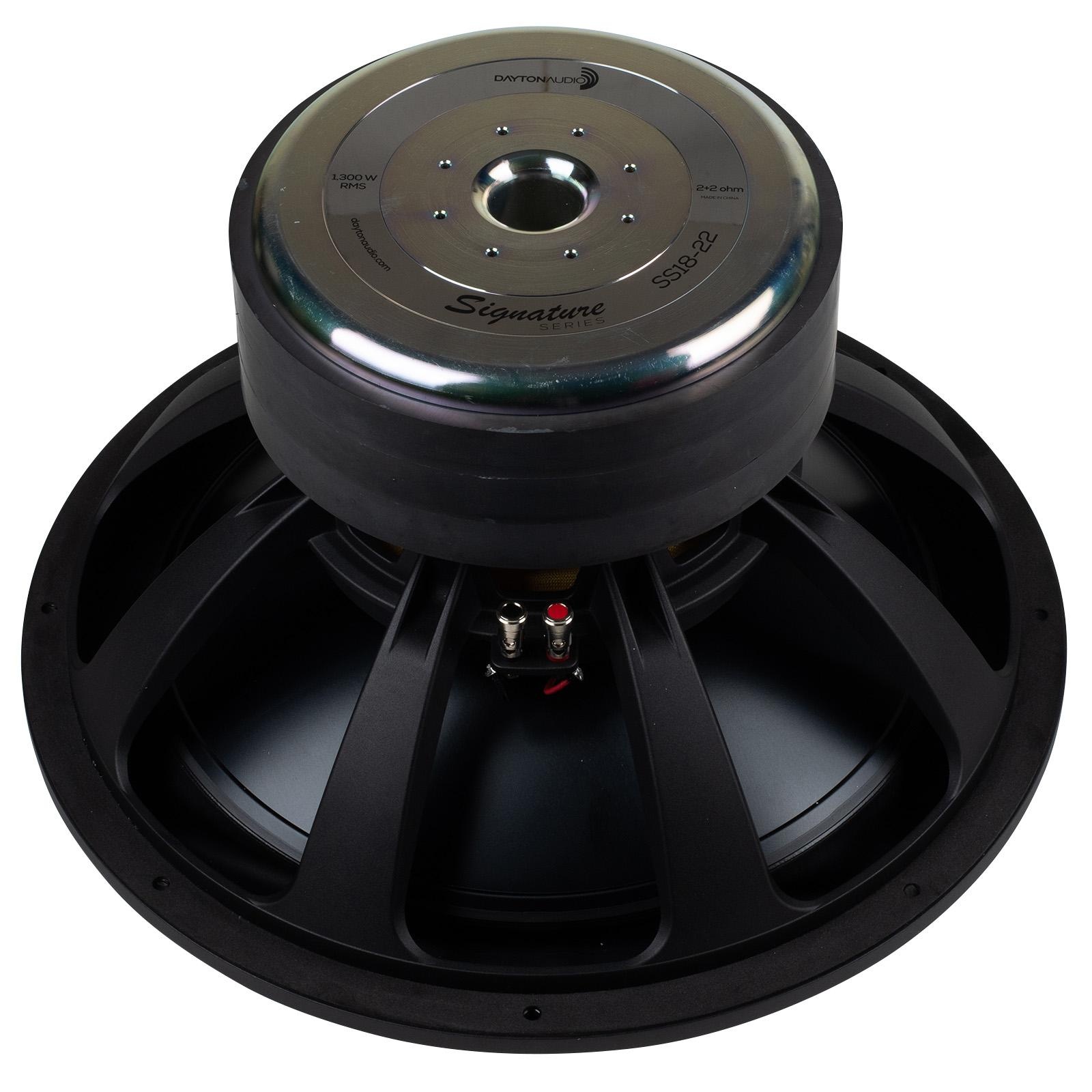

      At the heart of the SS18-22 is a massive motor system with a triple magnet structure, delivering a commanding BL factor of 29.2 Tm. The 3" 4-layer copper-clad aluminum voice coil (CCAW) is supported by dual spiders and extensive venting, allowing the driver to sustain 1300 watts RMS of continuous power without thermal issues. With an extraordinary 26 mm Xmax and piston area of 1188 cm², the SS18-22 achieves a displacement (Vd) of over 3 liters—producing earth-shaking bass with authority.



      The low resonance frequency (Fs) of 21 Hz, combined with a Qts of 0.37 and Vas of 224 liters, makes the SS18-22 particularly suited for large vented or infinite baffle systems where maximum depth and efficiency are desired. Its sensitivity of 90.8 dB (2.83V/1m) and usable response from 20–400 Hz ensure it integrates seamlessly into full-range setups as a dedicated low-frequency powerhouse.



      For those seeking the deepest, loudest, and most commanding bass, the SS18-22 is the definitive choice in the Signature Series lineup.

      Show more

      Specifiche

      Numero dell'articolo:
      SS18-22
      EAN
      0848791011184
      Serie del woofer
      Dayton Audio Signature series
      Tipo di woofer
      Subwoofer
      Diametro nominale
      18"
      Gestione della potenza (RMS)
      1300 Watts
      Gestione della potenza (max)
      2,600W
      Impedenza (Z)
      2 + 2 Ω
      Sensibilità (SPL a 1m / 2,83V)
      90.8 dB
      Risposta in frequenza
      200 - 400 Hz
      Diametro della bobina mobile
      77 mm
      Resistenza DC (Re)
      5.4 Ω
      Induttanza della bobina mobile (Le)
      2.1 mH
      Frequenza di risonanza (Fs)
      21 Hz
      Fattore di merito meccanico (Qms)
      3.40
      Fattore di merito elettromagnetico (Qes)
      0.42
      Fattore di merito totale (Qts)
      0.37
      Massa del diaframma incl. la massa dell'aria (Mms)
      497 g
      Cedevolezza meccanica della sospensione (Cms)
      0.112 mm/N
      Superficie del cono (Sd)
      1188 cm²
      Volume di spostamento (Vd)
      3038 cm³
      Volume equivalente di cedevolezza (Vas)
      224 Liters
      Escursione lineare massima (Xmax)
      26 mm
      Materiale del cestello / telaio
      Aluminium
      Diametro esterno complessivo
      470 mm
      Profondità complessiva
      290 mm
      Diametro del ritaglio del pannello frontale
      426 mm
      Diametro del cerchio dei fori di montaggio
      447 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      6.5 mm

      Show more
