      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Includes five removable 116 g discs for customizable resonance tuning

      Descrizione del prodotto Dayton Audio Signature SS12-PR Passive Radiator

      The SS12-PR is a 12" Signature Series passive radiator designed to pair with the SS12-22 subwoofer and similar high-performance drivers. With an adjustable mass system, robust mechanical design, and premium aluminum construction, it enables precise low-frequency tuning without the drawbacks of traditional ports.



      Highlights of the SS12-PR Signature Series Passive Radiator

      • SMS™ (Sandwich Mass System) reduces angular torque for improved linearity
      • Threaded rod and lock nut allow simple, precise tuning adjustments
      • Includes five removable 116 g discs for customizable resonance tuning
      • Rigid cast aluminum frame and anodized cone provide durability and aesthetic match to Signature Series subs



      Product details SS12-PR Signature Series Passive Radiator

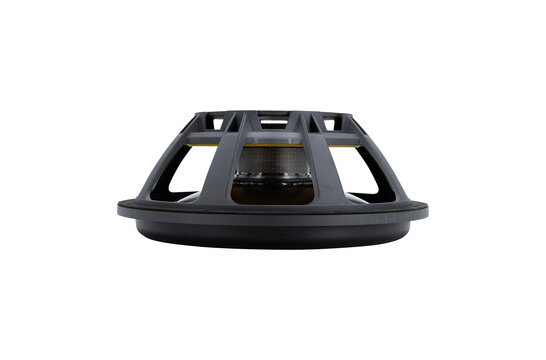

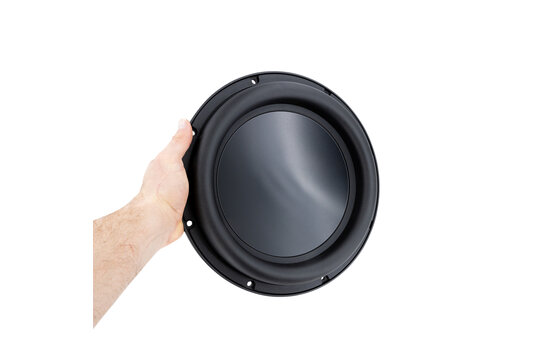

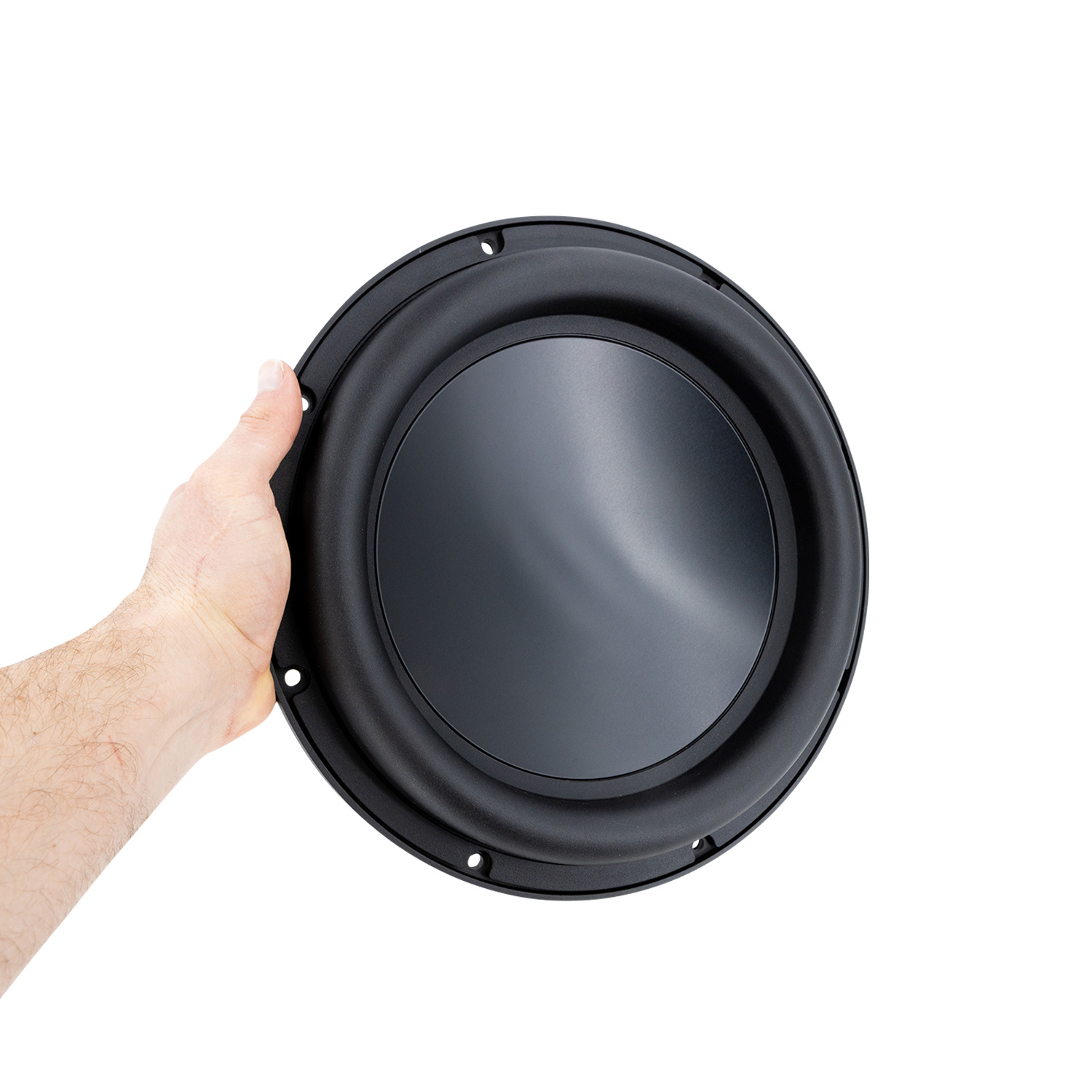

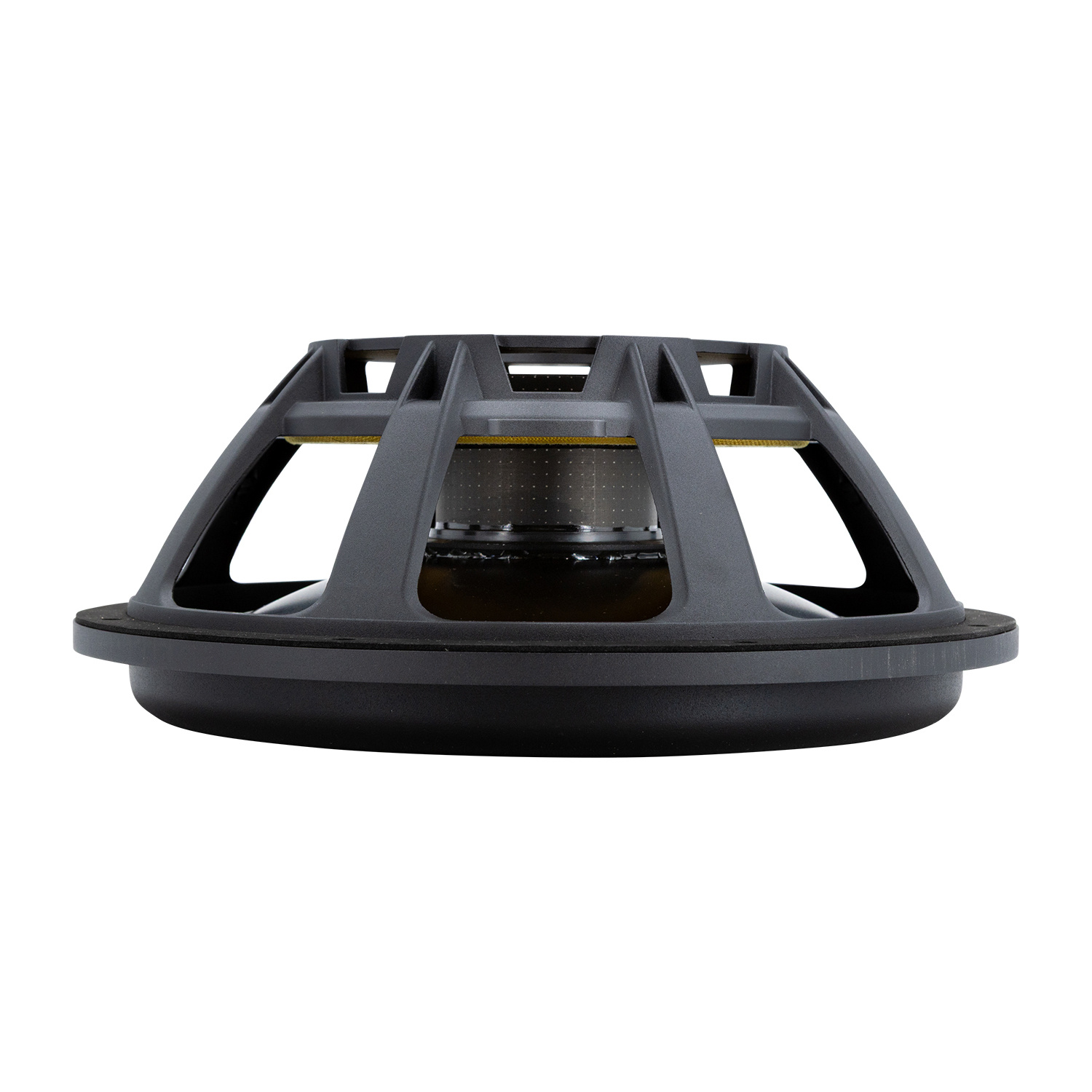

      The SS12-PR brings tuning flexibility and low-frequency extension to 12" subwoofer systems. Its rigid anodized aluminum cone and cast aluminum frame ensure mechanical stability and strength, while the compliant suspension delivers controlled, linear travel during high excursion. Designed to visually and mechanically match the SS12-22 subwoofer, it integrates seamlessly into advanced enclosure builds.



      At the core of its performance is the SMS™ (Sandwich Mass System), engineered to minimize angular torque and improve excursion linearity. A threaded rod and lock nut assembly make tuning adjustments straightforward, and the inclusion of five 116 g weighted discs enables users to precisely tailor the system’s tuning frequency. This allows enclosure designers to extend bass response without requiring large or noisy vented ports.



      As part of the Signature Series, the SS12-PR is an essential component for premium sealed or hybrid passive radiator enclosures, delivering extended and accurate bass while maintaining the design consistency of the active driver lineup.

      Show more

      Specifiche

      Numero dell'articolo:
      SS12-PR
      EAN
      0848791011153
      Serie del woofer
      Dayton Audio Signature series
      Tipo di woofer
      Passive Radiator
      Diametro nominale
      12"
      Gestione della potenza (RMS)
      150 Watt
      Gestione della potenza (max)
      800 Watt
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      87 dB
      Risposta in frequenza
      55 - 5500 Hz
      Diametro della bobina mobile
      54 mm
      Resistenza DC (Re)
      6.3 Ω
      Induttanza della bobina mobile (Le)
      0.44 mH
      Frequenza di risonanza (Fs)
      25.6 Hz
      Fattore di merito meccanico (Qms)
      2.36
      Fattore di merito totale (Qts)
      0.35
      Massa del diaframma incl. la massa dell'aria (Mms)
      6.16 g
      Cedevolezza meccanica della sospensione (Cms)
      0.199 mm/N
      Superficie del cono (Sd)
      522.8 cm²
      Volume di spostamento (Vd)
      1568.4 cm³
      Volume equivalente di cedevolezza (Vas)
      77.3 L
      Perdite meccaniche del driver (Rms)
      4.47 Kg/s
      Materiale del cono / diaframma
      Poly Composite
      Materiale della sospensione
      Rubber
      Materiale del filo della bobina mobile
      Aluminum
      Supporto della bobina mobile
      Aluminum
      Materiale del cestello / telaio
      Aluminium
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      320 mm
      Profondità complessiva
      126 mm
      Diametro del ritaglio del pannello frontale
      285 mm
      Diametro del cerchio dei fori di montaggio
      302 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      6.4 mm
