Acquista Dayton Audio DSP-408 4x8 modulo DSP?

car audio

€ 258,64€ 312,95 10 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito oggi
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

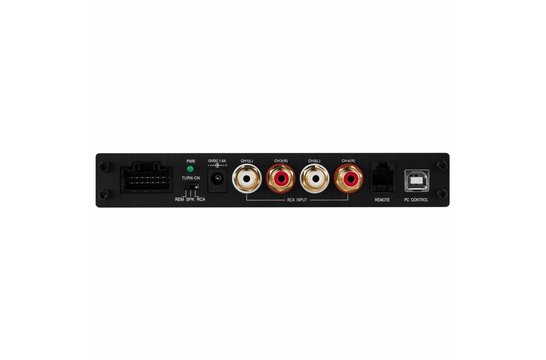

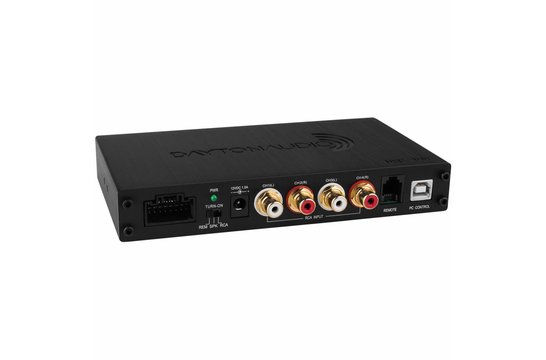

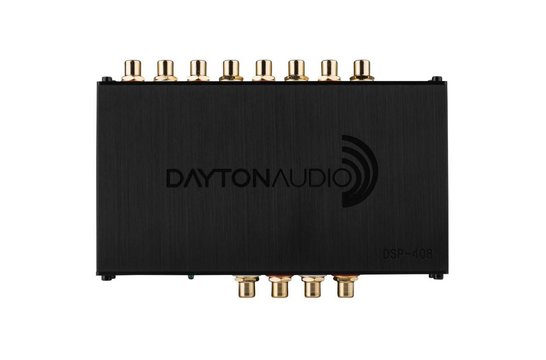

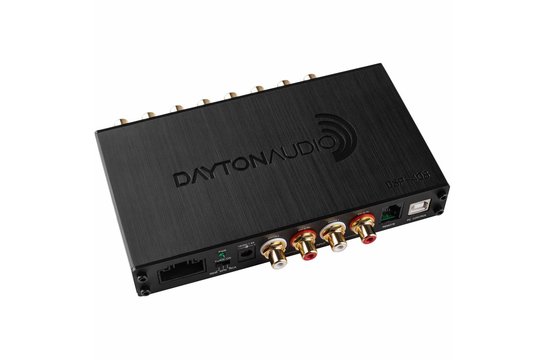

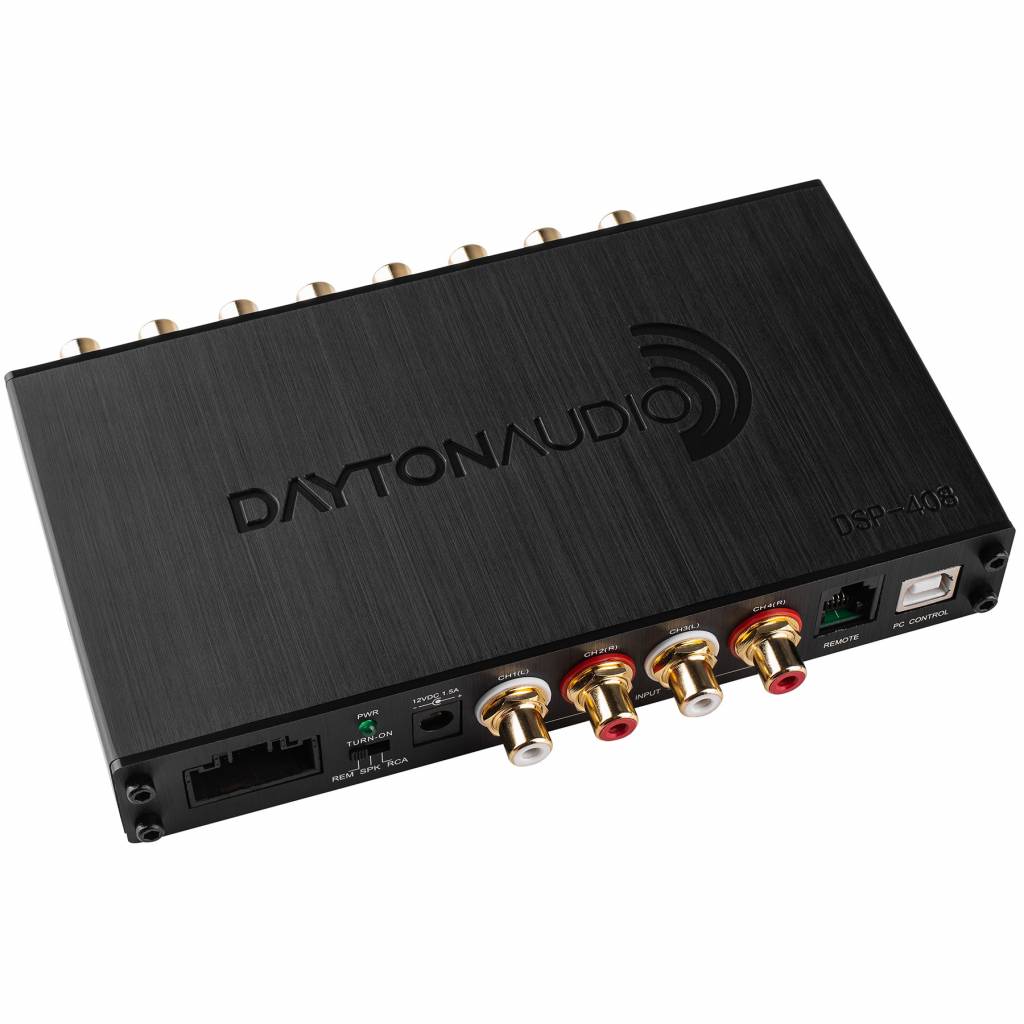

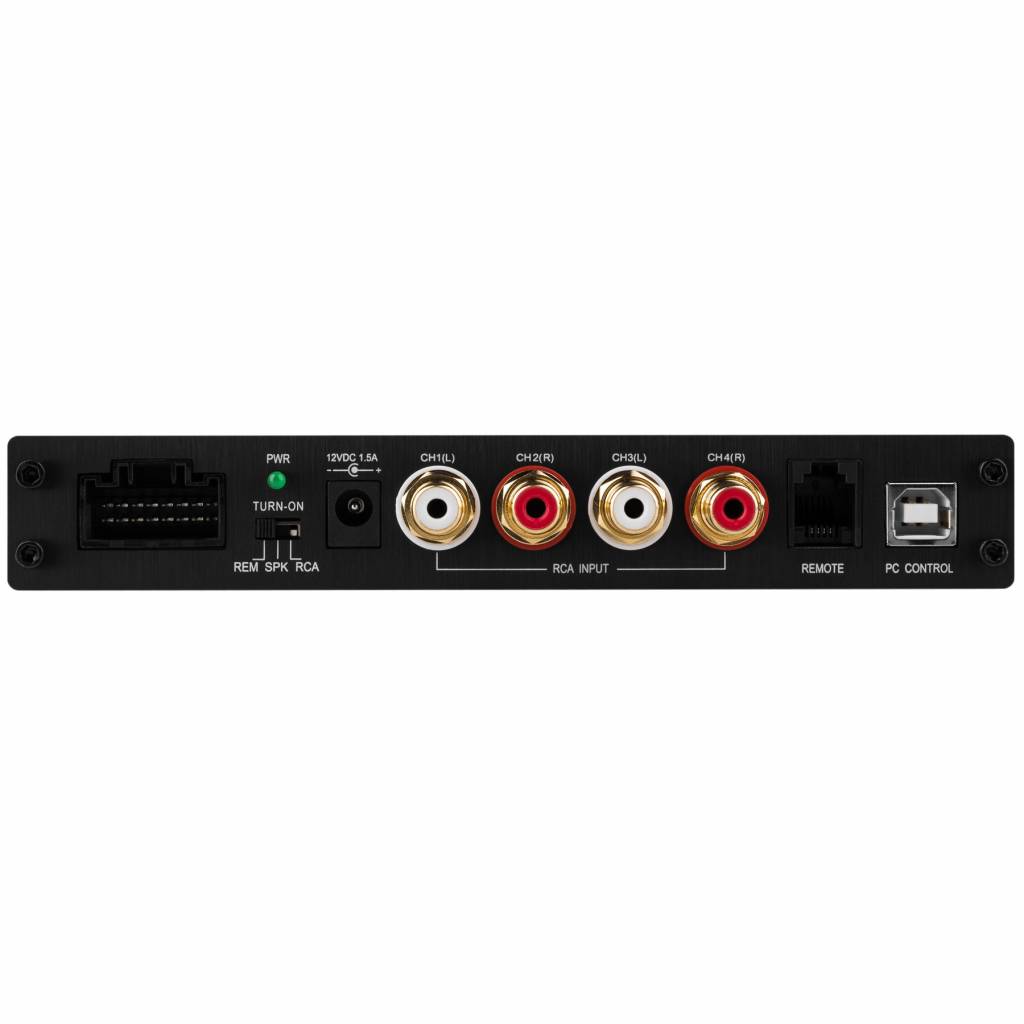

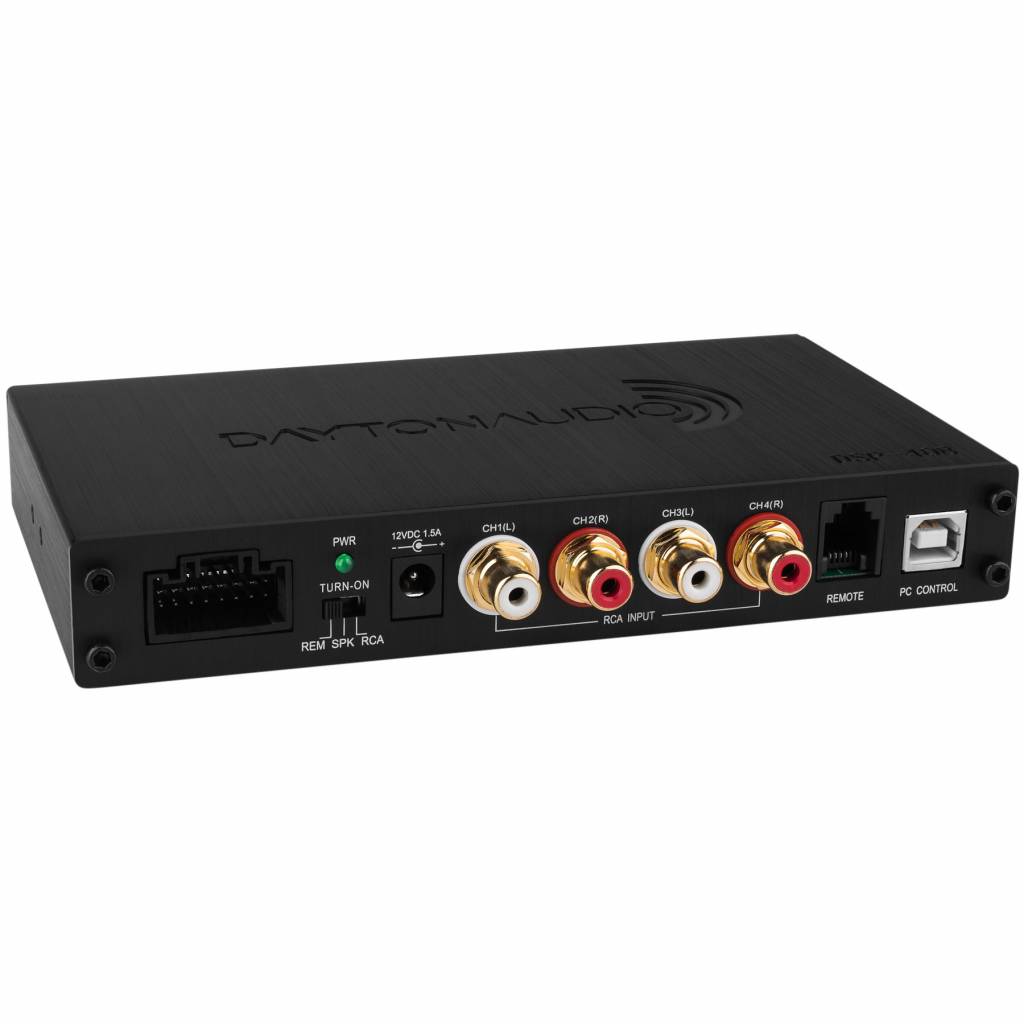

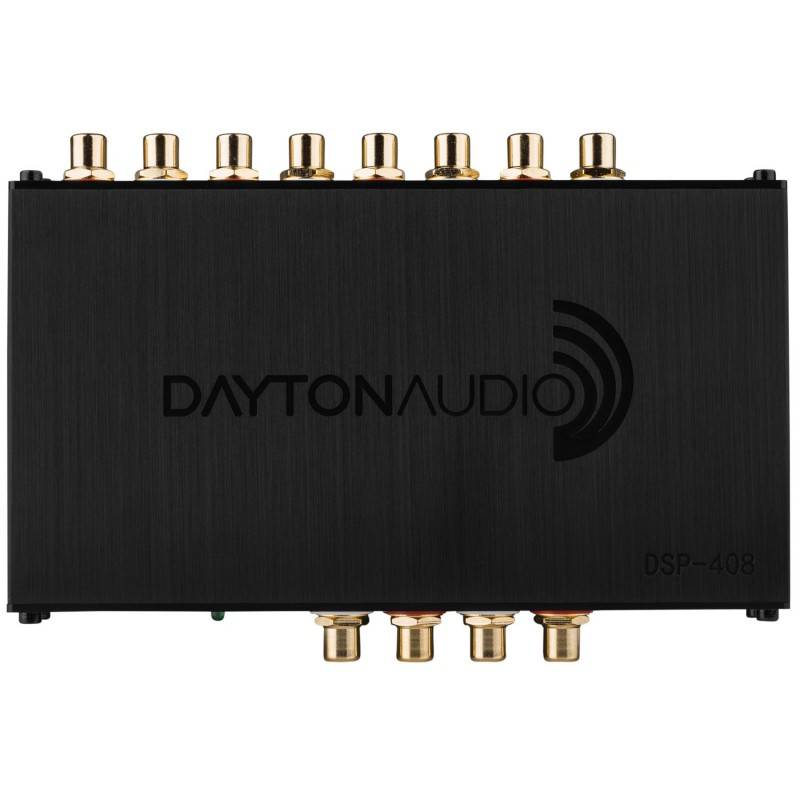

Descrizione del prodotto Dayton Audio DSP-408 4x8 modulo DSP

Take control of your audio system with the Dayton Audio DSP-408, a feature-rich 4 input/8 output digital signal processor. The DSP-408 features built-in EQ, crossovers, time alignment, and input/output mixing. The most alluring feature of the DSP-408 is the ability to be used in a home or car right out of the box, which makes it the perfect addition to your home or car audio system.

Highlights

Real-time signal processing for ultimate control
Complete audio customization for application specific installations
Easy-to-use Graphical User Interface (GUI)

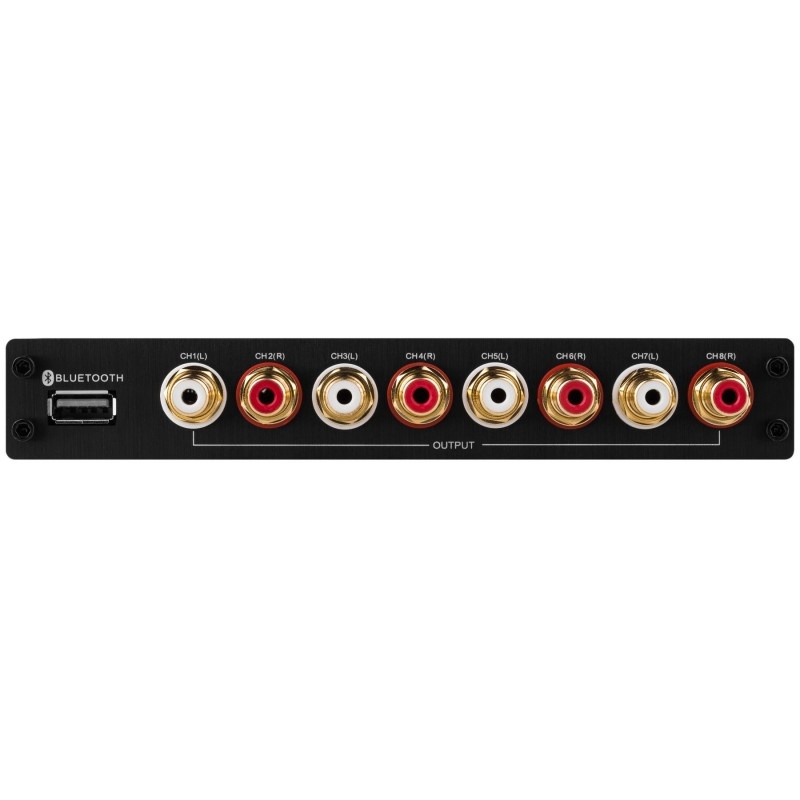

All eight output channels have a fully adjustable 10-band parametric EQ
Optional Bluetooth dongle (for streaming and app control) and wired remote available

Product details

	Take Control of Your Sound Dayton Audio DSP-408 4x8 DSP Digital Signal Processor for Home and Car Audio Ease of use has always had its place in the consumer electronics industry. Dayton Audio has now brought to market a digital signal processor (DSP) that combines versatility, incredible sound quality, and ergonomic graphical user interfaces (GUI). The most unique feature of the DSP-408 is the ability to use it in a vehicle or home audio system right out of the box. This adaptation allows users to use a single model of DSP for all their audio processing needs. For many individuals, the pursuit of perfect sound quality is a never-ending quest. When utilizing all the features the DSP-408 offers, the ability to manipulate and improve the sound quality of your audio system is simply astonishing. With access to all the following features, perfecting your audio system is just a matter of time. Connect to your DSP-408 and get to work! Software Features 10-band parametric equalizer per channel High and low shelf EQ per channel Variable crossovers: High/Low/Band-Pass slopes 0-24 dB, Linkwitz Riley/Butterworth/Bessel Time delay: 0 to 277 cm or 8.1471 ms adjustable in 1 cm steps Input/Output mixing to customize the signal path Phase adjustment Customizable name/ID for each of the 6 presets Load, save, recall, or delete preset files Software controllable level attenuation on the preamp and high-level inputs Minimum/maximum voltage protection Reverse voltage protection Mute circuit and delay
	Windows-Based GUI The DSP-408 is easily controlled via a Windows application developed by Dayton Audio. This application features all the tools you could need to make your audio system sound its very best, while still being easy to use.
	Windows-Based GUI Android App with Bluetooth Connectivity (Optional) In the modern age of mobile devices, breaking out the bulky laptop to make modifications to your sound system can seem like a chore. That's why Dayton Audio has given you the option to connect to your DSP via your Android mobile device using the DSP-BT4.0. This Bluetooth 4.0 dongle allows users to completely tune their DSP via the mobile DSP-408 app. In addition, the user can also use their mobile Bluetooth device as an audio source!
	Wired Remote Control (Optional) The allure of a wired remote control is obvious when installing in a mobile environment. Being able to effortlessly control the volume and which preset you are using is an invaluable feature. To satisfy the need for the customers installing the DSP-408 in a mobile environment, Dayton has offered the DSP-RC as an optional accessory.

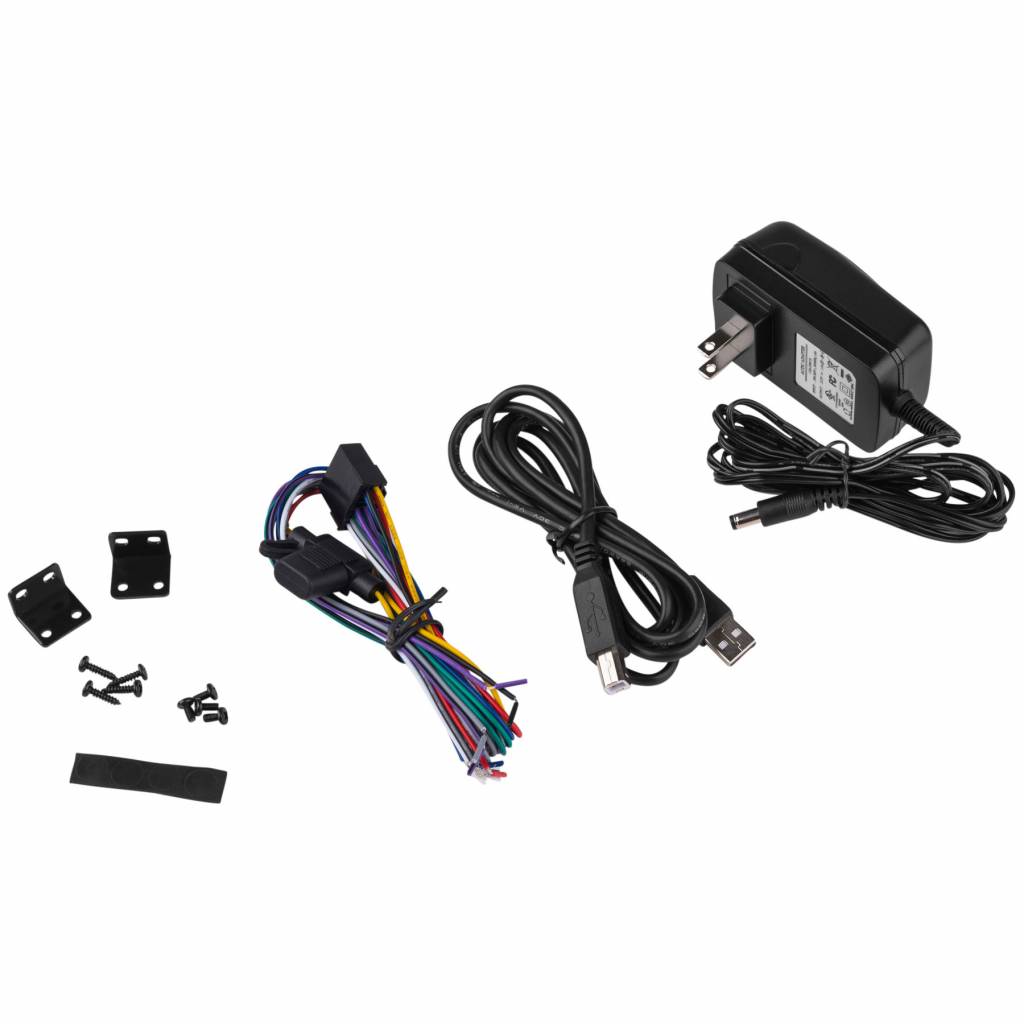

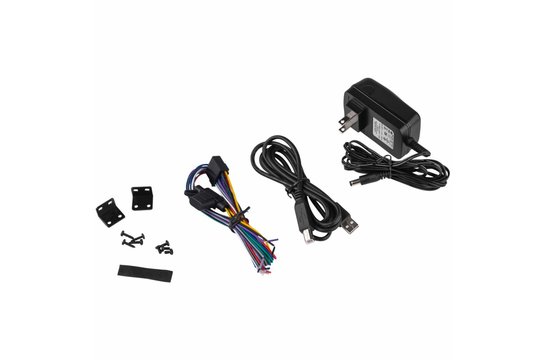

Package Contents

1 x DSP-408 Processor
1 x Power Adapter (12V, 1.5A)
1 x High-Level/Power Input Harness (16-pin)
1 x USB A to B Cable (25cm)
2 x Mounting Brackets
4 x Mounting Bracket Machine Screws
4 x Mounting Screws
4 x Rubber Cushion Pads
1 x Introduction Card

Note: To update your DSP's firmware and software, please watch the video below for instructions.

Note: after you download the new software, do not upload presets from a previous software version. Write out your settings and recreate them in the new software.

Recensioni

21 reviews

Recensisci questo prodotto

5 di 5

Da Rodolfo on 6 Luglio 2025

Da Marius on 12 Febbraio 2025

Used in my home setup with two 3-way speakers and two subs. Replaced two MiniDSP 2x4 with it because there I must all shut down to switch from left to right or I got very loud pops in my speakers. Now I have all in one and setup is very easy and comfortable. Switching presets is done with three clicks (PC). Sound quality is perfect for me, absolutly no noise. One thing to improve would be to import filter settings from REW.

Da Wilhelm on 30 Gennaio 2025

Da Michal on 30 Dicembre 2024

Good vender

Da Renato on 27 Giugno 2024

Hi. This is not the first DSP-408 I have bought. I had no problems using it. Convenient software. I would prefer if the inputs were balanced. Good product. Thank you.

Da Juozas on 5 Maggio 2024

Da Martin on 10 Gennaio 2024

Per auto

Da Luigi on 7 Settembre 2023

4 di 5

This DSP is a good product, but it has a serious gap about the Windows SW user guide. The general user guide shows the meaning of the screen choices but there is not any operating guide related how to equalize both left channel and right channel in a different way. I suggest to Dayton to improve the user documentation adding some operating examples.

Da Flavio on 5 Marzo 2023

3 di 5

I tested this on my 3-way DIY active speakers to act as a crossover and EQ. The software is good and easy to dial in the filters while measuring with REW. The downside is it is quite noisy, adding quite a bit of audible hiss. It was less noticeable on my smaller speakers with passive crossover networks which helped to filter it out but I won't be using it as a DSP solution for my active speakers. I even tried a high quality linear power supply ...

Da Lee Matthews on 2 Agosto 2022

Die Ware wurde schnell geliefert. Leider liegt kein deutsches Manual bei und es bedarf einiges an mehr Zeit, den DSP 408 einzustellen. Ansonsten sehr gutes Gerät!

Da Andreas O. on 29 Aprile 2021

For the price it is actually a 5 star product, but it could easy be made better. I use this filter for a 3 way horn system, LCR in a hometheater, with 8 outputs i am almost there. Bugs: It looses the USB connection to a windows PC, replug it and you are good to go. More serously, if you set the high pass filter to defeat, there is still a filter function present, so set the filter function to 6dB/octave, and then Defeat for best case scen...

Da Jan Alstrup on 4 Ottobre 2020

No description was given

Da Jacek L. on 17 Settembre 2020

For 180 EUR it is hard to beat! Is it perfect? No, not by any means... The iOS app is more or less useless on an iPhone SE so if you don't have the need to switch streaming on/off or setting different profiles, there is no point buying the Bluetooth dongle. I need to set different profiles for driving alone and for having kids back in the car so that is what I will use it for. The Windows app is OK, but it would have been nice to see ...

Da Magnus S on 15 Agosto 2020

This DSP has a good amount of options, pretty much everything you could need for a complete car install or stereo home system. The build quality is also good. The bluetooth accessory is worth it, makes it easier to tune, especially in car. I would give it 5 stars, but the reason I'm knocking off a star I installed this in my car, and it had sent so much alternator whine through my speakers it was crazy. So if you have the same problem, what you h...

Da Russell V on 12 Agosto 2020

Das Gerät funktioniert einwandfrei. Es gibt einem viele Möglichkeiten Boxen im Heimbereich aktiv zu nutzen.Der Netzteiladapter ist leider Schrott.Und der Bluetooth-Adapter ist im Verhältnis zum Gerät viel zu teuer.

Da Matthias W. on 7 Aprile 2020

Werkt helemaal zoals ik had gehoopt twee weg los voor aangestuurd(tweeters en Mids) , kickbass in de deuren(2x6.5 subs stereo) en lage subs (2x 12"mono)achterin alles Klinkt geweldig en werkt makkelijk via een laptop

Da Rutger V. on 8 Febbraio 2020

my uk based company Stylz Kustom has purchased many of these processors for a multitude of different types of car audio projects,and for a budget processor it punches way above its pricetag! the software is very easy to use,i would recommend using a laptop for the initial set up as its only 2 pages,the very handy app for phone or tablet "tweaking" after is a big selling point,along with the dual master bluetooth. Overall its a good solution for...

Da Nick Constantine on 7 Gennaio 2020

After experimenting with modifying analog loudspeaker filters in my high end speakers using expensive capacitors and coils, this DSP came as a beautiful surprise. No matter how good the components in your filter, the DSP simply sounds better. Much better. The old analog speaker filter was the bottleneck, at least in my system (Rotel RSP-1098, Rotel RMB-1095, Rotel RB-1090, Vandamme 55 low cap interlinks, Supra Ply 3.4s, tuned Marantz NA-8005 medi...

Da Wiebe S. on 16 Settembre 2018

Sehr empfehlenswerter Soundprozessor. Von der Haptik bis hin zur PC-Software als auch APP. Programmierung sehr einfach und intuitiv. Kleines erstes Setup aus Zuspieler, Verstärker und Lautsprecher aufgebaut. Software und APP auf Samsung Tablet installiert. Und los ging's mit der einfachen Bedienung. Klang des DSPs ist TOP! Sehr erfreulich, der DSP ist absolut rauschfrei. In den kommenden Tagen baue ich den DSP in meinen PKW ein und Berichte da...

Da GDPR deleted on 26 Agosto 2018

Da Frank D. on 15 Agosto 2018
