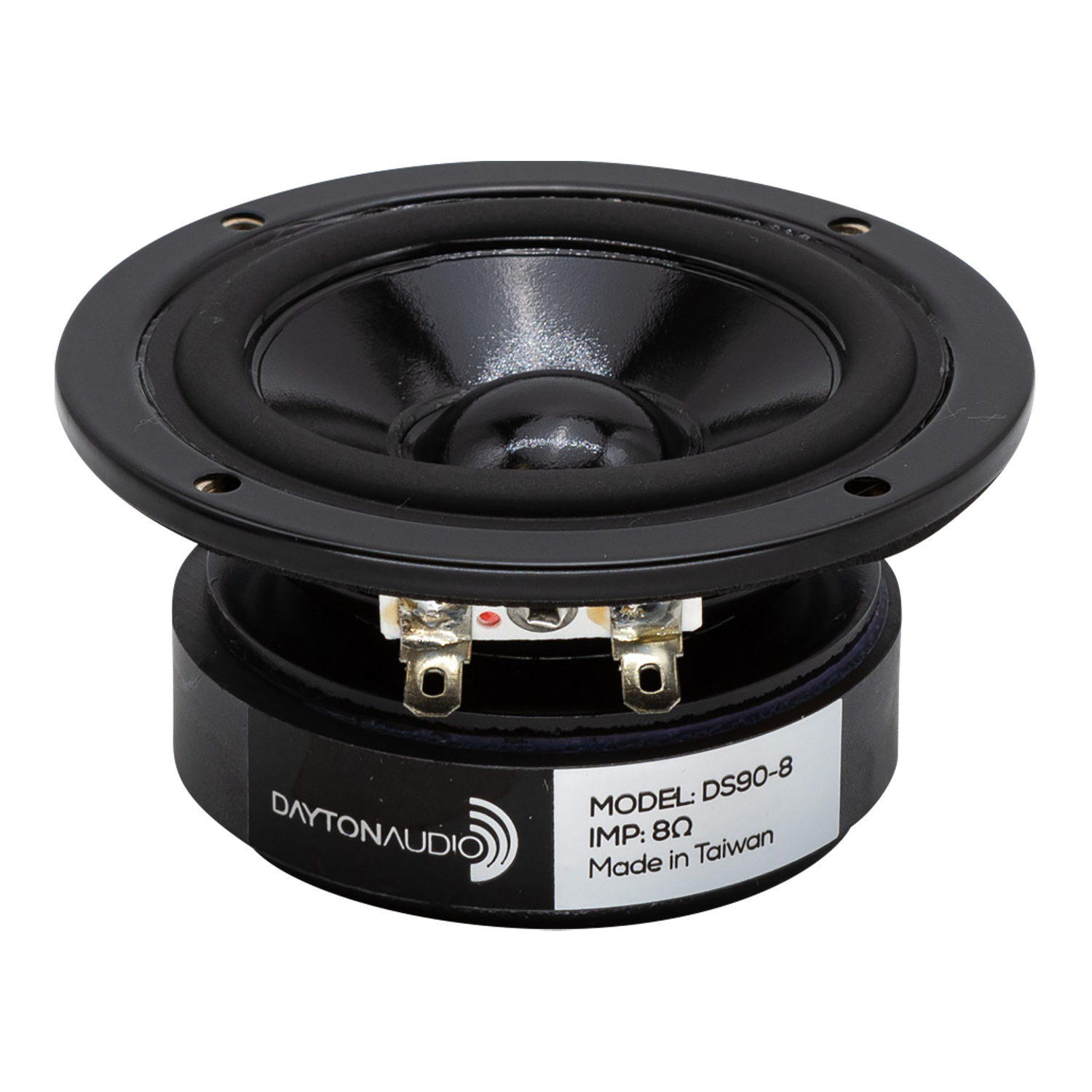

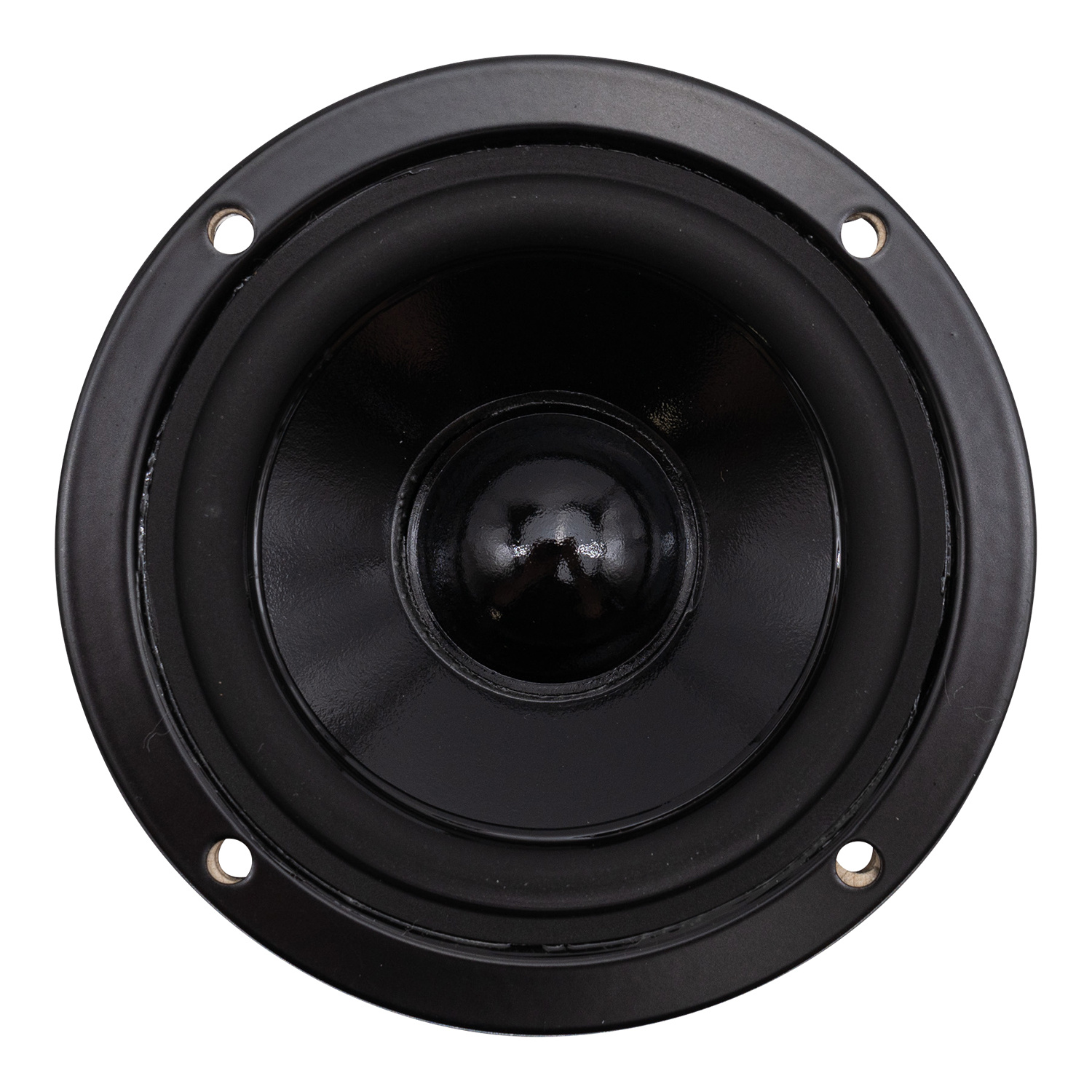

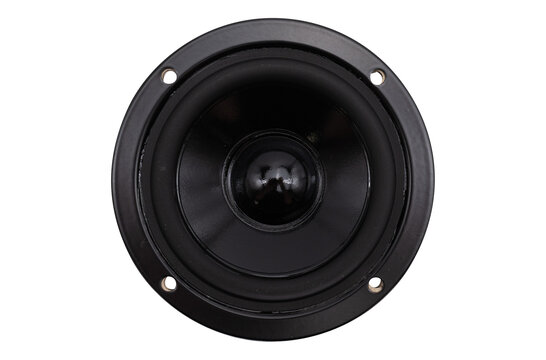

Acquista Dayton Audio Designer DS90-8 Woofer a Gamma Completa?

3" | 8 Ω

€ 21,86€ 26,45 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

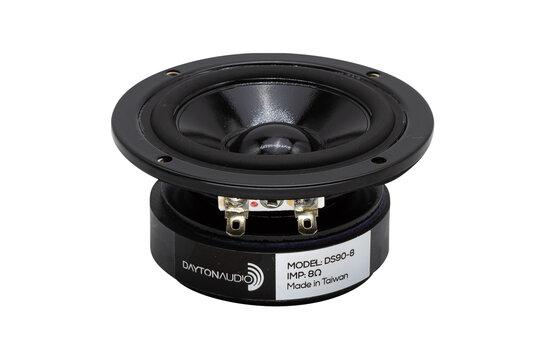

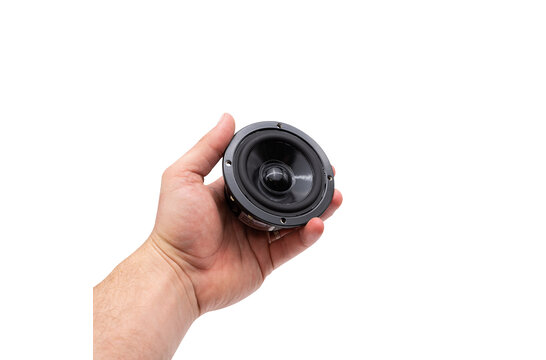

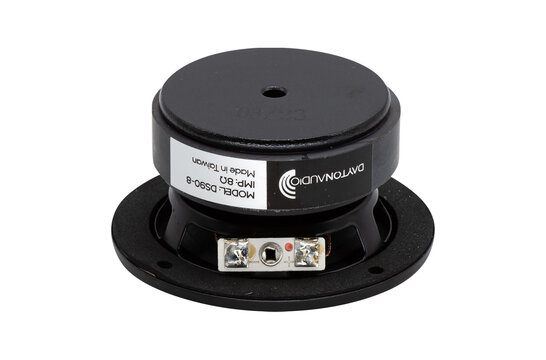

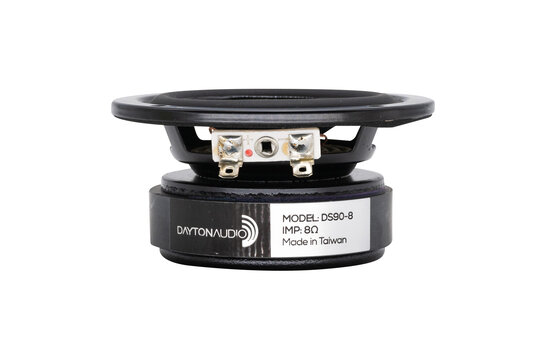

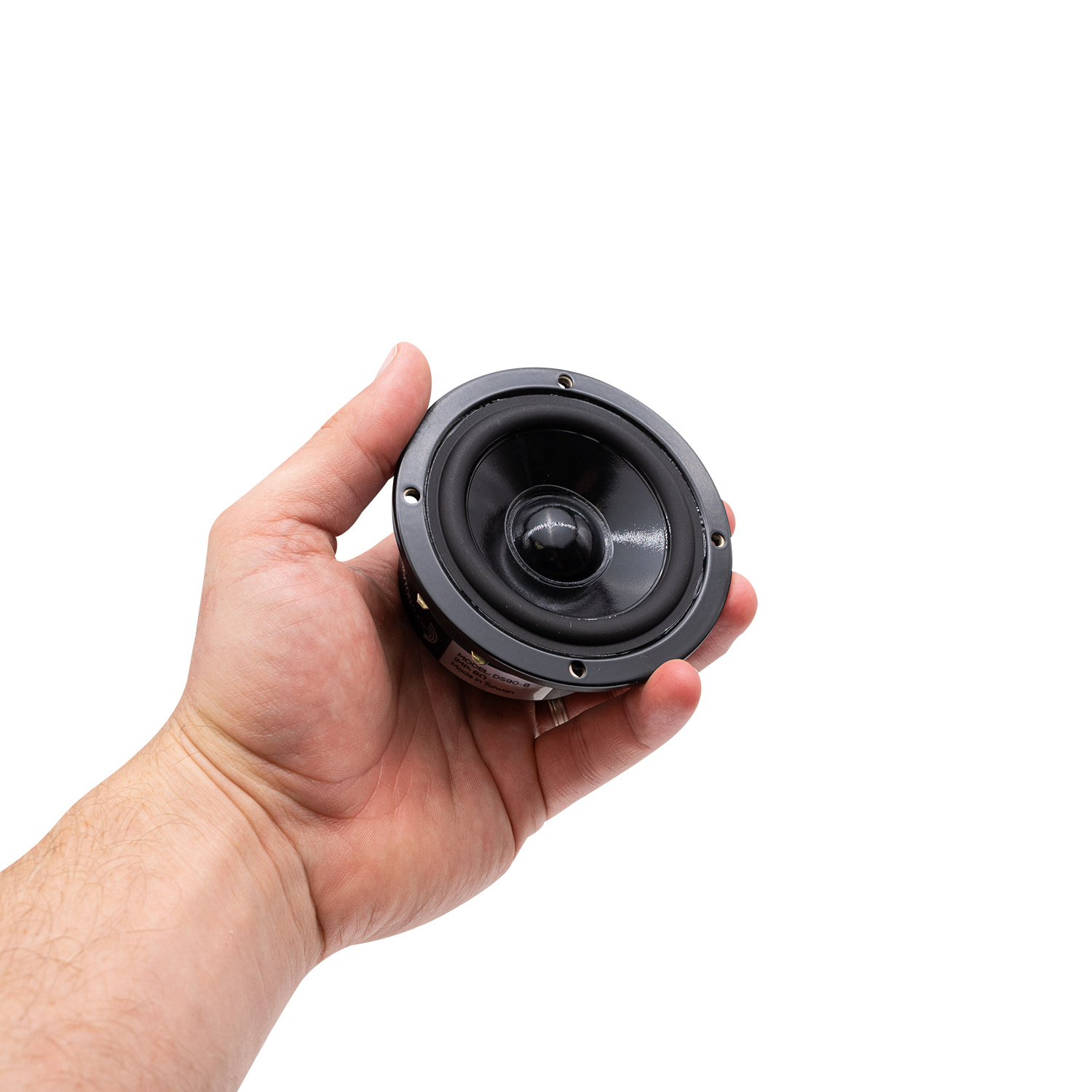

Descrizione del prodotto Dayton Audio Designer DS90-8 Woofer a Gamma Completa

The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.

Highlights

Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
Coated paper cone, half roll rubber surround for durability and accurate reproduction
Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
Vented pole piece for minimized power compression and maximized reliability
Generous Xmax capability encourages use of moderate bass boost to tailor the response
Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators

Product details

Dayton Audio DS90-8 3" Designer Series Extended-Range Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Suggested enclosures:

Sealed cabinet: Type: Acoustic suspension (alpha 3.5), Qtc 0.69; Size (internal) including volume displaced by driver: 0.03 ft³; Internal cabinet dimensions (golden ratio): 6-1/4"H x 3-7/8"W x 2-3/8"D. Typical results: 3 dB down-point (f3): 158 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 90 Hz.

Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 7-3/4"H x 4-3/4"W x 3"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.

Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

Recensioni

7 reviews

Recensisci questo prodotto

5 di 5

Una gran tienda sin duda alguna, grandes marcas y un servicio post venta genial. Aunque los envíos ganarían calidad con otras empresas. Sin duda mi tienda de sonido favorita.

Da Oscar Antonio on 30 Giugno 2025

Preis, Leistung Top!

Da Rick on 19 Febbraio 2025

2 di 5

Diskant level is very different. It is very low. Measurement shows frequense response and it is very good. But the truth is weak.

Da Rainer on 5 Febbraio 2025

Da Guenther on 2 Maggio 2023

4 di 5

Best geluid voor zo’n kleine luidspreker .

Da Jordy V. on 25 Novembre 2018

I like to listen to beautiful music long ago, but the modest budget didn't allow to buy the high-quality speaker system. In my budget I didn't find acceptable quality in shop... I long selected the project for independent production, and stopped on it: the author - Aleksey Aleksandrov from Orenburg. I found woofers separately and bought other loudspeakers here. After assembly of the speaker system I was delighted! The cleanest timbre and high...

Da Patuk Mihail Nikolaevich on 14 Novembre 2018

Da Harm B. on 26 Giugno 2018
