Name: Dayton Audio DS215-PR Radiatore Passivo
Brand: Dayton Audio
SKU: DS215-PR
Price: 33.45 EUR
Availability: InStock
Rating: 5 (1 reviews)

passive | 8"

€ 27,64€ 33,45 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio DS215-PR Radiatore Passivo

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.

Highlights

Long-throw suspension system for clean excursion
Durable coated paper cone and rubber surround
M5 threaded hole simplifies adding mass for lower tuning frequency
Cosmetically and mechanically matches the Designer Series line of drivers

Product details

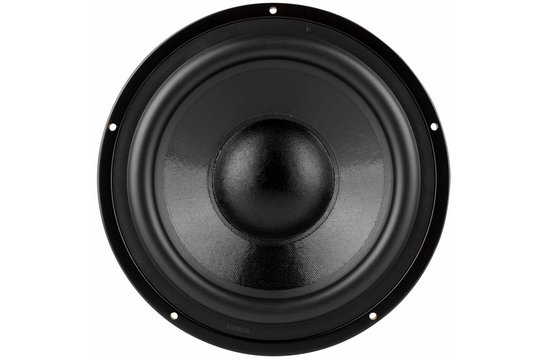

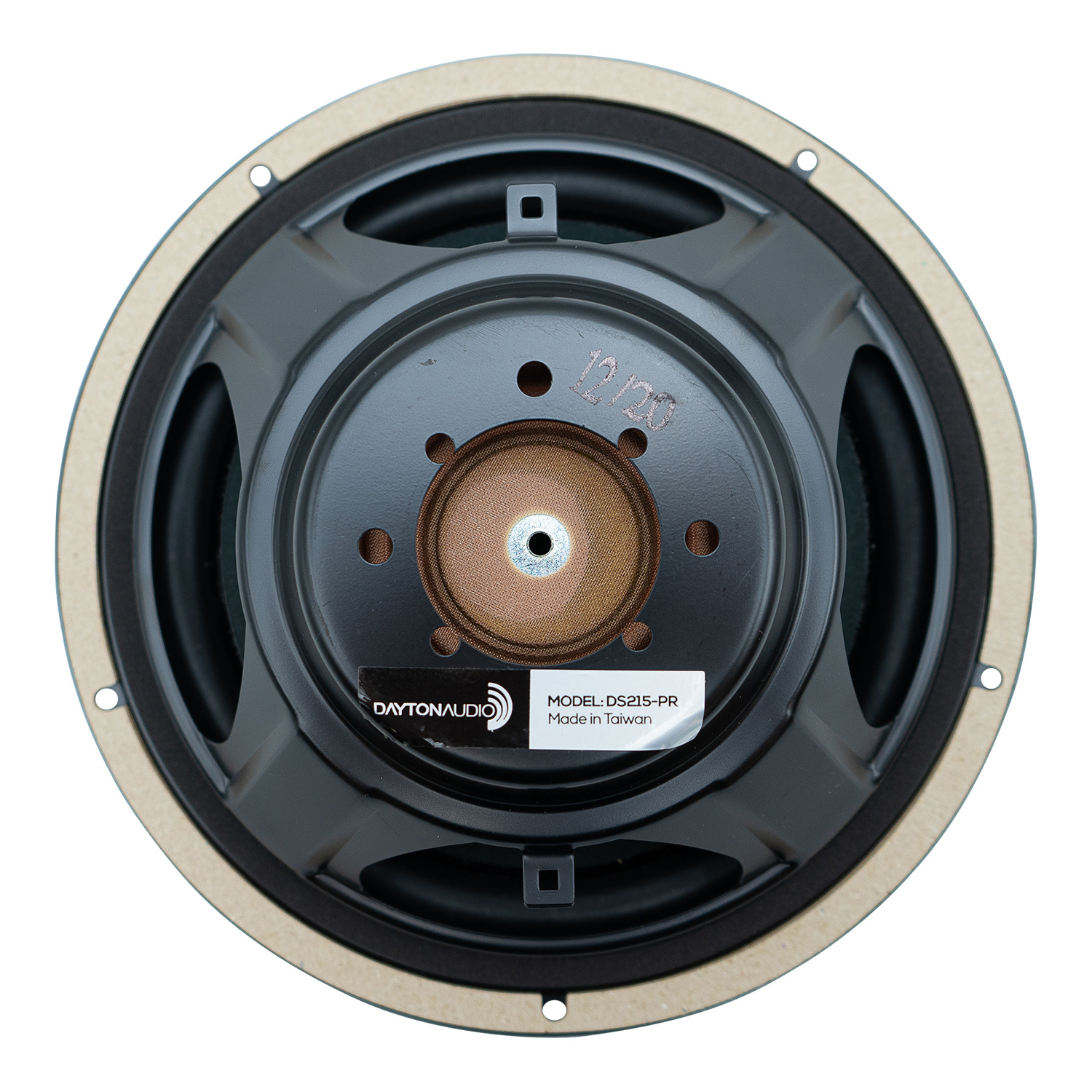

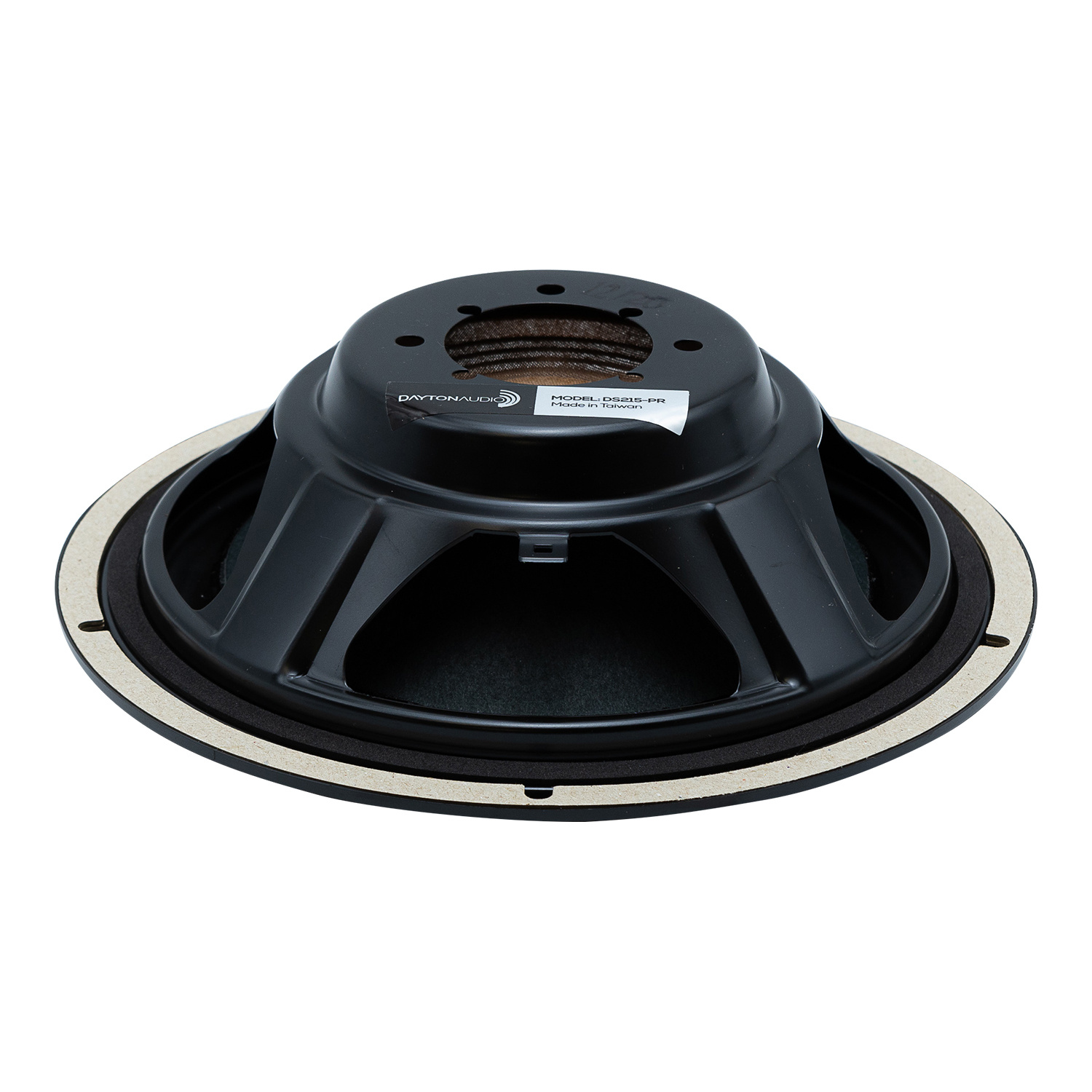

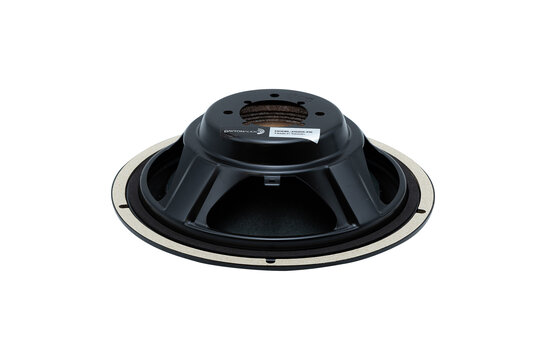

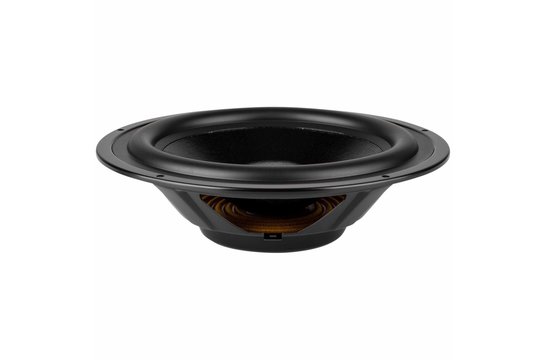

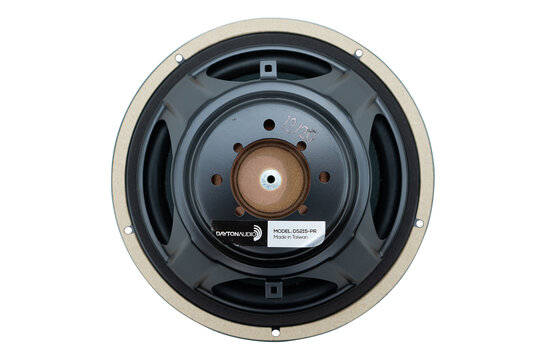

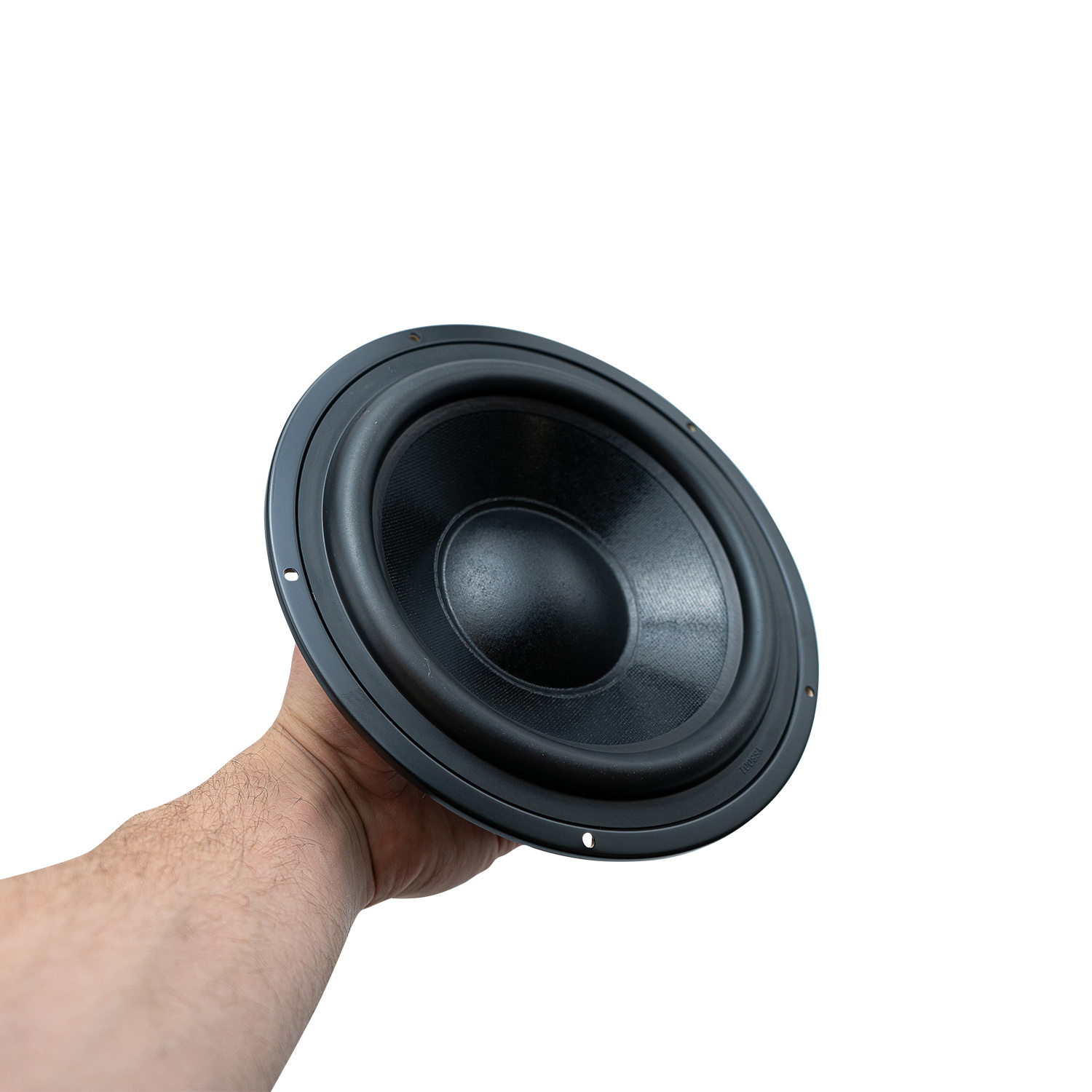

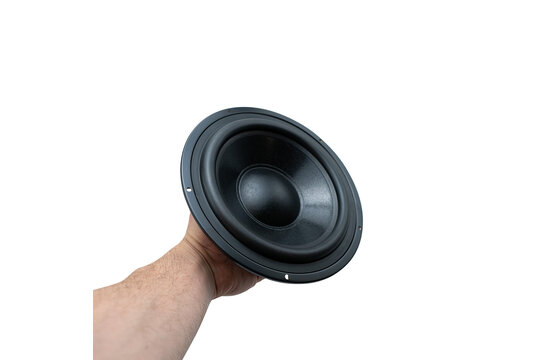

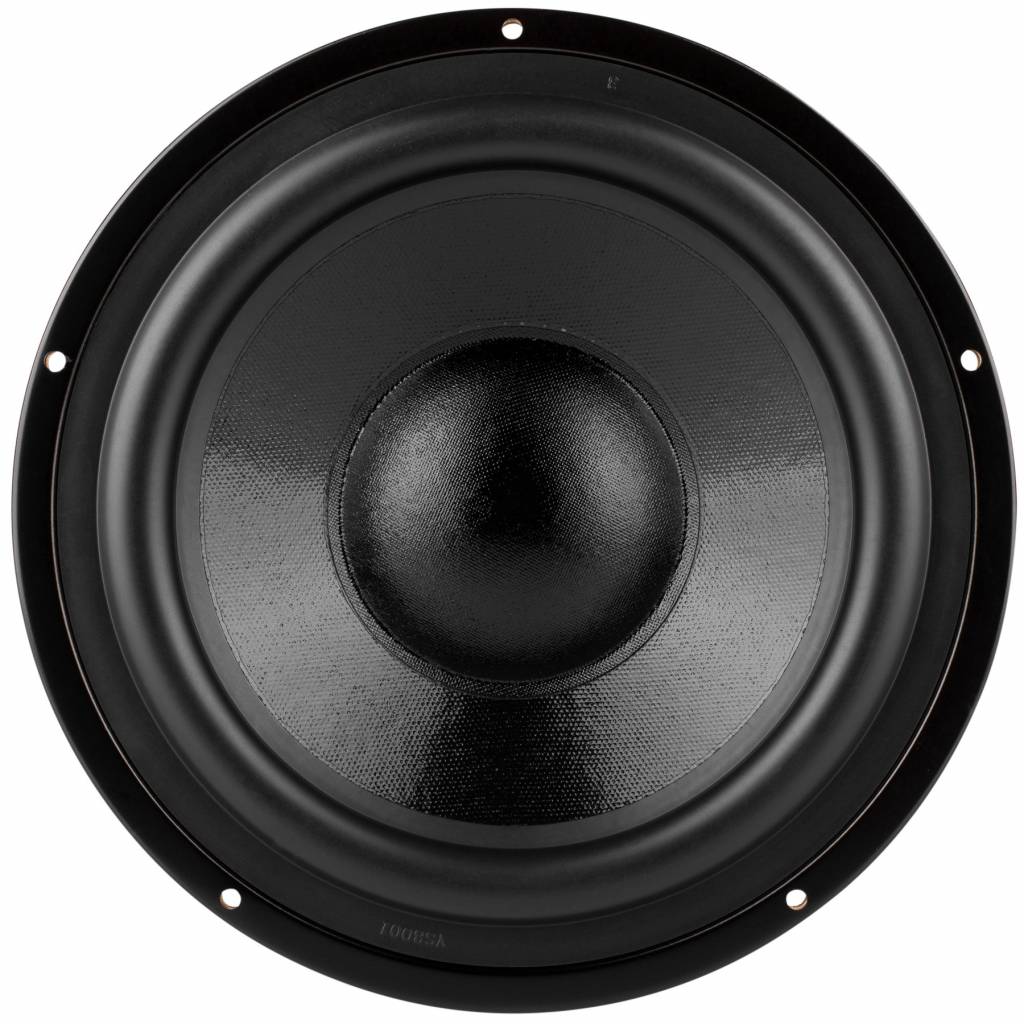

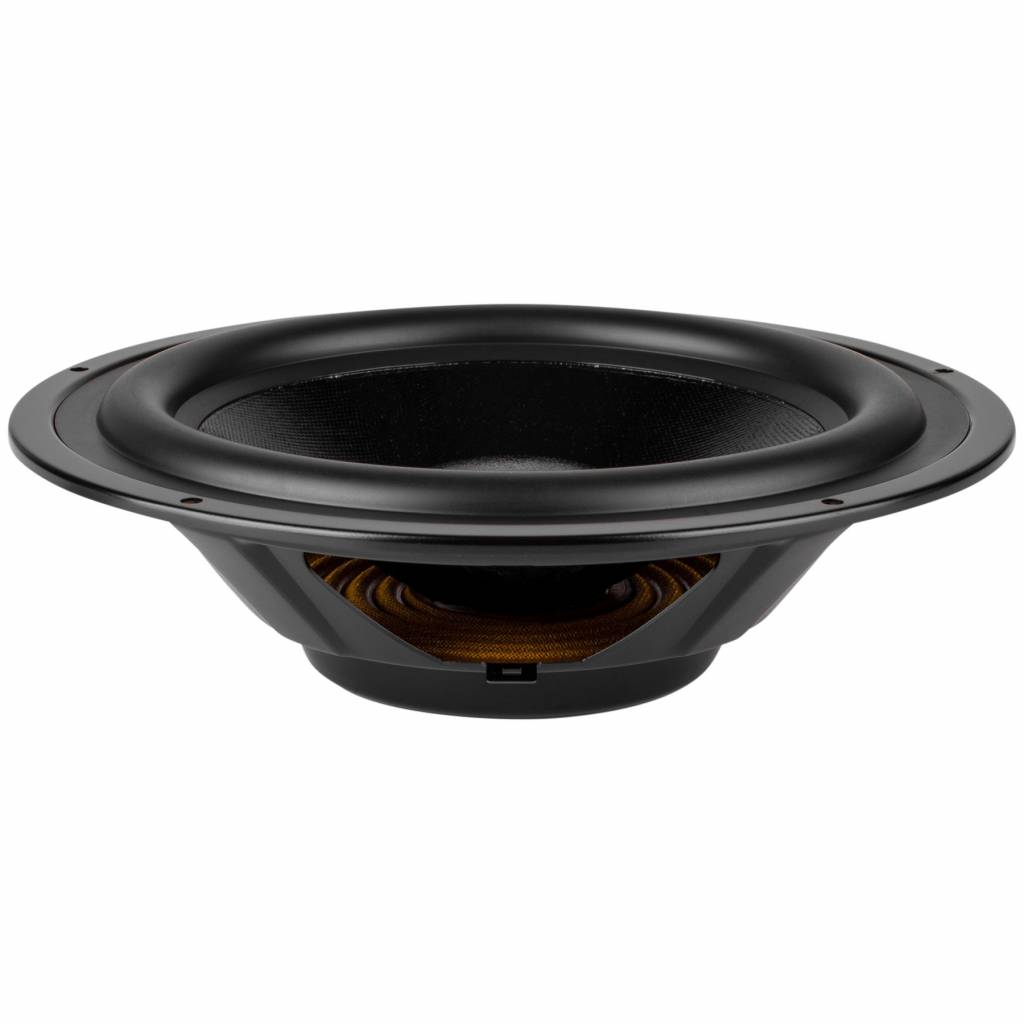

Dayton Audio DS215-PR 8" Passive Radiator

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.

Specifications: • Fs:• Fs: 23.3 Hz • Vas: 1.52 cu. ft. • Qms: 7.34 • Cms: 0.68 mm/N • Rms: 1.4 kg/s • Mms: 68.8 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 216 mm, Cutout diameter: 180 mm, Depth: 58 mm.

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 8" woofer/subwoofer that has 9mm of X-max would require 2-8" passive radiators with 9mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
