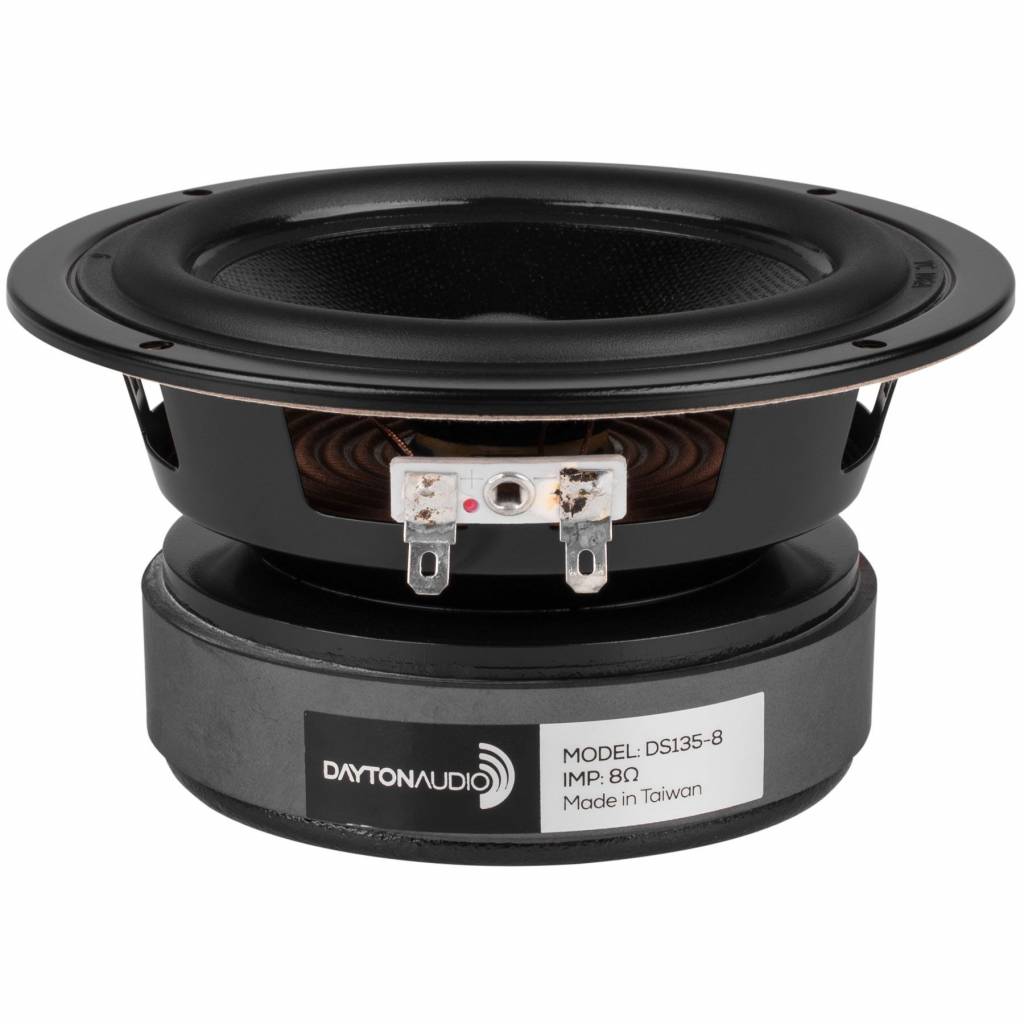

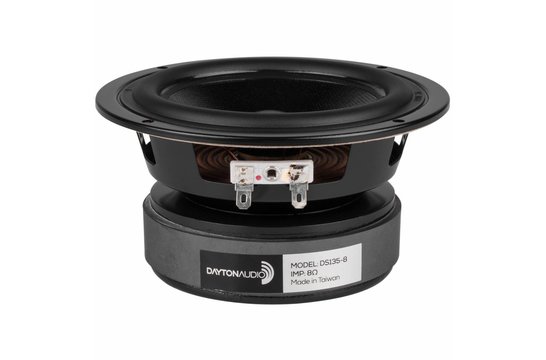

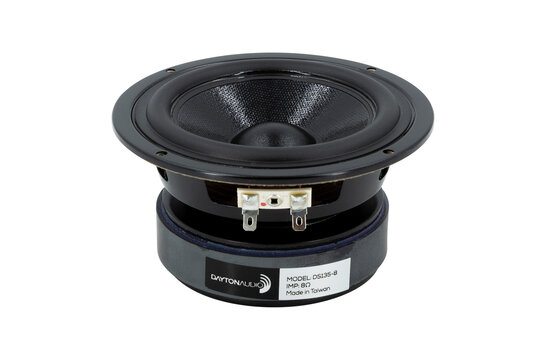

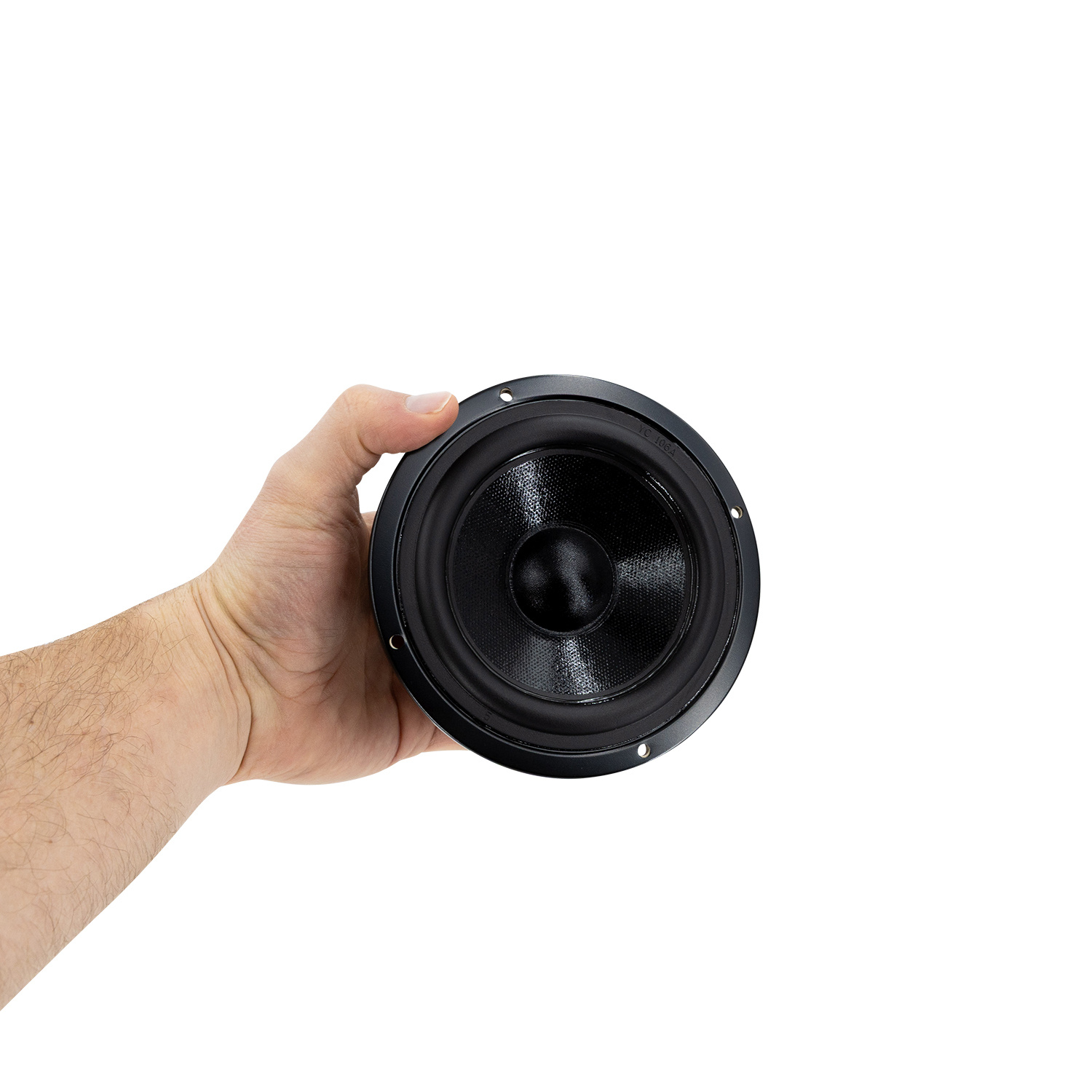

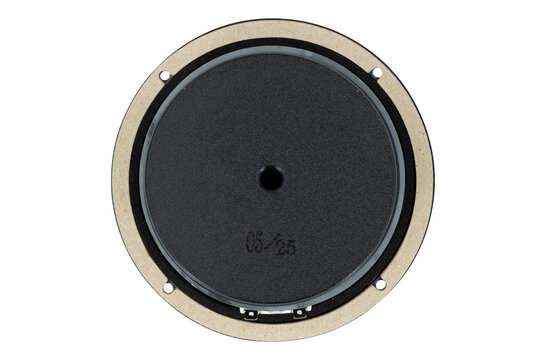

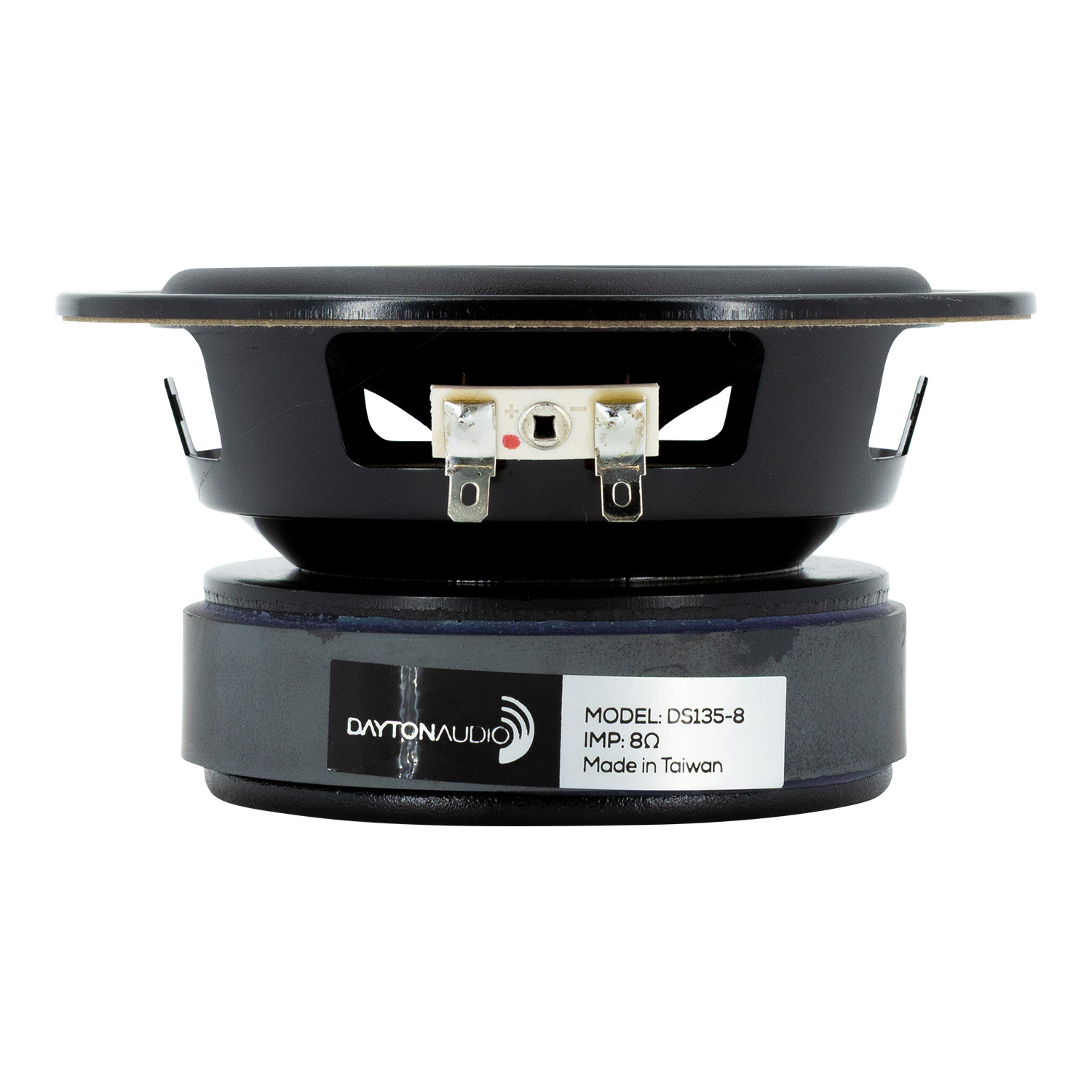

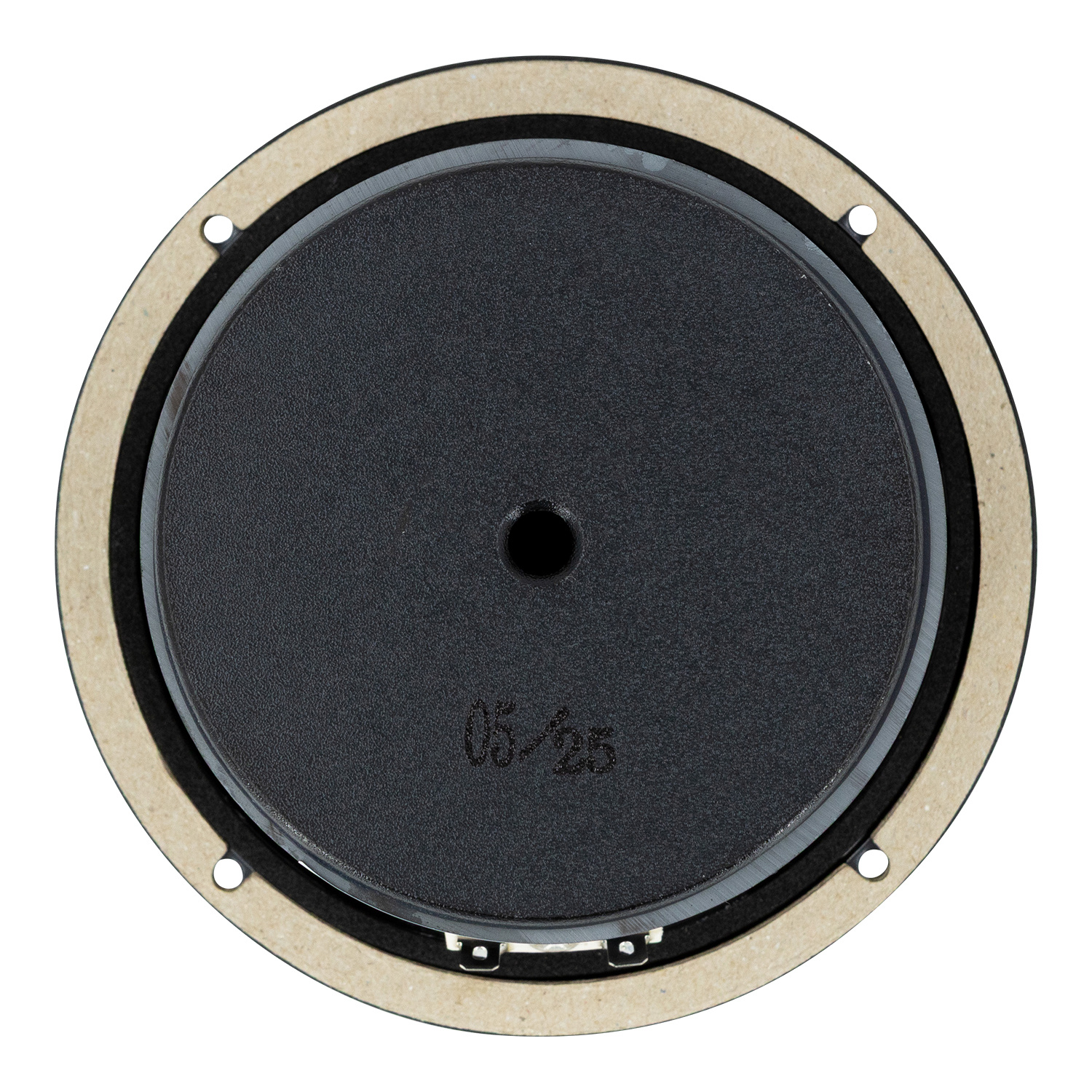

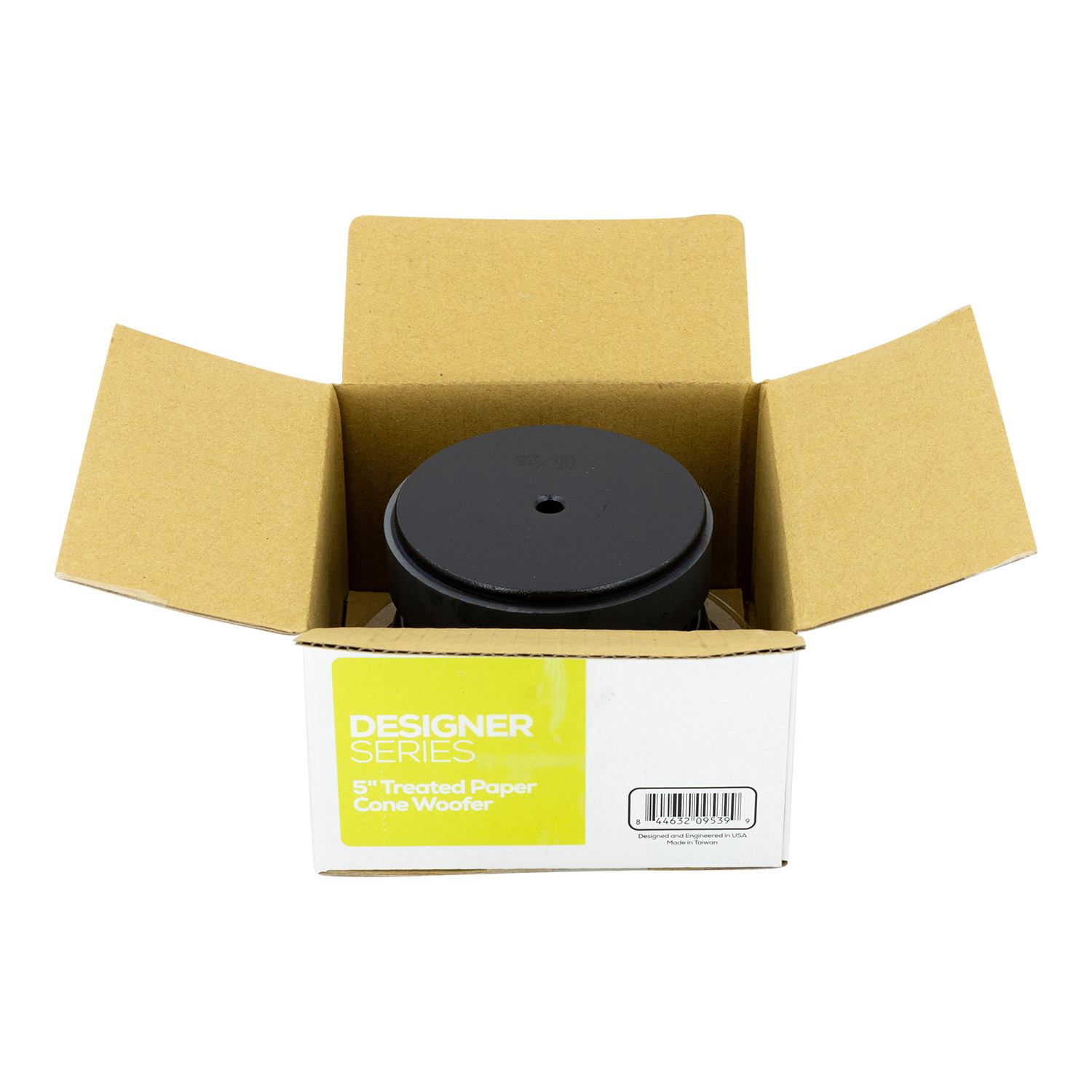

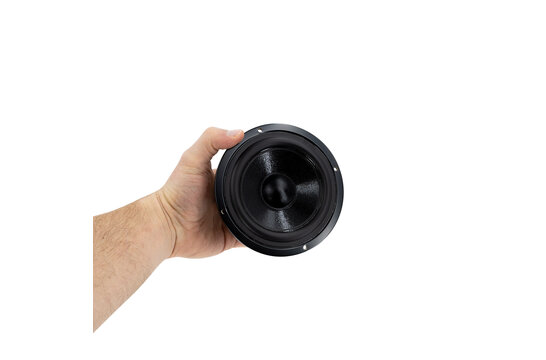

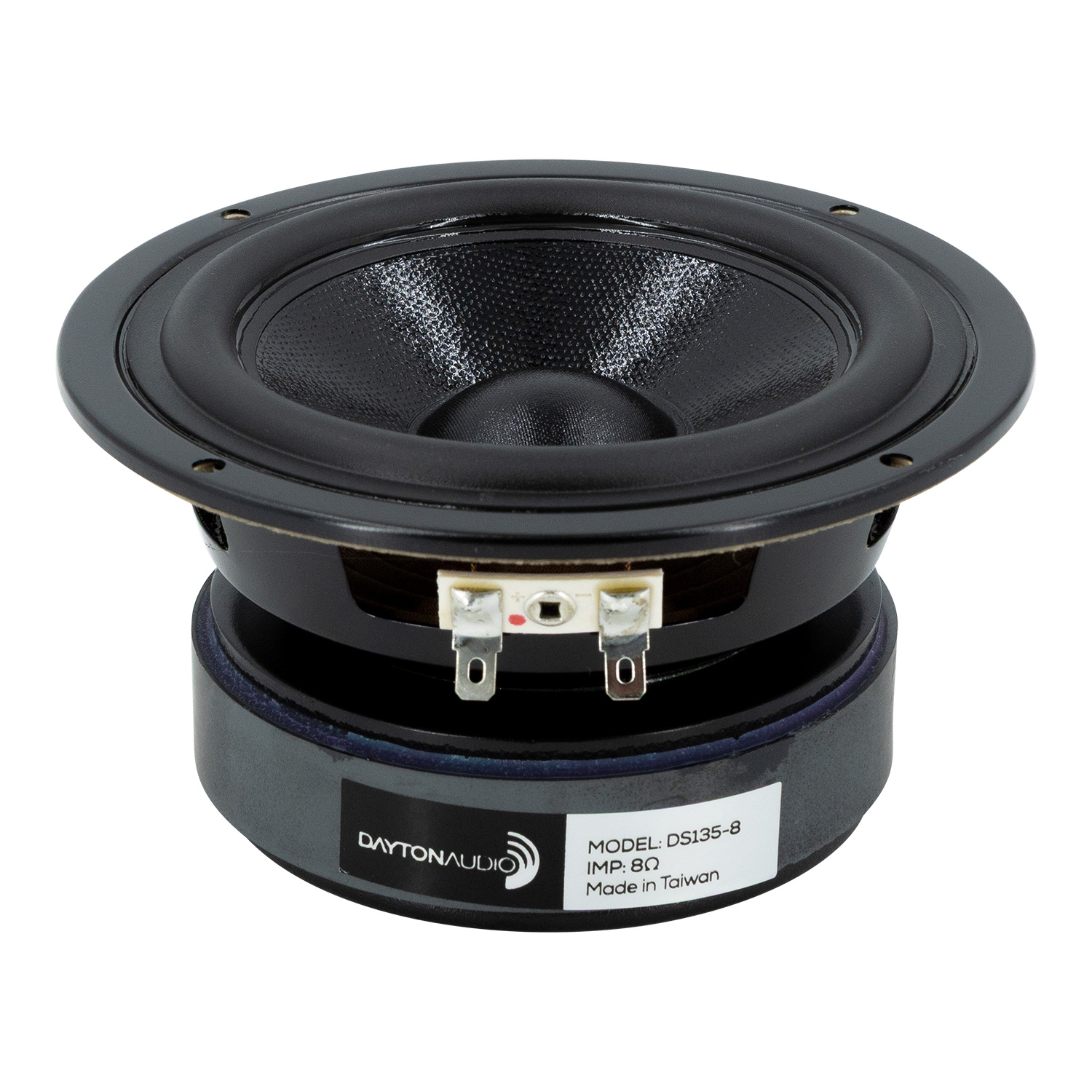

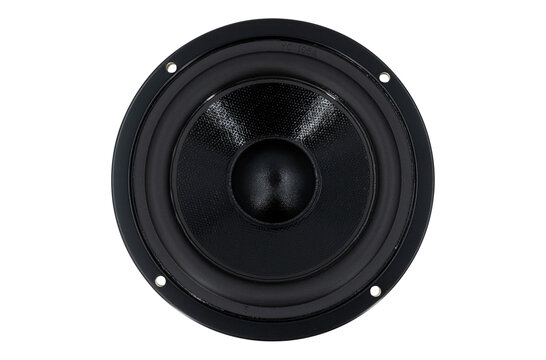

Acquista Dayton Audio Designer DS135-8 Woofer Medio-Bassi?

5" | 8 Ω

€ 34,67€ 41,95 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio Designer DS135-8 Woofer Medio-Bassi

The Designer Series DS135-8 from Dayton Audio brings great audio fidelity and superior cosmetics to the 5" woofer category.

Highlights

Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!

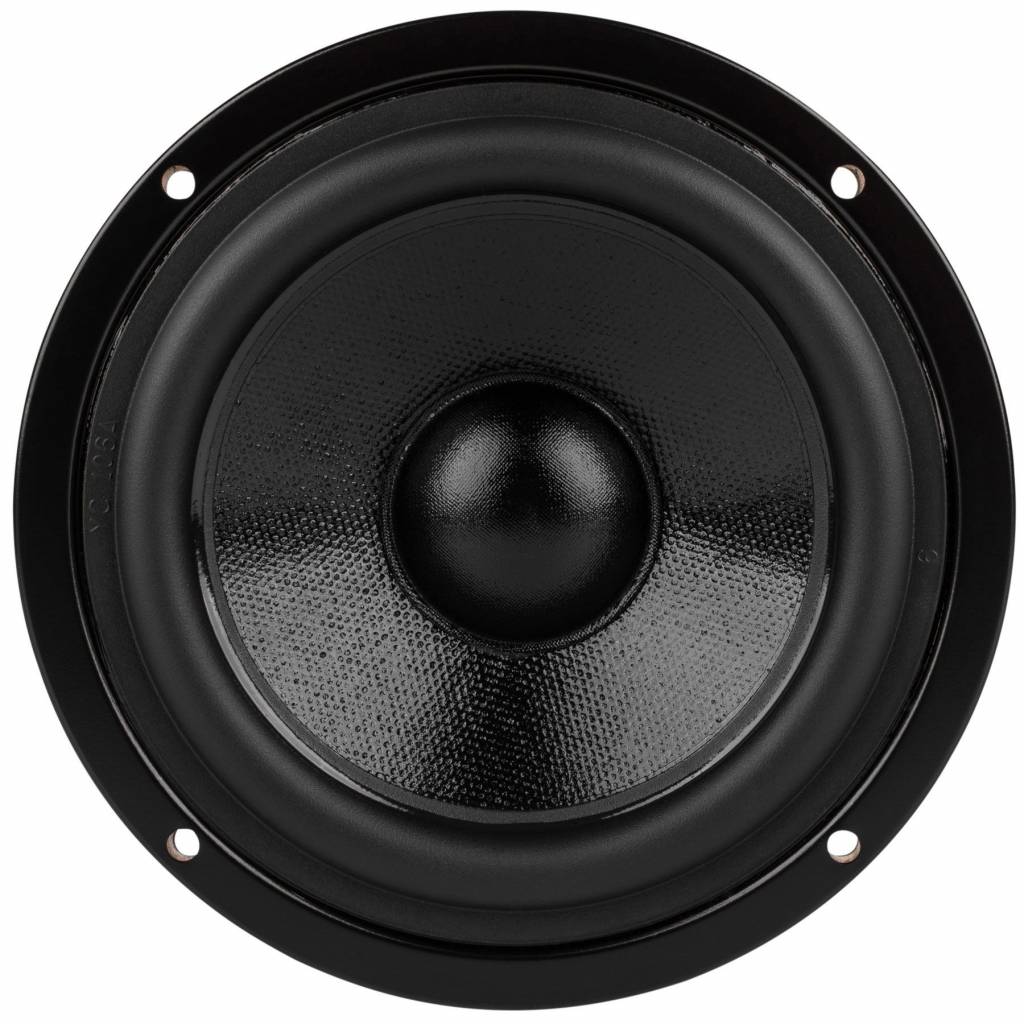

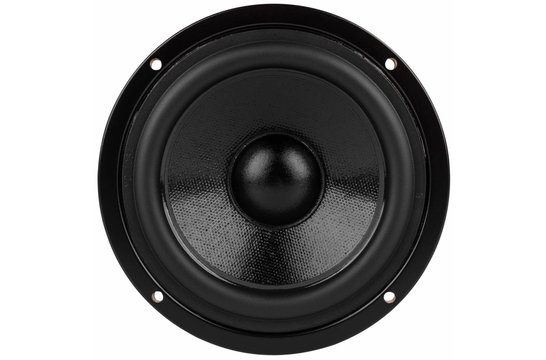

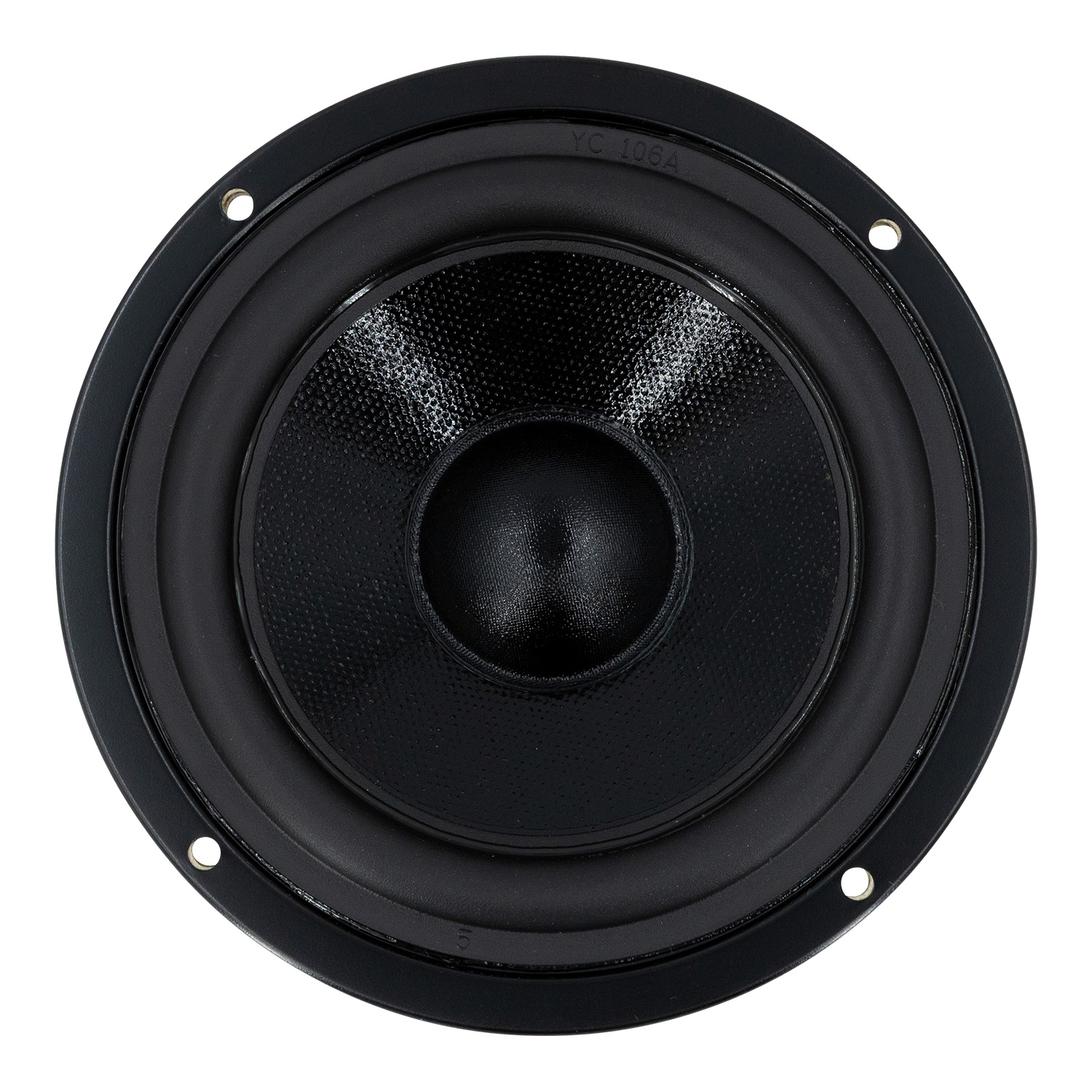

Coated paper cone, half roll rubber surround for durability and accurate reproduction
Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers

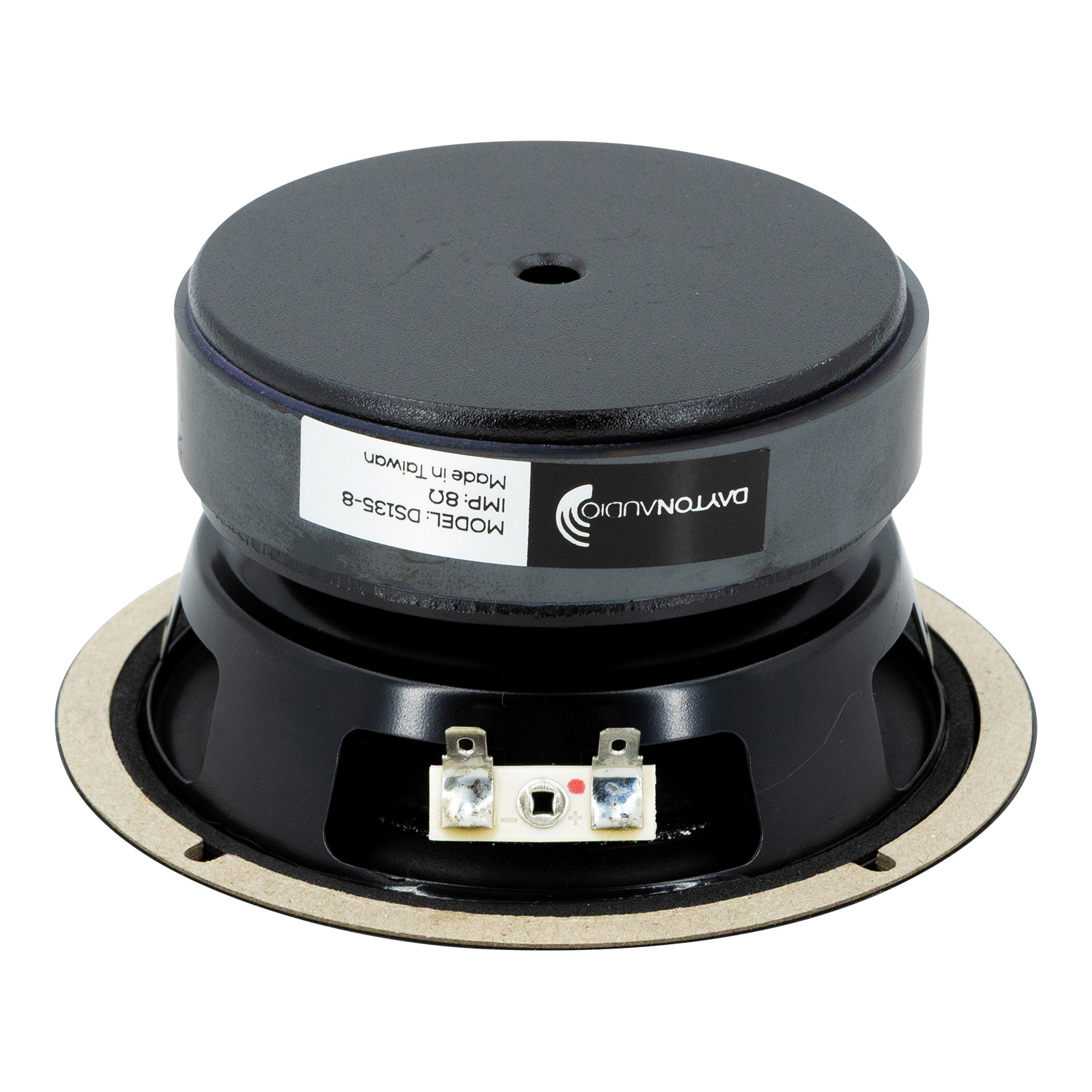

Vented pole piece for minimized power compression and maximized reliability
Generous Xmax capability encourages use of moderate bass boost to tailor the response
Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators

Product details

Dayton Audio DS135-8 5" Designer Series Woofer Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Suggested enclosures:

Sealed cabinet: Type: Acoustic suspension (alpha 3.0), Qtc 0.60; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9-1/8"H x 5-5/8"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 118 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 50 Hz.

Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.17 ft³; Internal cabinet dimensions (golden ratio): 10-3/4"H x 6-5/8"W x 4-1/8"D; Port dimensions (with flared exit): 1" dia. x 4"L. Typical results: 3 dB down-point (f3): 66 Hz; Tuning frequency (fb): 62 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 48 Hz.

Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

Recensioni

6 reviews

Recensisci questo prodotto

5 di 5

Snelle levering en goede kwaliteit

Da Ivo on 17 Agosto 2023

4 di 5

Top vielen dank

Da Alwin S. on 31 Ottobre 2020

Ordered on friday turned up sunday morning. Speakers sound great and can really handle the bass. Have to keep my amp on a pretty low bass setting.

Da Dave R. on 28 Giugno 2020

I bought a pair of these woofers for my diy project. delivery by soundimports was quick .The quality of these woofers is amazing.you can hook these up with Dayton mini air motion tweeter for amazing high frequency response you won't be disappointed with the purchase .On the website you will even find suggested enclosure size for vented or sealed cabinet .The bass from these woofers is awesome.thanks to sound imports for selling such high quality ...

Da Sunny fernandes on 30 Settembre 2018

You really can't go wrong for the price, They sound so much bigger than its 5"size. I used these Dayton Audio Designer Series Woofers for my desk speakers with a nice set of new tweeters paired up with a crossover in each speaker from Edifier S730 speakers just makes the Dayton Audio sound even sweeter. The rear magnets has some real girth and weight to them which explains the quality of good sound they deliver.. Max these puppies out they can ta...

Da mark B. on 12 Giugno 2018

Top speakers voor mijn diy bluetooth speaker. Ik gebruik 2 van deze en 2 tweeters. Levertijd was uitermate goed, super snel geleverd. Top! Als ik ooit weer speaker spul nodig heb weet ik waar ik moet zijn! Een echte aanrader deze shop!

Da Stan on 12 Dicembre 2016
