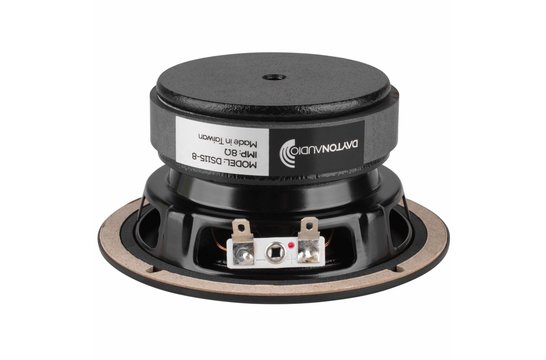

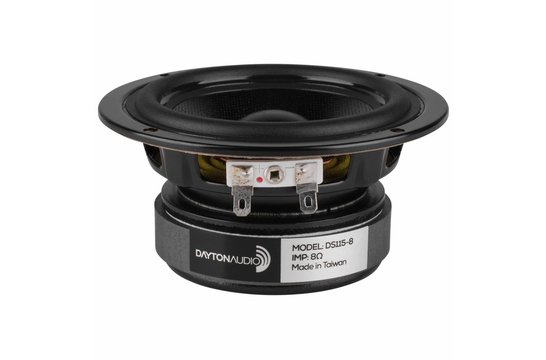

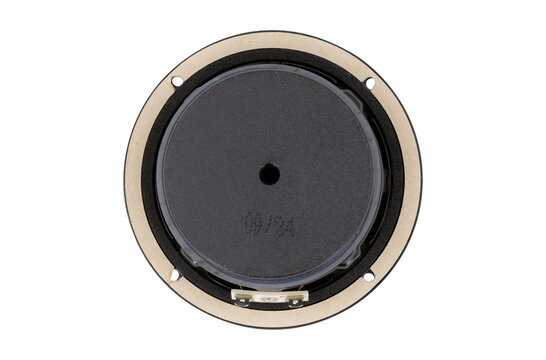

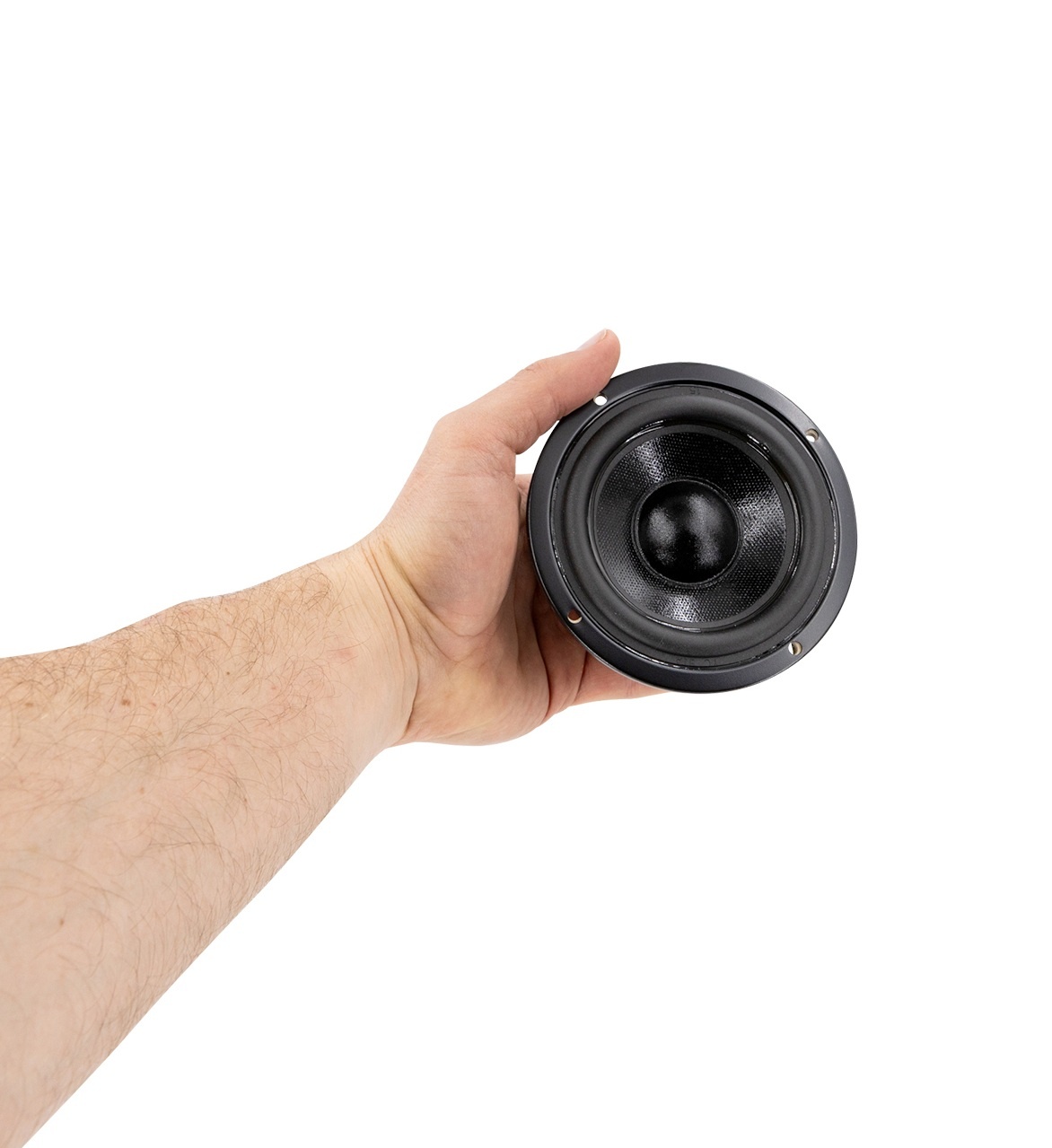

Name: Dayton Audio Designer DS115-8 Woofer Medio-Bassi
Brand: Dayton Audio
SKU: DS115-8
Price: 36.95 EUR
Availability: InStock
Rating: 4.9 (8 reviews)

4" | 8 Ω

€ 30,54€ 36,95 1 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

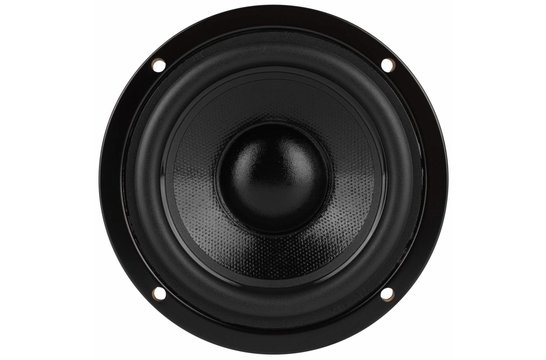

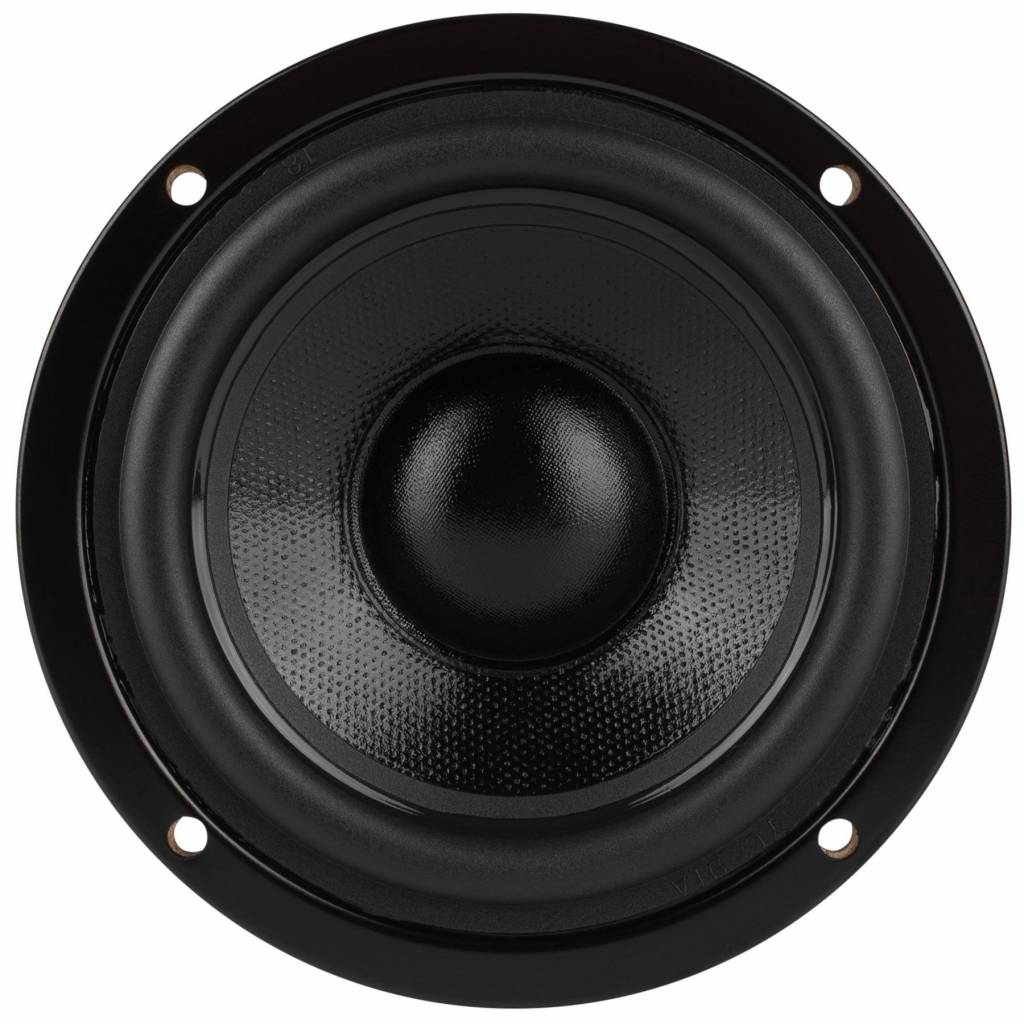

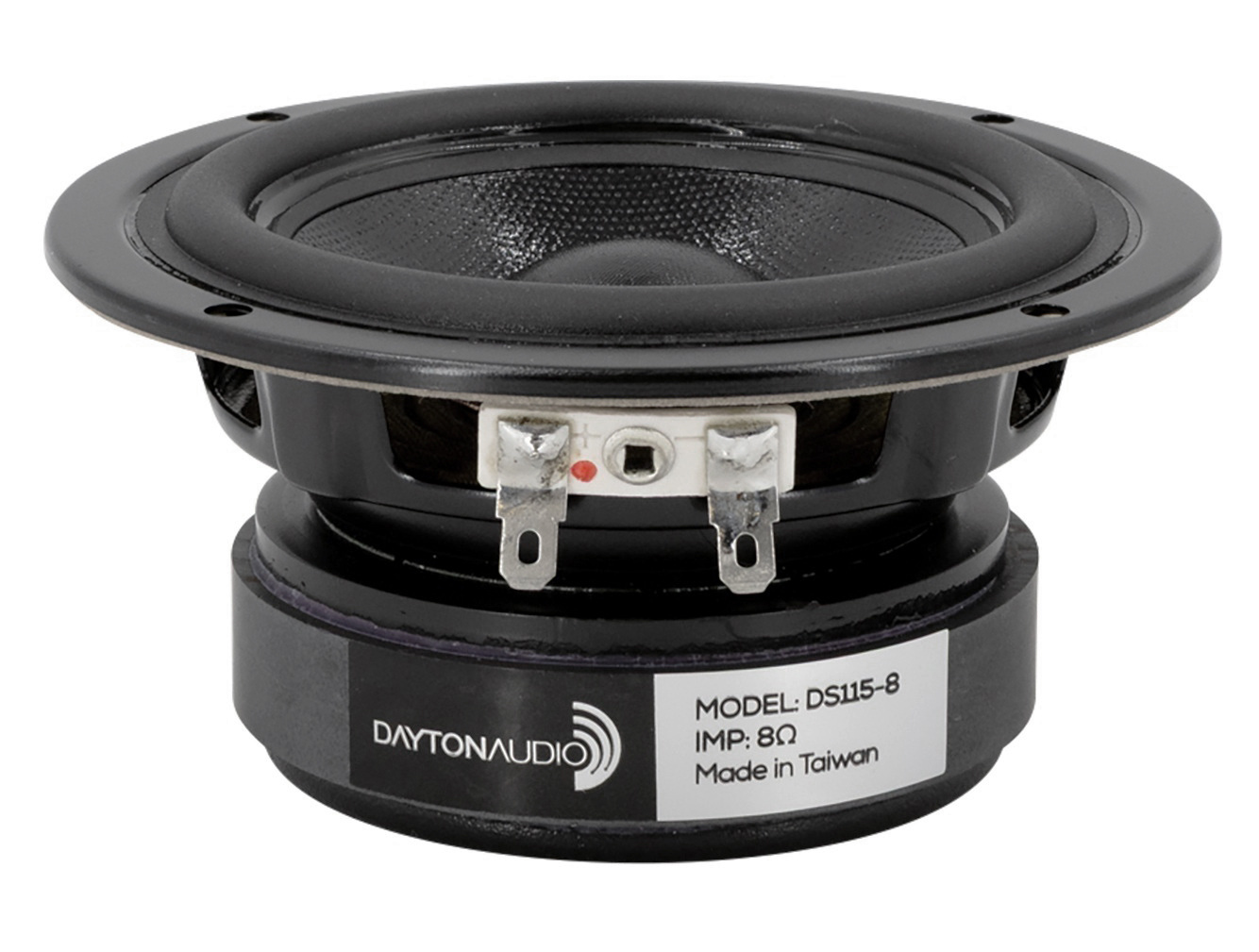

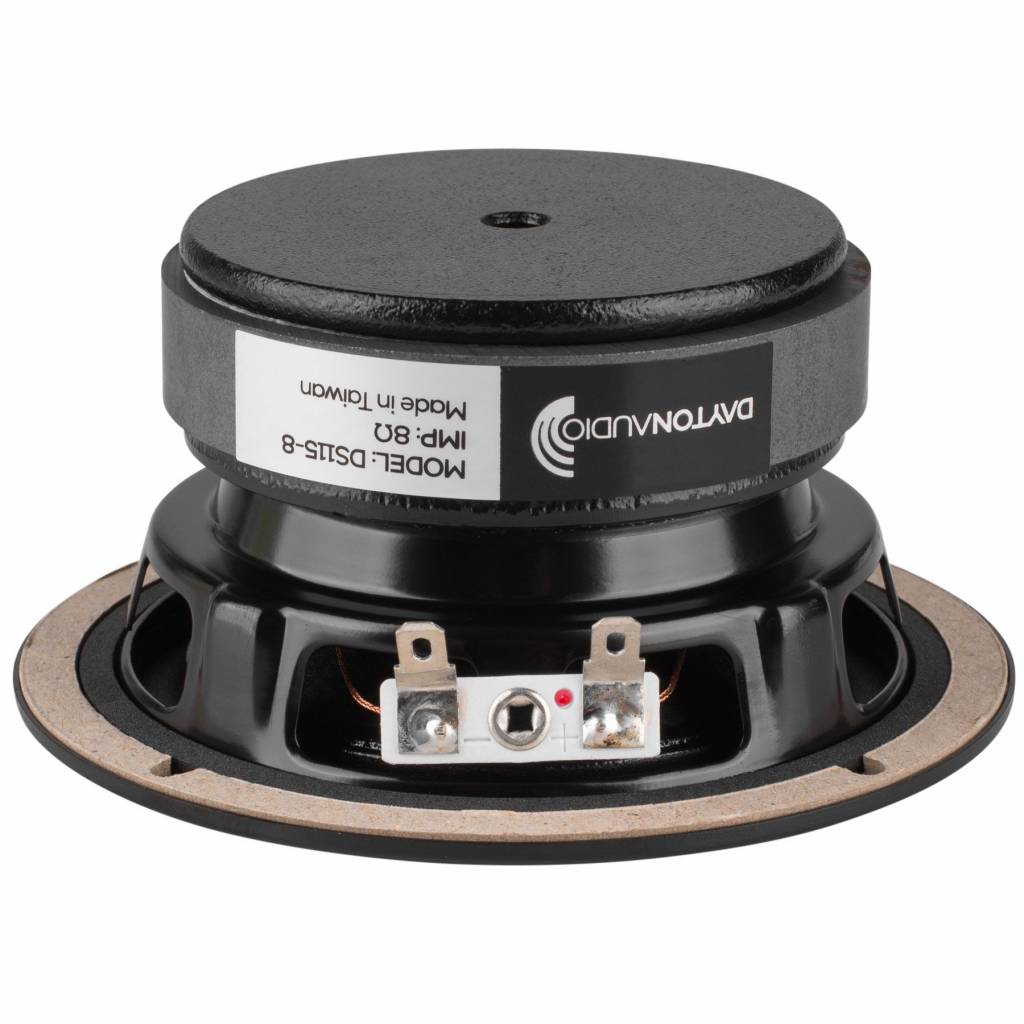

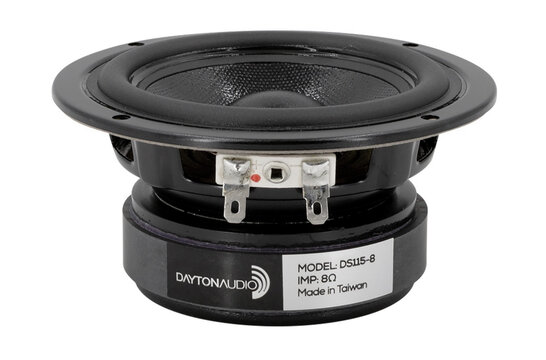

Descrizione del prodotto Dayton Audio Designer DS115-8 Woofer Medio-Bassi

More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an extremely neutral response and high Xmax capability.

Highlights

Coated paper cone, half roll rubber surround for durability and accurate reproduction
Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet

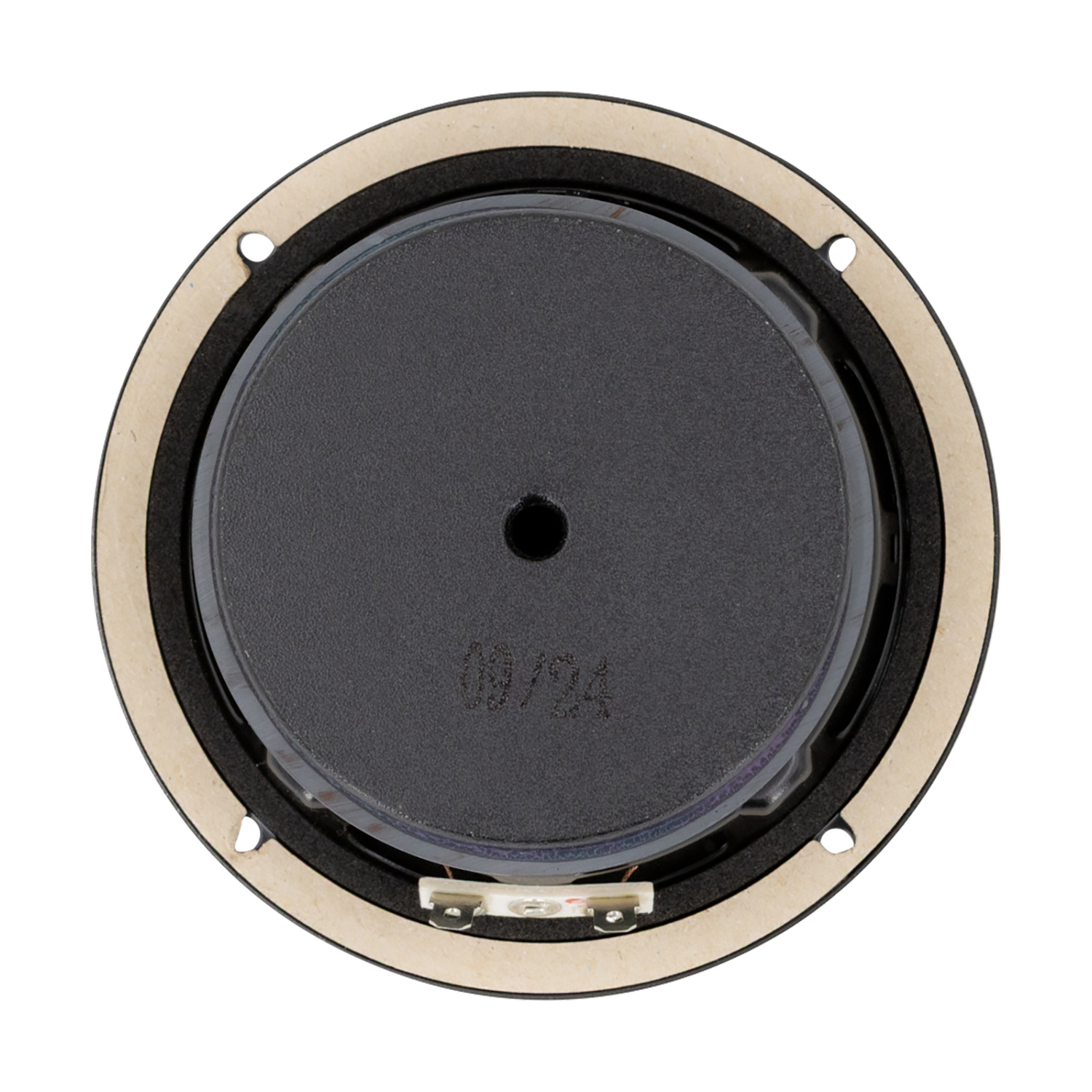

Vented pole piece for minimized power compression and maximized reliability
Generous Xmax capability encourages use of moderate bass boost to tailor the response
Smooth frequency response and linear roll-off simplify filter design, assuring good results with off-the-shelf crossovers
Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators

Product details

Dayton Audio DS115-8 4" Designer Series Woofer Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Suggested enclosures:

Sealed cabinet: Type: Closed (alpha 1.9), Qtc 0.55; Size (internal) including volume displaced by driver: 0.1 ft³; Internal cabinet dimensions (golden ratio): 9"H x 5-1/2"W x 3-1/2"D. Typical results: 3 dB down-point (f3): 135 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 70 Hz.

Vented cabinet: Type: Bass reflex; Size (internal) including volume displaced by driver and port: 0.12 ft³; Internal cabinet dimensions (golden ratio): 9-1/2"H x 5-7/8"W x 3-5/8"D; Port dimensions (with flared exit): 1" dia. x 6"L. Typical results: 3 dB down-point (f3): 73 Hz; Tuning frequency (fb): 69 Hz; Low frequency limit at rated power without exceeding conventional Xmax (i.e. (voice coil length – gap height) / 2)): 55 Hz.

Frequency response (FRD) and Impedance (ZMA) data files available to assist in crossover and enclosure modeling.

Recensioni

8 reviews

Recensisci questo prodotto

4 di 5

Da Mikael on 19 Settembre 2025

5 di 5

Da Johannes on 26 Novembre 2024

Da Sander on 5 Novembre 2023

Deze kleine potente midwoofer is ingezet in een compacte FAST waar dit speakertje tot ca. 500hz loopt. Het laag wat eruit komt is absurd voor zo'n klein 10cm woofertje, mensen vragen waar de subwoofer staat....

Da Arjan K. on 25 Luglio 2020

goede luidspreker voor z'n prijsklasse

Da Sam D. on 25 Ottobre 2019

Although I have not yet mounted the speakers in the designed boxes, the initial impression is good, good material and good finishes.

Da Manuel J. on 29 Maggio 2019

Testing it in a 1.5m transmission line enclosure. Bass notes seem pleasing on the ear, separately produced so well defined, no booming. Voice from DAB radio sounded pretty realistic. Work in progress!

Da John G. on 14 Marzo 2019

bon producte

Da juli s. on 6 Marzo 2018
