Name: Dayton Audio DMA70-PR Radiatore Passivo
Brand: Dayton Audio
SKU: DMA70-PR
Price: 11.95 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

passive | 2.5"

€ 9,88€ 11,95 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito domani
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio DMA70-PR Radiatore Passivo

Dayton Audio's DMA70-PR 2-1/2" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.

Highlights

Perfect match for the Dayton Audio DMA series drivers
Allows tuning small enclosures lower than using conventional ports

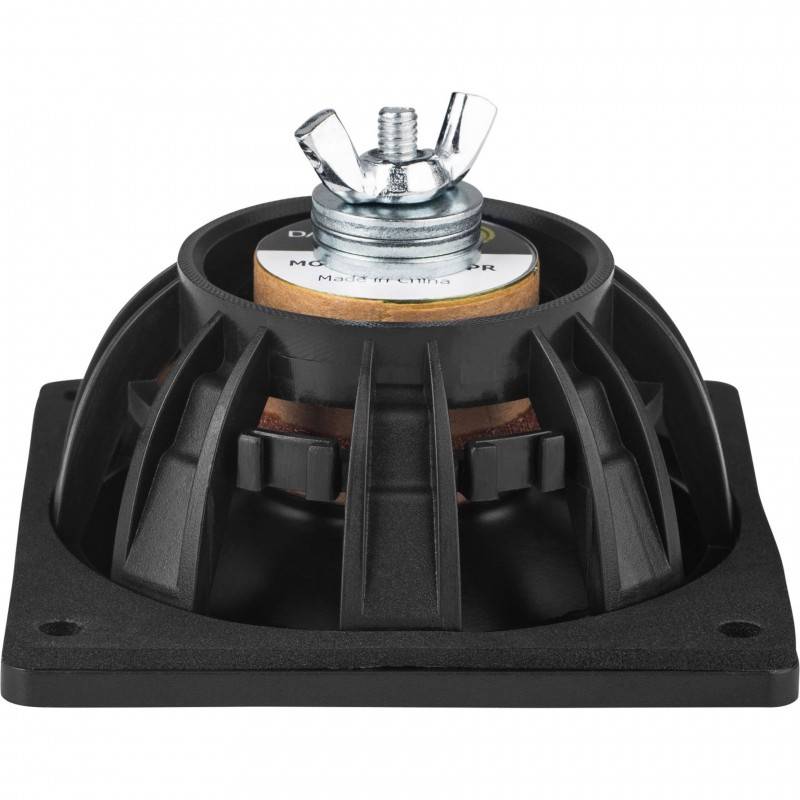

Rear mounted threaded post allows easy mass adjustment for custom tuning
DIY friendly, oversized mounting flange makes installation simple

Product details

Dayton Audio DMA70-PR 2-1/2" DMA Series Passive Radiator

The DMA70-PR 2-1/2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA70-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA70-PR introduces a new range of possibilities.

Specifications: • Fs: 34.5 Hz • Vas: 0.046 ft³ (1.32 liters) • Qms: 3.86 • Cms: 1.77 mm/N • Mms: 12.0 g • Rms: 1.49 kg/s • Sd: 22.9 cm² • Xmech: 7 mm • Dimensions: Overall diameter: 2.75" x 2.75", Cutout diameter: 2.52", Depth: 1.73".

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd
