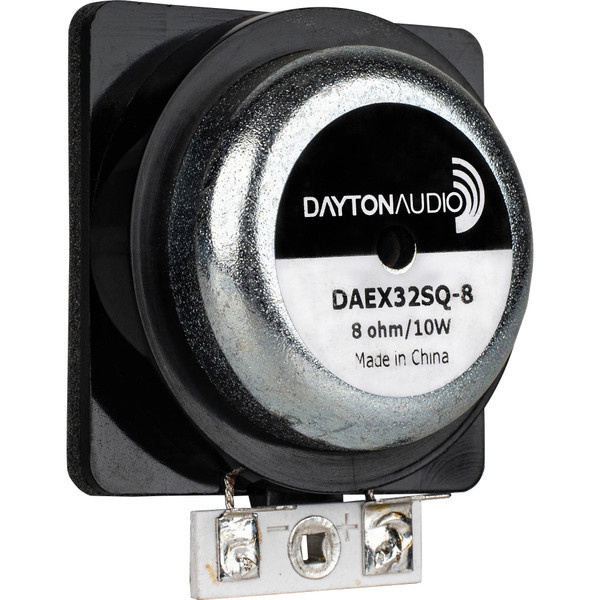

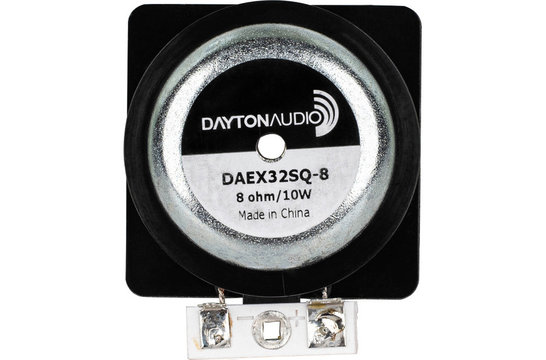

Name: Dayton Audio DAEX32SQ-8 Square Frame sound Eccitatore
Brand: Dayton Audio
SKU: DAEX32SQ-8
Price: 27.45 EUR
Availability: InStock

10 W | 32 mm

DAEX32SQ-8 Square Frame sound Eccitatore

€ 22,69€ 27,45 3 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio DAEX32SQ-8 Square Frame Eccitatore

Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32SQ-8 square frame exciter uses a 2-layer 3.17cm voice coil for high power handling. The square frame design provides additional support for the motor assembly to produce lower distortion when driven to its limits.

Highlights

Extended range and wide dispersion
32 mm 2 layer voice coil for high, 10 watts RMS, power handling

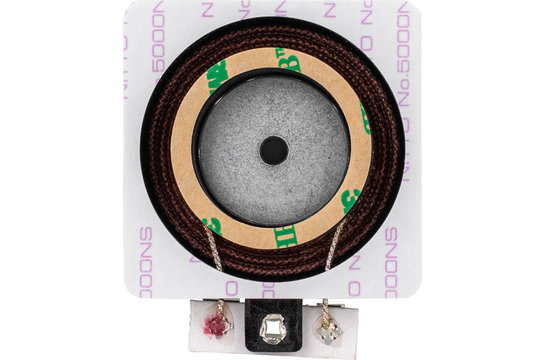

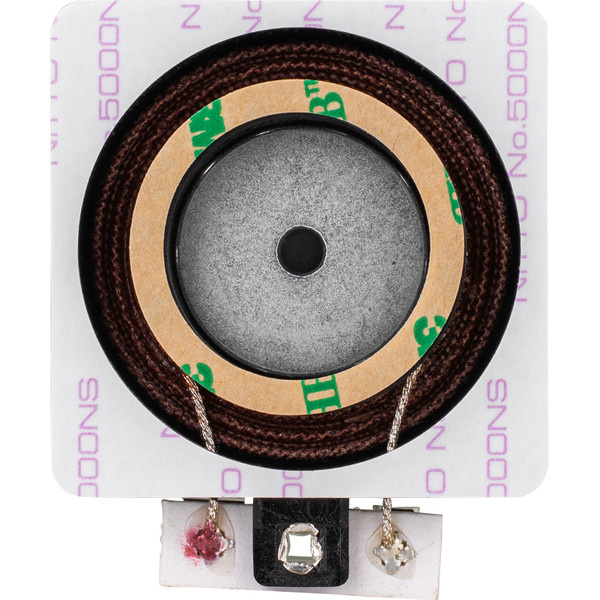

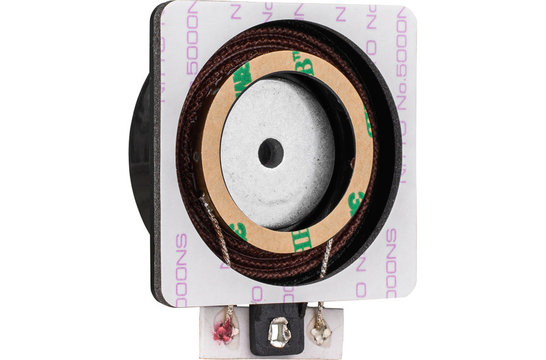

Pre-applied 3M VHB adhesive for quick, secure installation
8 ohms impedance for easy connection to most amplifiers

Product Details

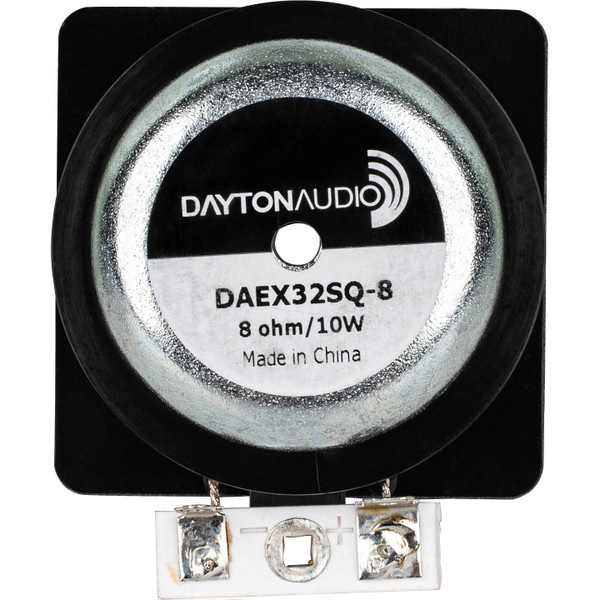

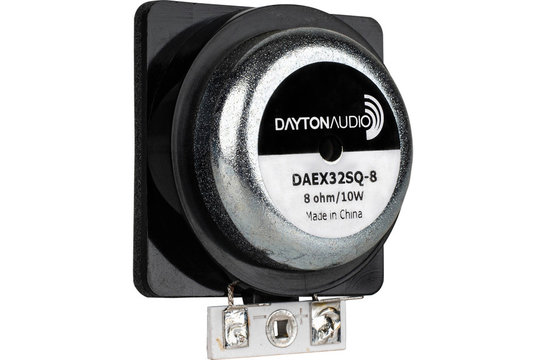

Dayton Audio DAEX32SQ-8 Square Frame 32mm Exciter 10W 8 Ohm

Dayton Audio's DAEX32SQ-8 square frame 32mm exciter gives you the ability to turn almost any solid surface into a truly invisible high-fidelity speaker. With a 3.17cm 2-layer voice coil this exciter is capable of great power handling and impressive overall output capability. The square frame design gives this exciter additional mounting area to help support the powerful motor assembly and provide improved linearity when mounted to vertical surfaces.

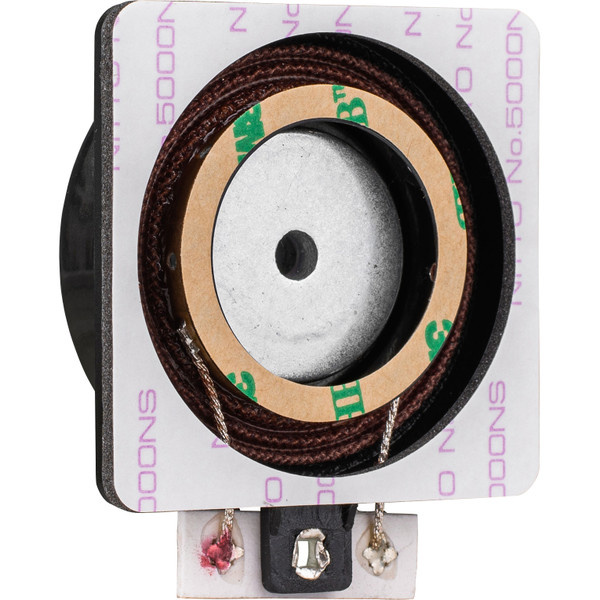

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 3.17cm voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!

A basic guide to creating invisible sound with exciters

Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.

A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

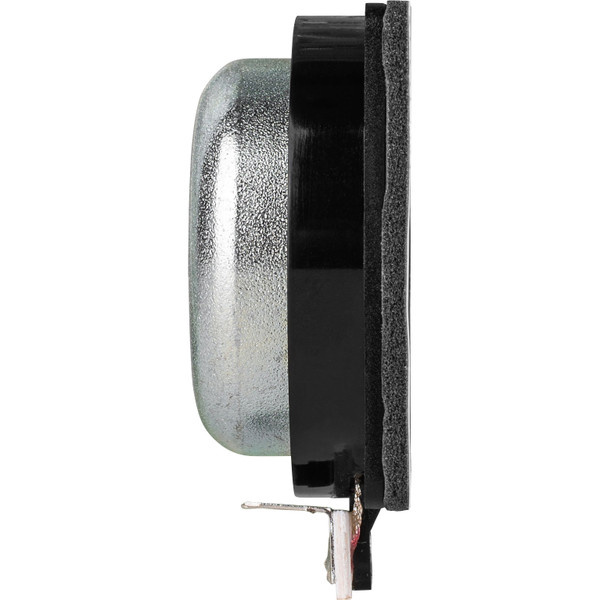

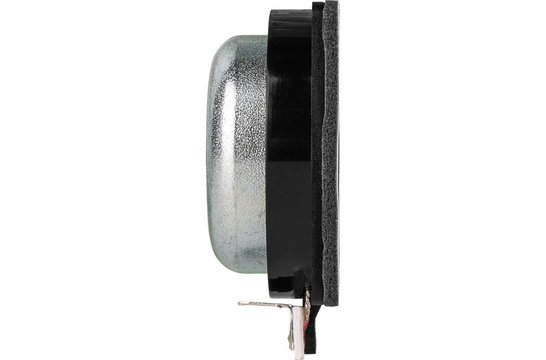

Specifications: • Power handling: 10 watts RMS • VCdia: 3.2cm • Nominal impedance: 8 ohms • Re: 8 ohms • Le: 0.51 mH • Fs: 481 Hz • Dimensions: 5.1cm W x 6.18cm H x 2.25cm D • Weight: 130 grams.

Application	Full-Range Exciter
Impedance	8 ohms
Power Handling (RMS)	10 Watts
