Name: Dayton Audio DAEX25Q-4 sound Eccitatore
Brand: Dayton Audio
SKU: DAEX25Q-4
Price: 27.95 EUR
Availability: BackOrder
Rating: 4.15 (14 reviews)

20 W | 25 mm

€ 23,10€ 27,95 Esaurito

Backorder

Spedizione gratuita a partire da € 199
Presto di nuovo disponibile
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio DAEX25Q-4 Eccitatore

For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25Q-4 features four extended arms. Spring-loaded speaker terminals facilitate quick electrical connection.

Highlights

Unique, four arm design for exciting a large surface
Pre-applied 3M™ VHB™ adhesive for quick, secure installation
Rare-earth neodymium motor and a proprietary voice coil
4-ohm impedance for use with small, Class D amplifiers
20 watt RMS power handling for high output

Product details

Dayton Audio DAEX25Q-4 Quad Feet 25mm Exciter 20W 4 Ohm

Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil allows for more input power, creating rich, dynamic sound.

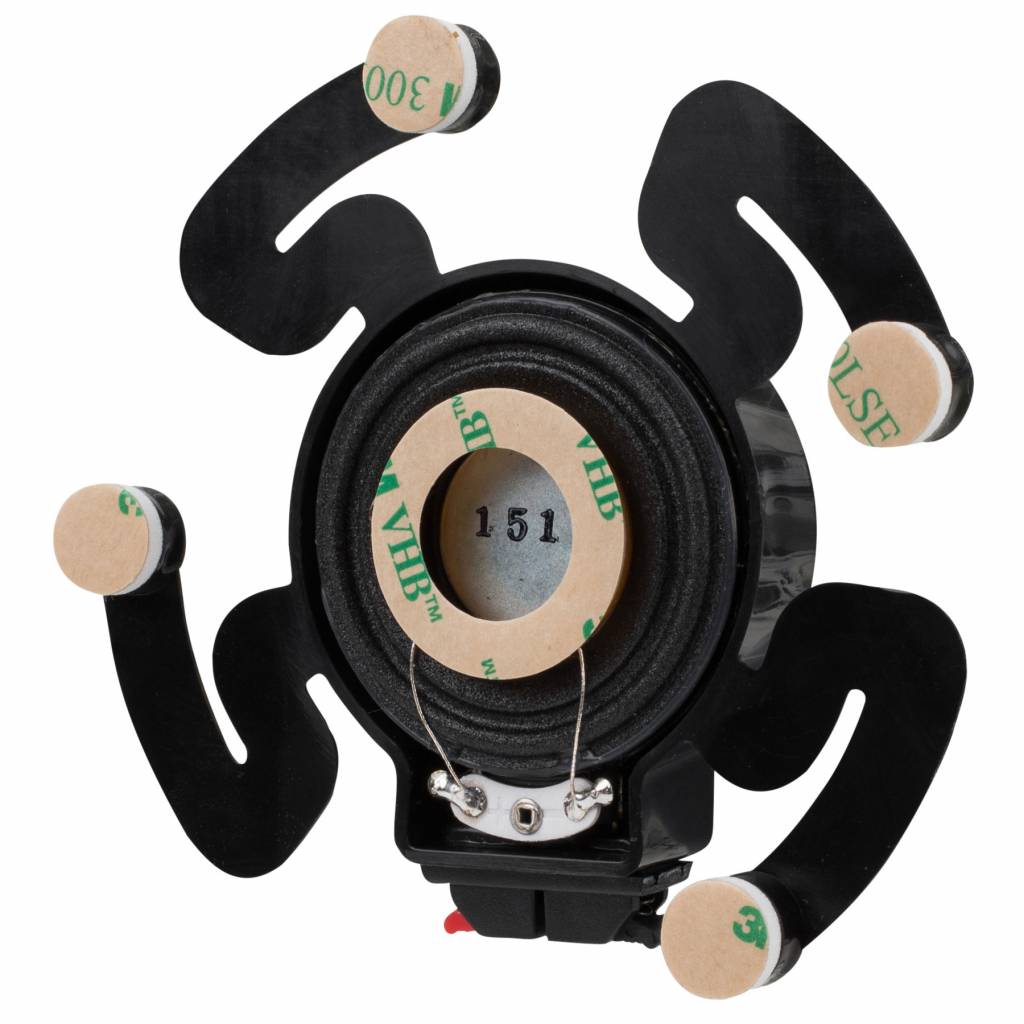

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick! Two spring-loaded terminals are built onto the main body for quick electrical connection.

A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

A basic guide to creating invisible sound with exciters

Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Recensioni

14 reviews

Recensisci questo prodotto

5 di 5

Super Klang

Da Manfred on 4 Novembre 2025

Da Torsten on 20 Ottobre 2025

Da Mauro on 27 Agosto 2025

I have painted three A1 panels and turned them into three fantastic speakers that blend into our decor perfectly. The sound quality is really good, much better than the box speakers they replaced.

Da Ernest on 8 Marzo 2025

1 di 5

Too slow the delivery!

Da Roberto on 29 Dicembre 2024

4 di 5

Da José on 20 Giugno 2023

Da Uwe on 12 Marzo 2023

Alles prima

Da Albert on 5 Settembre 2022

Koper heeft geen omschrijving achtergelaten.

Da Peter U. on 4 Marzo 2020

Over priced junk, sound quality is terrible...

Da Dominic S. on 31 Maggio 2019

Ben nog aan het experimenteren met plaatmateriaal om een zo prettig mogelijk geluid te krijgen. De plastic Spider arms vallen een beetje tegen.

Da Edd B. on 3 Aprile 2019

No description was given

Da Mikko H. on 28 Giugno 2018

glue is not good for experimenting on different surfaces. You are attempting to build a full loudspeaker, so each fixing is a prototype. I bought this exciter so I could drill m3 screw holes in the four feet. So far I found 5mm plywood gives max energy transfer (loudness) and room position makes a big difference in bass performance.

Da dp a. on 18 Maggio 2018

Da Fabio P. on 1 Maggio 2018
