Acquista Dayton Audio DAEX25FHE-4 Eccitatore?

25 W | 25 mm

€ 14,01€ 16,95 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio DAEX25FHE-4 Eccitatore

Choose Dayton Audio's DAEX25FHE-4 sound exciter to add dynamic sound to almost any object or surface!

Highlights

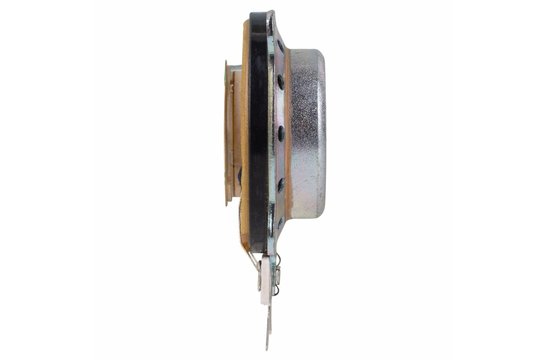

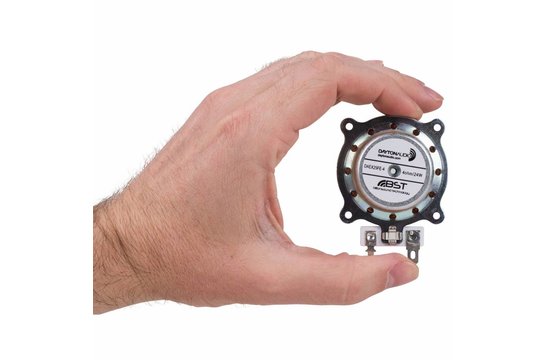

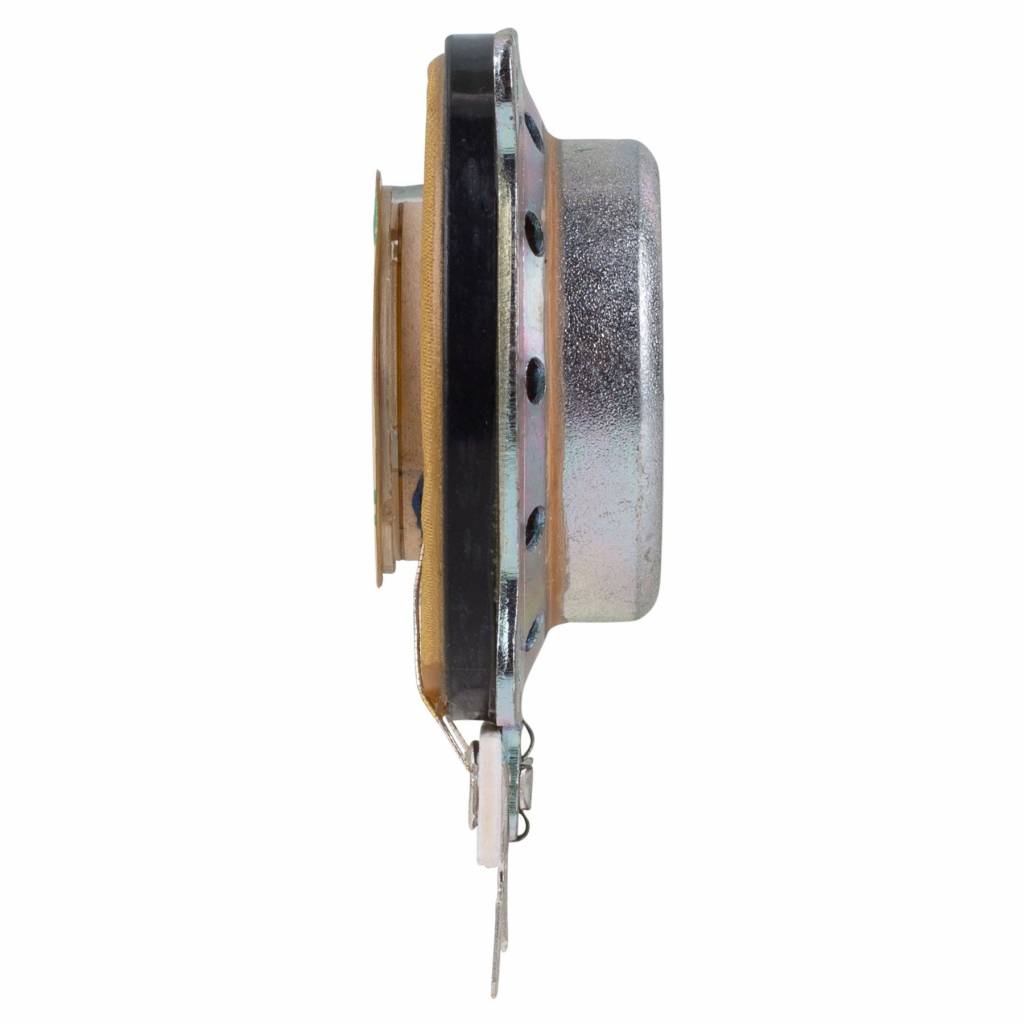

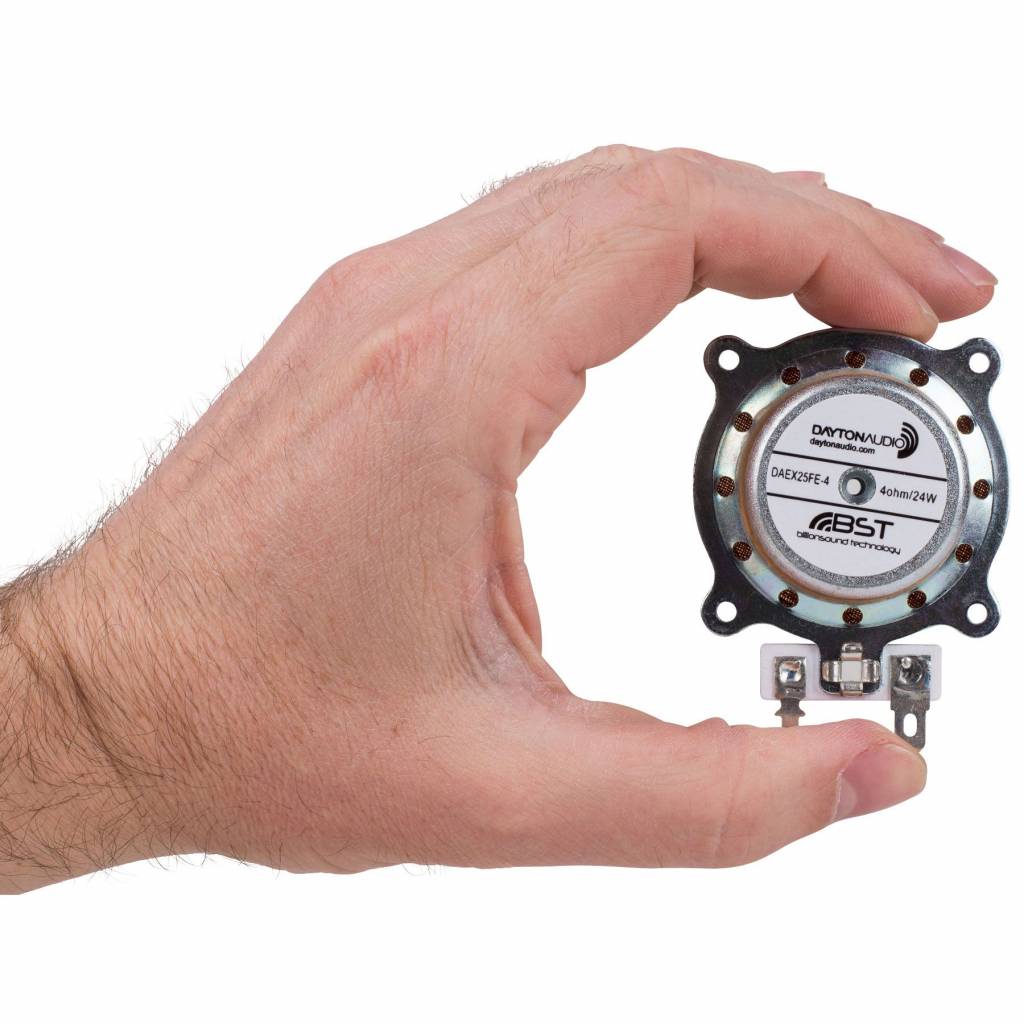

Small size; just under 5.08cm diameter, about 2.2cm high

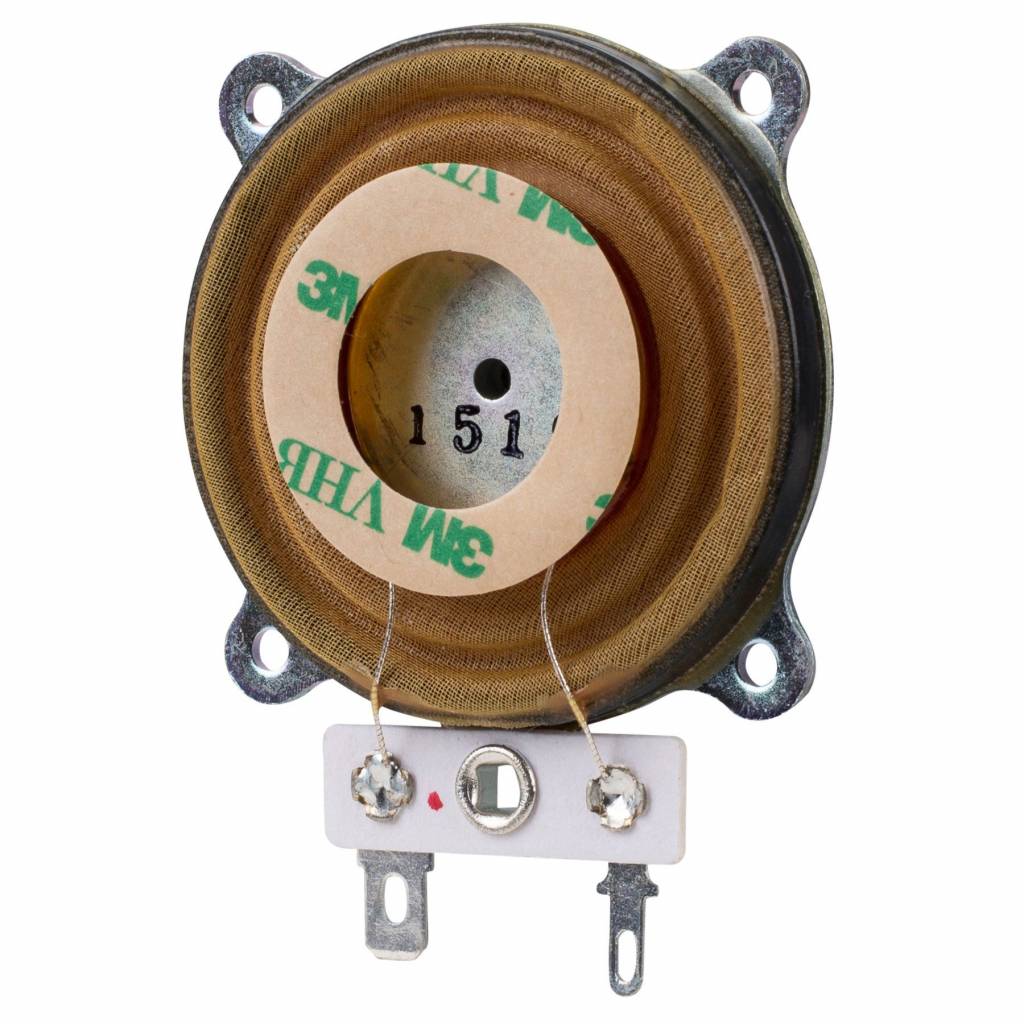

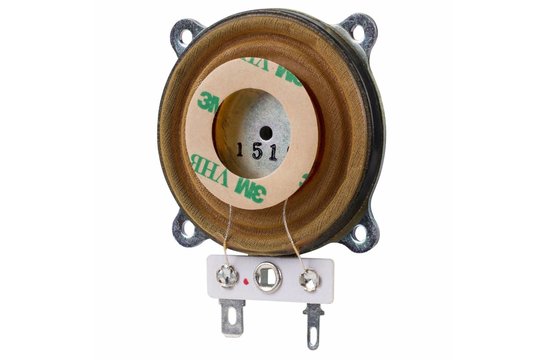

Pre-applied 3M™ VHB™ adhesive for quick, durable installation
Rare-earth neodymium motor and a proprietary voice coil
4-ohm impedance for use with small, Class D amplifiers
24 watt RMS power handling for high output

Product details

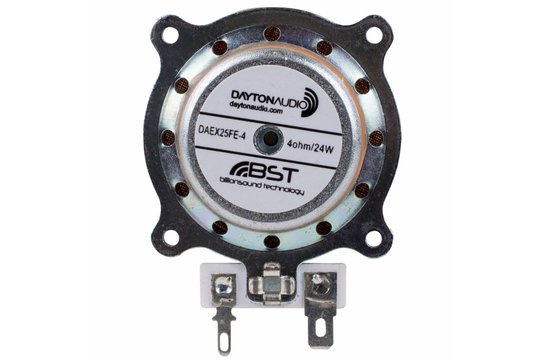

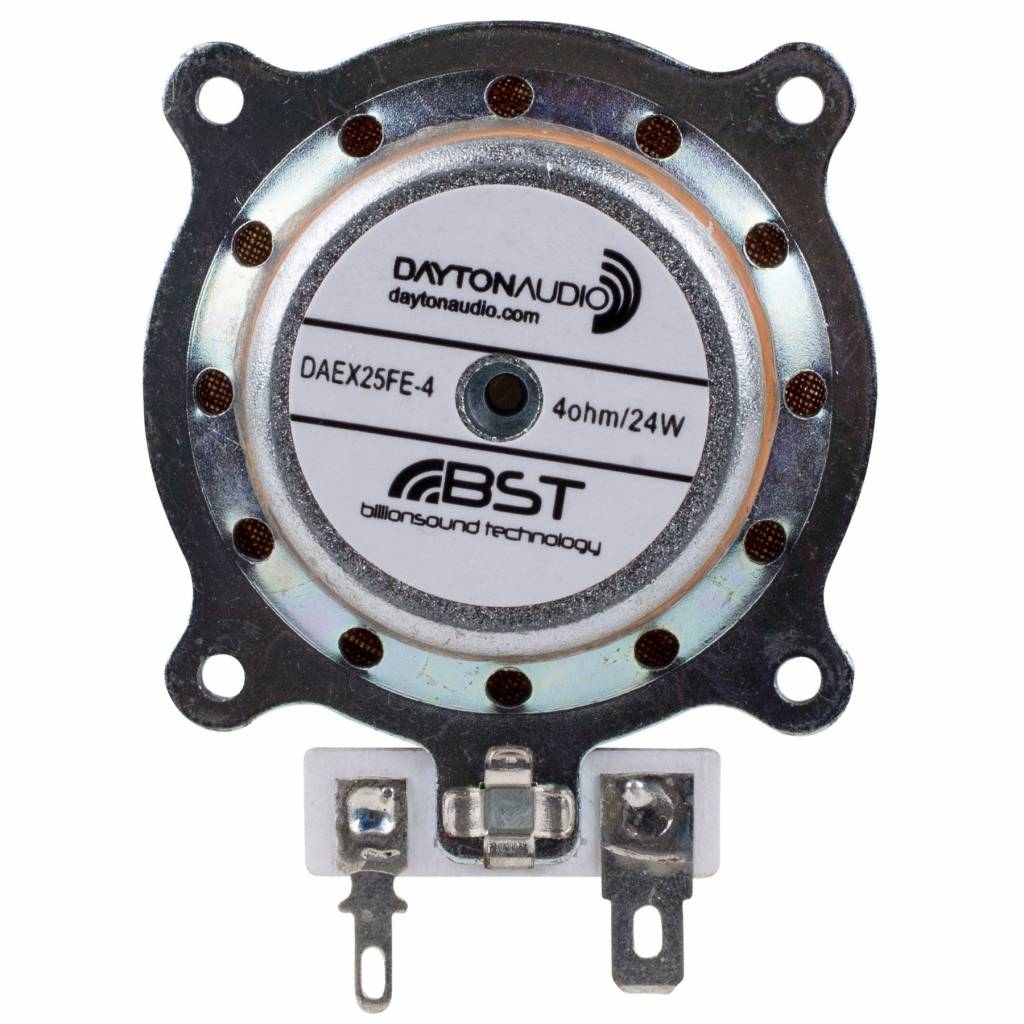

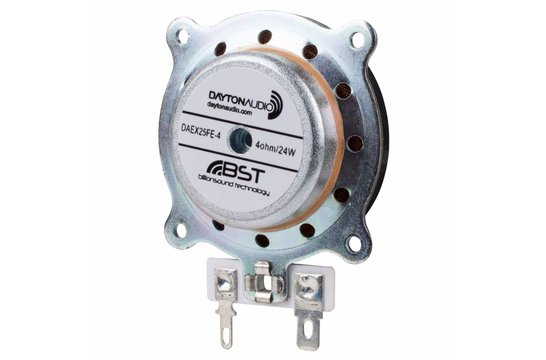

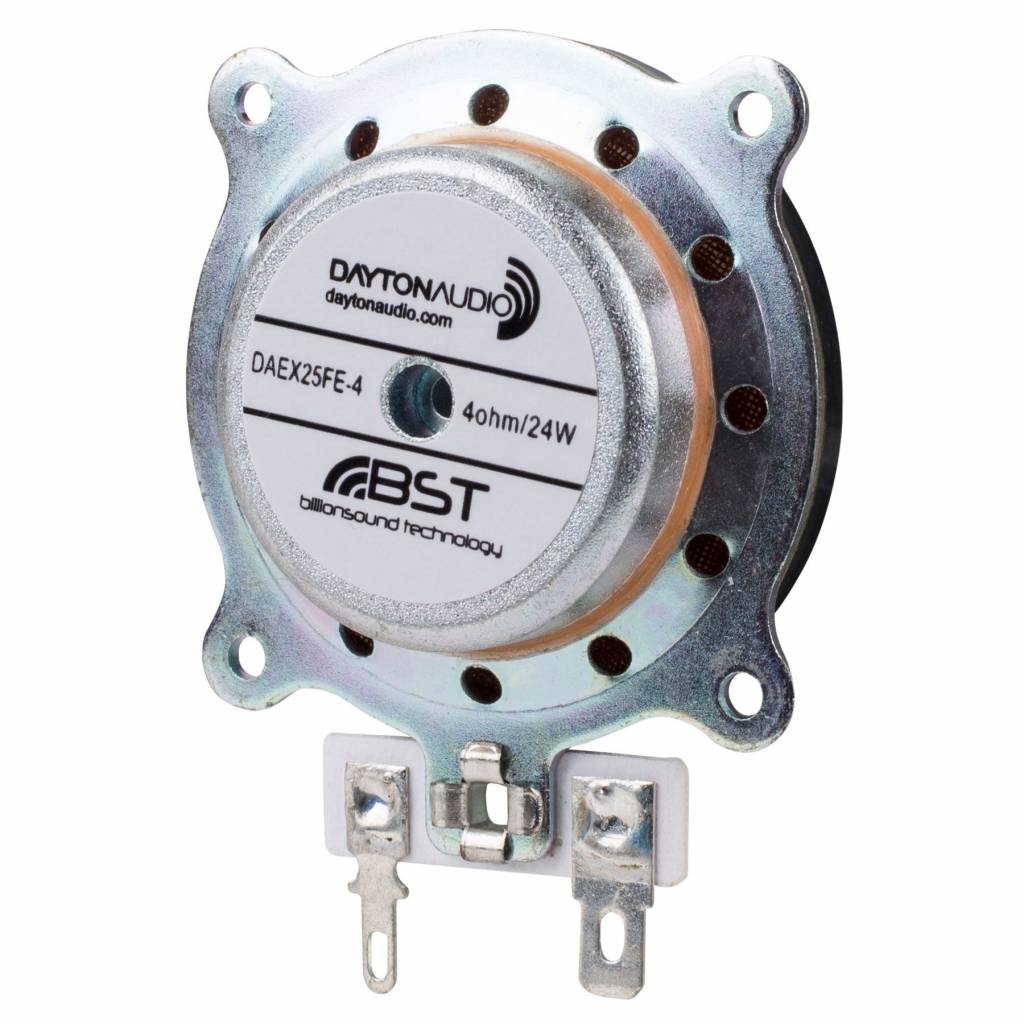

Dayton Audio DAEX25FHE-4 Framed High Efficiency 25mm Exciter 24W 4 Ohm

Dayton Audio's 25 mm DAEX25FHE-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 2.54cm voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! For permanent inverted mounting (or when mounting on moving surfaces), four screw tabs are also provided to support the weight of the exciter. Two PCB solder points keep installation and wiring as compact as possible.

A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

A basic guide to creating invisible sound with exciters

Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.

Recensioni

49 reviews

Recensisci questo prodotto

5 di 5

Da Ton on 31 Ottobre 2025

Da Bo on 7 Ottobre 2025

Da Jonne on 28 Settembre 2025

Da Melissa on 31 Luglio 2025

Da Stefano on 18 Luglio 2025

Da Kaspar on 28 Agosto 2023

Exciters Gebruikt voor feedbackgeluid voor flipperkast

Da Rico on 22 Giugno 2023

4 di 5

Da M. on 25 Novembre 2022

Alles bestens! Gerne wieder!

Da Marcin on 13 Giugno 2022

Excellent value for money exciter. Using four connected in series-parallel per 500x330x25mm high density EPS plate, and get very clear and loud sound. Can get to unbearable levels, and had them running it really loud with a 90Hz HPF for a few tracks and they didn't event get warm to the touch. + Cheapest exciter per watt ...

Da Leo on 4 Aprile 2022

Very nice exciter. Work smoothly on a ceiling tile. However, the sticking system is not very convenient as it is very hard to separate it from the protective beans.

Da Mathieu on 25 Febbraio 2022

Sieht erstmal gut aus, muss noch mit der Resonanzplatte arbeiten.

Da Gregor D. on 1 Aprile 2021

These Exciters are awesome! gonna buy more for my projects :D

Da David D. on 16 Marzo 2021

In an earlier review I said that I was impressed by the quality and performance of the Dayton exciters and that I would certainly be back for more. I was. I bought another four. Experiments in DML continue and, as with the Terminator - I'll be back.

Da Fred W. on 16 Marzo 2021

I am currently working on a pair of DML speakers and have mounted 2 exciters in series on each panel. The panels are high density insulation board, 25 mm thick. The sound is exceptionally clear and crisp, and very spacious - I think that is the word I would use to best describe it. The sound is sommewhat lacking in bass, but this was expected. I had already decided to include a subwoofer in the set-up. All in all I am exremely pleased with the ex...

Da Fred W. on 9 Febbraio 2021

Best by Exciter

Da Attila T. on 12 Gennaio 2021

Es wurde keine Beschreibung gegeben.

Da Frank A. on 29 Dicembre 2020

3 di 5

No description was given

Da Dirk M. on 23 Dicembre 2020

Together with the XPS board, perfect speaker :)

Da Pavel S. on 10 Novembre 2020

Dit is een prima exciter voorlal voor het midden en hoog. Het is belangrijk deze exciter te bevestigen middels het frame met de vier gaten. De lijmrand op de conus is niet voldoende om de exciter te dragen (afhankelijk van de plaat waarop deze wordt bevestigd, in mijn geval op een grote foto op aluminum). In combinatie met de DAEX32EP-4 geeft dit een prachtig resultaat. Beide exciter geven het hele spectrum weer, d een met meer hoge tonen, de and...

Da Hans v. on 29 Ottobre 2020

I try it on EPS, plain board without shaping or sand, hold exciter in hand and move around and witout sticking to board . Didn't expect to sound that good, it really surprise me, in a good way. And this exciter is the cheapiest. How is the sound of expansive ones?

Da Neven M. on 25 Ottobre 2020

Product description, delivery, sound quality is all ok.

Da Jan S. on 23 Settembre 2020

high quality, perfect sound, depending on the surface it even can reproduce low frequencies. you have to hear it to believe it, worth buying ...

Da Christoph S. on 8 Agosto 2020

Sounds good, easy to mount with selfadhesive tape. It is not for absolutely hi end but a possibility to build a practicably invisible speakers. Easy to build and cheap with a-ha effect

Da MARIN L. on 25 Luglio 2020

Prima exciter om mee te beginnen en experimenteren. Werkt uitstekend. Stevig, robuust.

Da Ron d. on 27 Maggio 2020

Da ionut i. on 13 Maggio 2020

Ik ben stom verbaast, zo zijn mijn vrienden. Ik wil er aldus nog meer mee experimenteren, wellicht houd ik u op de hoogte van verdere resultaten.

Da Pascal s. on 13 Maggio 2020

Da Jonas P. on 21 Aprile 2020

1 di 5

Ibought two of them: all the double-sided adhesive immediately detached from the driver by removing the protective paper. The other one, on the other hand, came off after a few minutes from the smooth surface on which it was attached. I also noticed some vibrations and distortions at a rather low volume.

Da daniele c. on 11 Marzo 2020

For such a tiny thing the sound is quite amazing. The units are well constructed and work just fine. We are still trying to find the most suitable mounting material, we have tried two, one was rubbish. We will get there.

Da Terry B. on 25 Febbraio 2020

Hallo mensen, ik ben zeer tevreden met deze exciter, heb hem geplakt op een stuk perspex en krijg goede kwaliteit geluid. Ik heb geen speakers in huis vind dat lelijk en neemt plek in. Met deze "speakers" heb je wel een bass shaker nodig voor de lage tonen want hij de exciter begint pas bij 100Hz te klinken.

Da Adolph Janssen on 2 Febbraio 2020

Je ziet en voelt de kwaliteit van deze exciter. Op basis van een aantal Youtube video's heb ik deze uitgekozen. Snelle levering van SoundImports. Perfect verpakt en super netjes dat je maar liefst 45 dagen retourrecht hebt.

Da karel-willem jaarsveld on 11 Gennaio 2020

Da petri m. on 9 Novembre 2019

Ben gaan experimenteren met deze exciter op verschillende materialen. Hoop plezier en geweldig geluid. Top !

Da Jack d. on 14 Agosto 2019

Used these to create 4 30mm XPS panels which i run in series to create a stereo set up. The sound comming from the panels is really clear but the response is not flat out of the bos. I fixed this by measuring it with Room Equalizer Wizard (REW) and importing the calculated EQ into a minidsp 2x4 HD (or EqualizerAPO on the pc). There are guides on how to do this online. With these ajustments a have a very flat respone, resulting in a really clear ...

Da Joep F. on 9 Agosto 2019

Snelle levering. Jammer dat PostNL wat leveringsproblemen in België had.
Snel twee platen polystyreen gehaald en er twee per plaat volgens 2/5 3/5 opgeplakt, en ... Totaal verbaast dat het zo simpel is om zo'n geluid uit een isolatieplaat te krijgen. Lang leve de bouwmarkt. Weg met de elektrostaten. Dit is veel leuker. Klinkt heel helder met een goede definitie. Mis wat laag maar ach, je kan niet alles krijgen voor 60 euro.

Da M. de Groot on 12 Luglio 2019

Fantastic little exciters! I am mounting them in a custom retro game cabinet and the tests so far have been incredible. Placement is the key so I recommend reading the technical specification to get a good idea for location on the material you have chosen. Also be careful with the material -- you will be surprised what makes a good audio conductor for these babies :)

Da Don on 10 Luglio 2019

These exciters are really nice to experiment with. Just wiring them with a cheap radio and trying out how various materials and objects sound is fascinating. They also output suprisingly good audio for the price if combined with some types of cupboard-doors for example. For testing materials the exciters can be held firmly onto the surface instead of using the tape. The quality of some peaks can suffer but it is much quicker and more convenient. ...

Da Karlson Finn K. on 8 Maggio 2019

Good product!

Da Patric D. on 20 Febbraio 2019

good product. works nicely with xps foam. carefully packaged for shipping.

Da Olivier D. on 10 Gennaio 2019

het werkt maar een teveel aan middentonen, dus eigenlijk een mid-range. eerst gemonteerd op een 40x62 cm isolatieplaat gemonteerd, 80x125 is al wat aanvaardbaar. misschien recht te trekken met een equaliser en subwoofer als ik er nog een koop zal het met een groter vermogen zijn

Da Erik V. on 12 Dicembre 2018

Even snel in bouwen en klaar... Het kan, maar niet met deze leuke krachtige exciters. Na het het bekijken en aansluiten kon het allemaal beginnen. Plankje hier deurtje daar, borden, dienbladen, dozen, ramen, zelfs onder de aanrecht. Overal komt geluid uit. Maar zeker niet overal goed geluid. Verrassend genoeg komt er redelijk goed geluid uit de kartonnen doos waarin het op gestuurd was. De tuin stoel van IKEA was toch wel leuk en posi...

Da Y Storken on 9 Ottobre 2018

Da Martin L. on 4 Ottobre 2018

Awsome product! Just the Swedish post that draged out in the deliverytime.

Da Gunnar M. on 11 Settembre 2018

Da Paul W. on 16 Agosto 2018

Da Francesco F. on 27 Aprile 2018

Saw the Tech Ingredients video on Youtube, ordered four of these and followed all the guidelines outlined in the video. I'm satisfied with the product, it works, but I'm greatly dissapointed in the sound coming from my 30mm XPS board..

Da Dennis B. on 23 Aprile 2018

Da Werner F. on 30 Gennaio 2018
