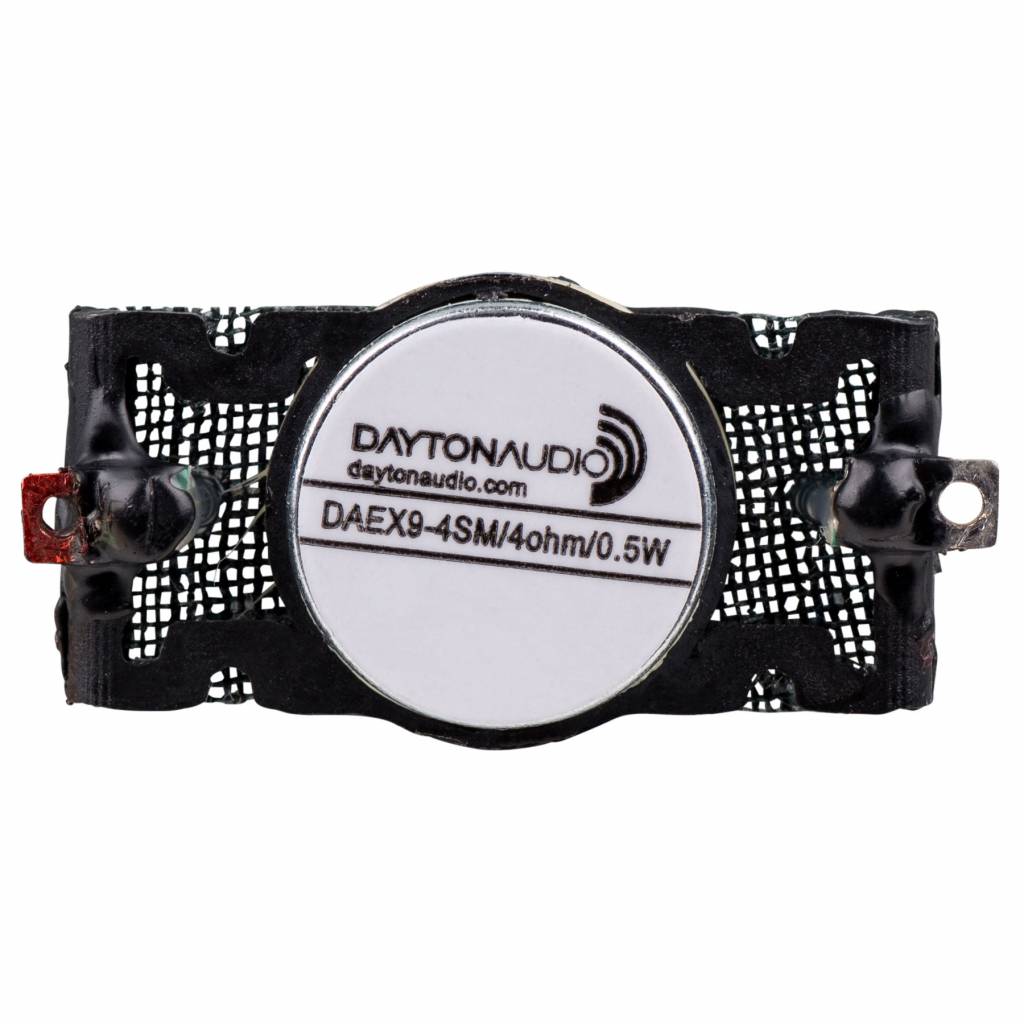

Name: Dayton Audio DAEX-9-4SM Mini sound Eccitatore
Brand: Dayton Audio
SKU: DAEX-9-4SM
Price: 8.45 EUR
Availability: InStock
Rating: 3.65 (3 reviews)

1 W | 9 mm

€ 6,98€ 8,45 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Dayton Audio DAEX-9-4SM Mini Eccitatore

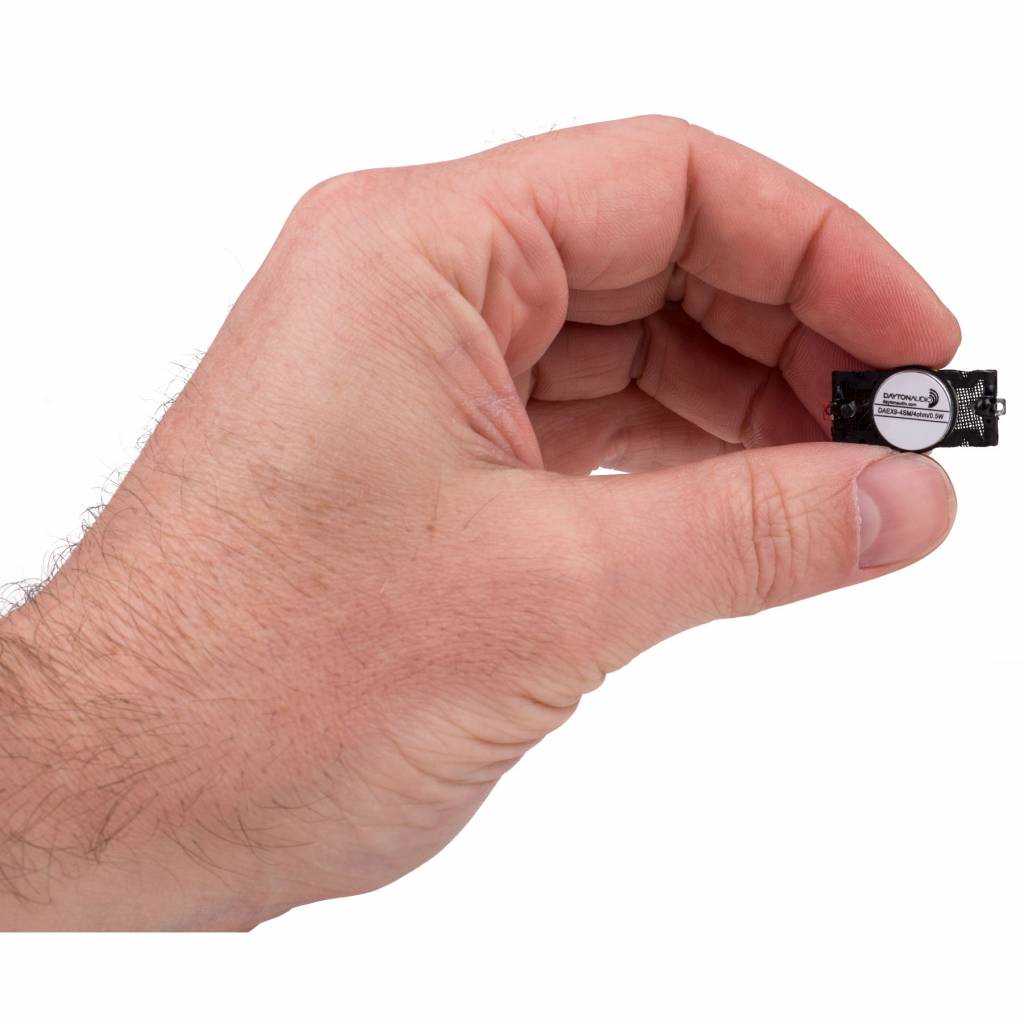

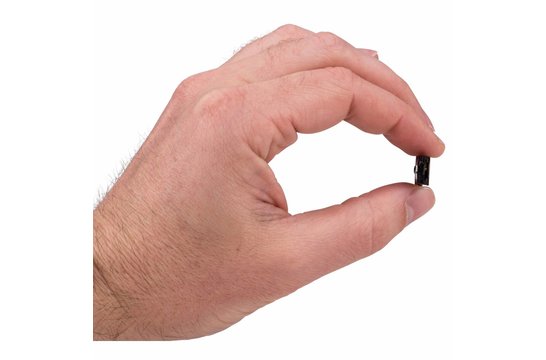

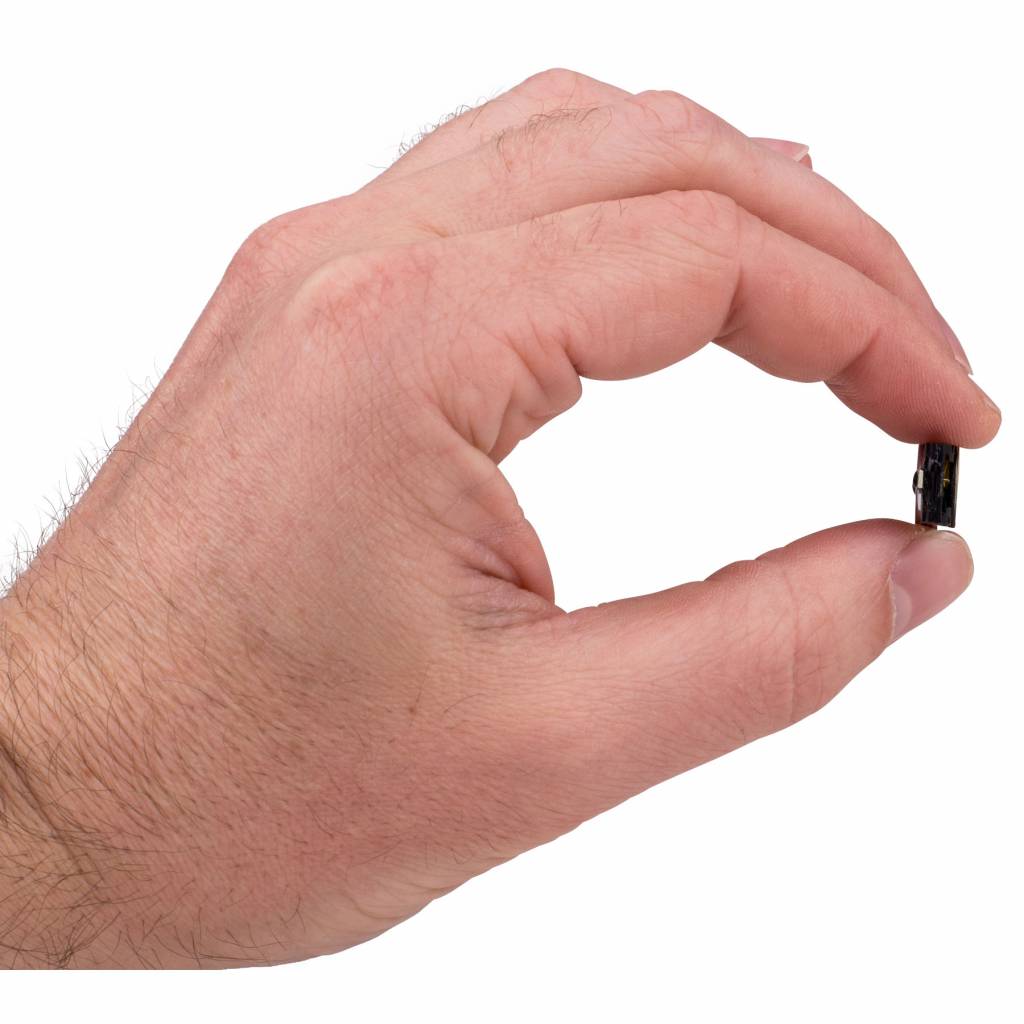

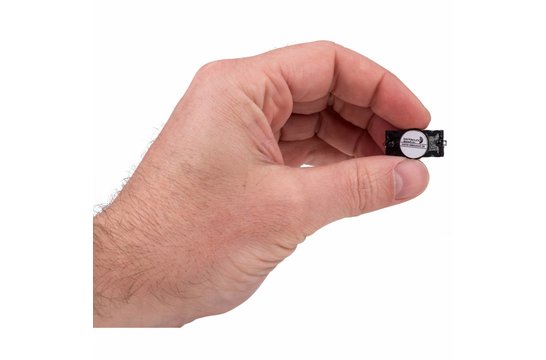

Add audio to products and projects you never thought possible with the ultra-small Dayton Audio DAEX-9-4SM Skinny Mini exciter. Measuring in at only 0.5" wide by 1" long and just 0.25" deep this exciter can fit almost anywhere. This exciter is also perfect for creating haptic feedback systems.

Highlights

Extremely small design can fit almost anywhere
Perfect for creating haptic (touch) feedback systems
Unique suspension allows high excursion for surprisingly powerful response
Rare-earth neodymium motor and a proprietary 9 mm voice coil
4-ohm impedance for use with small, Class D amplifiers
Pre-applied 3M™ VHB™ adhesive for quick, durable installation

Product details

Dayton Audio DAEX-9-4SM Skinny Mini Exciter Audio and Haptic Feedback 9mm 1W 4 Ohm

Dayton Audio's DAEX-9-4SM Skinny Mini exciter will allow you to add audio or haptic (tactile) feedback to even the smallest projects. The 9 mm Skinny Mini exciter is an ideal option when designing pocket sized personal speakers or for adding audio to small art projects and models. At only 0.5" wide by 1" long, this exciter is even perfect for use in virtual reality haptic feedback systems such as gloves and headsets.

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The unique suspension is capable of high physical excursion to allow this extremely small and lightweight exciter to deliver an impressive amount of force while remaining linear.

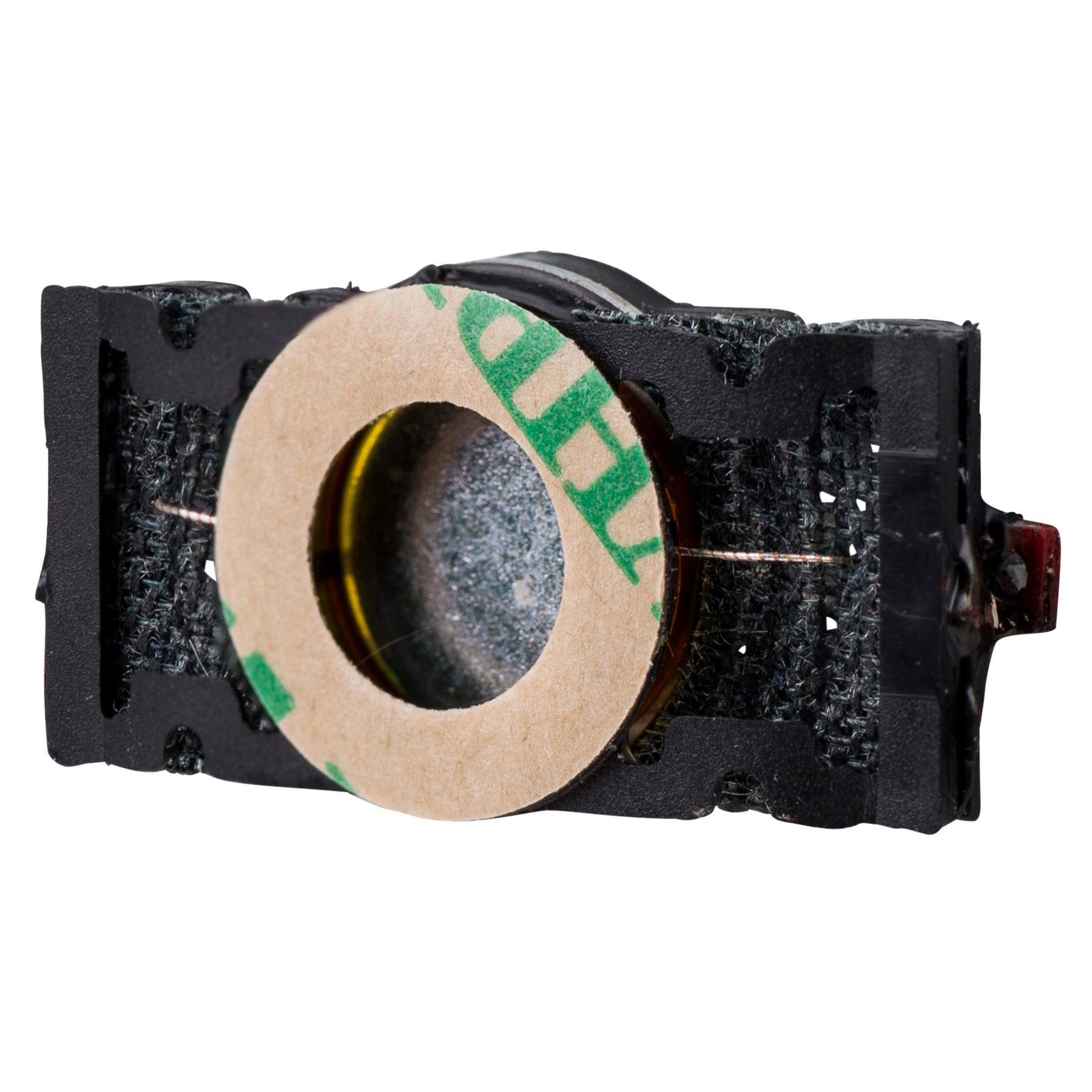

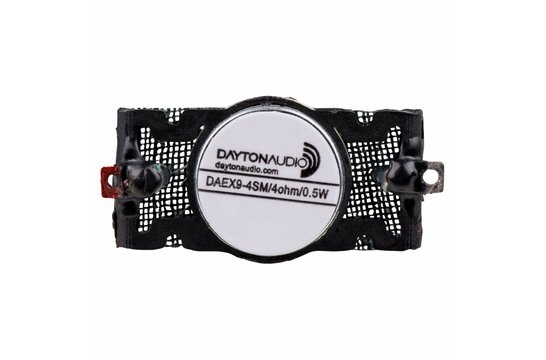

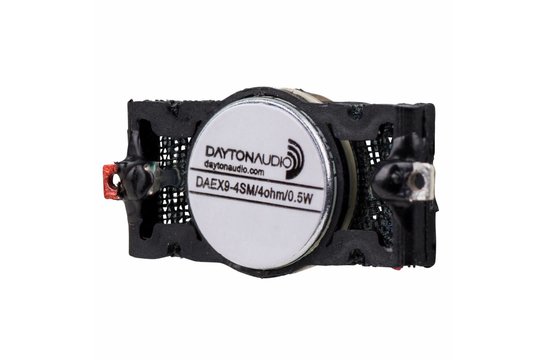

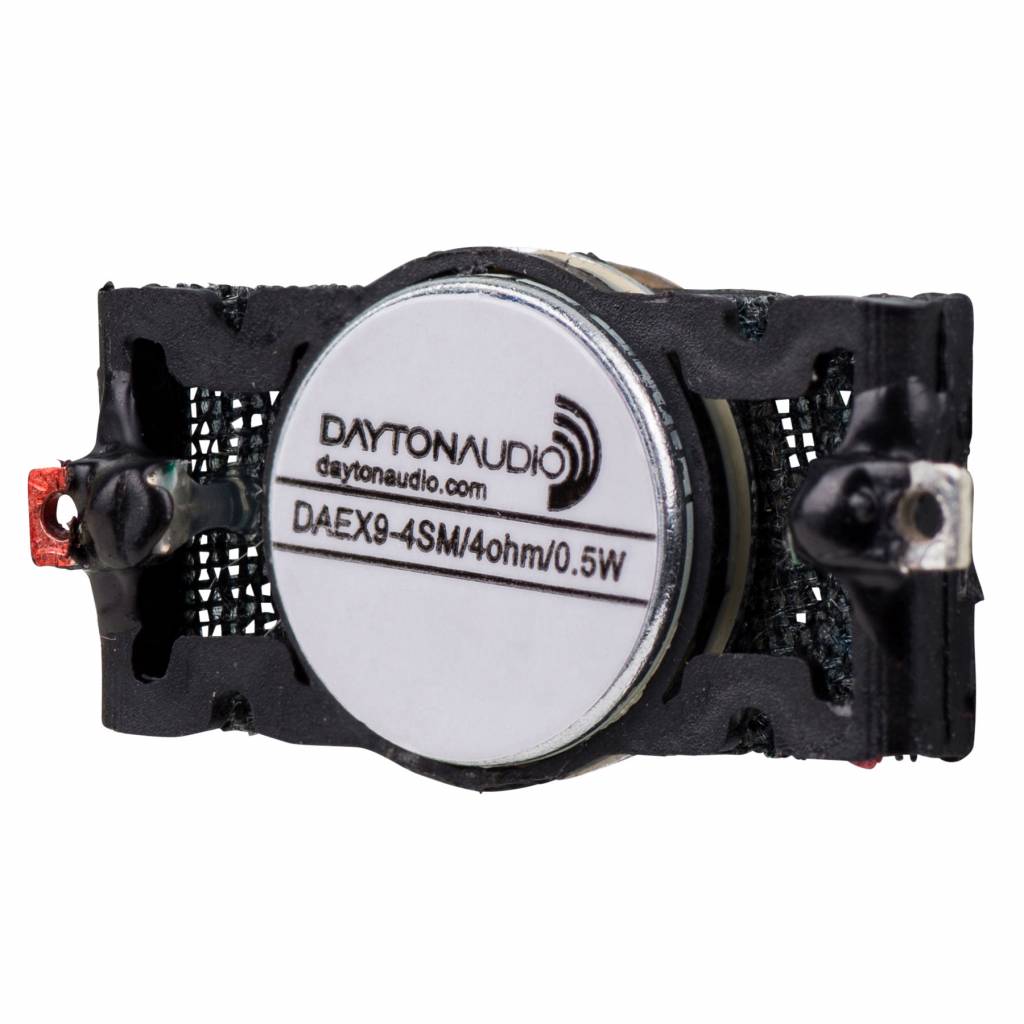

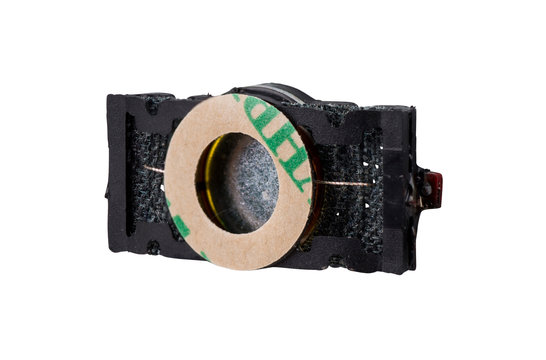

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials will be slightly quieter but result in a more full-range sound.

A basic guide to creating invisible sound with exciters

Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.
