Acquista Dayton Audio CX120-8 Woofer Coassiale?

4" | 8 Ω

€ 34,67€ 41,95 Esaurito10+ Arrivo previsto il 19-12-2025

Backorder

Spedizione gratuita a partire da € 199
Presto di nuovo disponibile
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

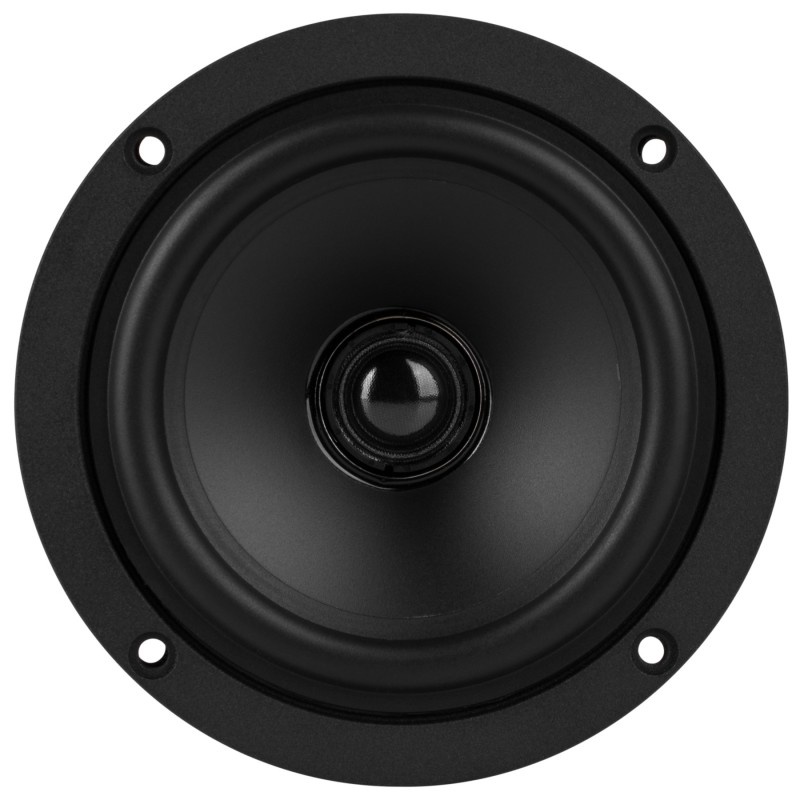

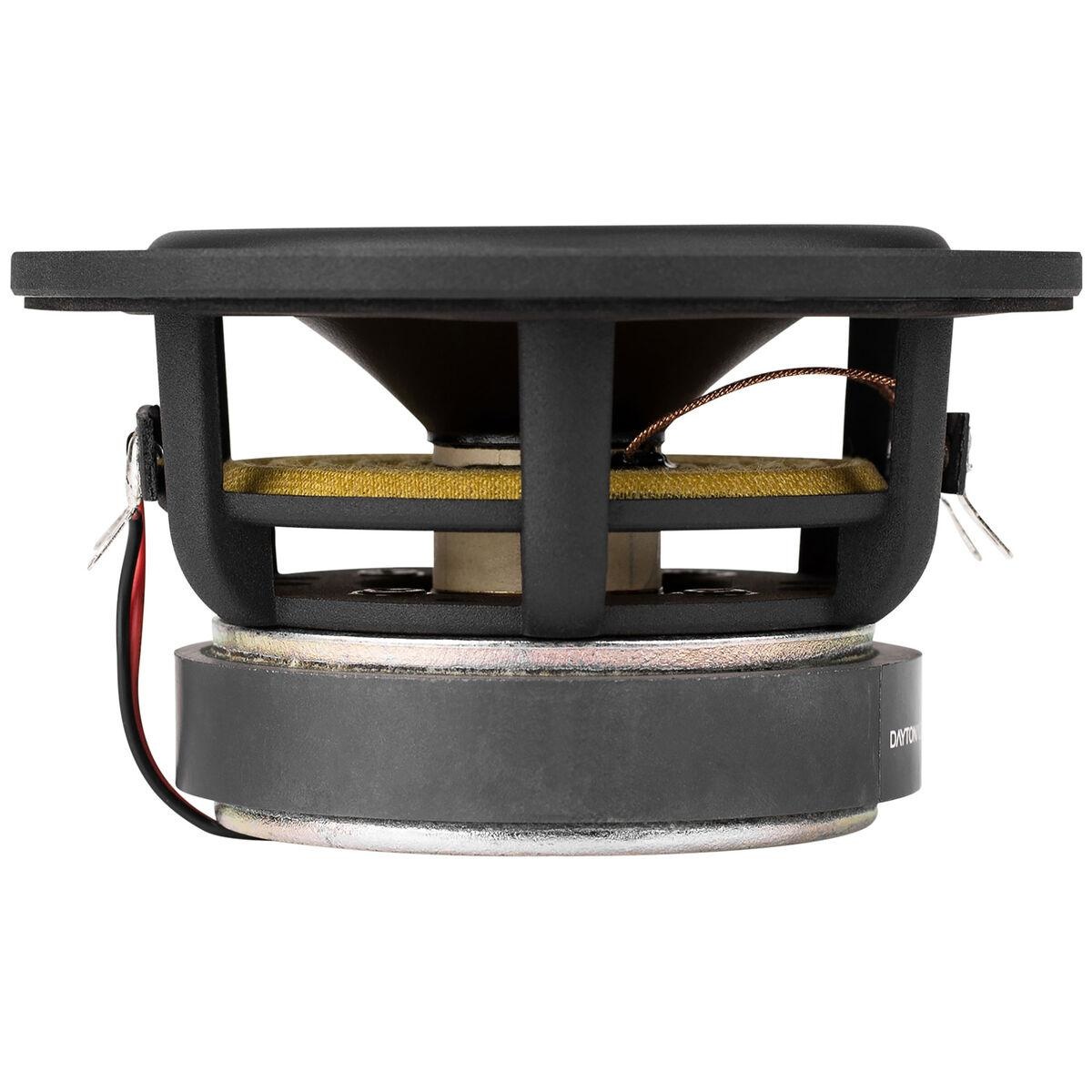

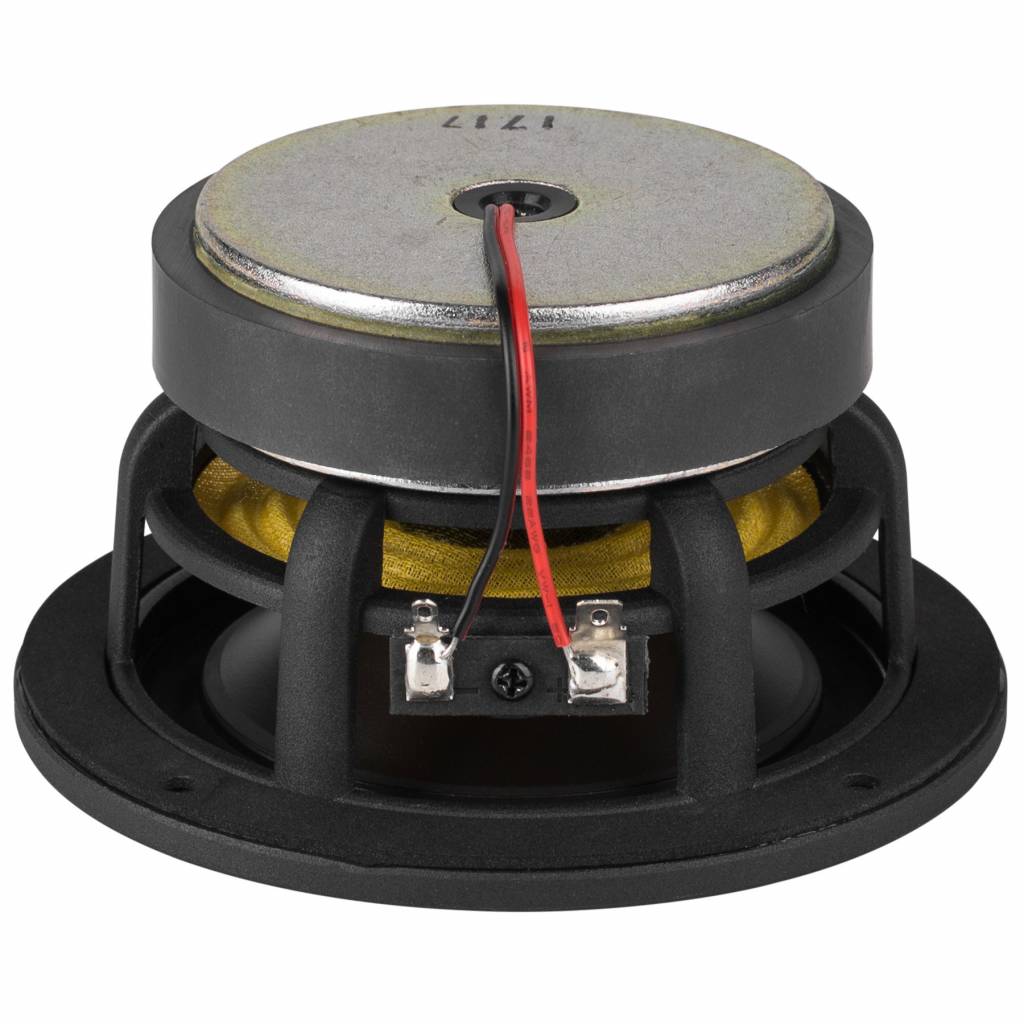

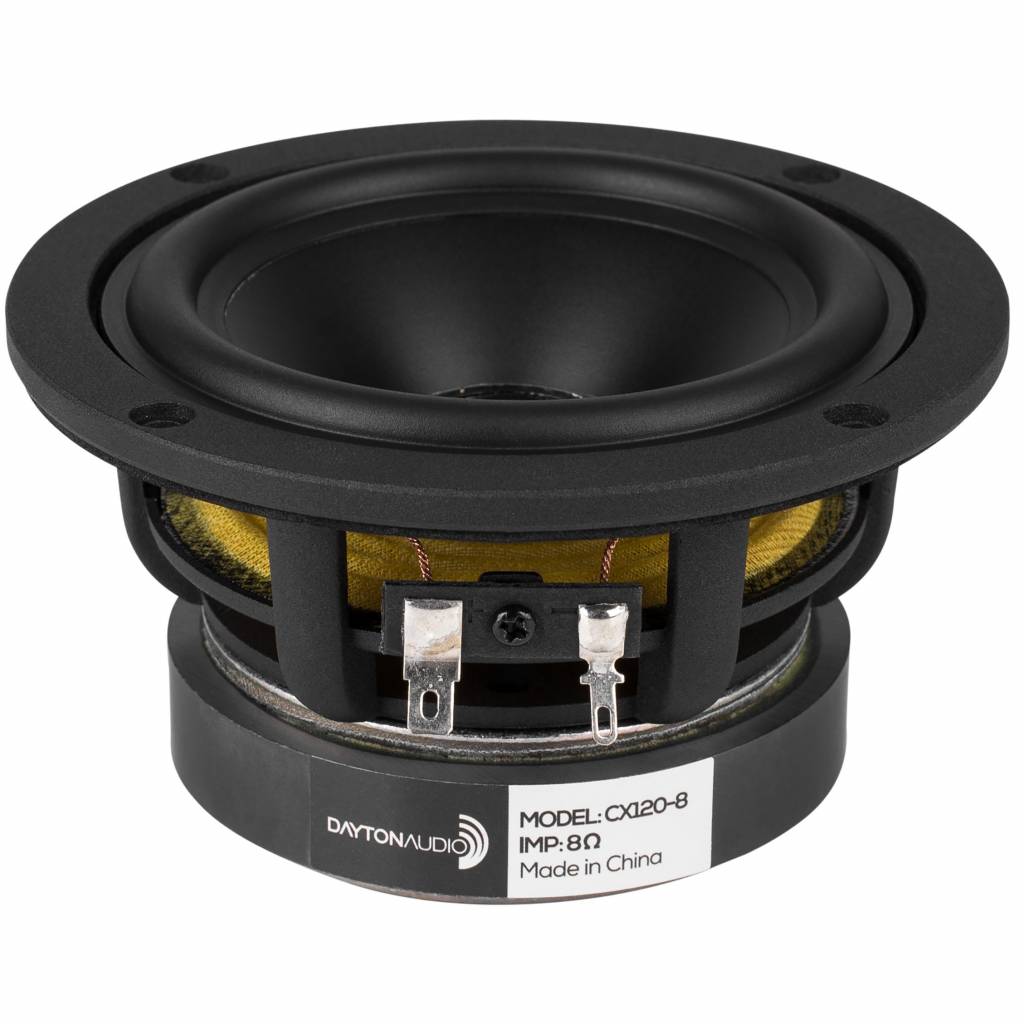

Descrizione del prodotto Dayton Audio CX120-8 Woofer Coassiale

With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems.

Highlights

Full-range with accurate bass and extended high frequency response
Coaxial mounted 3/4" silk dome tweeter
Open cast frame for improved air flow and minimal power compression
4" curvilinear poly cone woofer with rubber half roll surround

Product details

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm

The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.

4" Woofer:

1" voice coil wound on an aluminum former for high power handling
Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response
Optimized rubber surround for reduced break up in the midrange band
Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
High energy ceramic magnet for greater cone control and improved efficiency

Specifications: • Power handling: 40 watts RMS/80 watts max • VCdia: 1" • Le: 0.62 mH • Impedance: 8 ohms • Re: 6.2 ohms • Frequency response: 90-5,500 Hz • Fs: 87.5 Hz • SPL: 88.5 dB 2.83V/1m • Vas: 0.10 cu. ft. (2.99 liters) • Qms: 2.89 • Qes: 0.57 • Qts: 0.48 • Xmax: 3.0 mm • Dimensions: Overall diameter: 4-3/4", Cutout diameter: 3-7/8", Depth: 2".

3/4" Tweeter:

Silk dome provides detail and clarity of high frequencies
Coaxially mounted to pole piece of woofer cone
Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
Strong neodymium magnet
Trimmed flared throat to minimize phase issues causing suck-out with woofer
High pass filter required (not included)

Specifications: Power handling: 20 watts RMS/40 watts max • VCdia: 3/4" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 4,500-20,000 Hz • Fs: 2745 Hz • SPL: 89.2 dB 2.83V/1m • Qms: 2.20 • Qes: 7.91 • Qts: 1.72.

Recensioni

10 reviews

Recensisci questo prodotto

5 di 5

Good quality! Fast delivery!

Da Sergei on 26 Gennaio 2025

Da Kai on 15 Gennaio 2024

Da Antonin on 28 Agosto 2023

Highly recommended - the chassis are used in spherical speakes cases as satellites in an active 2.1 setup.

Da JustMe on 4 Marzo 2023

Prachtig geluid

Da K on 18 Febbraio 2022

Nice and resolving rivers. I have not noticed the IMD issues that many warn about using coaxials. Using them in a 1.6 liter sealed enclosure with a subwoofer. Imaging and separation is some of the best I have heard and the frequency response is nice and even with a simple 3 component crossover. These drivers in the right enclosure sound very "high-end".

Da Felix on 4 Gennaio 2021

very detailed sound from this speaker even at loud volumes. Was surprised by the clarity. Suitable for small to medium size speakers and does exceptionally well in portable projects since it eliminates the need for a midrange woofer and tweeter. So basically less components and no crossover needed. Only bad thing is that it isn’t available as a 4 ohm version.

Da Johan Gustafsson on 31 Luglio 2020

Es wurde keine Beschreibung gegeben.

Da Johannes M. on 25 Aprile 2020

No description was given

Da Luboš S. on 3 Gennaio 2019

Great price/quality, Highly Recommanded

Da Post u. on 25 Aprile 2018
