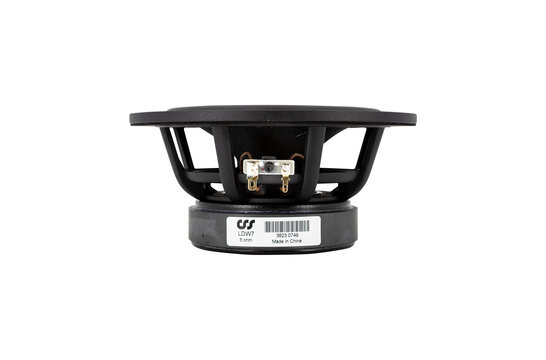

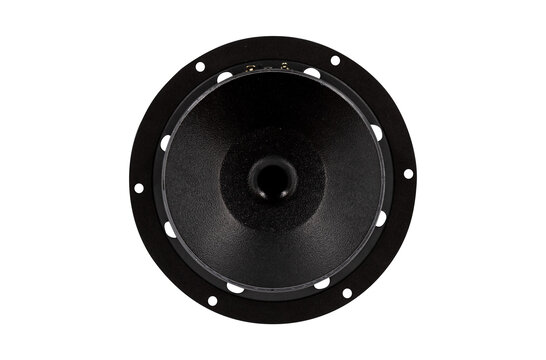

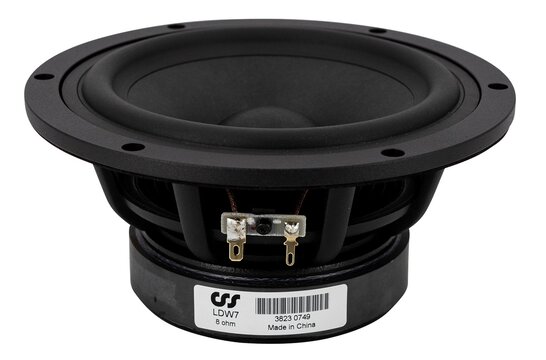

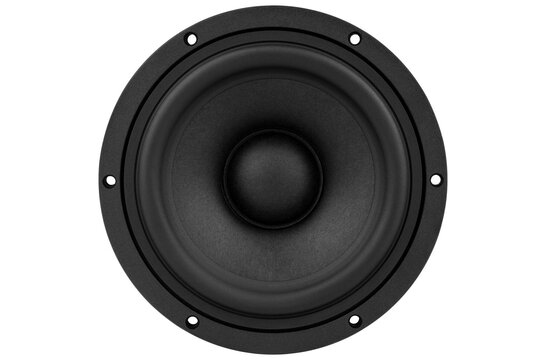

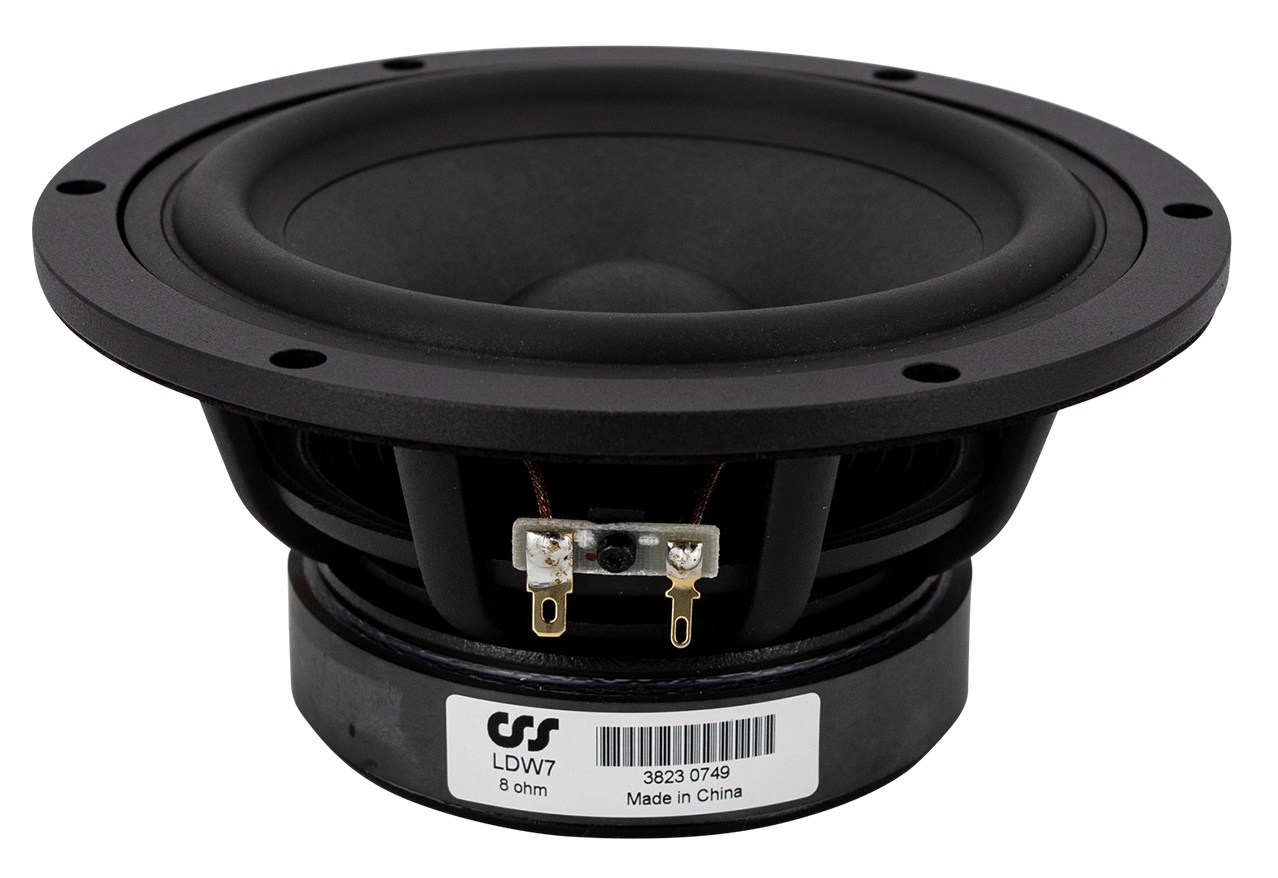

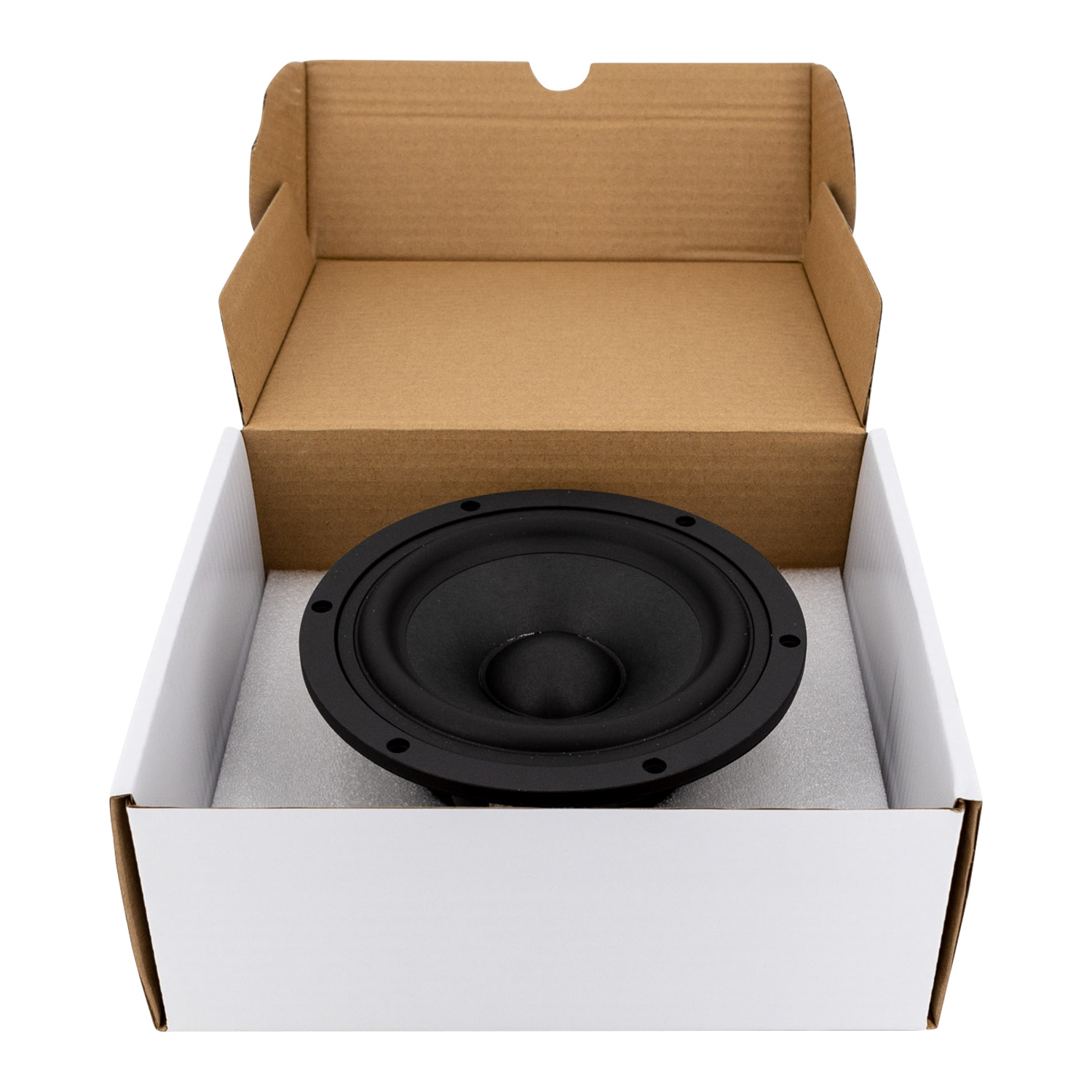

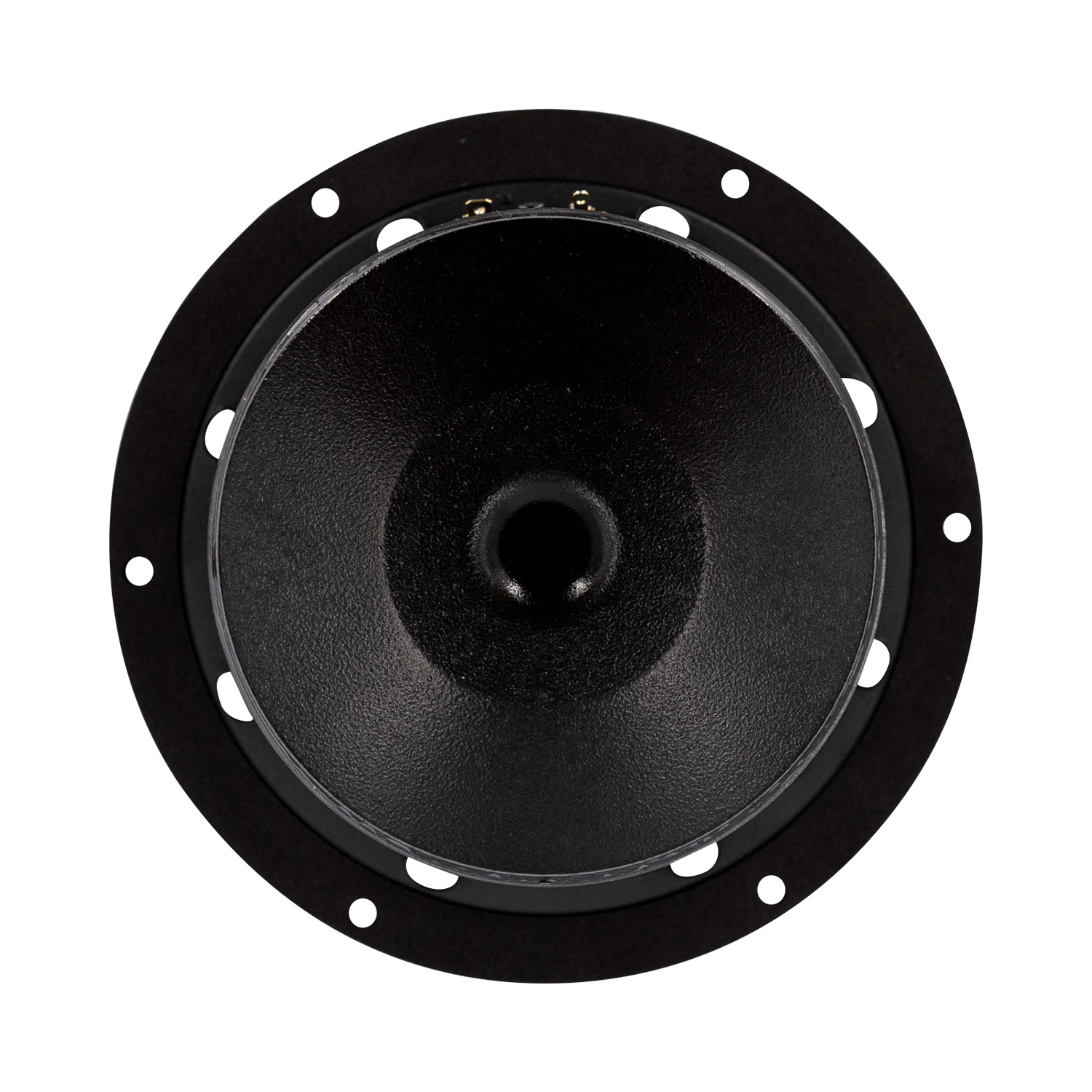

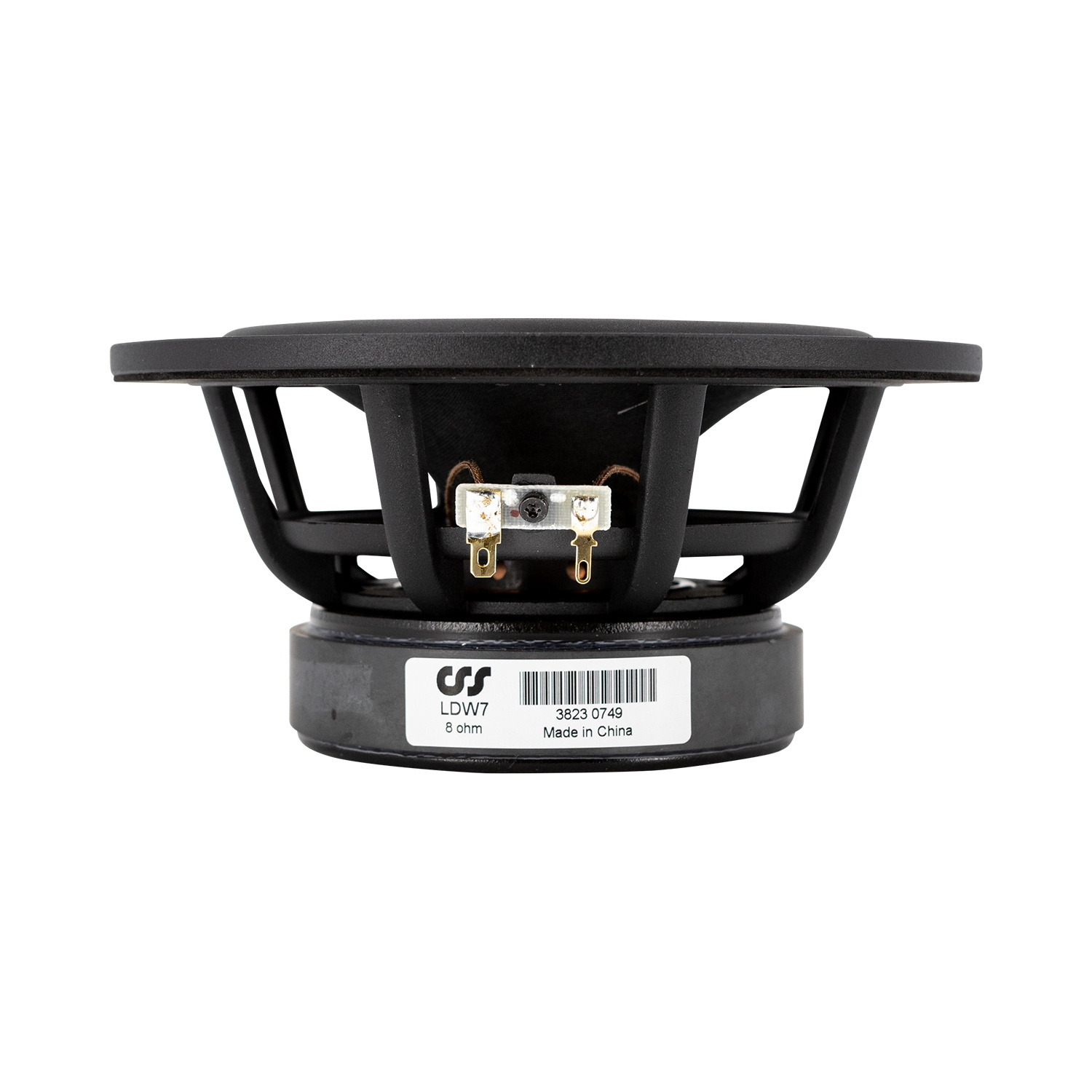

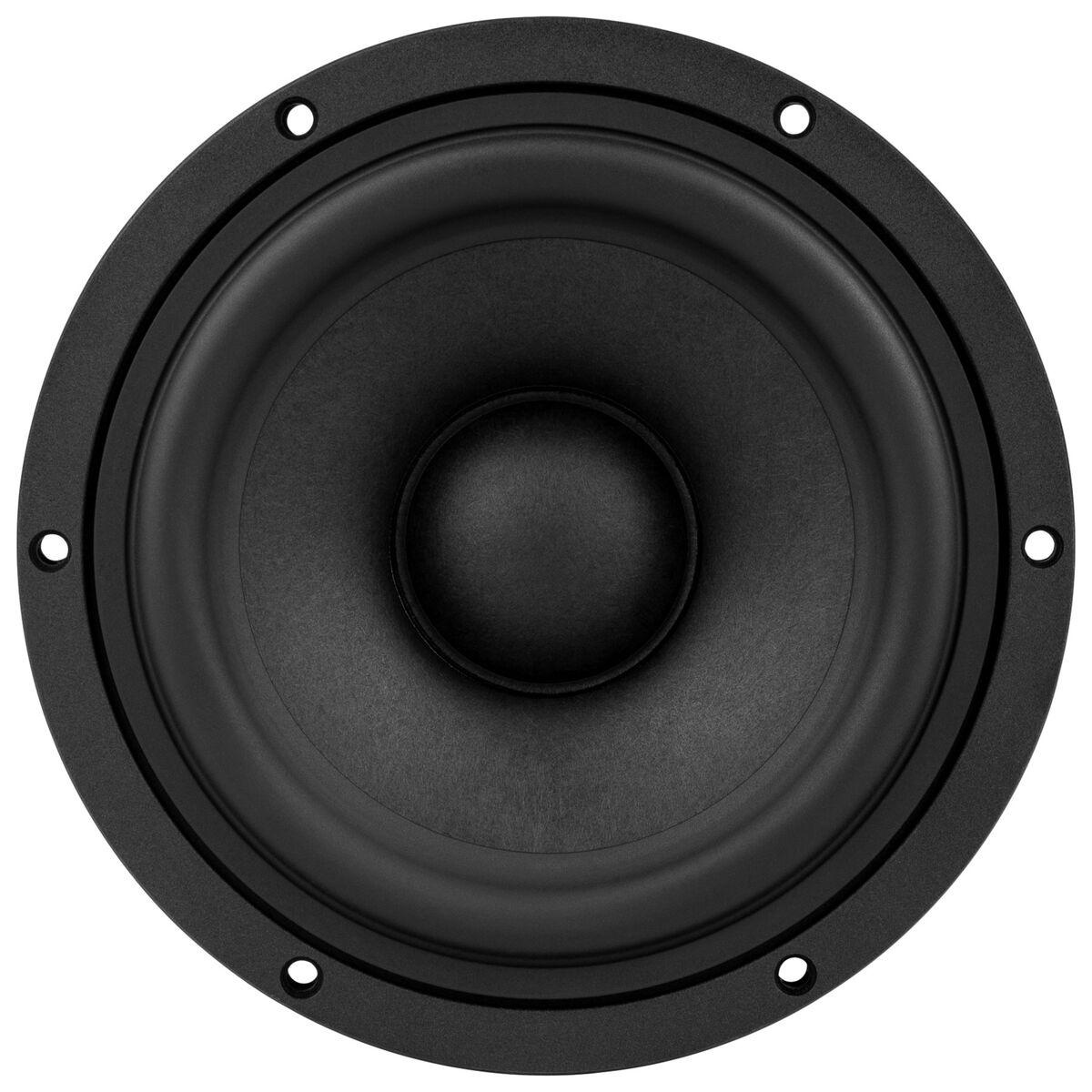

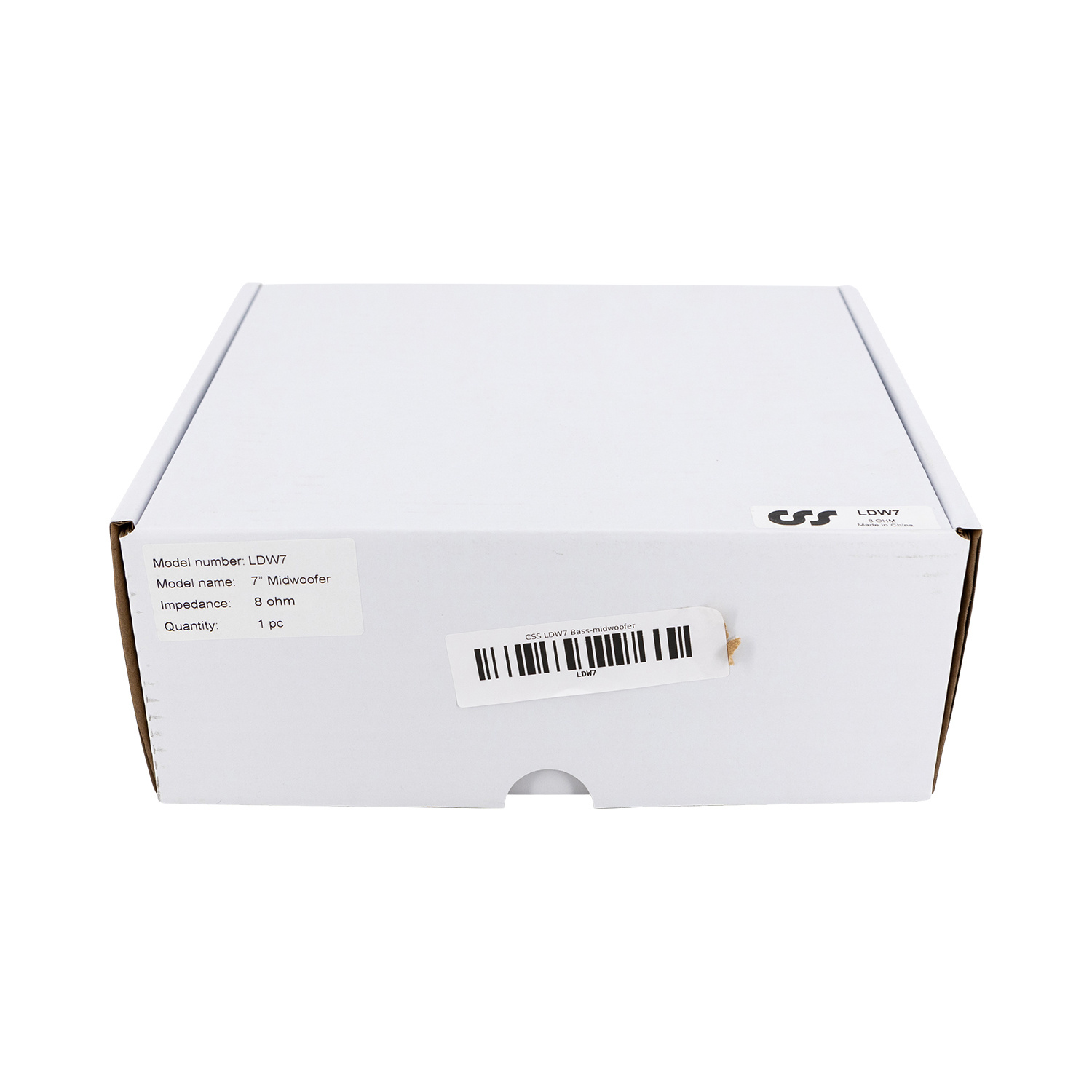

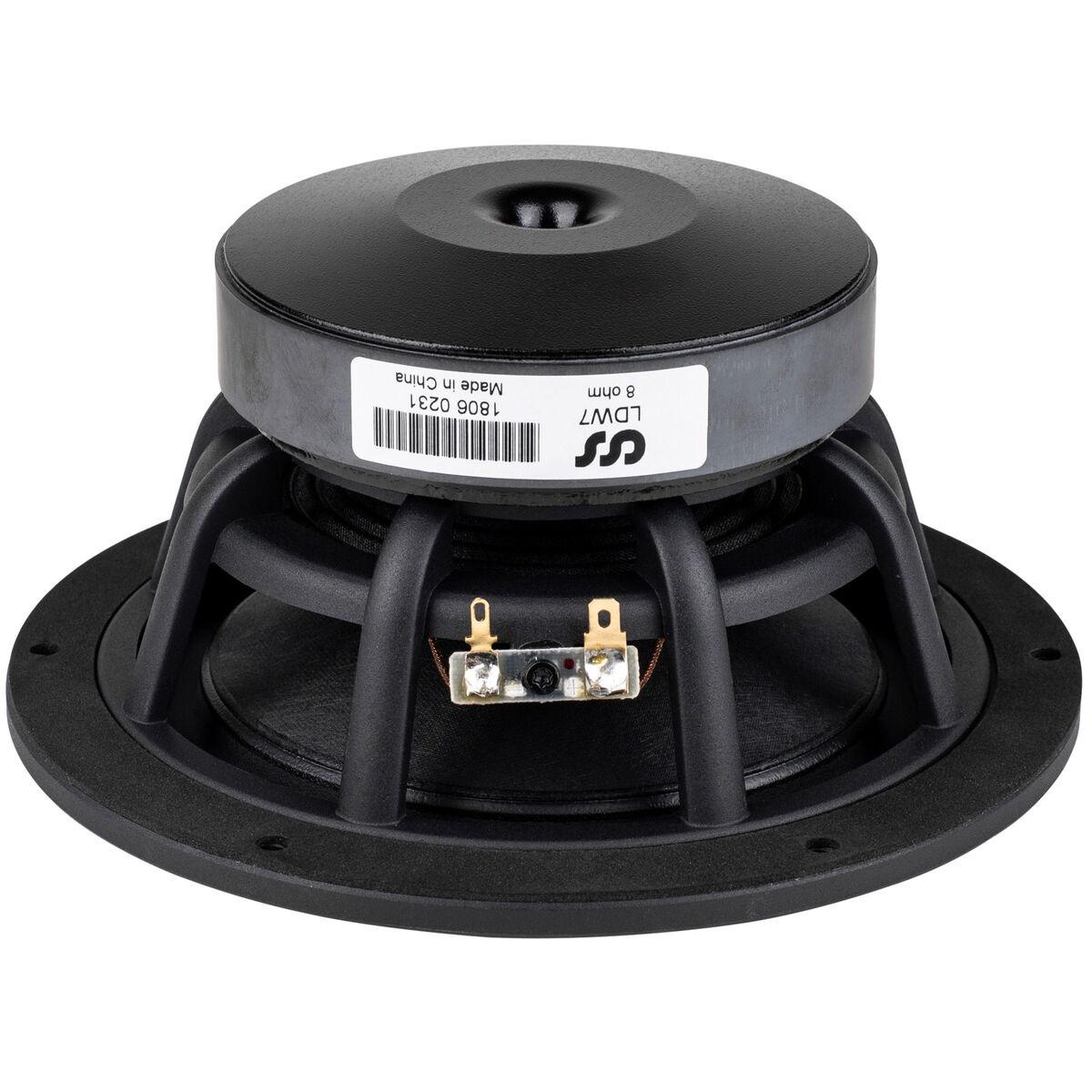

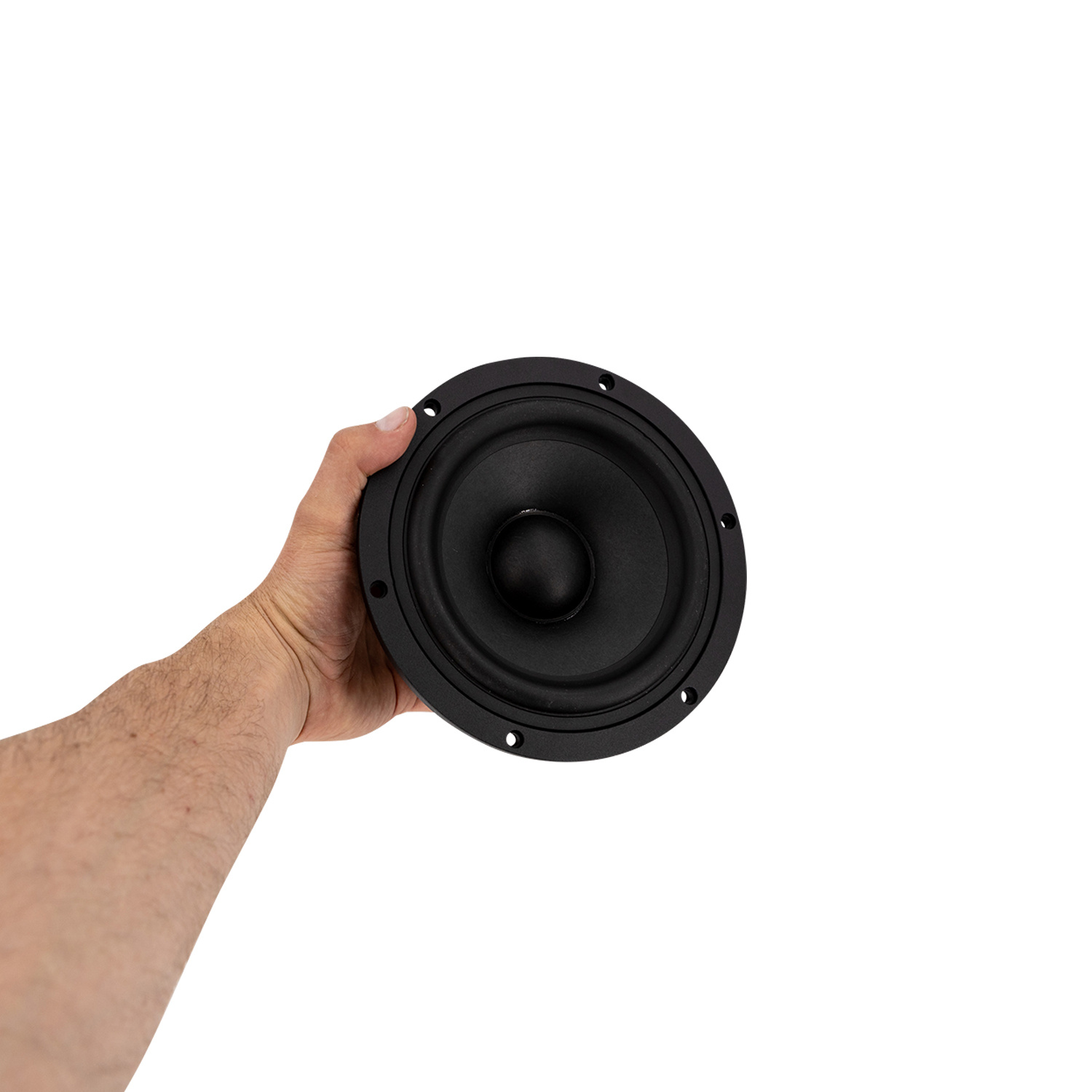

      LDW7 Woofer Medio-Bassi

      CSS LDW7 Woofer Medio-Bassi

      €209,95

      8 In magazzino10+ Arrivo previsto il 31-10-2025

      CSS LDW7 Woofer Medio-Bassi

      2 reviews
      5 da 5
      2 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: CSS
      € 173,51€ 209,95 8 In magazzino10+ Arrivo previsto il 31-10-2025
      • -5% Acquista 4 per soli € 199,45 per pezzo

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Descrizione del prodotto CSS LDW7 Woofer Medio-Bassi

      Aspiring speaker builders, take note! The CSS LDW7 is a 7-inch bass-midwoofer driver that punches above its weight, offering both clear midrange and impactful bass at an attractive price point. This versatility makes it a popular choice for a wide range of DIY speaker projects.



      Highlights

      • Paper and fiberglass cone blend: This unique cone material offers a good balance of stiffness and flexibility, resulting in smooth midrange reproduction and extended bass response.
      • Symmetrical motor structure: This design helps to minimize distortion and ensure accurate sound reproduction.
      • Low distortion: The LDW7 is known for its clean sound, even at high volumes.
      • High power handling: This driver can handle a significant amount of power, making it suitable for use in loudspeakers designed for powerful sound.
      • Vented or sealed enclosure options: The LDW7 performs well in both vented enclosures, which typically produce deeper bass, and sealed enclosures, which offer tighter bass and a more compact design.



      Product details

      CSS LDW7 Bass-midwoofer



      The LDW7's secret weapon lies in its unique cone material. By blending paper and fiberglass, the cone achieves a balance of stiffness and flexibility. This translates to smooth and detailed midrange reproduction while allowing for extended bass response, ensuring your music comes alive with rich detail. Additionally, the symmetrical motor structure minimizes distortion for accurate sound across the frequency spectrum.



      The LDW7 is no slouch when it comes to power handling either. It can accommodate significant wattage, making it ideal for speakers designed to deliver powerful audio. Another plus is its adaptability to enclosure types. The LDW7 performs well in vented enclosures, known for producing deeper bass, or sealed enclosures, favored for tighter bass and a space-saving design. This flexibility allows you to tailor the speaker's sound characteristics to your specific preferences and project requirements.

      Show more

      Specifiche

      Numero dell'articolo:
      LDW7
      EAN
      0848864053738
      Diametro nominale
      7"
      Gestione della potenza (RMS)
      80 Watts
      Gestione della potenza (max)
      200 Watts
      Impedenza (Z)
      Sensibilità (SPL a 1m / 2,83V)
      86 dB
      Risposta in frequenza
      30 to 4,500Hz
      Diametro della bobina mobile
      1.5"
      Resistenza DC (Re)
      6.4Ω
      Induttanza della bobina mobile (Le)
      0.17mH
      Frequenza di risonanza (Fs)
      30 Hz
      Fattore di merito meccanico (Qms)
      9
      Fattore di merito elettromagnetico (Qes)
      0.39
      Fattore di merito totale (Qts)
      0.37
      Massa del diaframma incl. la massa dell'aria (Mms)
      21.9g
      Cedevolezza meccanica della sospensione (Cms)
      1.3mm/N
      Superficie del cono (Sd)
      131cm²
      Prodotto BL (BL)
      8.2T·m
      Volume equivalente di cedevolezza (Vas)
      30,86 Liter
      Escursione lineare massima (Xmax)
      5.5 mm
      Materiale del cono / diaframma
      Paper / Glass Fiber
      Materiale della sospensione
      Rubber
      Supporto della bobina mobile
      Fiberglass
      Materiale del cestello / telaio
      Cast Aluminum
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      7.166"
      Profondità complessiva
      3.23"
      Diametro del ritaglio del pannello frontale
      6.02"
      Diametro del cerchio dei fori di montaggio
      6.67
      # Numero di fori di montaggio
      6
      Volume per cassa sigillata
      8,5 Liter
      Frequenza di risonanza della cassa sigillata (F3)
      64.4Hz
      Volume per cassa reflex
      19,8 Liter
      Frequenza di risonanza della cassa reflex (F3)
      35.9Hz

      Show more
