      M74S-6 Woofer a Gamma Media

      BlieSMa M74S-6 Woofer a Gamma Media

      €379,95

      Non disponibile: Fine del ciclo di vita. Non possiamo più fornire questo prodotto.

      Non disponibile

      BlieSMa M74S-6 Woofer a Gamma Media

      1 reviews
      4 da 5
      1 reviews
      5 stars
      0%
      4 stars
      100%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: BlieSMa
      Mostra tutti Woofer a gamma media
      Unavailable
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      € 314,01€ 379,95 Esaurito: Fine del ciclo di vita. Non possiamo più fornire questo prodotto.
      • -5% Acquista 4 per soli € 360,95 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media
      M74S-6 Woofer a Gamma Media

      Descrizione del prodotto BlieSMa M74S-6 Woofer a Gamma Media

      Bliesma M74S-6 midranges have extremely low mass (2.0 g) of moving part, with linear excursion of 2.4 mm. Single-layer ribbon CCAW (Copper-clad Aluminum Wire) voice coil of Bliesma M74S-6 is wound on titanium former.



      Highlights

      • 74 mm AlMg alloy dome with variable thickness
      • Extremely low moving mass for better transient response and higher efficiency
      • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
      • 2.4 mm linear excursion (P-P) and large vent channel for undistorted low frequency operation
      • Thick aluminium powder coated flange

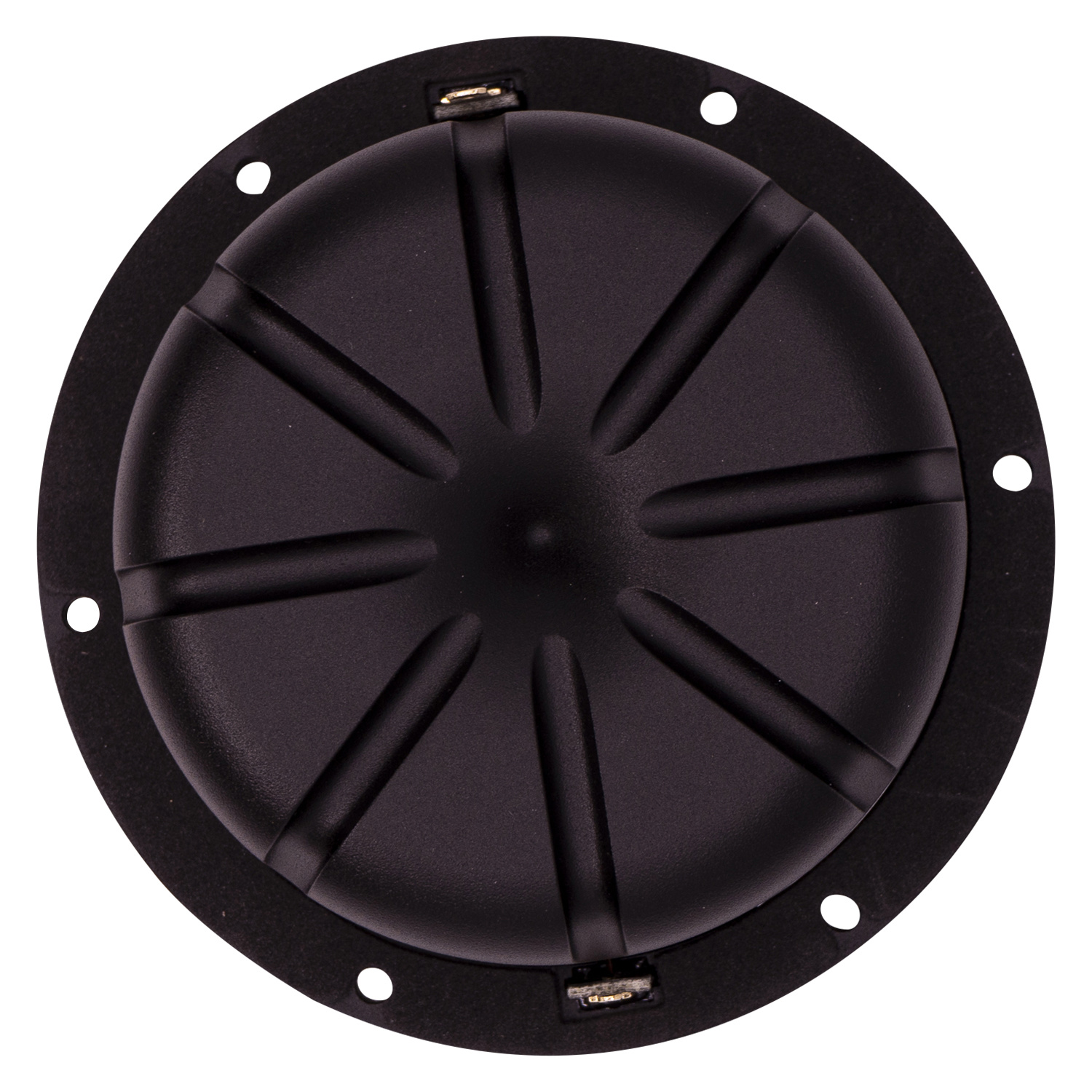

      • Aluminium rear chamber with natural wool damping
      • Recommended frequency range Fs - 6 kHz



      Product details

      BlieSMa M74S-6 Mid-range woofer



      The BlieSMa M74S-6 is a 74mm silk dome midrange driver that is designed for high-end audio applications. It features a natural silk dome with a variable thickness, which provides a smooth and extended frequency response. The driver also has a fully saturated neodymium motor with a copper sleeve, which helps to reduce distortion. The M74S-6 has a recommended frequency range of 425-4500Hz, a sensitivity of 97dB, and an impedance of 6 ohms.



      The BlieSMa M74S-6 is a well-made and high-performance midrange driver that is suitable for a variety of audio applications. It is known for its smooth and extended frequency response, its low distortion, and its high efficiency.

      Show more

      Specifiche

      Numero dell'articolo:
      M74S-6
      EAN
      8785256844524
      Impedenza (Z)
      6 Ω
      Sensibilità (SPL a 1m / 2,83V)
      97 dB
      Diametro della bobina mobile
      74 mm
      Resistenza DC (Re)
      5.6 Ω
      Induttanza della bobina mobile (Le)
      0.036 mH
      Frequenza di risonanza (Fs)
      425 Hz
      Fattore di merito meccanico (Qms)
      6.6
      Fattore di merito elettromagnetico (Qes)
      0.68
      Fattore di merito totale (Qts)
      0.62
      Massa del diaframma incl. la massa dell'aria (Mms)
      2.0 g
      Superficie del cono (Sd)
      50.25 cm²
      Prodotto BL (BL)
      6.8 T*m
      Escursione lineare massima (Xmax)
      1.2 mm
      Materiale del filo della bobina mobile
      CCAW

      Show more

      Recensioni

      1 reviews
      Recensisci questo prodotto
      4 di 5
      This driver is in the absolute top range of midrange drivers. Very high sensitivity, high SPL and smooth frequency range. Easy to integrate, very low THD. Why only 4 stars? I directly compared to the Aluminium version and the silk driver is more "gentle" and softens the sound a little. It brings a sound by itself which means it's not as honest as the metal driver. (e.g. Crash cymbals sound less "explosive" and metal as they are) This can be t...

      Show more

      Da Jürgen Fehringer on 4 Ottobre 2022
