      TD-8060 Exponential Horn 80x60 cm

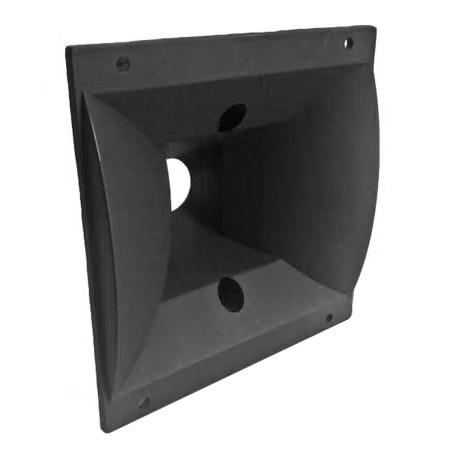

      Beyma TD-8060 Exponential Horn 80x60 cm

      €21,45

      3 In magazzino

      Aggiungi al carrello

      Beyma TD-8060 Exponential Horn 80x60 cm

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      Mostra tutti Nuovi prodotti
      TD-8060 Exponential Horn 80x60 cm
      € 17,73€ 21,45 3 In magazzino
      • -5% Acquista 4 per soli € 20,38 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      TD-8060 Exponential Horn 80x60 cm

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Precise directivity control in the pass band.

      Descrizione del prodotto Beyma TD-8060 Exponential Horn

      The Beyma TD-8060 is a lightweight, constant directivity horn designed for 1” compression drivers. With a wide 80° x 60° coverage pattern and precise acoustic control, it is ideal for compact speaker designs requiring high-frequency performance and consistent dispersion.



      Highlights of the Beyma TD-8060

      • Engineered for 1” (25.4 mm) throat diameter compression drivers
      • 80° horizontal and 60° vertical coverage for broad, controlled dispersion
      • Compact and lightweight polycarbonate construction
      • High directivity factor with a cut-off frequency of 1500 Hz



      Product details Beyma TD-8060

      Beyma TD-8060 Constant Directivity Horn



      The Beyma TD-8060 is a constant directivity horn built for 1” compression drivers, optimized to deliver wide and even sound distribution with minimal distortion. Its horizontal and vertical coverage of 80° x 60° ensures stable dispersion across the 2–16 kHz range, supporting intelligibility and clarity in both nearfield and mid-throw applications. The horn achieves a high directivity factor (Q) of 10.3 and a directivity index (DI) of 7.7 dB, thanks to its optimized geometry and polycarbonate material construction. Weighing only 0.13 kg and measuring just 140 x 140 x 67.4 mm, the TD-8060 is particularly suited for compact enclosures and mobile systems. Its cut-off frequency of 1500 Hz makes it ideal for integrating into two-way speaker systems requiring efficient high-frequency output without compromising space or weight constraints.

      Show more

      Specifiche

      Numero dell'articolo:
      TD-8060
      EAN
      8435469045422
      Tipo di tweeter
      Constant Directivity Horn
      Diametro del cono / cupola
      Used with 1" compression drivers
      Diametro esterno complessivo
      140 x 140 mm
      Diametro del ritaglio
      113 x 130 mm
      Profondità
      67.4 mm
      Tipo di montaggio
      4 Screws, 4.8 mm

      Show more
