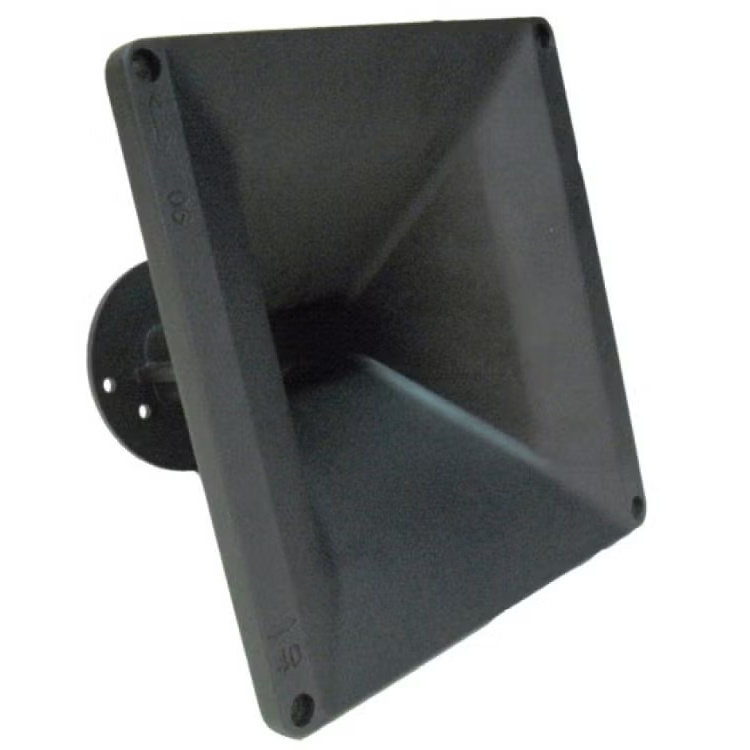

      TD-194 Exponential Horn 90x40 cm

      Beyma TD-194 Exponential Horn 90x40 cm

      €52,95

      4 In magazzino

      Aggiungi al carrello

      Beyma TD-194 Exponential Horn 90x40 cm

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      Mostra tutti Nuovi prodotti
      TD-194 Exponential Horn 90x40 cm
      € 43,76€ 52,95 4 In magazzino
      • -5% Acquista 4 per soli € 50,30 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito lunedì
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      TD-194 Exponential Horn 90x40 cm

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Precise directivity control in the pass band.

      Descrizione del prodotto Beyma TD-194 Exponential Horn

      The Beyma TD-194 is a constant directivity horn engineered for precision sound dispersion with 1” compression drivers. Compact and robust with cast aluminium construction, it delivers high-performance directional control in both professional and custom loudspeaker systems.



      Highlights of the Beyma TD-194

      • Designed for 1” (25.4 mm) compression drivers
      • 90° horizontal and 40° vertical coverage for controlled dispersion
      • Cast aluminium body for enhanced resonance resistance
      • Square, rotatable design for flexible cabinet integration



      Product details Beyma TD-194

      Beyma TD-194 Constant Directivity Horn



      The Beyma TD-194 is a constant directivity horn tailored for use with 1” compression drivers, providing consistent and precise coverage across a wide frequency range. With a horizontal beamwidth of 90° and a vertical beamwidth of 40°, this horn maintains its coverage pattern from 2 to 16 kHz, making it suitable for PA and high-fidelity applications requiring uniform sound distribution. Constructed from cast aluminium, the horn offers durability and effective resonance control, while its flat front design allows for seamless flush mounting. The square shape supports easy rotation for adaptable installation. With a cut-off frequency of 1200 Hz, a directivity factor (Q) of 11.2, and a directivity index (DI) of 10.2 dB, the TD-194 ensures tight directivity and clarity. It weighs 1 kg and is compact in size, with dimensions of 202 x 202 x 145 mm, making it a solid choice for custom enclosures and professional loudspeaker systems.

      Show more

      Specifiche

      Numero dell'articolo:
      TD-194
      EAN
      8435469045378
      Tipo di tweeter
      Constant Directivity Horn
      Diametro esterno complessivo
      202 x 202 mm
      Diametro del ritaglio
      177 x 177 mm
      Profondità
      145 mm
      Tipo di montaggio
      4 Screws, 5.5 mm

      Show more
