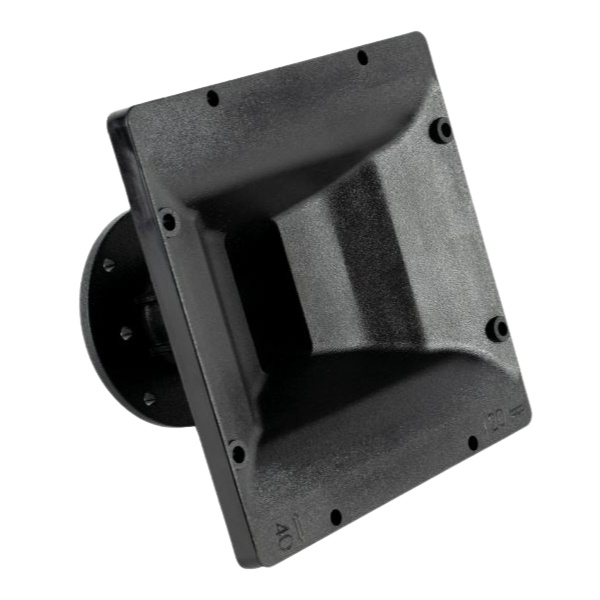

      TD-1124P Exponential Horn 120x40 cm

      Beyma TD-1124P Exponential Horn 120x40 cm

      €22,95

      4 In magazzino

      Aggiungi al carrello

      Beyma TD-1124P Exponential Horn 120x40 cm

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      Mostra tutti Nuovi prodotti
      TD-1124P Exponential Horn 120x40 cm
      € 18,97€ 22,95 4 In magazzino
      • -5% Acquista 4 per soli € 21,80 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      TD-1124P Exponential Horn 120x40 cm

      Descrizione del prodotto Beyma TD-1124P Exponential Horn

      The Beyma TD-1124P is a compact constant directivity horn engineered for 1” compression drivers. Its lightweight yet durable reinforced polycarbonate design, combined with a wide horizontal dispersion, makes it ideal for applications demanding broad sound coverage and flexible mounting.



      Highlights of the Beyma TD-1124P

      • Designed for 1” (25.4 mm) throat diameter compression drivers
      • 120° horizontal and 40° vertical nominal coverage
      • Reinforced polycarbonate construction with rotatable square form
      • FEM-optimized flare for precise directivity control



      Product details Beyma TD-1124P

      Beyma TD-1124P Constant Directivity Horn



      The Beyma TD-1124P is a precision-engineered horn tailored for 1” compression drivers, offering an exceptionally wide 120° horizontal and 40° vertical dispersion pattern. This design ensures expansive sound coverage in the 1–16 kHz range, with a consistent directivity index of 9.4 dB. Constructed from reinforced polycarbonate and featuring a compact 160 x 160 x 100 mm footprint, it is optimized for low-resonance performance and easy cabinet integration. The horn’s squared, rotatable design supports versatile orientation, while its flare geometry—refined using Finite Element Method (FEM) simulation—delivers smooth and controlled acoustic response. With dual bolt pattern compatibility (three M5 holes at 57 mm and four M5 holes at 76.2 mm diameters), the TD-1124P ensures broad compatibility with various driver models. Its 1500 Hz cut-off frequency makes it an ideal solution for compact speaker systems requiring efficient, directional high-frequency output.

      Show more

      Specifiche

      Numero dell'articolo:
      TD-1124P
      EAN
      8435469056626
      Tipo di tweeter
      Constant Directivity Horn
      Diametro del cono / cupola
      To be used with 1” compression drivers
      Diametro esterno complessivo
      160 x 160 mm
      Diametro del ritaglio
      139 x 139 mm
      Profondità
      100 mm
      Tipo di montaggio
      8 Screws, 5.5 mm

      Show more
