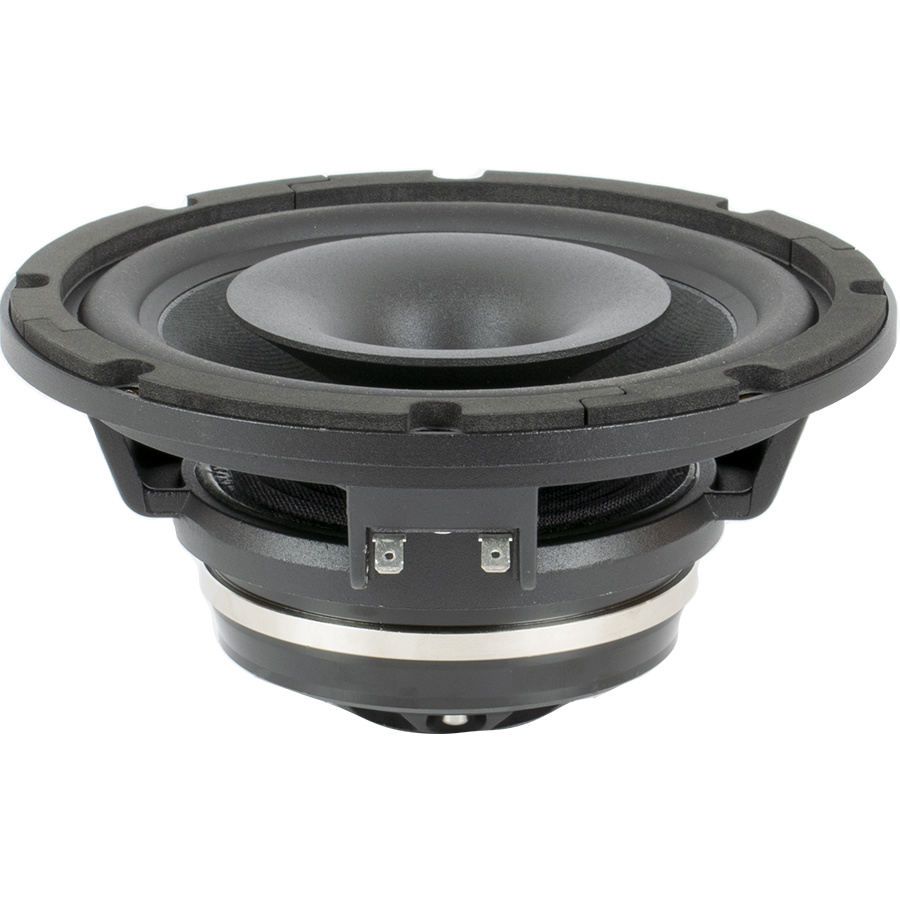

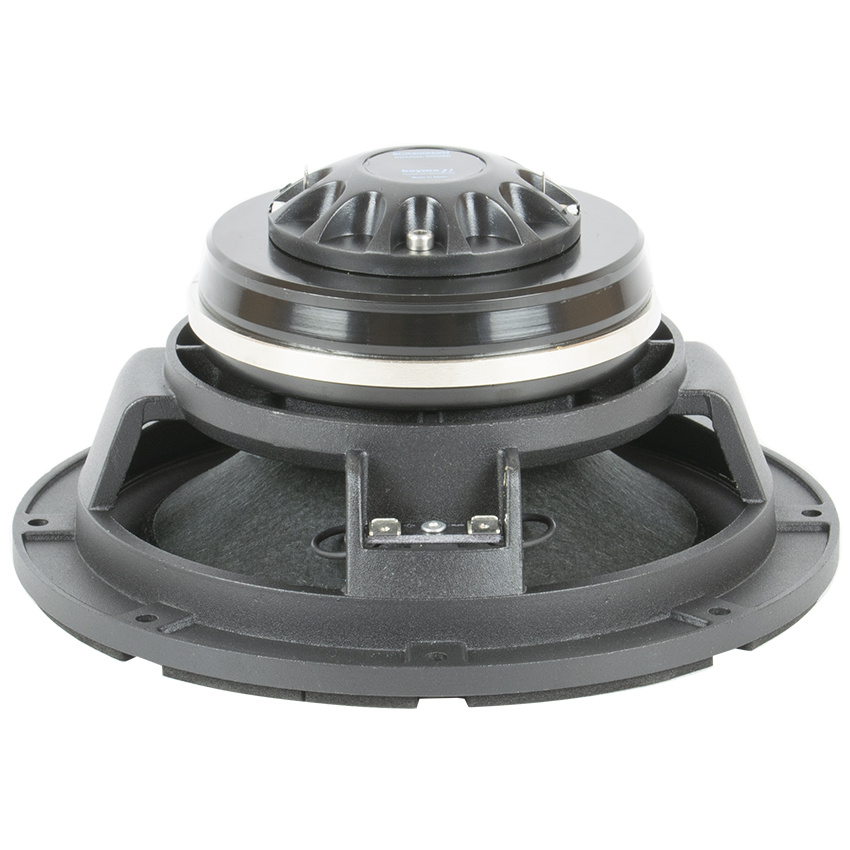

      8CX300Nd/N Coaxial Woofer

      Beyma 8CX300Nd/N Coaxial Woofer

      €399,95

      2 In magazzino

      Aggiungi al carrello

      Beyma 8CX300Nd/N Coaxial Woofer

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      Mostra tutti Nuovi prodotti
      8" | 8 Ω
      8CX300Nd/N Coaxial Woofer
      8CX300Nd/N Coaxial Woofer
      8CX300Nd/N Coaxial Woofer
      8CX300Nd/N Coaxial Woofer
      € 330,54€ 399,95 2 In magazzino
      • -5% Acquista 4 per soli € 379,95 per pezzo
      +-
      Aggiungi al carrello

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      8CX300Nd/N Coaxial Woofer
      8CX300Nd/N Coaxial Woofer
      8CX300Nd/N Coaxial Woofer
      8CX300Nd/N Coaxial Woofer

      Descrizione del prodotto Beyma 8CX300Nd/N Coaxial Woofer

      Premium 8-inch coaxial transducer featuring a neodymium magnet system, engineered for compact full-range enclosures that demand clarity, efficiency, and natural sound reproduction.



      Highlights of the Beyma 8CX300Nd/N

      • 500 W / 100 W program power (LF / HF) with 96 / 104 dB sensitivity
      • 2.5” / 1.75” voice coils for LF/HF with shared lightweight neodymium magnet
      • Weatherproof carbon fiber-loaded paper cone and Santoprene™ surround
      • Wide frequency range: 60 – 20,000 Hz with shorting cap and PM4 diaphragm for extended, low-distortion response



      Product details Beyma 8CX300Nd/N

      Beyma 8CX300Nd/N Coaxial Transducer



      The Beyma 8CX300Nd/N is a high-performance 8” coaxial transducer designed to deliver full-range sound in a single point source format. With 250 W AES / 500 W program power in the LF section and 50 W AES / 100 W program power in the HF driver, this unit ensures a balanced and powerful acoustic output. The 96 dB (LF) and 104 dB (HF) sensitivities contribute to its impressive efficiency and clarity. The transducer features a 2.5” LF voice coil and a 1.75” HF voice coil, both mounted on a common, lightweight neodymium magnet structure for optimal alignment and space efficiency. A shorting cap minimizes harmonic distortion and extends the upper frequency range, while the PM4 diaphragm in the HF driver promotes natural and smooth sound reproduction. Its cone is constructed from carbon fiber-loaded paper and is treated for waterproofing, supported by a Santoprene™ surround for mechanical control and environmental durability. With a usable frequency range from 60 Hz to 20 kHz and a recommended HF crossover of 1.5 kHz (12 dB/oct min), the 8CX300Nd/N is suited for high-quality applications such as studio monitors, compact PA systems, and single-source reinforcement in fixed or portable setups. Its compact depth (106 mm) and 2.8 kg weight make it ideal for space-conscious designs where fidelity and output are non-negotiable.

      Show more

      Specifiche

      Numero dell'articolo:
      8CX300Nd/N
      EAN
      8435469041844
      Tipo di woofer
      Coaxial Transducer
      Diametro nominale
      Woofer 8", Tweeter 1.75"
      Gestione della potenza (RMS)
      500 Watts
      Potenza continua del programma
      Woofer 600 Watts, Tweeter 100 Watts
      Impedenza (Z)
      Woofer 8 Ω, Tweeter 8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      Woofer 96 dB, Tweeter 104 dB
      Risposta in frequenza
      60-20.000 Hz
      Diametro della bobina mobile
      Woofer 2.5", Tweeter 1.75"
      Resistenza DC (Re)
      5.4 Ω
      Induttanza della bobina mobile (Le)
      0,3 mH
      Frequenza di risonanza (Fs)
      61 Hz
      Fattore di merito meccanico (Qms)
      13
      Fattore di merito elettromagnetico (Qes)
      0.30
      Fattore di merito totale (Qts)
      0.29
      Massa del diaframma incl. la massa dell'aria (Mms)
      0,020 kg
      Cedevolezza meccanica della sospensione (Cms)
      335 µm / N
      Superficie del cono (Sd)
      0,022 m²
      Volume di spostamento (Vd)
      132 cm³
      Prodotto BL (BL)
      12 N/A
      Volume equivalente di cedevolezza (Vas)
      23 Liters
      Escursione lineare massima (Xmax)
      +/- 6 mm
      Perdite meccaniche del driver (Rms)
      0,6 kg / s
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      212 mm
      Profondità complessiva
      106 mm
      Diametro del ritaglio del pannello frontale
      180 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      5 mm

      Show more
