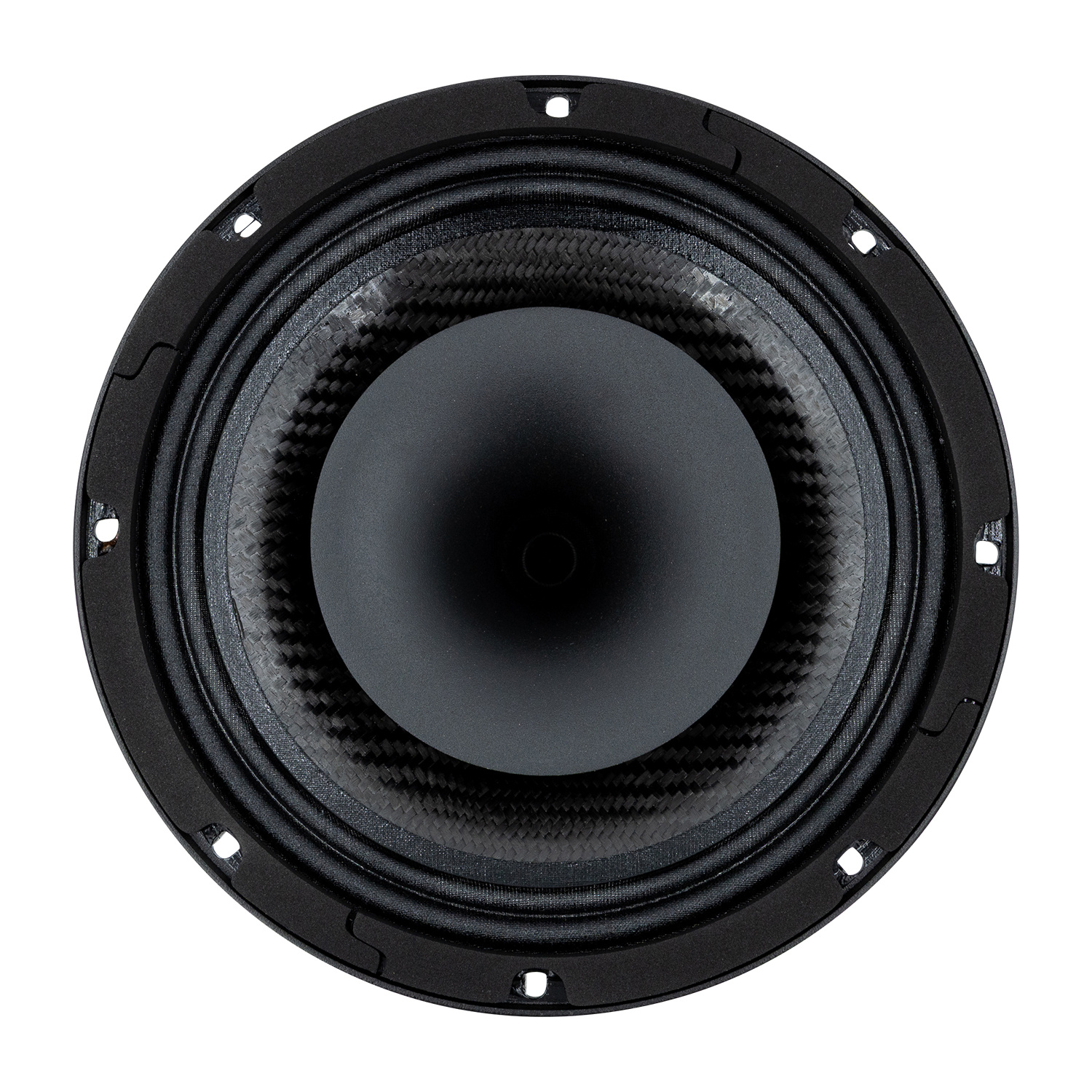

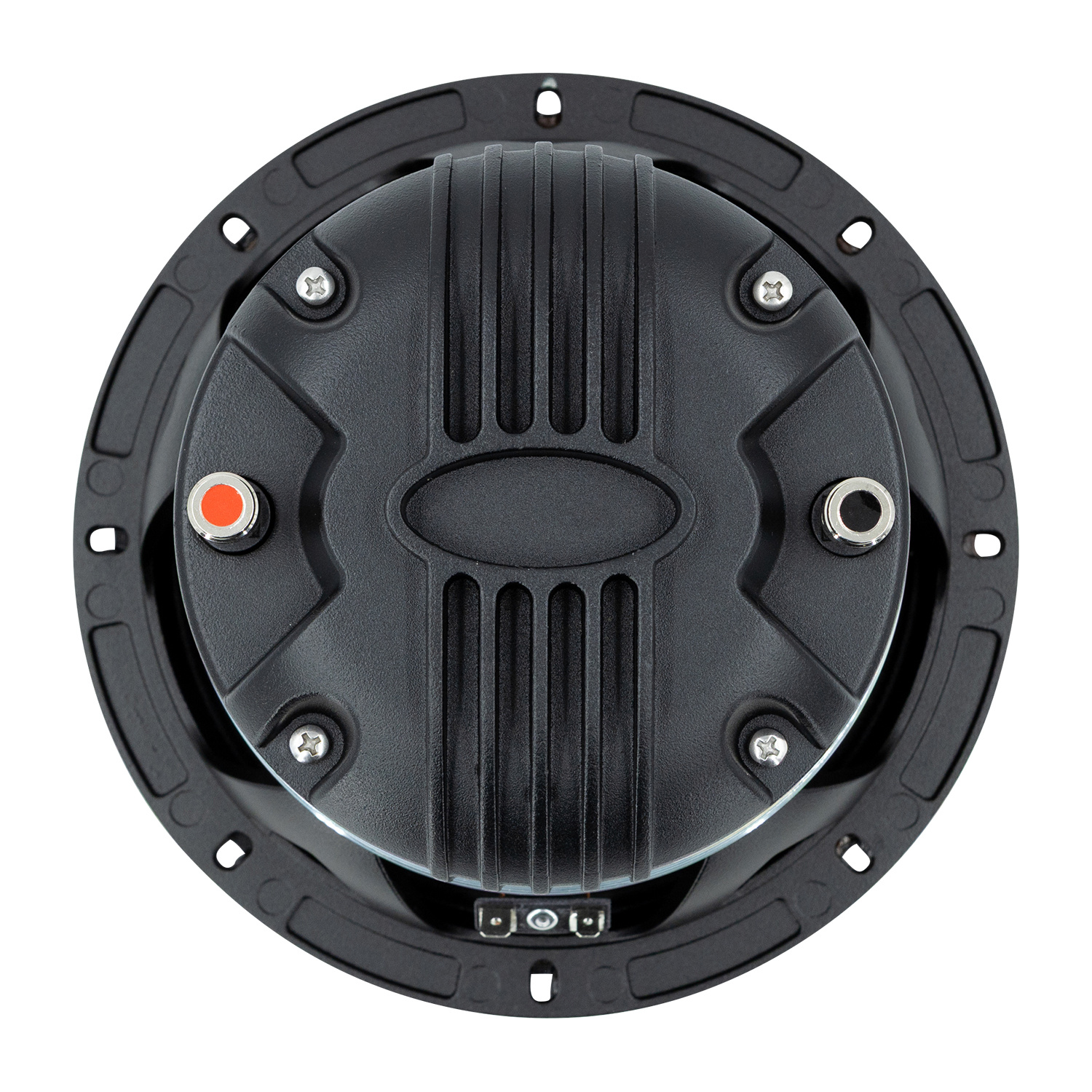

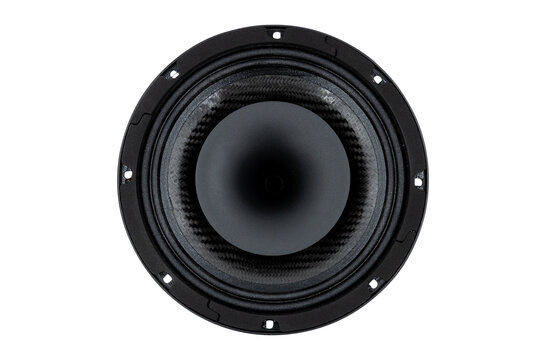

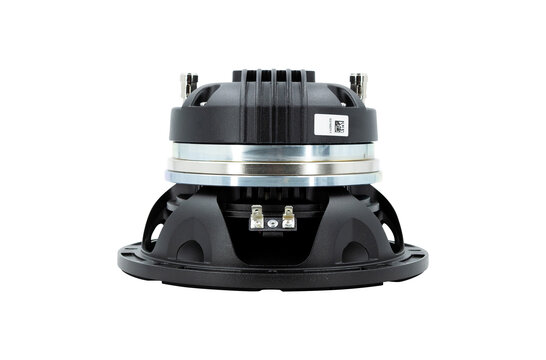

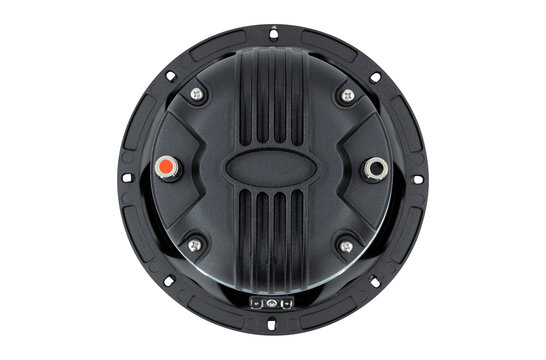

      8CFX260Nd Coaxial Woofer

      Beyma 8CFX260Nd Coaxial Woofer

      €599,95

      2 In magazzino

      Aggiungi al carrello

      Beyma 8CFX260Nd Coaxial Woofer

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      8" | 8 Ω
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      € 495,83€ 599,95 2 In magazzino
      • -5% Acquista 4 per soli € 569,95 per pezzo
      € 599,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer
      8CFX260Nd Coaxial Woofer

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Features a waterproof carbon fiber cone

      Descrizione del prodotto Beyma 8CFX260Nd Coaxial Woofer

      High-performance 8-inch coaxial speaker featuring a waterproof carbon fiber cone and a lightweight neodymium magnet system, designed for compact, high-fidelity single-point source applications.



      Highlights of the Beyma 8CFX260Nd

      • 500 W / 120 W program power handling (LF / HF) with 97 / 103 dB sensitivity
      • Integrated 2.5” woofer and 2.85” compression driver with neodymium magnet

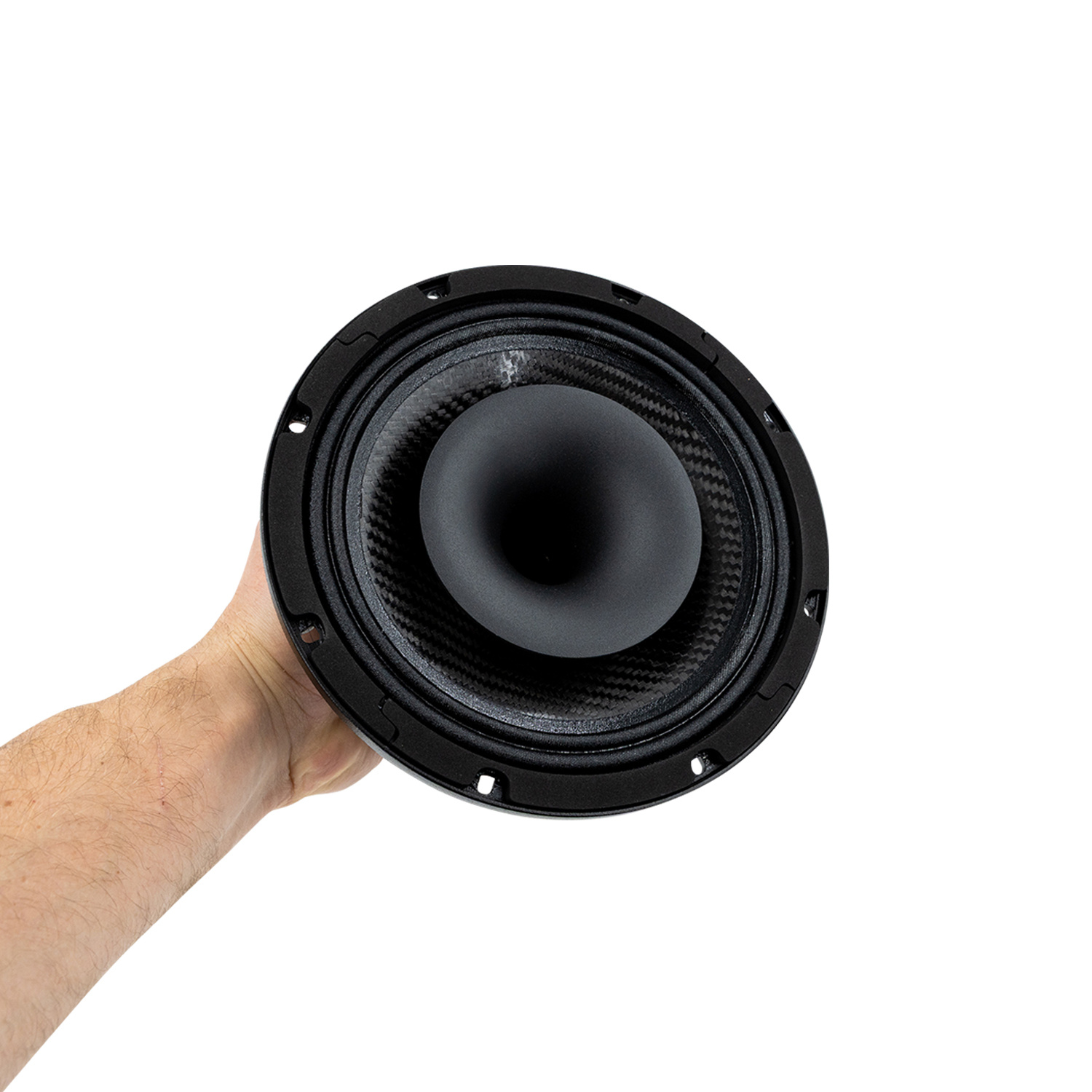

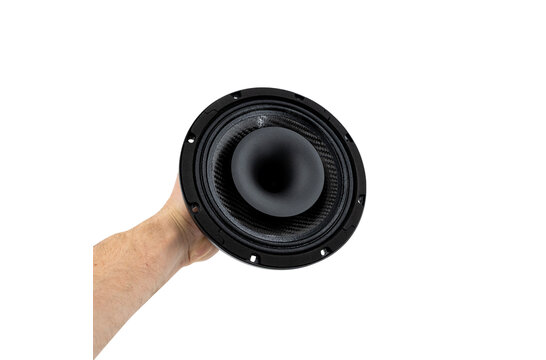

      • Waterproof carbon fiber cone and demodulation ring for low distortion
      • Wide frequency range: 100 – 20,000 Hz with recommended crossover ≥ 1.5 kHz



      Product details Beyma 8CFX260Nd

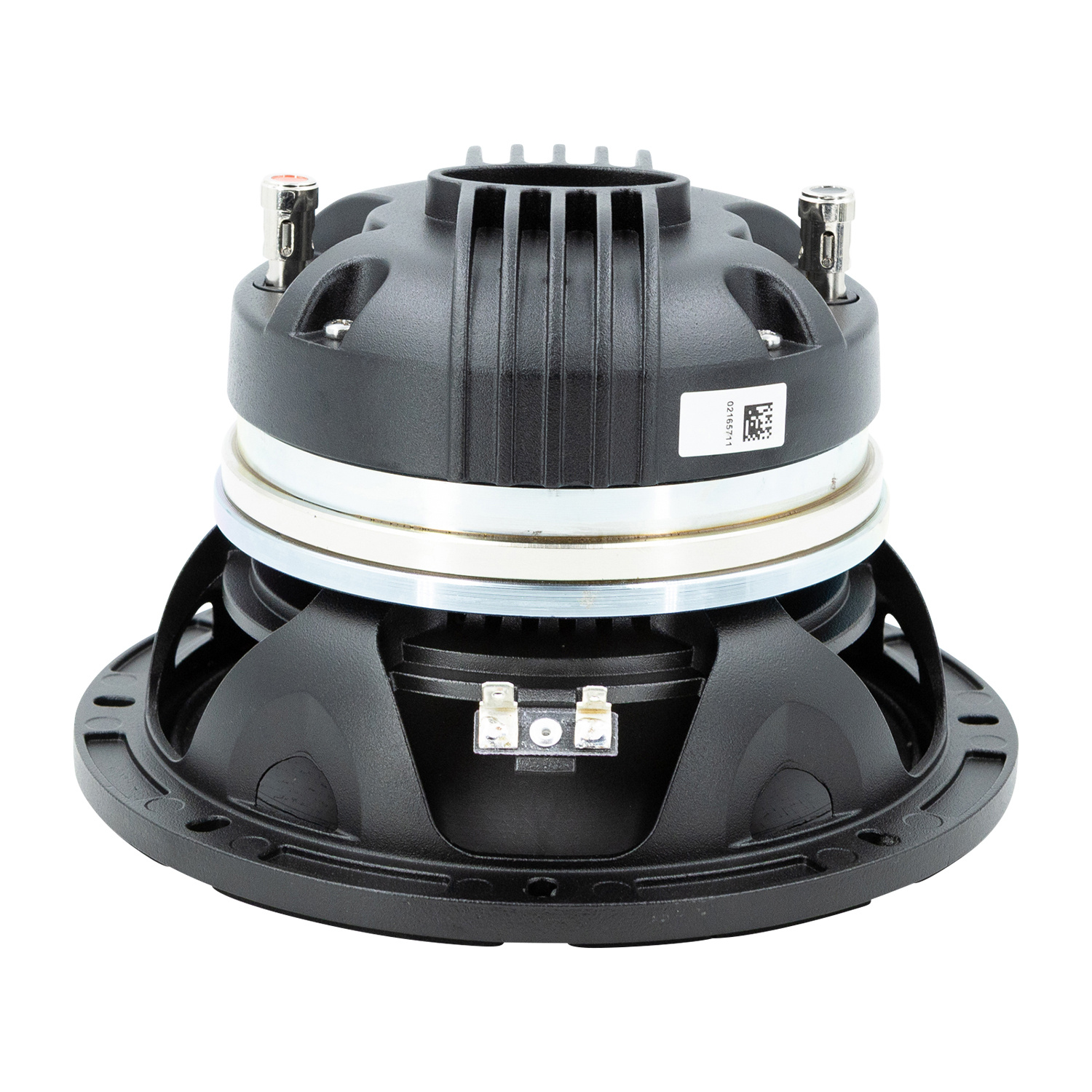

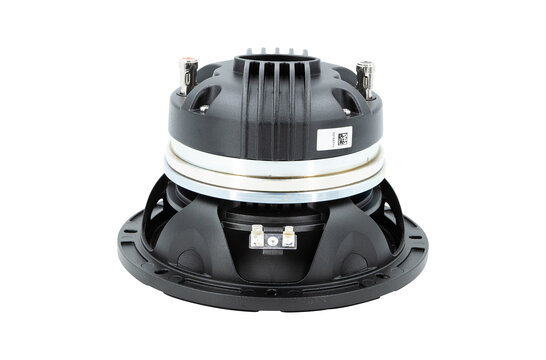

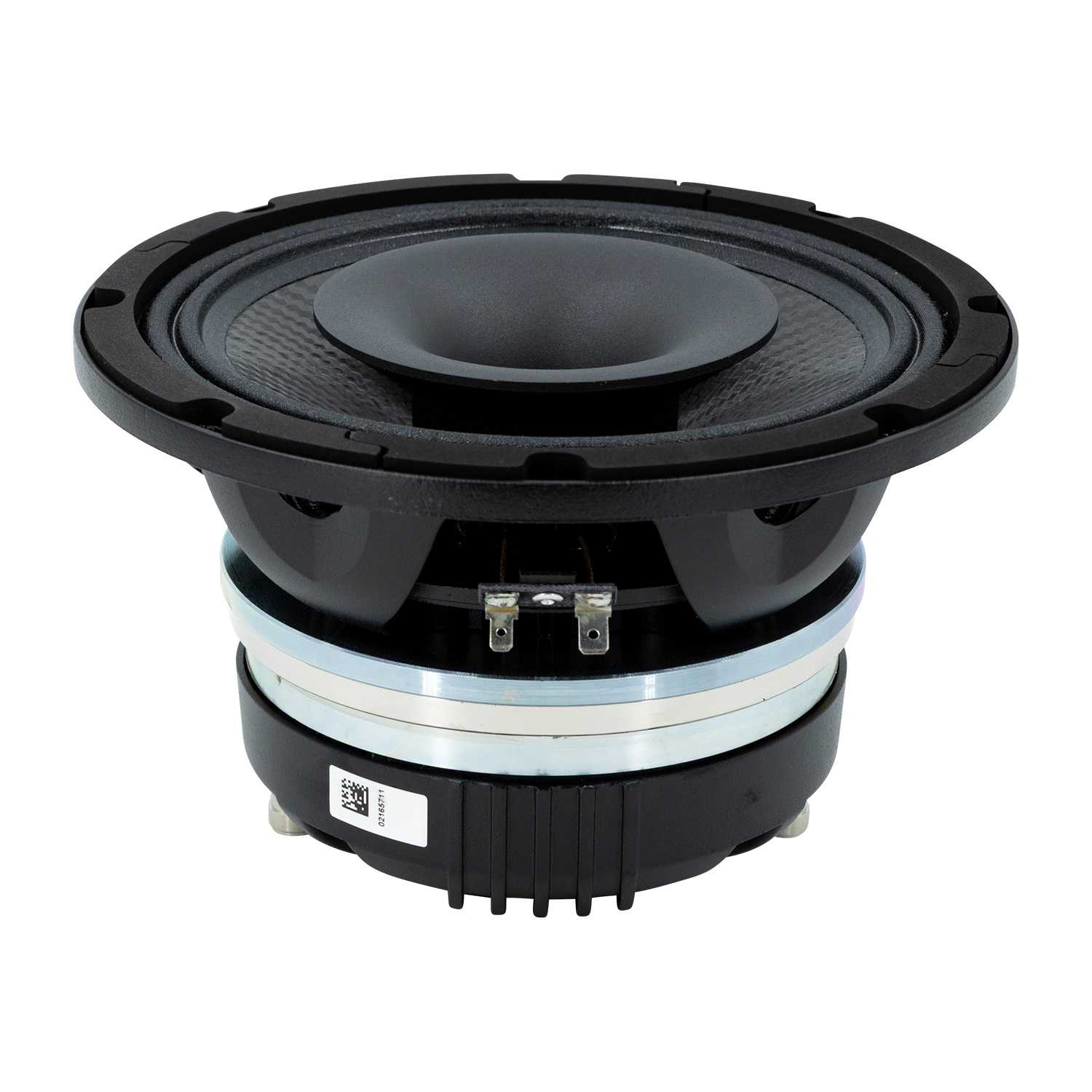

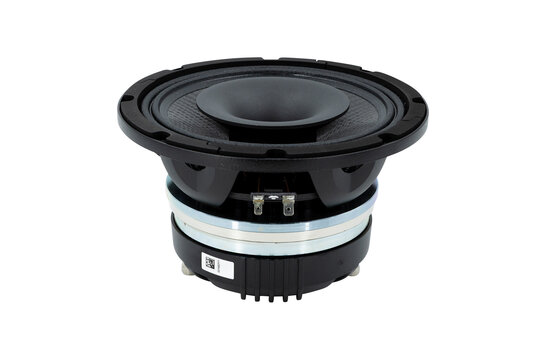

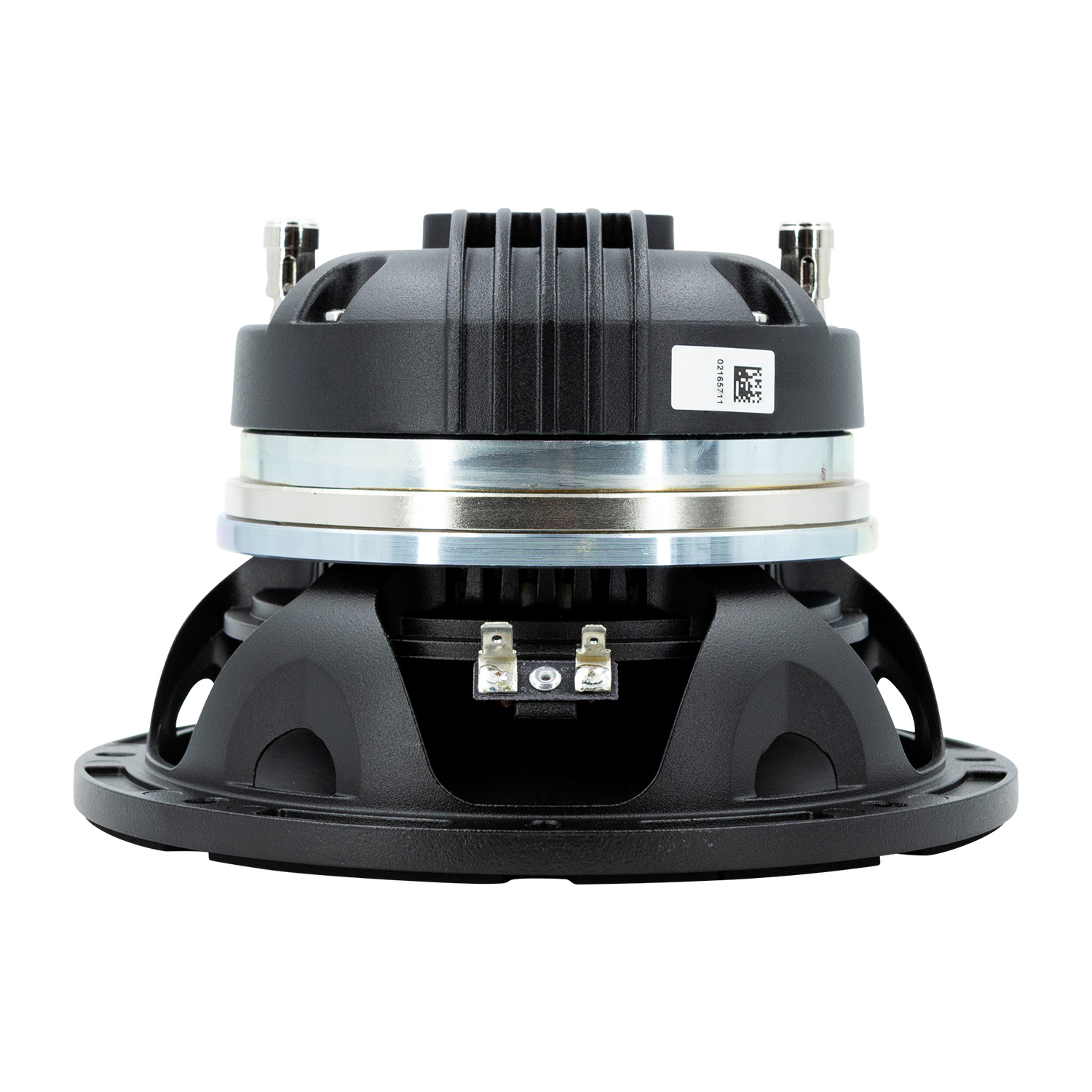

      Beyma 8CFX260Nd Coaxial Transducer



      The Beyma 8CFX260Nd is a premium 8” coaxial transducer that integrates a high-efficiency low-frequency driver and a wide-bandwidth compression driver into a compact, full-range system. It is rated at 250 W AES / 500 W program for the woofer, and 60 W AES / 120 W program for the HF section, with impressive sensitivities of 97 dB and 103 dB respectively. Designed with a lightweight common neodymium magnet circuit and a robust cast aluminum frame, the 8CFX260Nd ensures structural integrity with minimal weight. The waterproof carbon fiber cone enhances environmental resilience while maintaining clarity and transient precision. Its coaxial configuration includes a 2.5” voice coil for the LF and a 2.85” voice coil compression driver, optimized for accurate phase alignment and natural sound integration. A demodulating ring minimizes harmonic distortion and extends linear response, making the driver suitable for studio monitors, home theater systems, houses of worship, cinemas, and small PA applications. Operating over a frequency range of 100 Hz to 20 kHz, with a recommended crossover at 1.5 kHz (minimum 12 dB/oct slope), this transducer excels in point-source designs demanding full-range clarity and controlled dispersion in tight enclosures.

      Show more

      Specifiche

      Numero dell'articolo:
      8CFX260Nd
      EAN
      8435469057722
      Tipo di woofer
      Coaxial Transducer
      Diametro nominale
      Woofer 8", Compression driver 2.85"
      Gestione della potenza (RMS)
      500 Watt
      Potenza continua del programma
      Woofer 500 Watt, Tweeter 120 Watt
      Impedenza (Z)
      Woofer 8 Ω, Tweeter 8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      97 dB
      Risposta in frequenza
      100 - 20.000 Hz
      Diametro della bobina mobile
      Woofer 64 mm + Tweeter 44 mm
      Resistenza DC (Re)
      5.2 Ω
      Induttanza della bobina mobile (Le)
      0.23 mH
      Frequenza di risonanza (Fs)
      100 Hz
      Fattore di merito meccanico (Qms)
      4.8
      Fattore di merito elettromagnetico (Qes)
      0.37
      Fattore di merito totale (Qts)
      0.35
      Massa del diaframma incl. la massa dell'aria (Mms)
      21 g
      Cedevolezza meccanica della sospensione (Cms)
      0.119 mm/N
      Superficie del cono (Sd)
      220 cm²
      Volume di spostamento (Vd)
      132 cm³
      Prodotto BL (BL)
      13.5 Tm
      Volume equivalente di cedevolezza (Vas)
      8 L
      Escursione lineare massima (Xmax)
      6 mm
      Perdite meccaniche del driver (Rms)
      2.7 Kg/s
      Materiale del cono / diaframma
      Carbon Fiber
      Materiale del magnete
      Neodymium
      Diametro esterno complessivo
      212 mm
      Profondità complessiva
      134 mm
      Diametro del ritaglio del pannello frontale
      181 mm
      Diametro del cerchio dei fori di montaggio
      195 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      5.5 mm

      Show more
