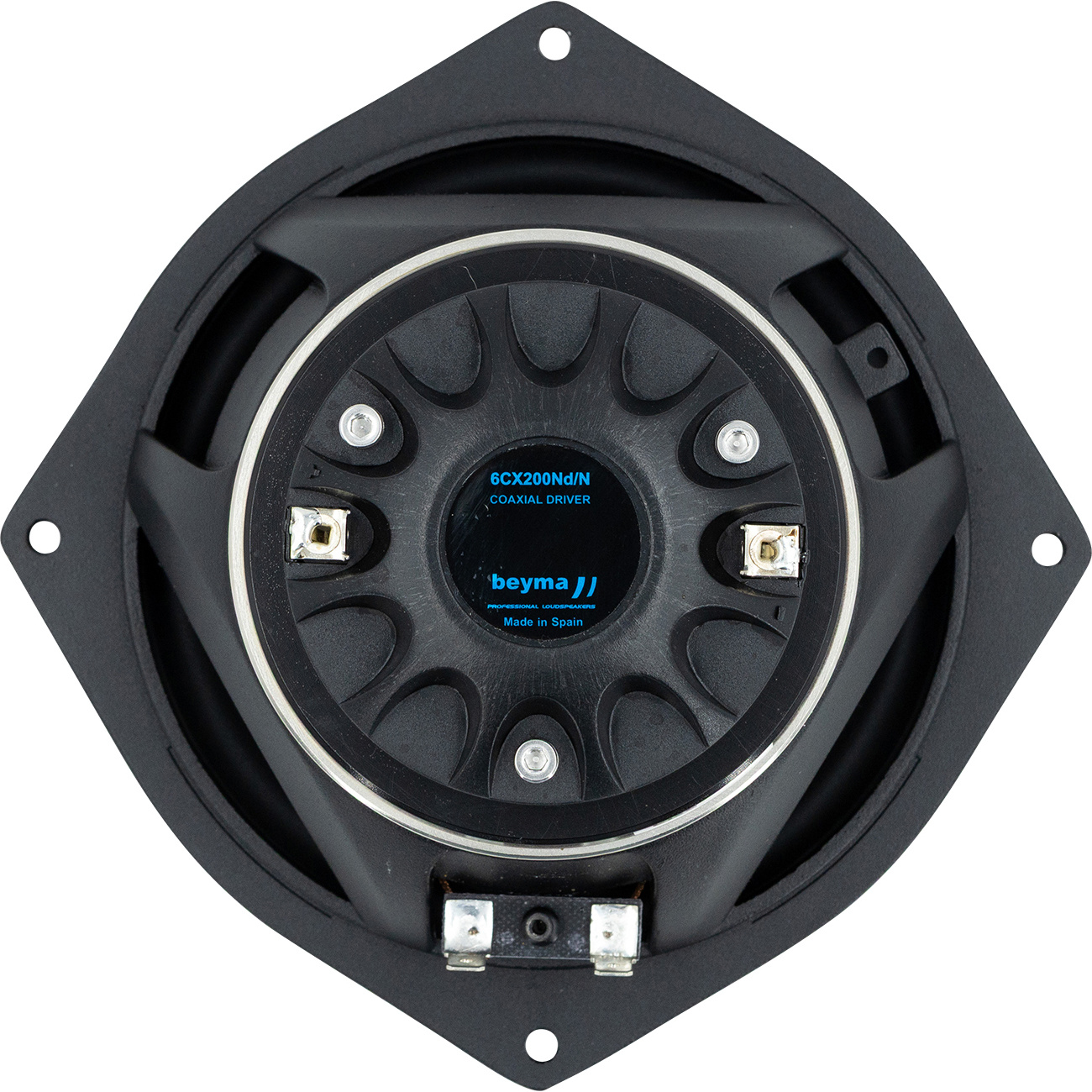

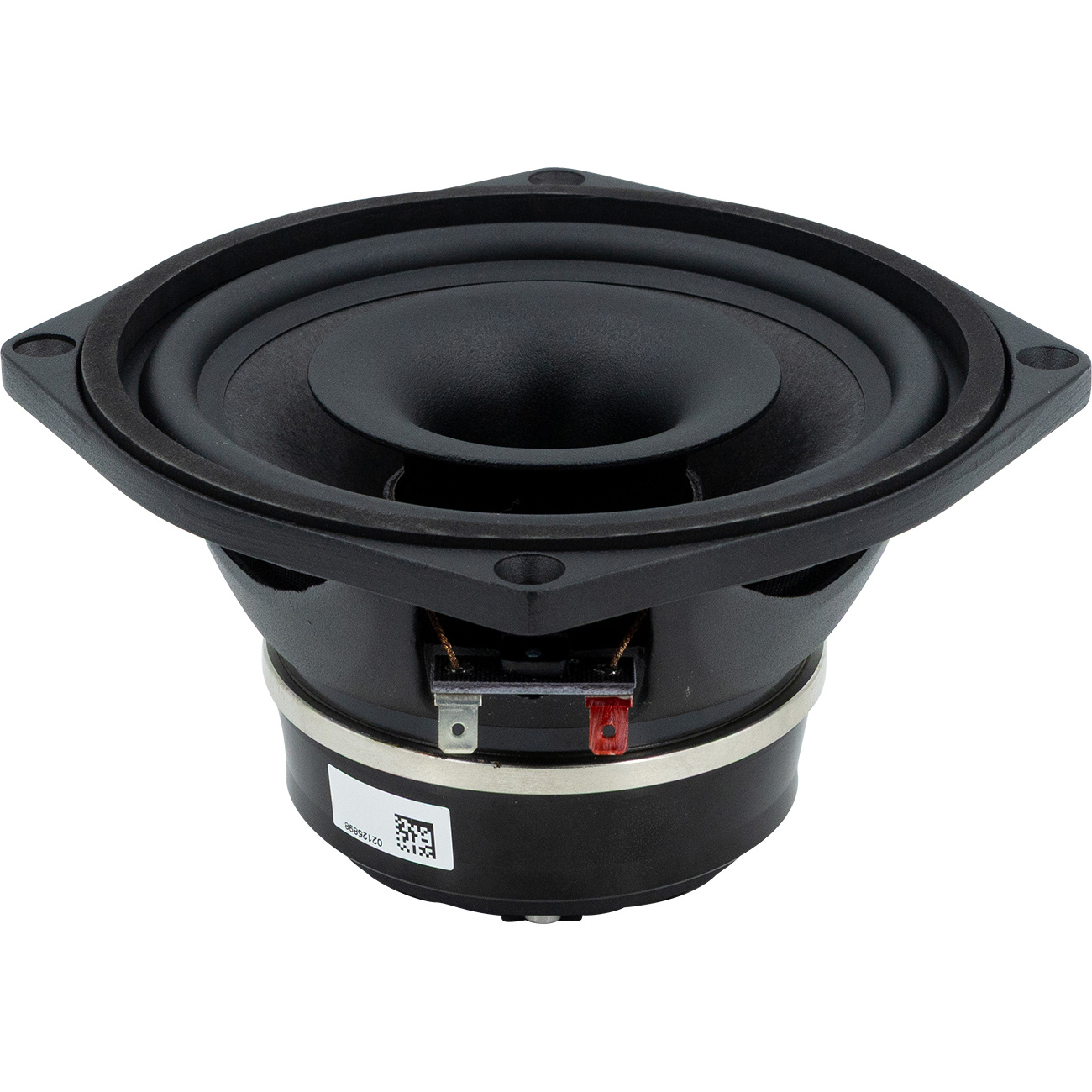

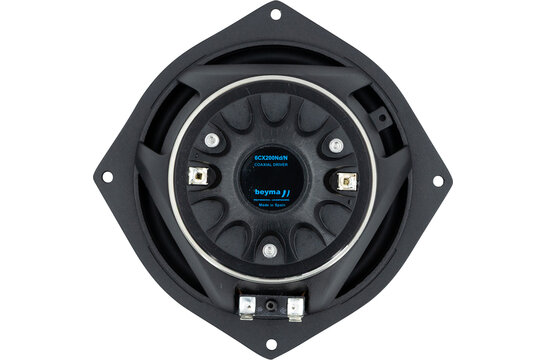

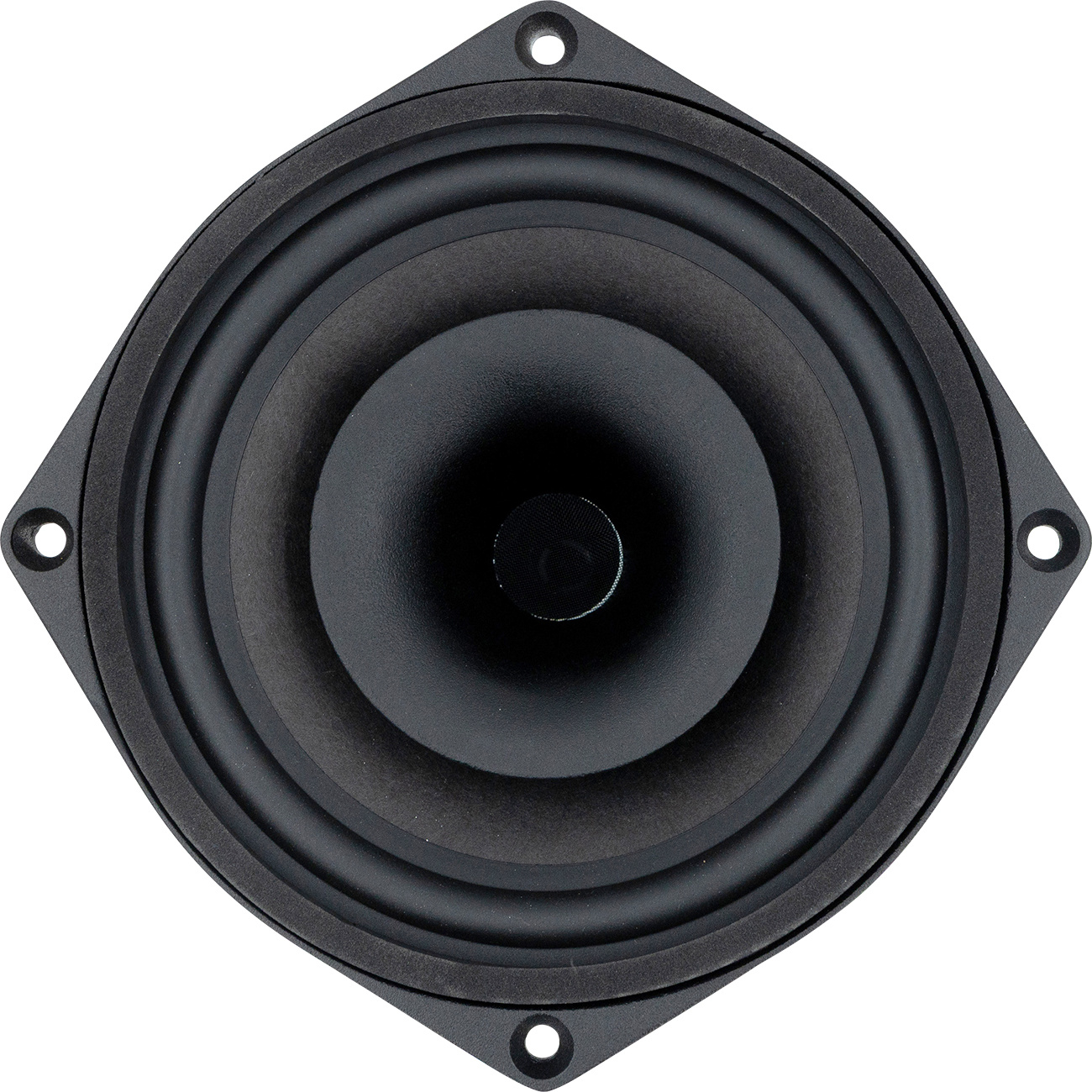

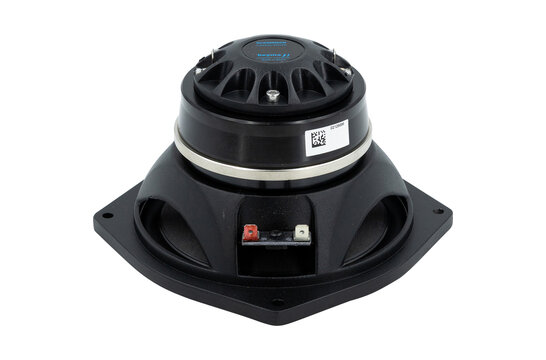

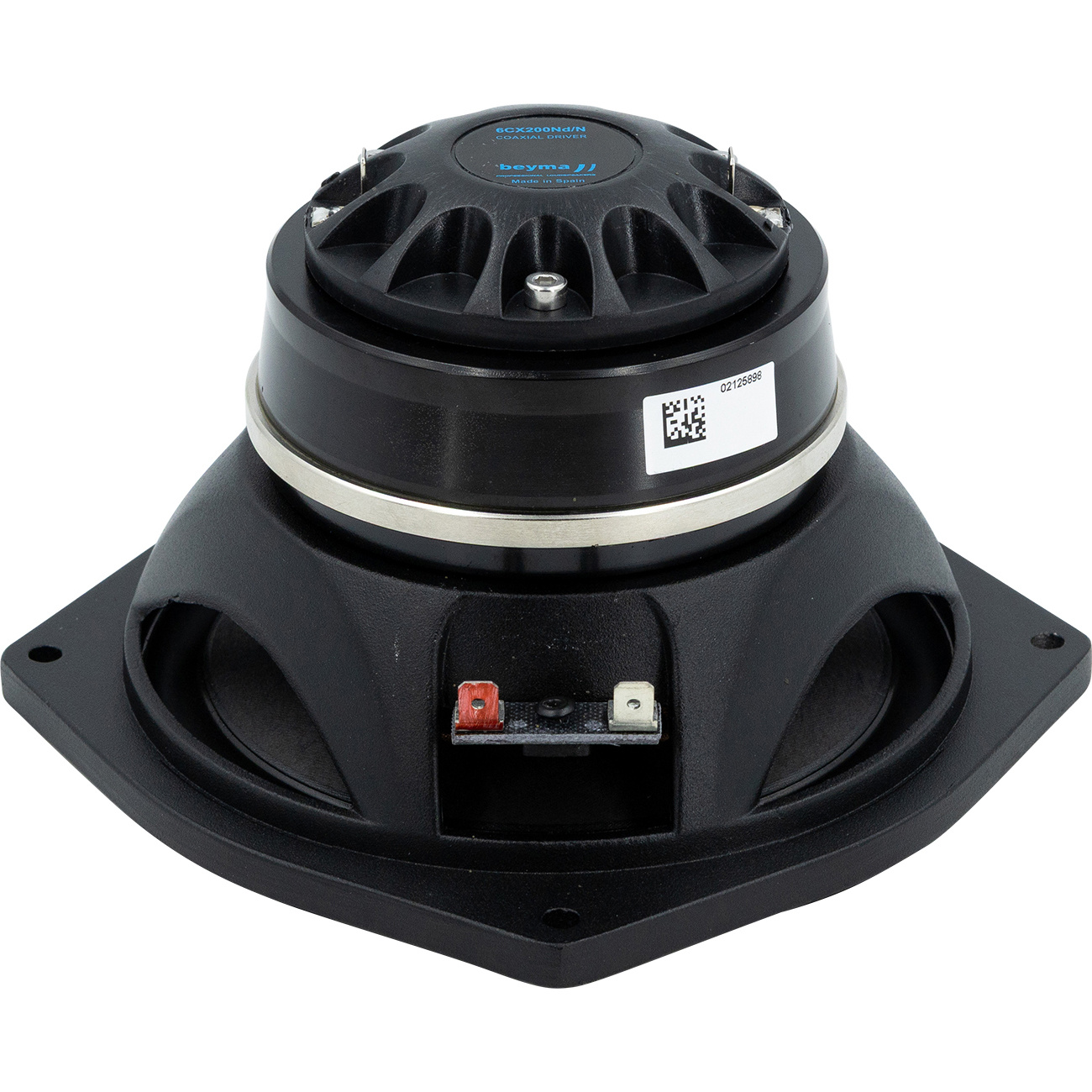

      6CX200Nd/N Coaxial Woofer

      Beyma 6CX200Nd/N Coaxial Woofer

      €339,95

      4 Arrivo previsto il 30-11-2026

      Aggiungi al carrello

      Beyma 6CX200Nd/N Coaxial Woofer

      1 klantbeoordelingen
      5 da 5
      1 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      6" | 8 Ω
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      € 280,95€ 339,95 Esaurito4 Arrivo previsto il 30-11-2026
      • -5% Acquista 4 per soli € 322,95 per pezzo
      € 339,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Presto di nuovo disponibile
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer
      6CX200Nd/N Coaxial Woofer

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • Weatherproof paper cone with SantopreneTM surround

      Descrizione del prodotto Beyma 6CX200Nd/N Coaxial Woofer

      Compact 6.5-inch coaxial transducer with neodymium magnet, tailored for full-range applications requiring extended frequency response, controlled dispersion, and lightweight design.



      Highlights of the Beyma 6CX200Nd/N

      • 400 W / 80 W program power (LF / HF) with 92 / 103 dB sensitivity
      • 2” / 1.75” voice coils with common lightweight neodymium magnet system
      • Weatherproof paper cone, Santoprene™ surround, and CONEX spider
      • Polyester HF diaphragm and 70° HF horn for smooth off-axis response



      Product details Beyma 6CX200Nd/N

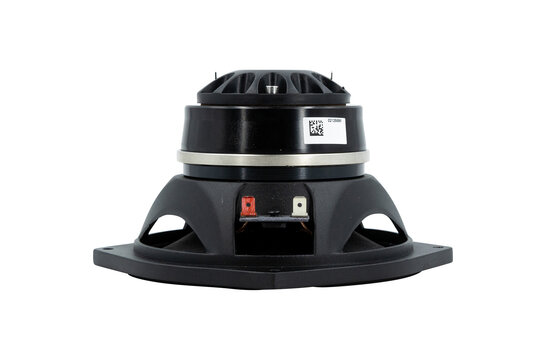

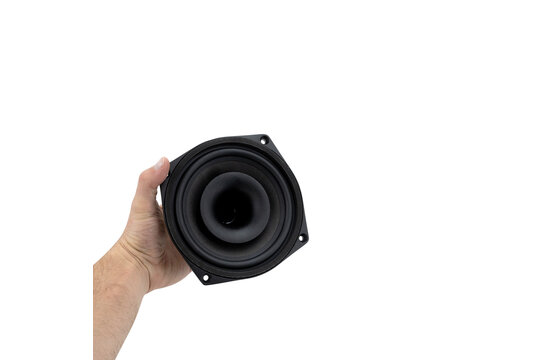

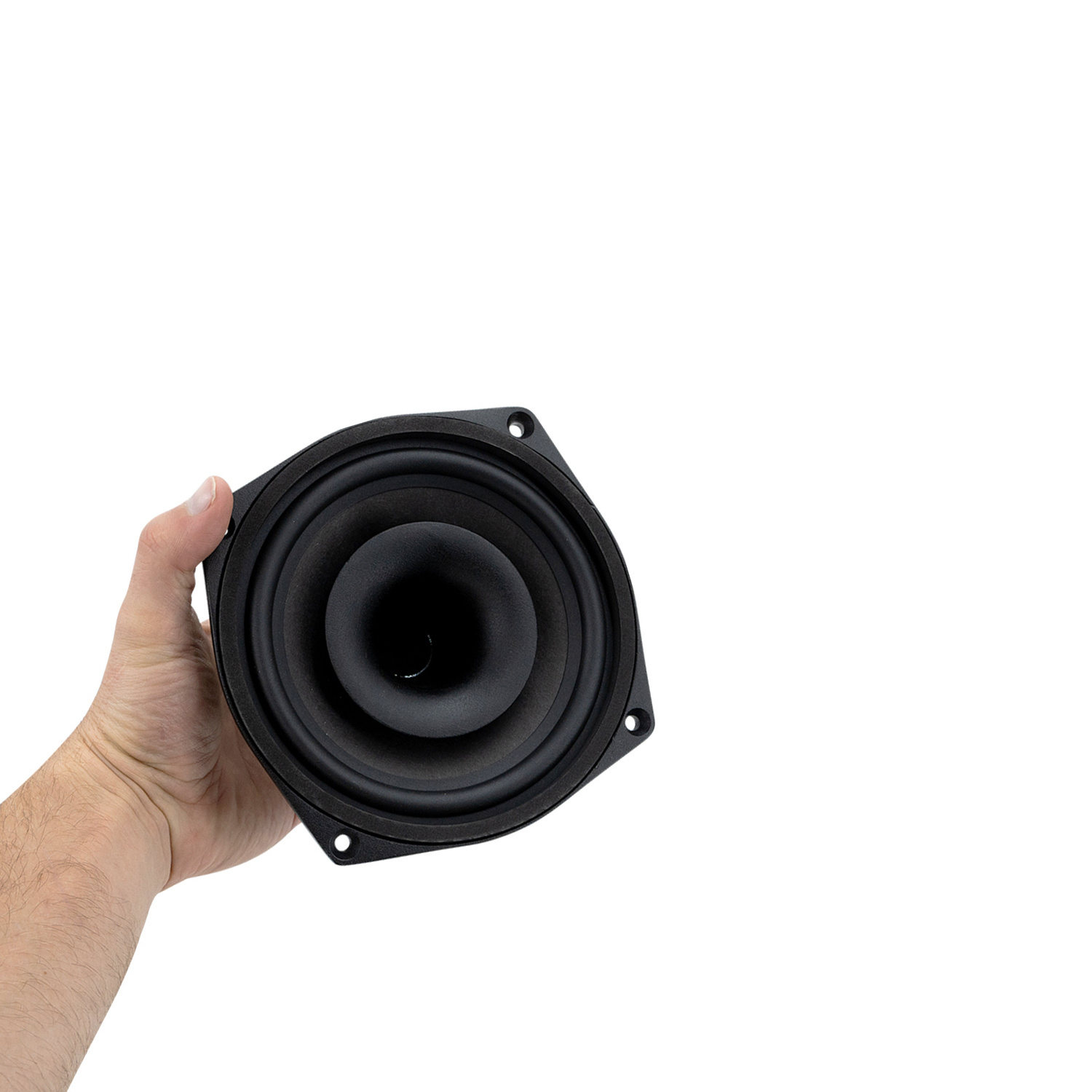

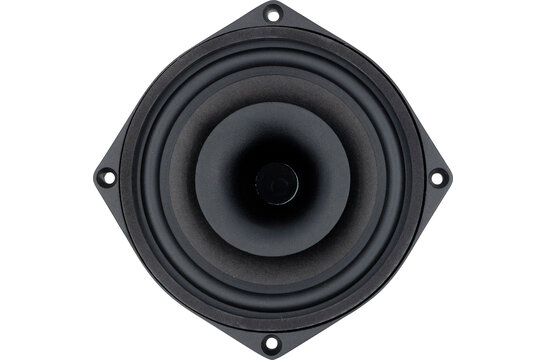

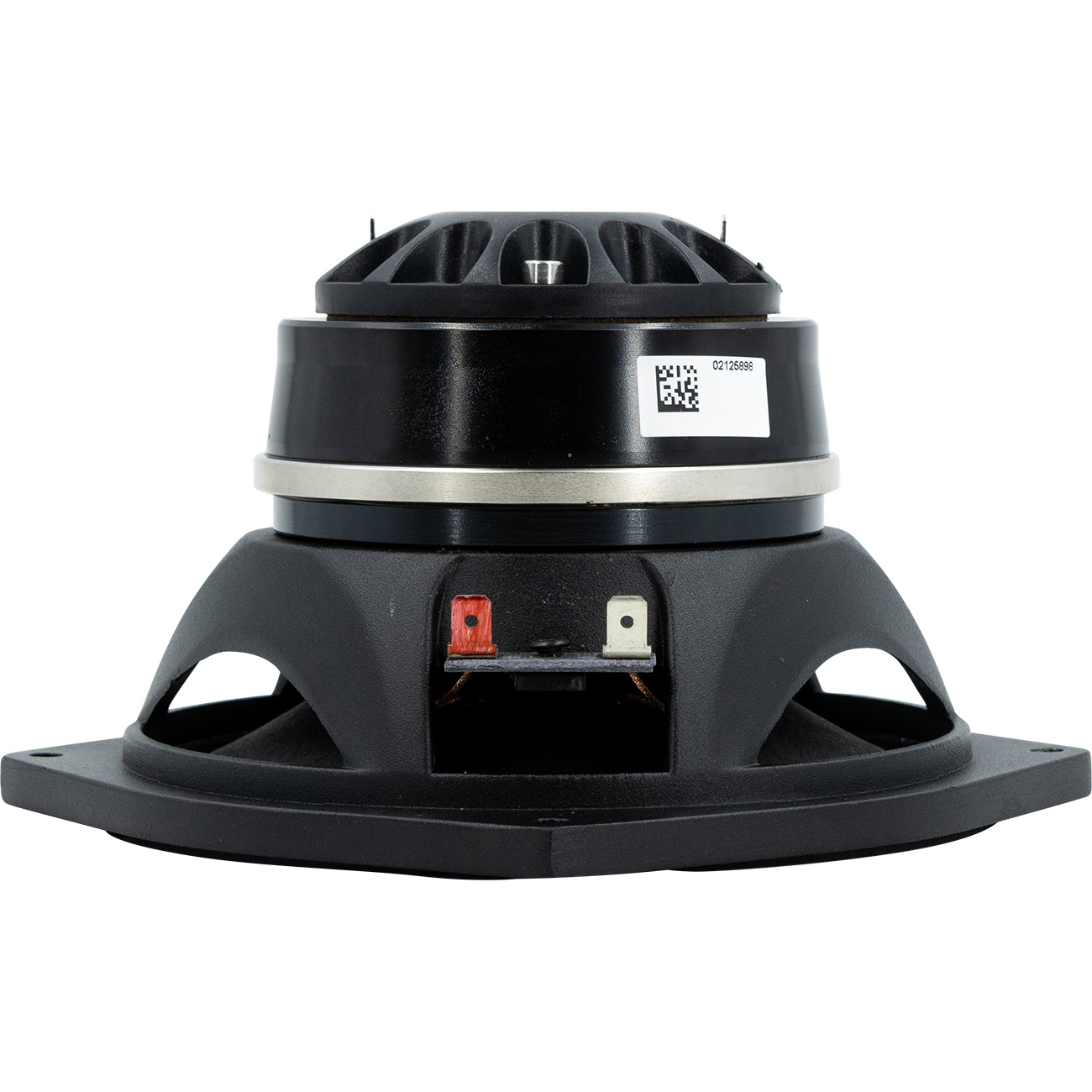

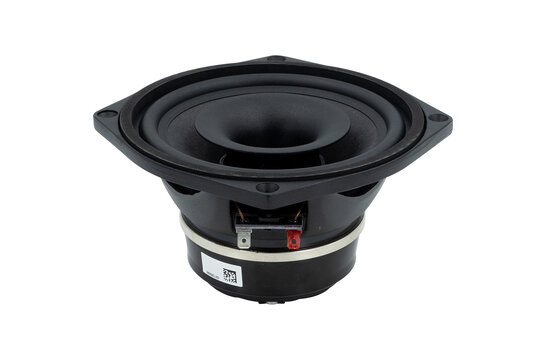

      Beyma 6CX200Nd/N Coaxial Transducer



      The Beyma 6CX200Nd/N is a high-performance 6.5” coaxial transducer designed to provide wide frequency coverage and compact system integration. With a 200 W AES / 400 W program power handling in the LF section and 40 W AES / 80 W program in the HF, this unit offers a balanced full-range sound with sensitivities of 92 dB (LF) and 103 dB (HF). The transducer incorporates a 2” woofer and 1.75” HF compression driver mounted on a shared neodymium magnet structure, optimizing size and alignment. It features a shorting cap for extended HF response and reduced distortion, and the HF driver uses a polyester diaphragm for smooth high-frequency reproduction.



      The recommended HF crossover is set at 2.5 kHz or higher (12 dB/oct). Durability and sonic precision are further supported by a weatherproof paper cone with a Santoprene™ surround, and a CONEX spider for linear control. With a wide working range of 65 to 20,000 Hz and an extended controlled Xmax of ±5.5 mm (26 mm peak-to-peak), this model ensures high-output and clarity, even under dynamic conditions. Its compact mounting depth (104 mm) and light 2.0 kg weight make the 6CX200Nd/N ideal for portable sound systems, compact PA cabinets, studio monitors, and high-end installations where performance and efficiency are key.

      Show more

      Specifiche

      Numero dell'articolo:
      6CX200Nd/N
      EAN
      8435469041509
      Tipo di woofer
      Coaxial Transducer
      Diametro nominale
      6.5"
      Gestione della potenza (RMS)
      400 Watt
      Potenza continua del programma
      Woofer 400 Watt Tweeter 80 Watt
      Impedenza (Z)
      8 Ω
      Sensibilità (SPL a 1m / 2,83V)
      92 dB
      Risposta in frequenza
      65 - 20.000 Hz
      Diametro della bobina mobile
      Woofer 50 mm + Tweeter 44 mm
      Resistenza DC (Re)
      5.0 Ω
      Induttanza della bobina mobile (Le)
      0.24 mH
      Frequenza di risonanza (Fs)
      65 Hz
      Fattore di merito meccanico (Qms)
      3.9
      Fattore di merito elettromagnetico (Qes)
      0.29
      Fattore di merito totale (Qts)
      0.27
      Massa del diaframma incl. la massa dell'aria (Mms)
      16 g
      Cedevolezza meccanica della sospensione (Cms)
      0.366 mm/N
      Superficie del cono (Sd)
      135 cm²
      Volume di spostamento (Vd)
      69 cm³
      Prodotto BL (BL)
      10.5 Tm
      Volume equivalente di cedevolezza (Vas)
      9.4 L
      Escursione lineare massima (Xmax)
      5.5 mm
      Perdite meccaniche del driver (Rms)
      1.7 Kg/s
      Diametro esterno complessivo
      188 mm
      Profondità complessiva
      104 mm
      Diametro del ritaglio del pannello frontale
      145 mm
      Diametro del cerchio dei fori di montaggio
      172 mm
      # Numero di fori di montaggio
      4
      Diametro dei fori di montaggio
      5.3 mm
