      10CX300/Fe Coaxial Woofer

      Beyma 10CX300/Fe Coaxial Woofer

      €299,95

      1 In magazzino4 Arrivo previsto il 30-11-2026

      Aggiungi al carrello

      Beyma 10CX300/Fe Coaxial Woofer

      0 klantbeoordelingen
      0 da 5
      0 klantbeoordelingen
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Beyma
      10" | 8 Ω
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      € 247,89€ 299,95 1 In magazzino4 Arrivo previsto il 30-11-2026
      • -5% Acquista 4 per soli € 284,95 per pezzo
      € 299,95
      +-
      Aggiungi al carrello
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer
      10CX300/Fe Coaxial Woofer

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • This unit includes a weatherproof cone with treatment on both sides,

      Descrizione del prodotto Beyma 10CX300/Fe Coaxial Woofer

      Versatile 10-inch coaxial transducer with ferrite magnet system, engineered for compact full-range systems requiring clarity, output efficiency, and wide dispersion.



      Highlights of the Beyma 10CX300Fe

      • 600 W / 100 W program power (LF / HF) with 96.5 / 104 dB sensitivity
      • Integrated 2.5” woofer and 1.75” HF compression driver with shared magnet
      • Wide frequency response from 50 Hz to 20,000 Hz with 70° conical HF dispersion
      • Weatherproof cone and PM4 diaphragm for reliable performance in varied environments



      Product details Beyma 10CX300Fe

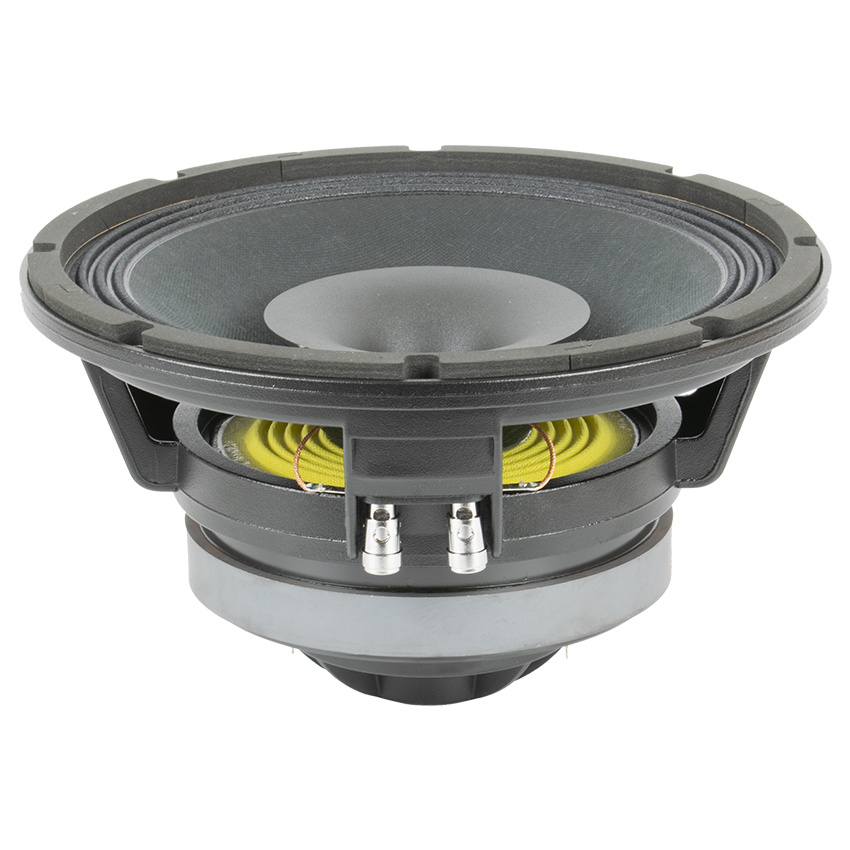

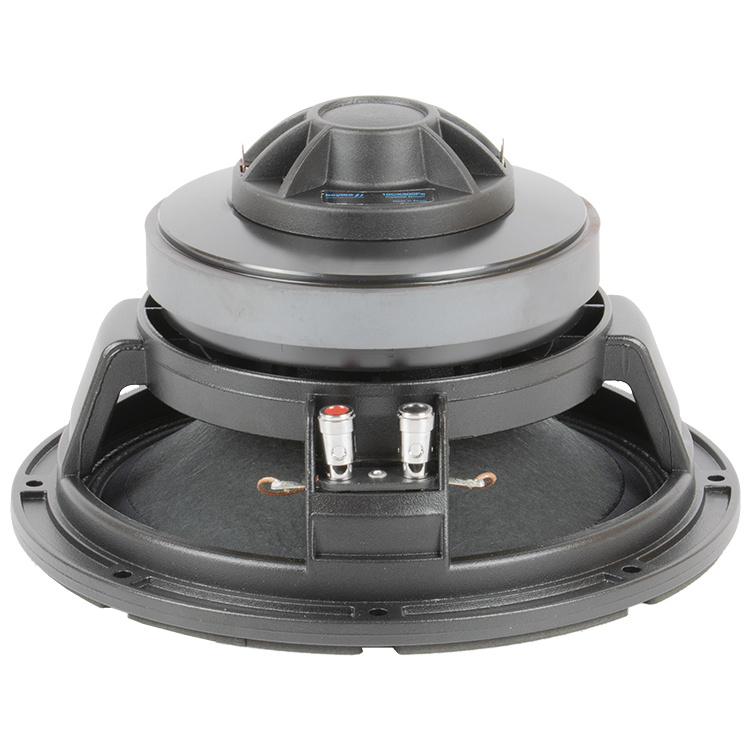

      Beyma 10CX300Fe Coaxial Transducer



      The Beyma 10CX300Fe is a compact yet powerful 10” coaxial transducer designed for full-range sound systems, offering high output and wide frequency coverage. This dual-driver unit combines a 2.5” voice coil woofer and a 1.75” compression driver in a coaxial configuration, delivering 300 W AES (600 W program) in the LF and 50 W AES (100 W program) in the HF section. The system achieves 96.5 dB sensitivity on the low end and an impressive 104 dB on the high end, covering a broad 50 Hz to 20 kHz frequency range. Designed around a ferrite magnet structure optimized via FEA, the 10CX300Fe provides excellent alignment and phase coherence between drivers, supported by a recommended HF crossover of 2 kHz or higher. Built for durability and clarity, this unit includes a weatherproof cone with treatment on both sides, a PM4 diaphragm in the HF section, and a shorting cap for improved transient response and reduced harmonic distortion. A 70° conical dispersion horn ensures consistent high-frequency coverage, making the 10CX300Fe ideal for stage monitors, compact PA systems, and portable sound reinforcement setups. With a mounting depth of just 145 mm and a manageable 5.1 kg weight, the 10CX300Fe balances robust performance with installation flexibility.

      Show more

      Specifiche

      Numero dell'articolo:
      10CX300/Fe
      EAN
      8435469042308
      Tipo di woofer
      Coaxial Transducer
      Diametro nominale
      Woofer 10", Compression driver 1.75"
      Gestione della potenza (RMS)
      600 Watt
      Potenza continua del programma
      Woofer 600 Watt, Tweeter 100 Watt
      Impedenza (Z)
      Woofer 8 Ω, Tweeter 16 Ω
      Sensibilità (SPL a 1m / 2,83V)
      96.5 dB
      Risposta in frequenza
      50 - 20.000 Hz
      Diametro della bobina mobile
      Woofer 64 mm + Tweeter 44 mm
      Resistenza DC (Re)
      5.2 Ω
      Induttanza della bobina mobile (Le)
      0.40 mH
      Frequenza di risonanza (Fs)
      48 Hz
      Fattore di merito meccanico (Qms)
      5.3
      Fattore di merito elettromagnetico (Qes)
      0.41
      Fattore di merito totale (Qts)
      0.38
      Massa del diaframma incl. la massa dell'aria (Mms)
      35 g
      Cedevolezza meccanica della sospensione (Cms)
      0.307 mm/N
      Superficie del cono (Sd)
      380 cm²
      Volume di spostamento (Vd)
      256 cm³
      Prodotto BL (BL)
      11.6 Tm
      Volume equivalente di cedevolezza (Vas)
      63 L
      Escursione lineare massima (Xmax)
      6.7 mm
      Perdite meccaniche del driver (Rms)
      2 Kg/s
      Materiale del magnete
      Ferrite
      Diametro esterno complessivo
      260.5 mm
      Profondità complessiva
      145 mm
      Diametro del ritaglio del pannello frontale
      228 mm
      Diametro del cerchio dei fori di montaggio
      243.5 mm
      # Numero di fori di montaggio
      8
      Diametro dei fori di montaggio
      5.5 mm

      Show more
