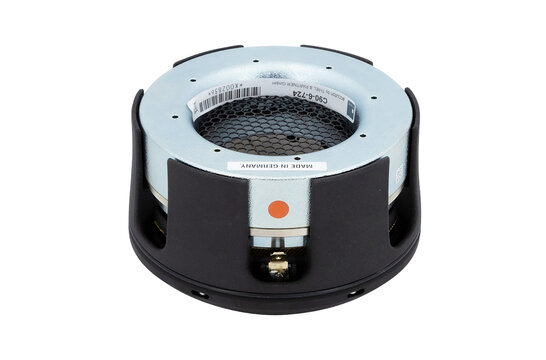

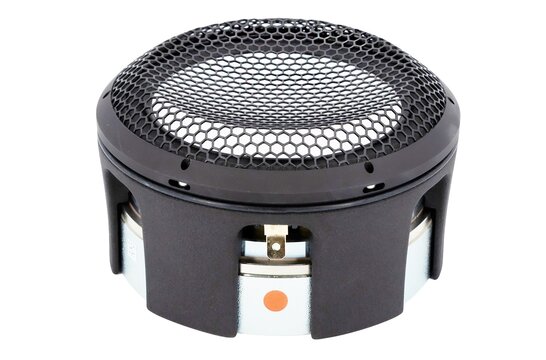

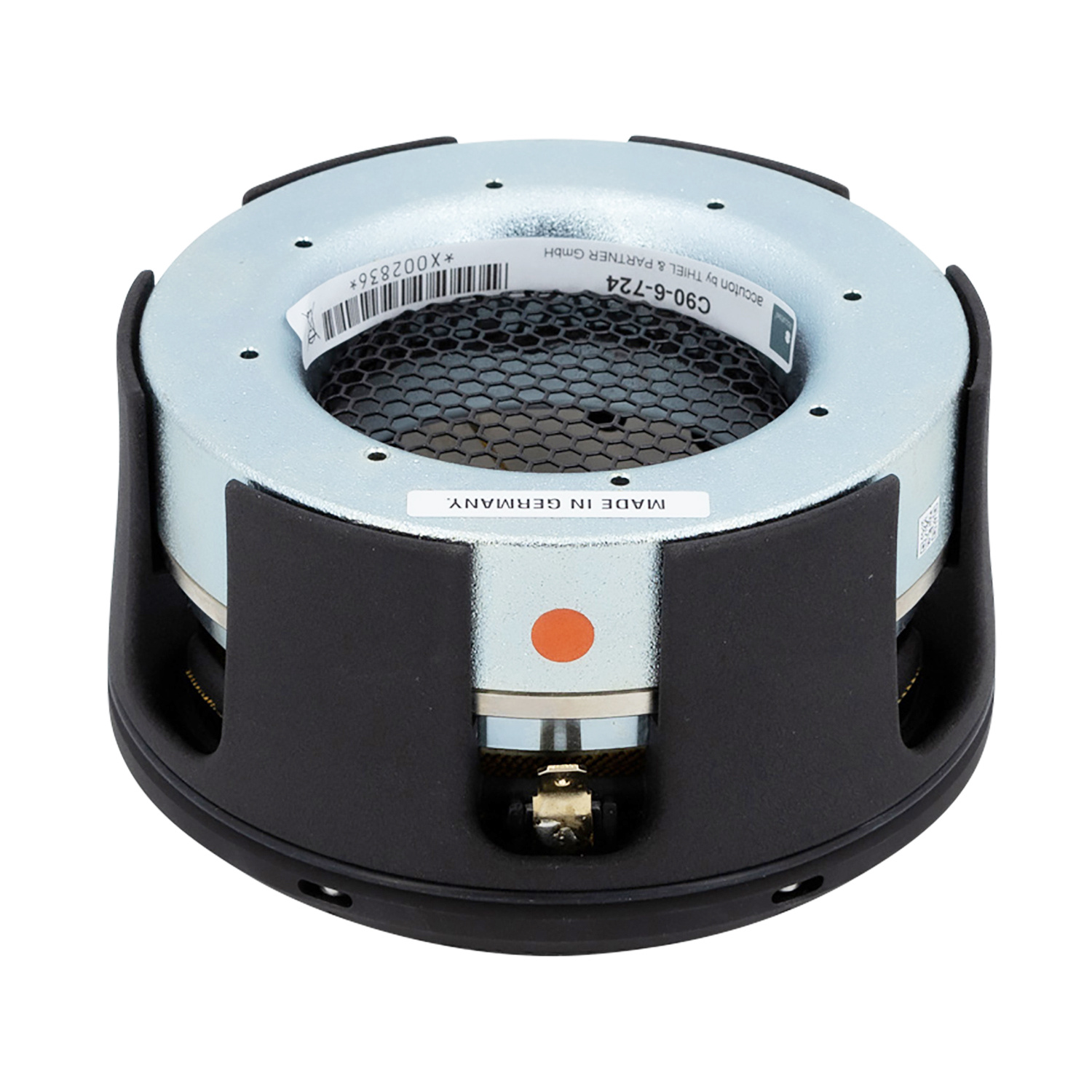

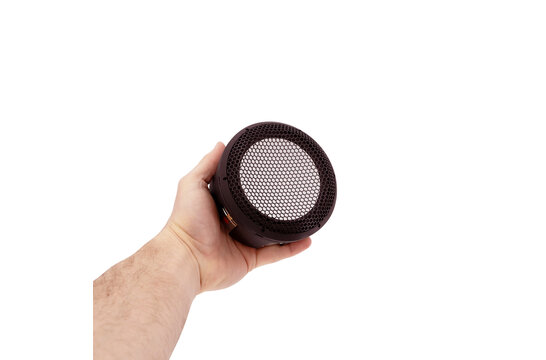

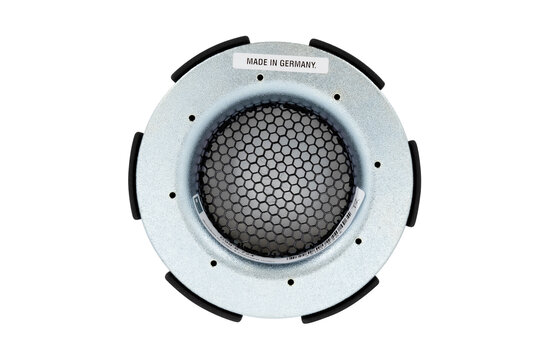

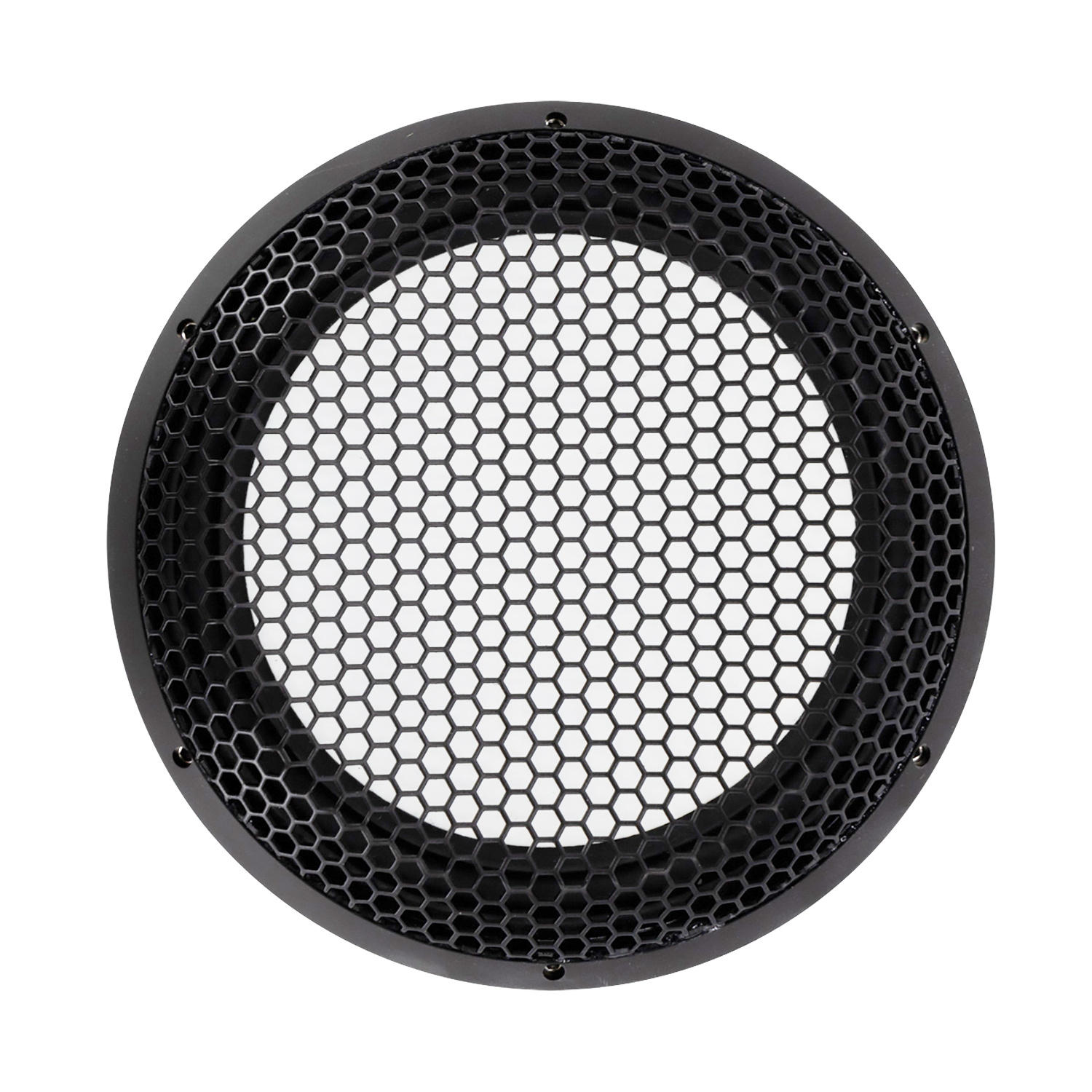

      C90-6-724 Cell Mid-range

      Accuton C90-6-724 Cell Mid-range

      €629,95

      Non disponibile

      Accuton C90-6-724 Cell Mid-range

      1 klantbeoordelingen
      5 da 5
      1 klantbeoordelingen
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Accuton
      € 520,62€ 629,95 Esaurito
      🔒 Pagamento sicuro
      MastercardVisaPostepayBank TransferApple PayGoogle Paypaypal

      Buy now, pay later

      • Spedizione gratuita a partire da € 199
      • Ordinato prima delle 16:00, spedito oggi
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Hai una domanda su questo prodotto?

      Hai una domanda su questo prodotto?

      Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

      Vantaggi e svantaggi

      Secondo i nostri esperti
      • A proprietary clamping technique provides easy mounting and adapting to individual frontplates.

      Descrizione del prodotto Accuton C90-6-724 Cell Mid-range

      The C90-6-724 is a 5 inch bass - midrange driver with ceramic dome, being the first in an entirely new approach to accuton speaker design. An ideal acoustical center has been achieved, which is identical with our tweeters.



      Highlights

      • full featured cell concept
      • ideal acoustical center
      • no reflections at the backside
      • Underhung motor design
      • 200 HZ - 6000 HZ



      Product details

      Accuton C90-6-724 5'' Cell Mid-range

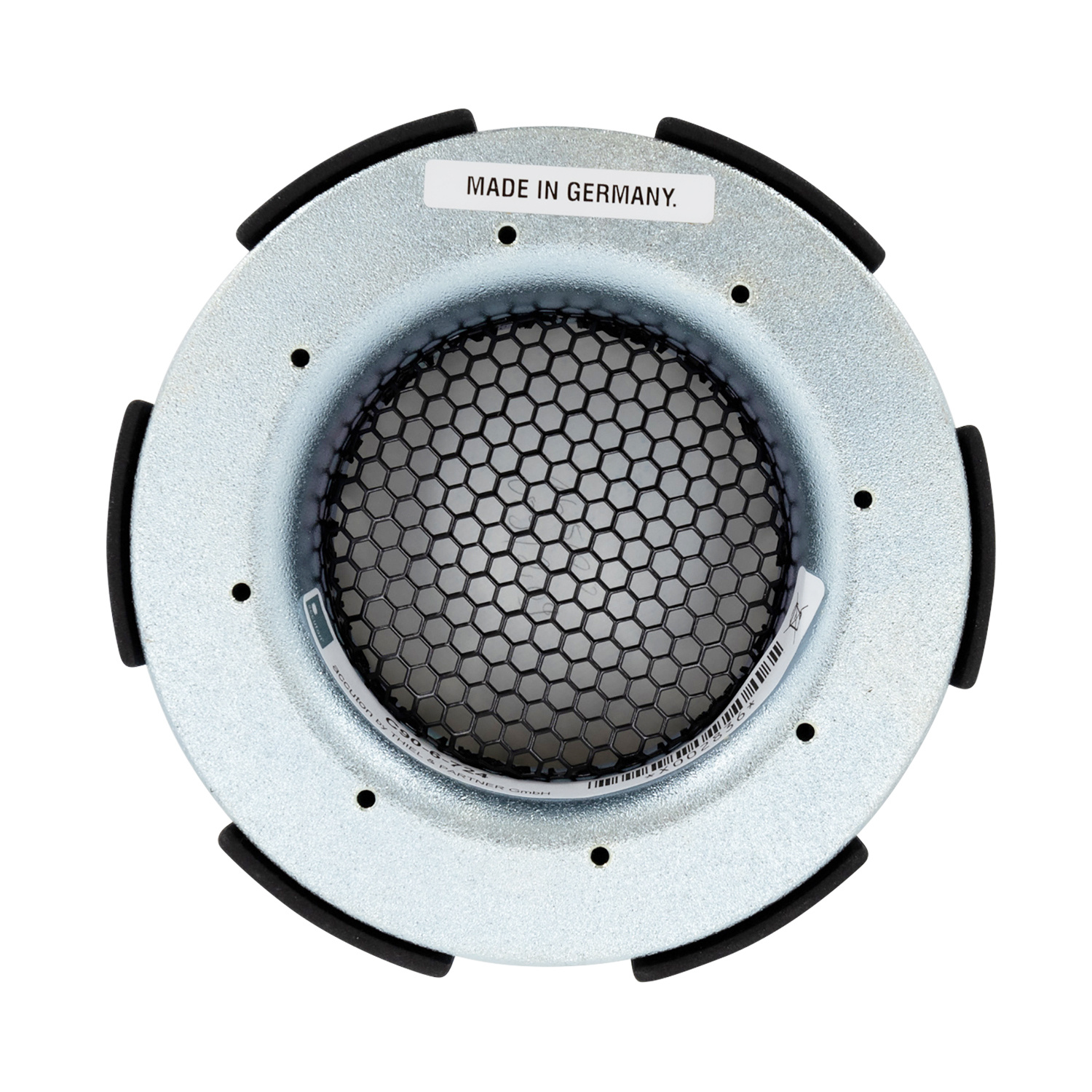

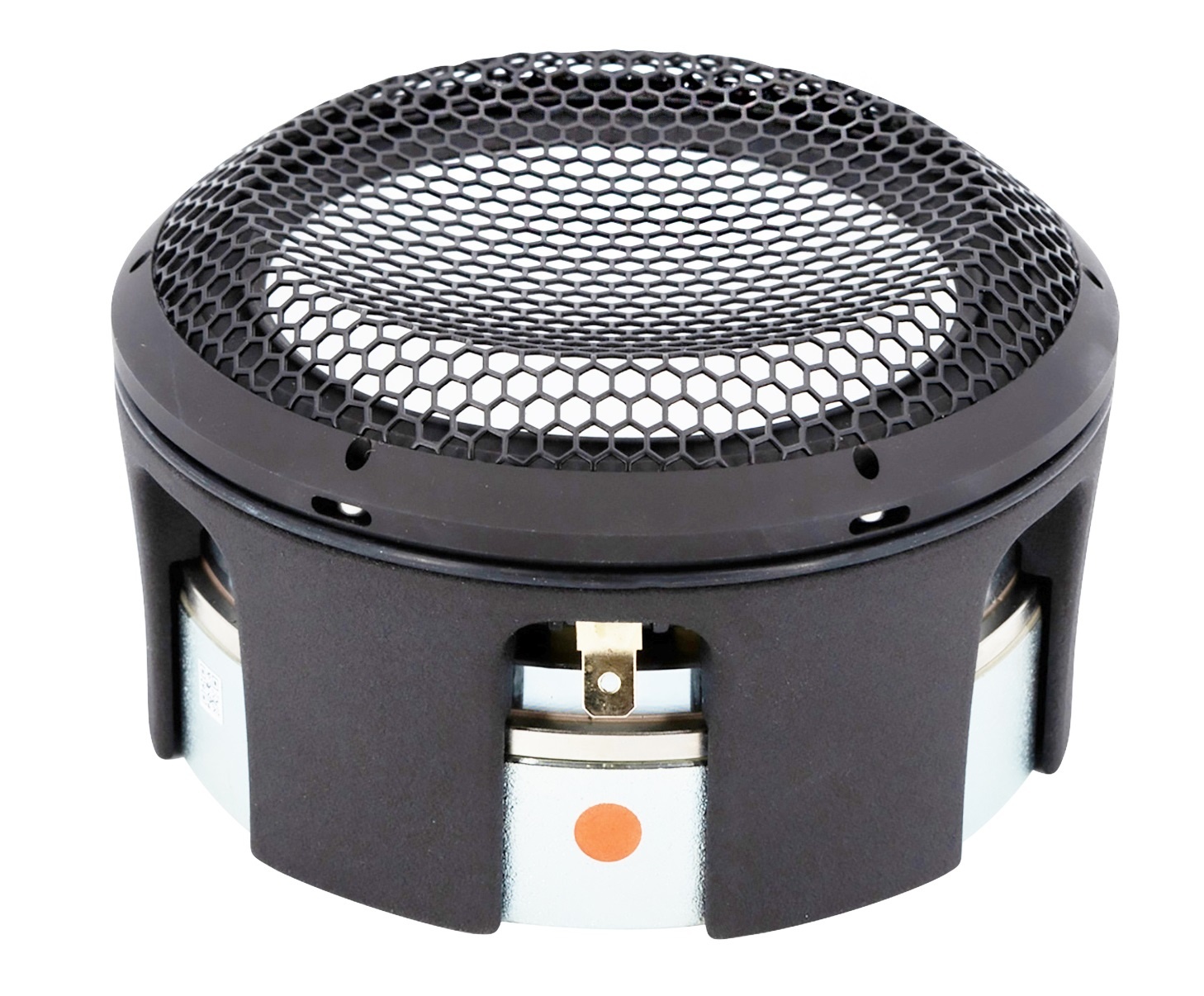

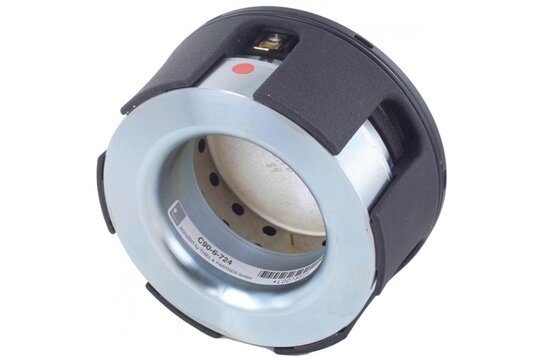

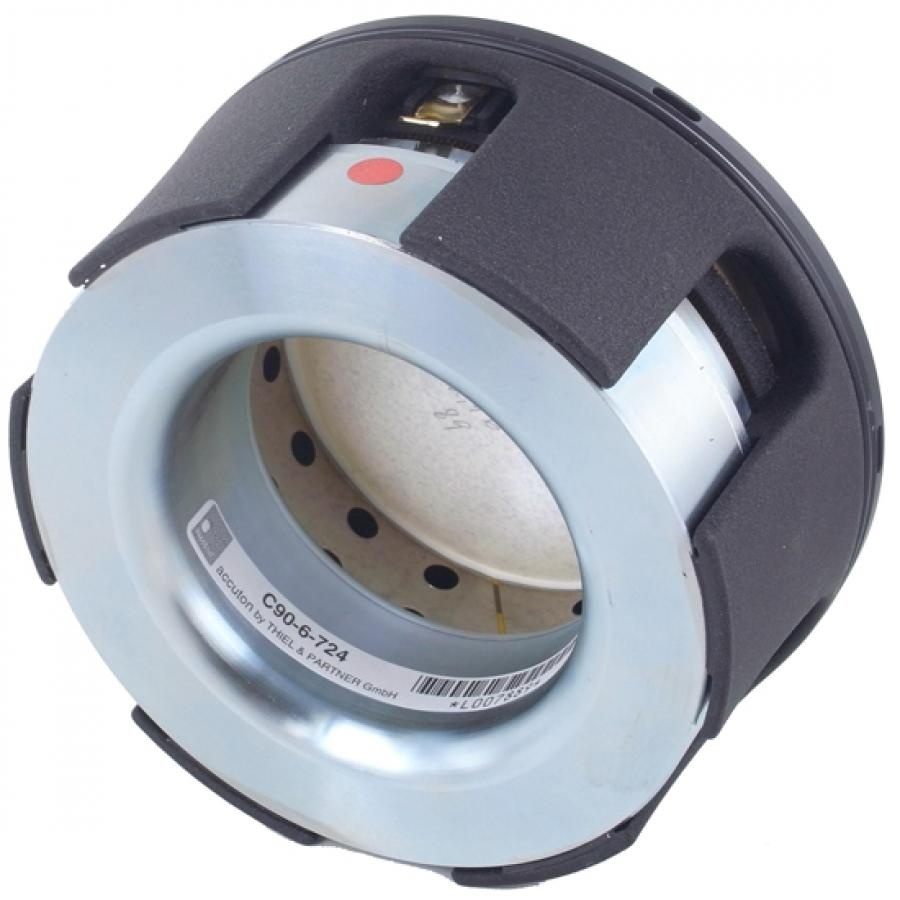

      An ideal acoustical center has been achieved, which is identical with our tweeters. Its novel designed underhung motor does not cover the backside of the dome, eliminating the chance for reflections and energy storage. The ultra-hard ceramic dome is made of a material that is extremely stiff and light, which makes it ideal for high-frequency reproduction. The ceramic material used in the dome is also highly resistant to temperature changes and humidity, which makes it ideal for use in high-end audio systems.



      A proprietary clamping technique provides easy mounting and adapting to individual frontplates. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. We recommend the C90-6-724 for an application from 150 Hz – 6000 Hz.

      Show more

      Specifiche

      Numero dell'articolo:
      C90-6-724
      EAN
      8785256847532
      Tipo di woofer
      Midrange driver
      Diametro nominale
      123.60 mm, 5 Inch
      Gestione della potenza (RMS)
      100 Watts
      Impedenza (Z)
      8 Ohm
      Sensibilità (SPL a 1m / 2,83V)
      89 dB
      Risposta in frequenza
      60 - 6.000 Hz
      Diametro della bobina mobile
      80 mm
      Resistenza DC (Re)
      5.8 Ohm
      Induttanza della bobina mobile (Le)
      0.14 mH
      Frequenza di risonanza (Fs)
      82.6 Hz
      Fattore di merito meccanico (Qms)
      5.47
      Fattore di merito elettromagnetico (Qes)
      0.58
      Fattore di merito totale (Qts)
      0.52
      Massa del diaframma incl. la massa dell'aria (Mms)
      8.9 g
      Cedevolezza meccanica della sospensione (Cms)
      0.65 mm/N
      Prodotto BL (BL)
      6.1 N/A
      Volume equivalente di cedevolezza (Vas)
      5.1 Liter
      Escursione lineare massima (Xmax)
      4 mm
      Perdite meccaniche del driver (Rms)
      0.68 kg x s
      Materiale del cono / diaframma
      Cu
      Diametro esterno complessivo
      123.6 mm
      Profondità complessiva
      55 mm
      Diametro del ritaglio del pannello frontale
      124 mm
