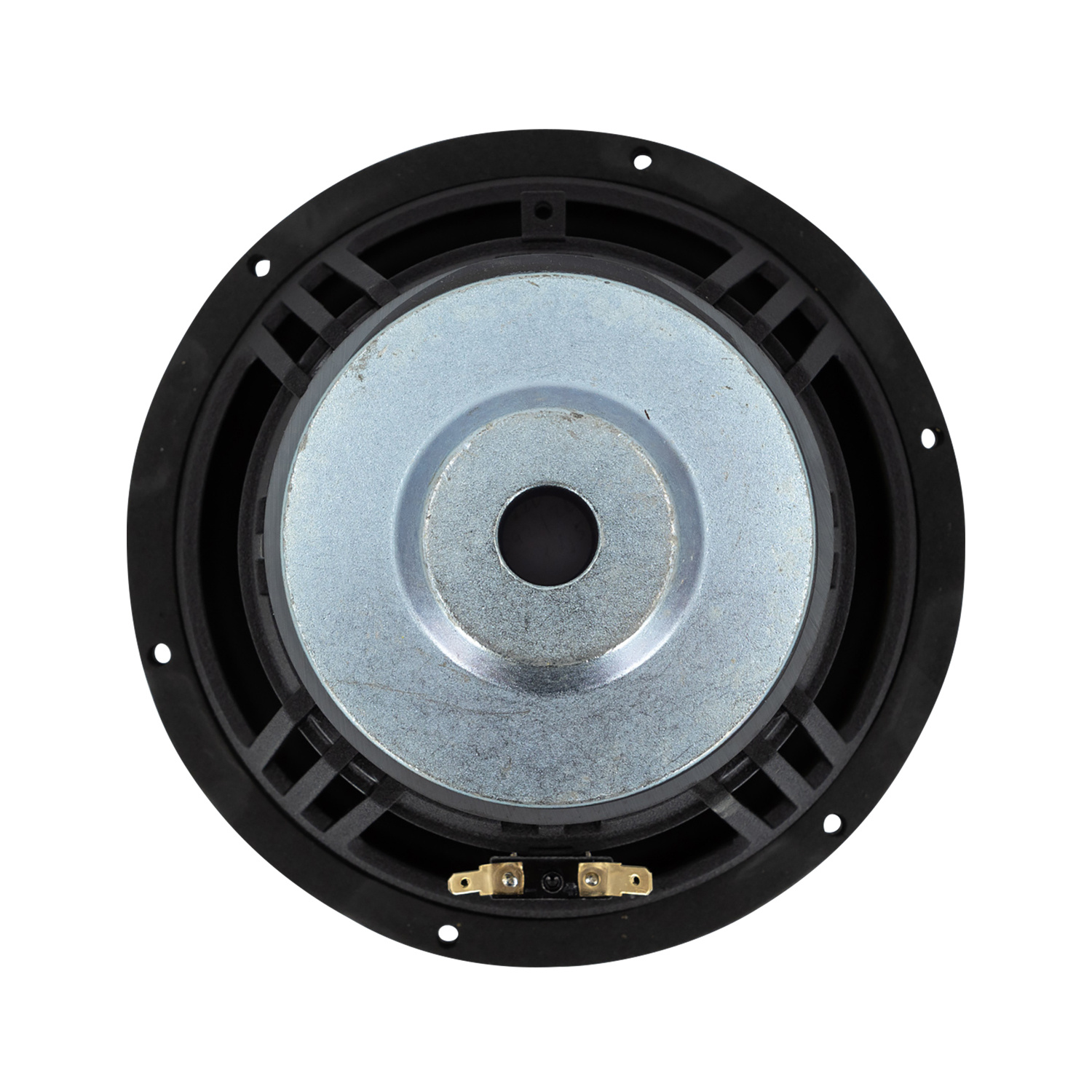

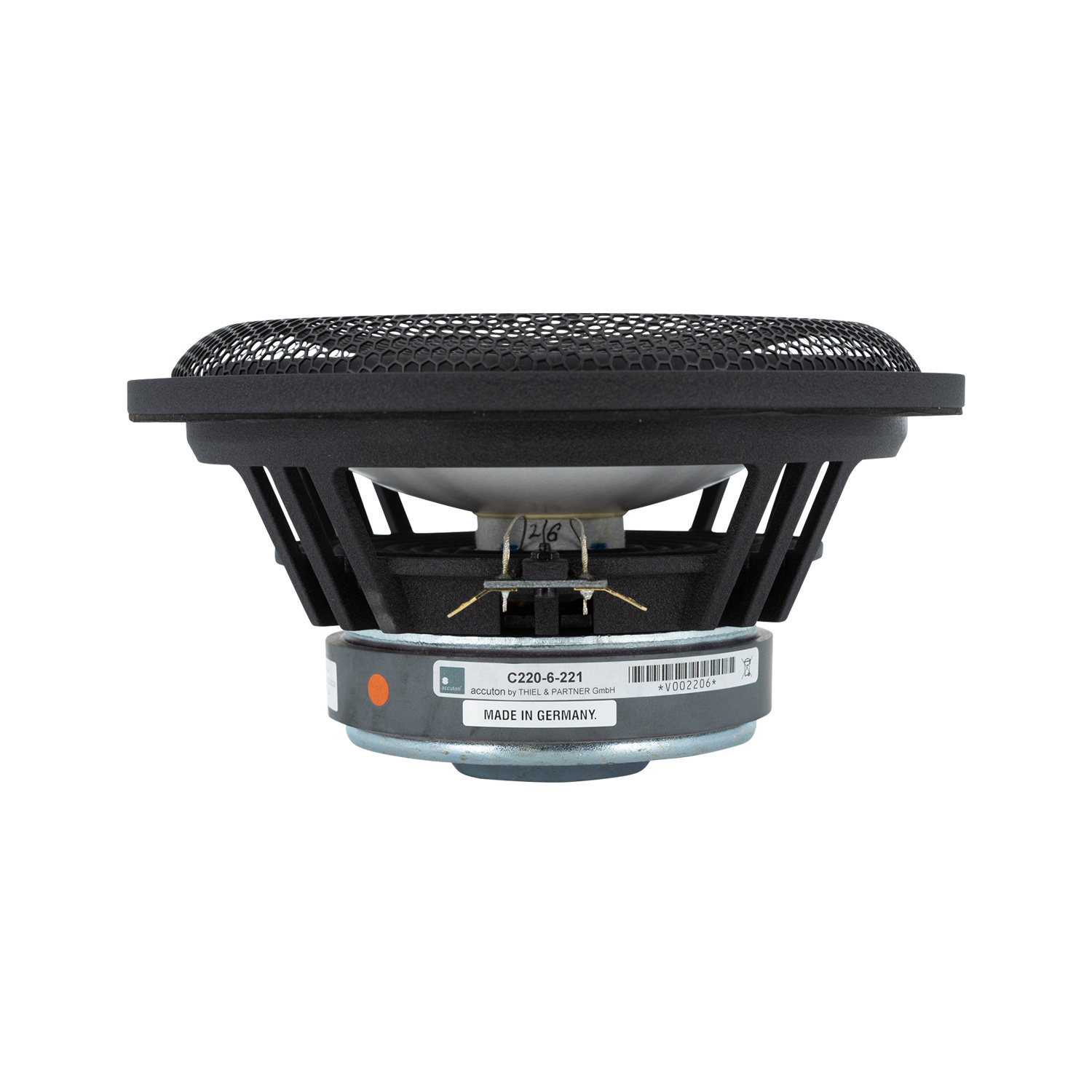

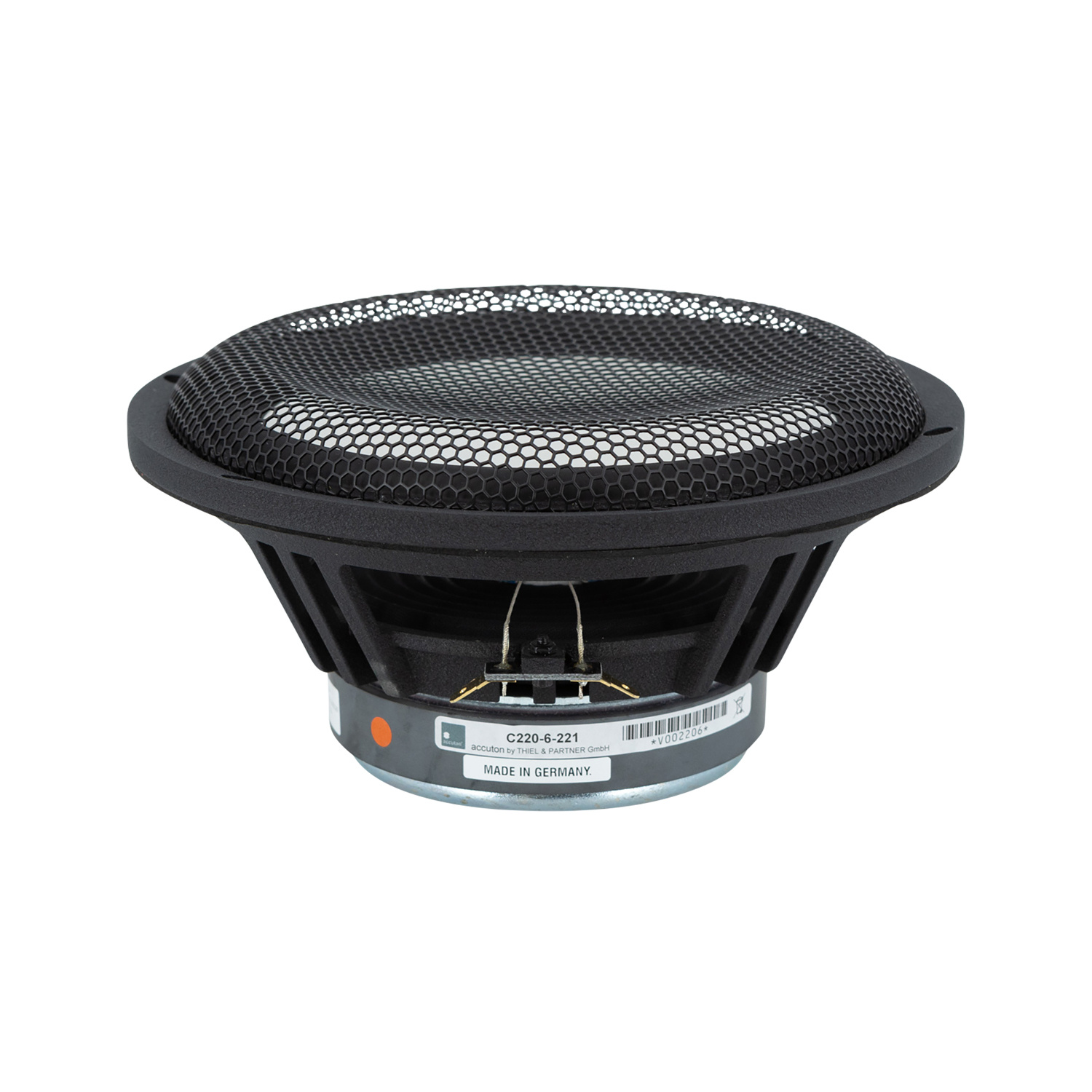

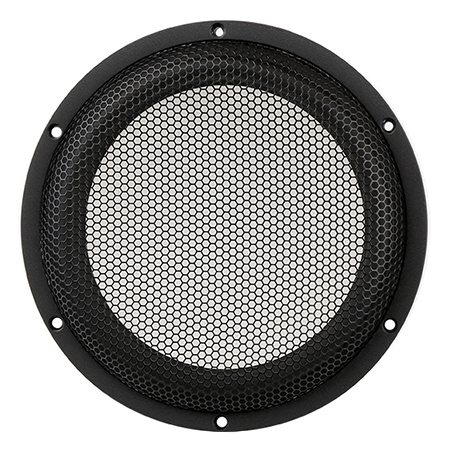

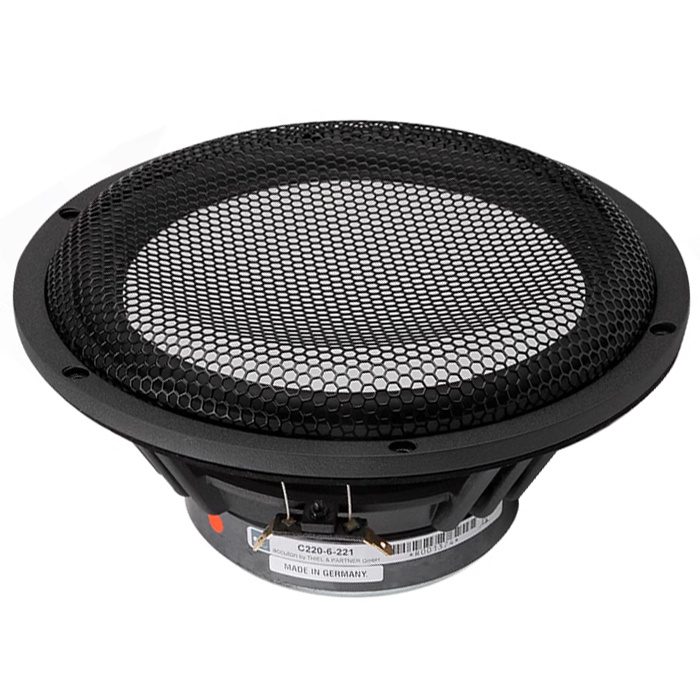

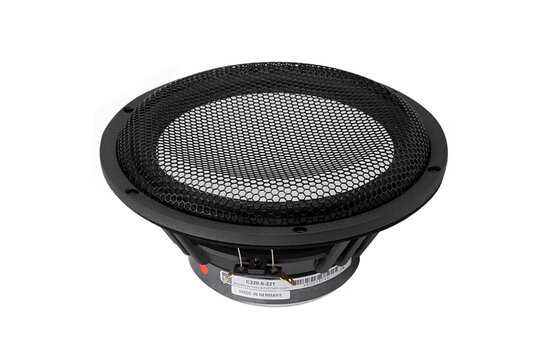

Name: Accuton C220-6-221 Woofer Medio-Bassi
Brand: Accuton
SKU: C220-6-221
Price: 599.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

8.5'' | 6 Ω

€ 495,83€ 599,95 9 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Accuton C220-6-221 Woofer Medio-Bassi

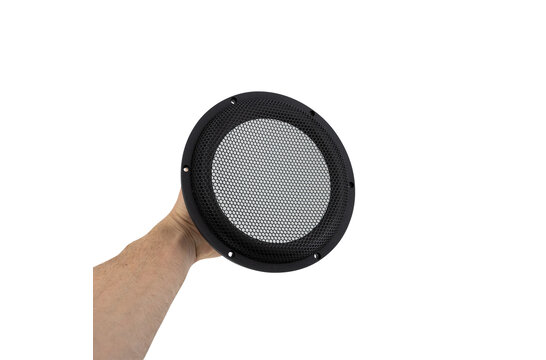

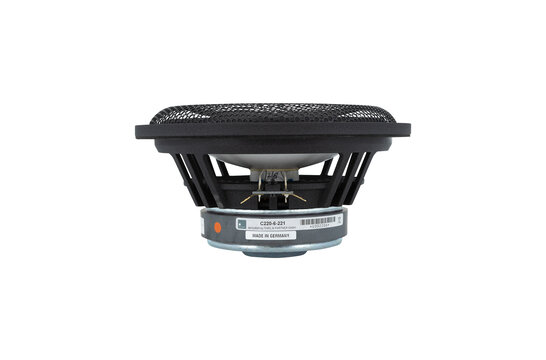

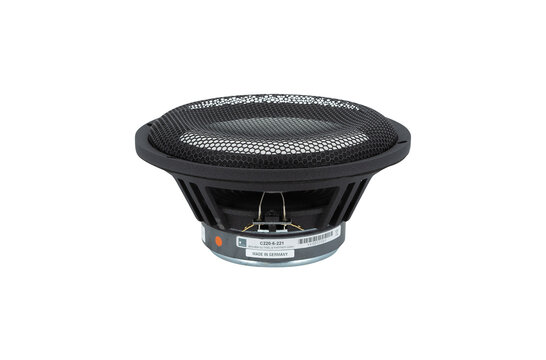

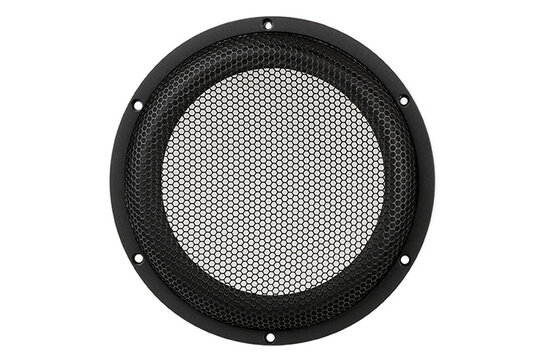

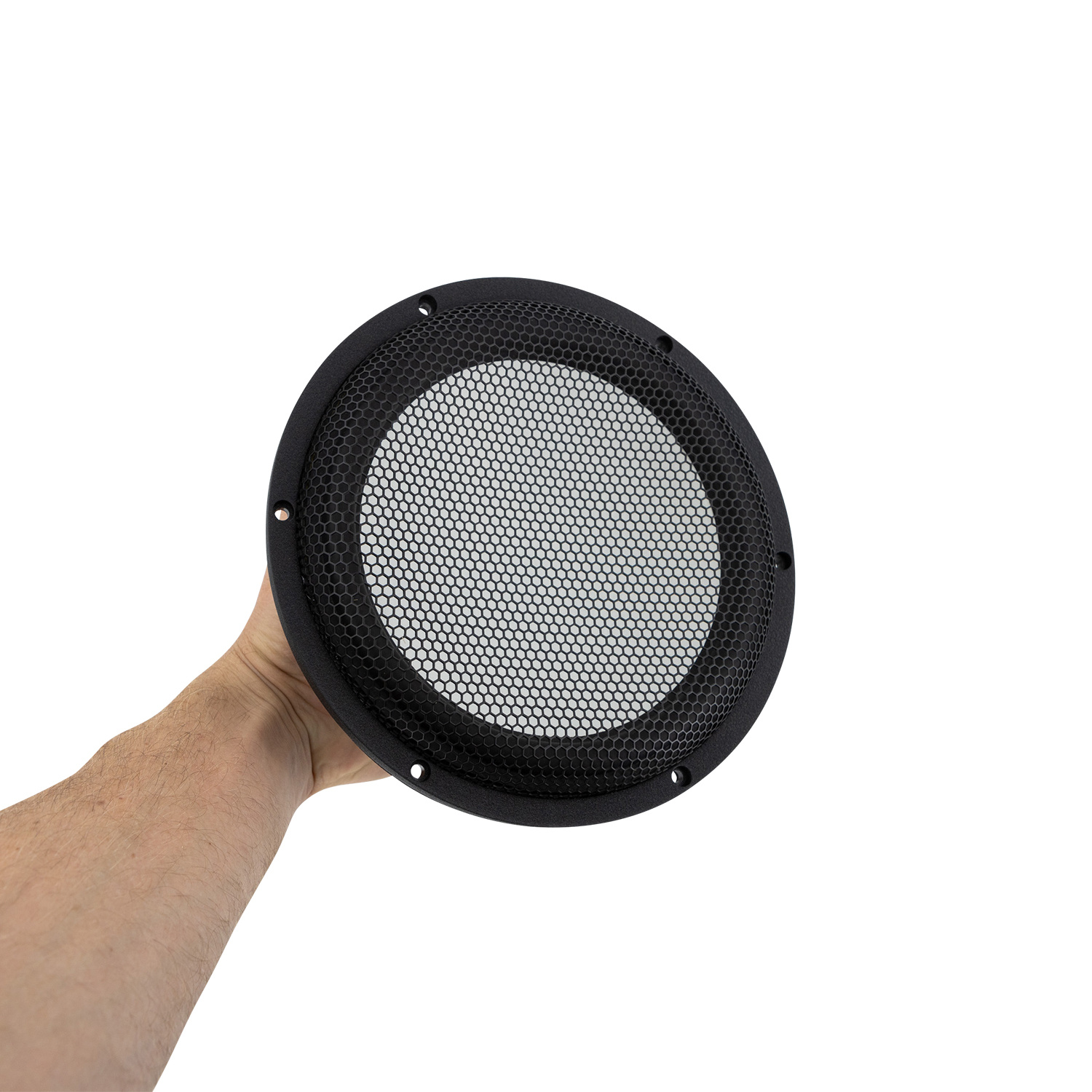

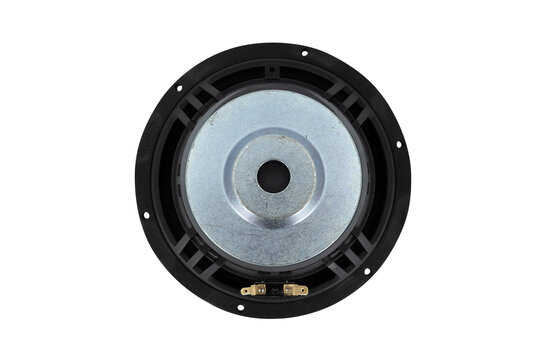

The Accuton C220-6-221 is an 8.5 inch bass-midrange driver with ultra-hard ceramic dome. It has a medium-sized voice coil with 38mm titanium voice coil former for high midrange resolution. The driver has an overhung motor design and a frequency range of 32 Hz - 2 kHz in vented box.

Highlights

Application: Bass-Midrange
Dome material: Ceramic
Overall diameter: 220 MM
Cutout Diameter/Square: 191 MM
Overall depth: 105 MM
Motor assembly depth: 42 mm
Motor assembly diameter: 120 mm
Sensitivity (2.83V / 1m) Spl: 88 dB
DC-resistance Re: 6.3 Ohm
Resonance frequency Fs: 26.3 Hz
Equivalent volume of air Vas: 86.2 ltr
Mechanical Q Qms: 7.1
Electrical Q Qes: 0.42
Total Q Qts: 0.40
Effective piston area Sd: 224 Cm2
Moving mass Mms: 30.4 g
Suspension compliance CMs: 1.20 mm/n
Mechanical resistance Rms: 0.71 Kg*s
Power handling P: 150 W
Linear excursion Xmax +/-5 mm
Voice coil diameter: 38 mm
Voice coil former material: Ti
Voice coil material: Cu
Voice coil inductance Le: 0.83 mH
Force factor Bl: 8.7 N/A
Motor type: Overhung

Product details

Accuton C220-6-221 Bass-midwoofer

The Accuton C220-6-221 is a high-quality bass-midrange driver with an ultra-hard ceramic dome. The driver has a medium-sized voice coil with 38mm titanium voice coil former for high midrange resolution. The driver has an overhung motor design which means that the voice coil is longer than the magnetic gap. This design allows for better control of the diaphragm movement and reduces distortion.
