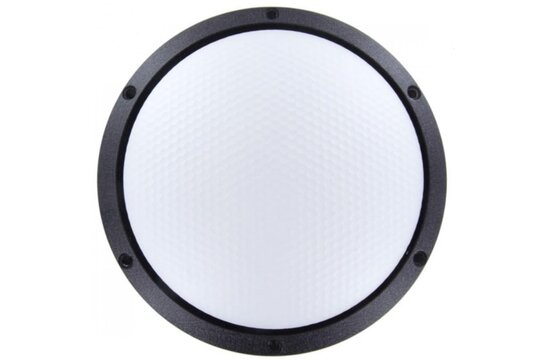

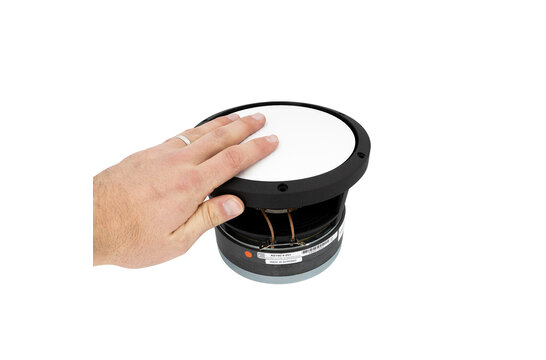

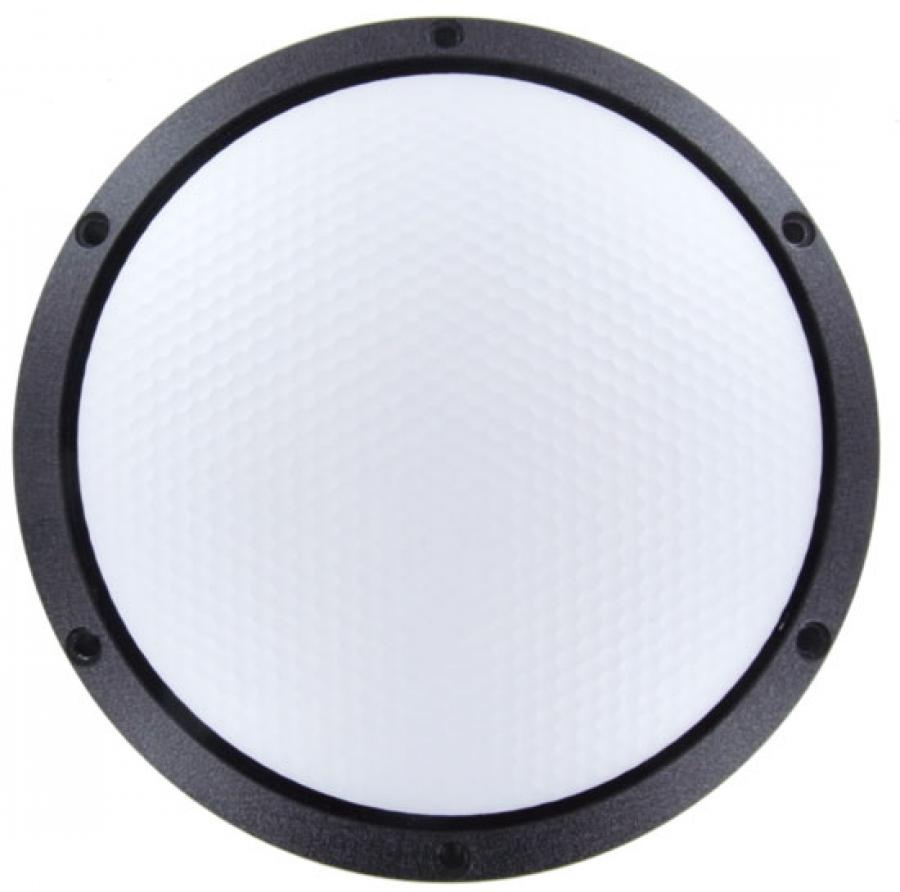

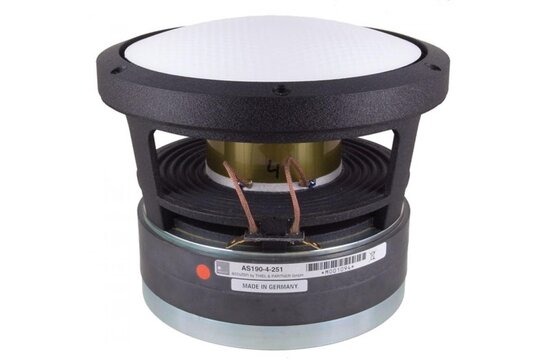

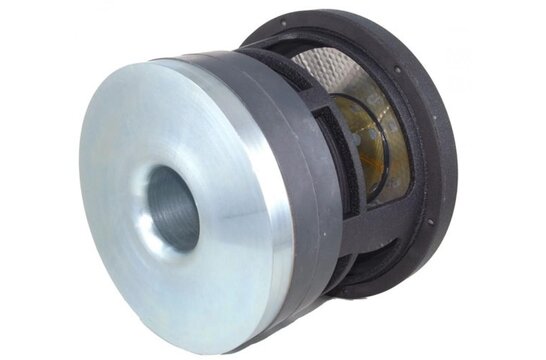

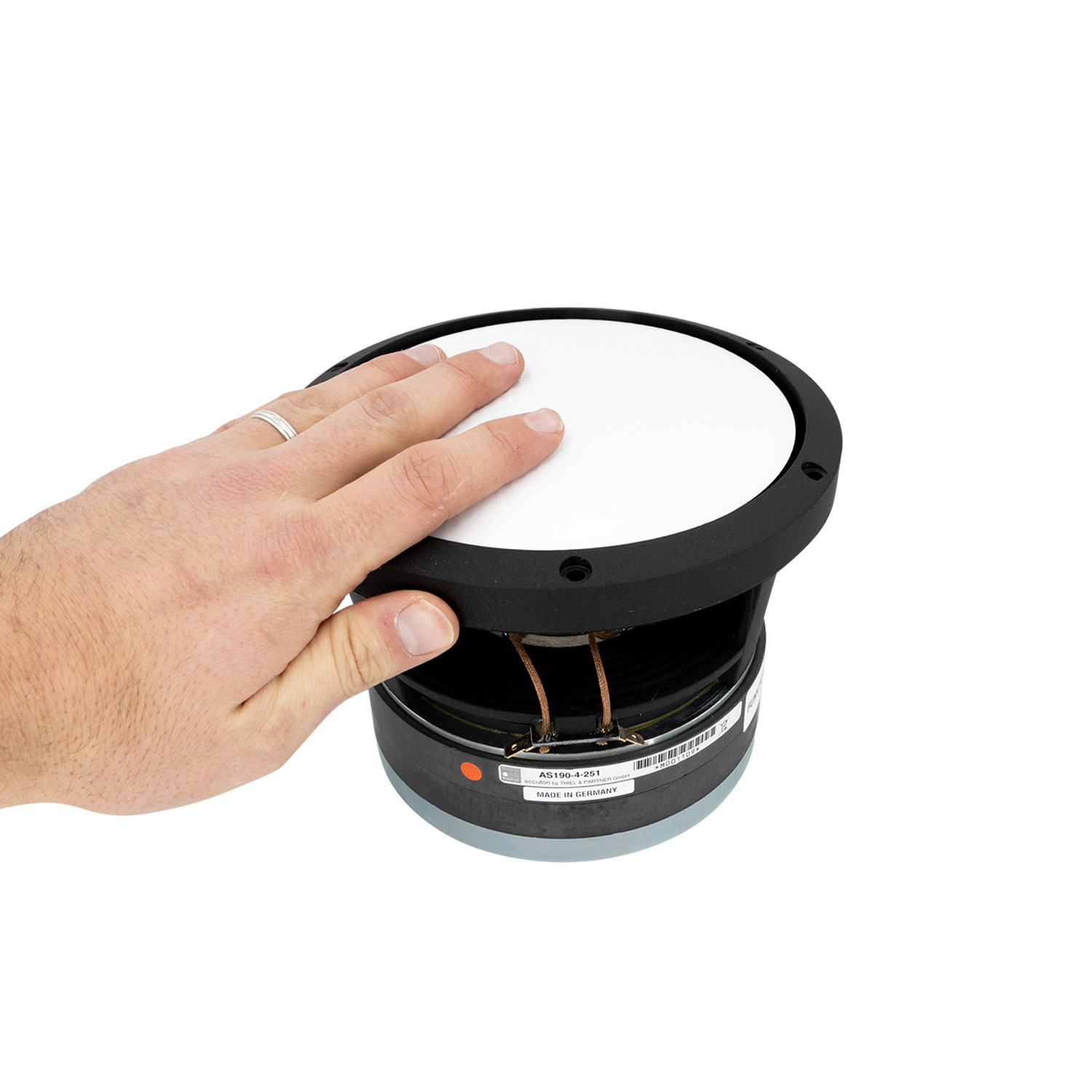

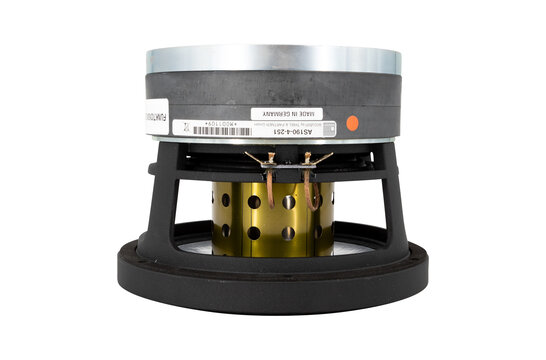

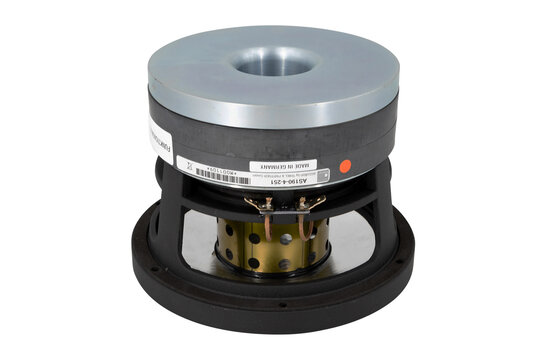

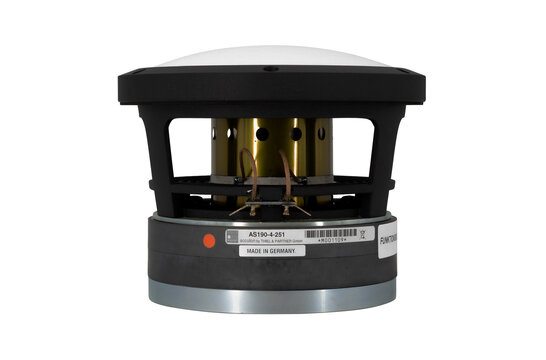

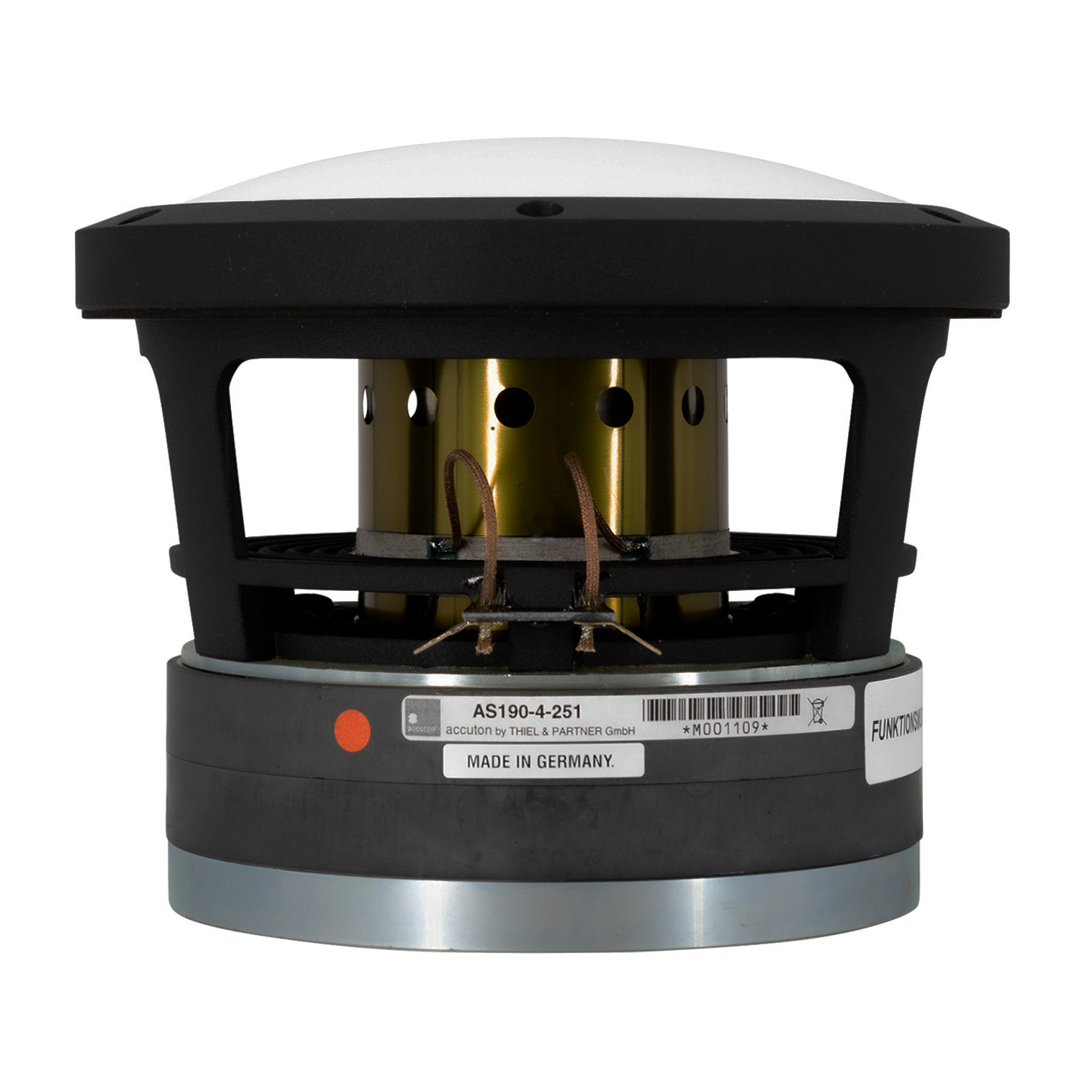

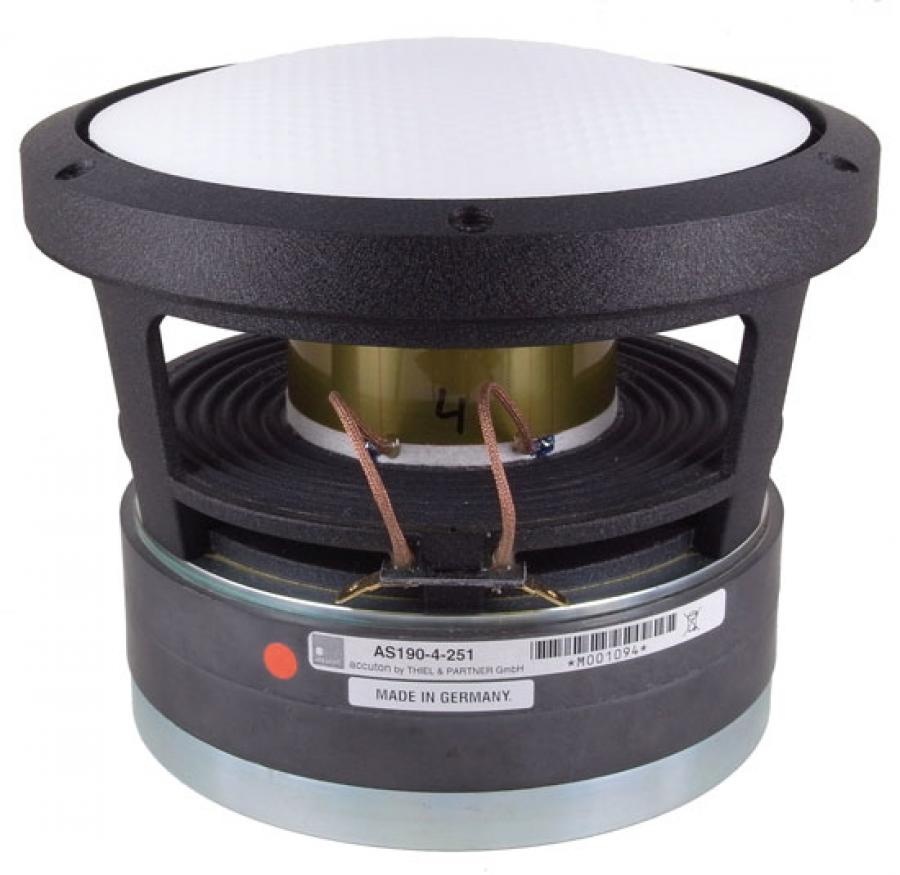

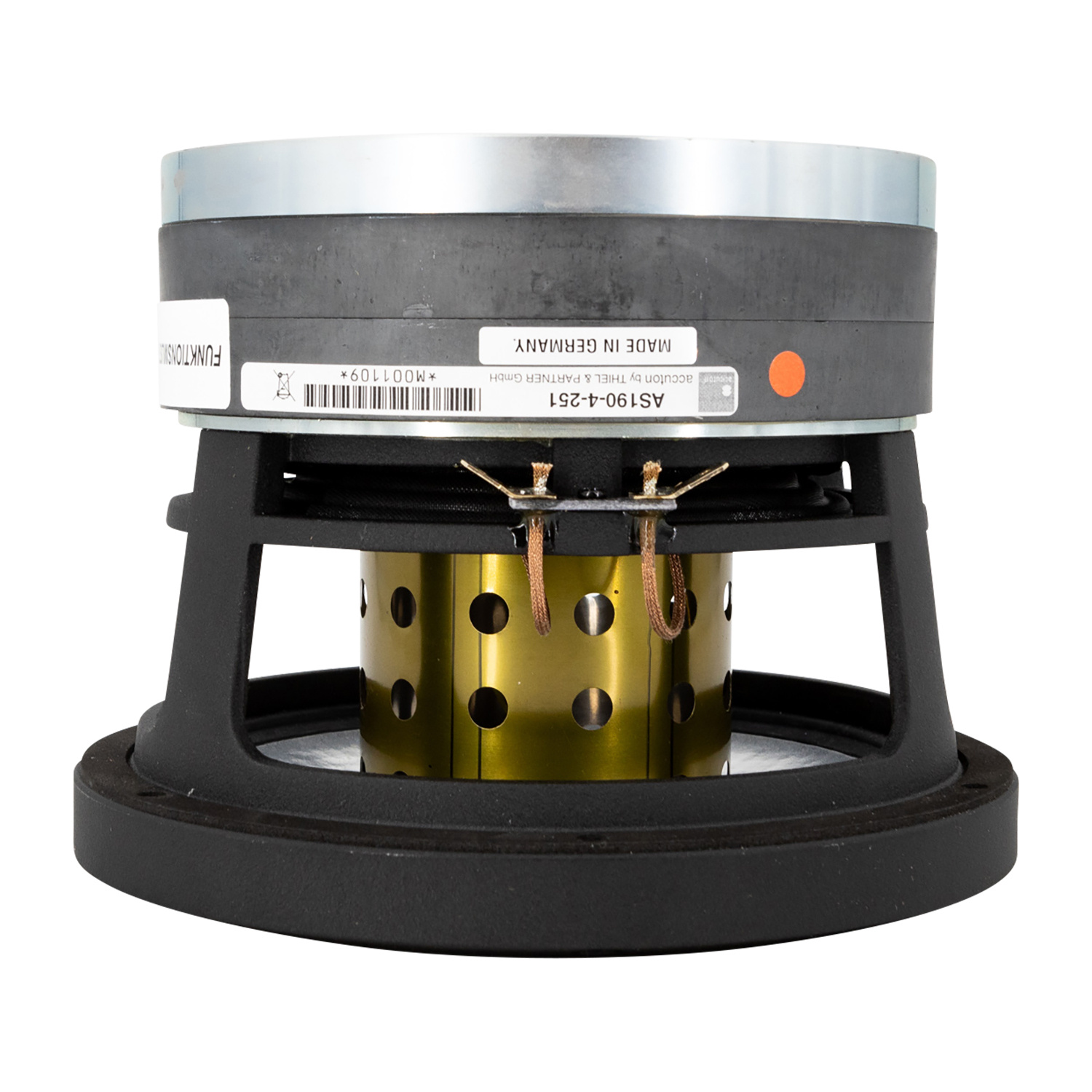

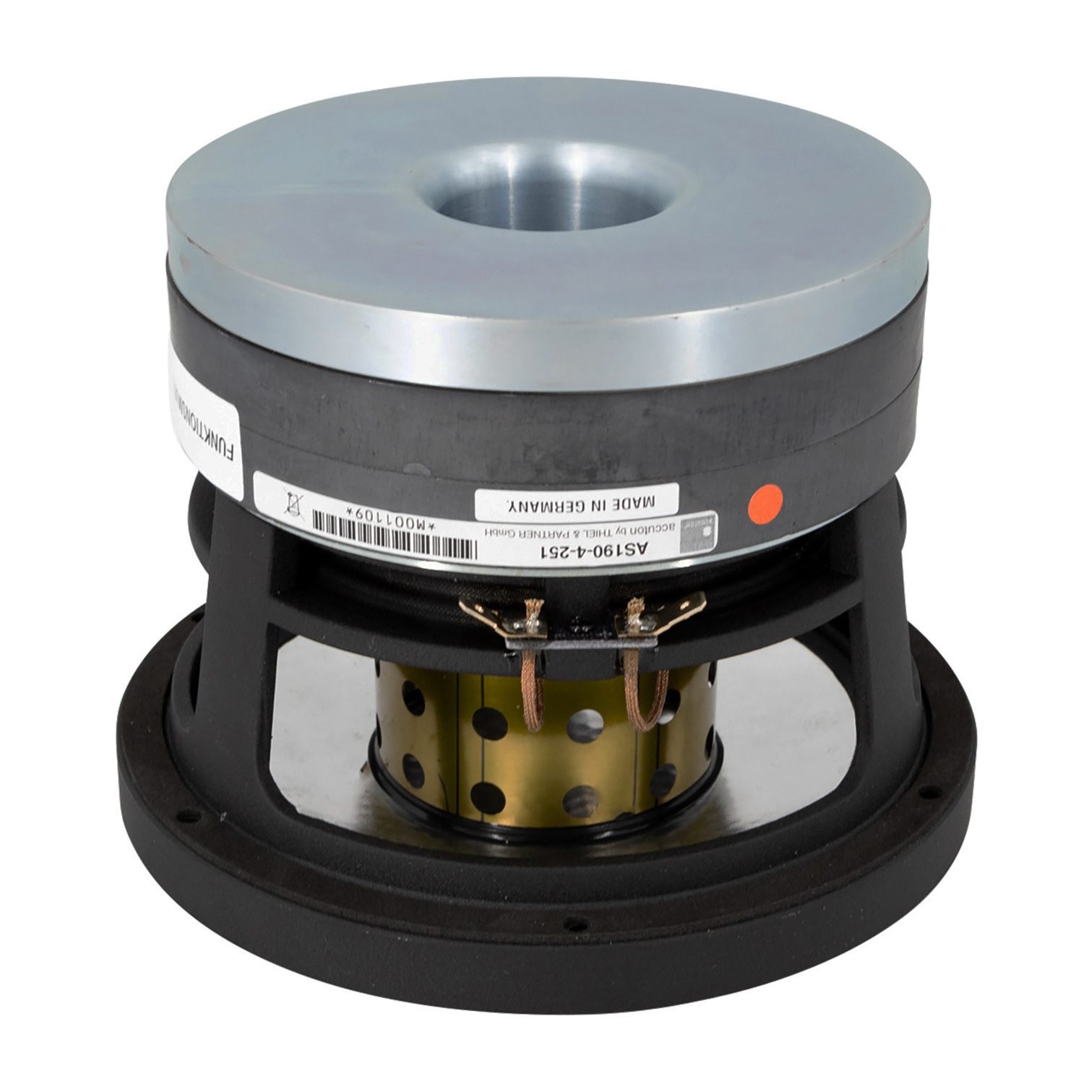

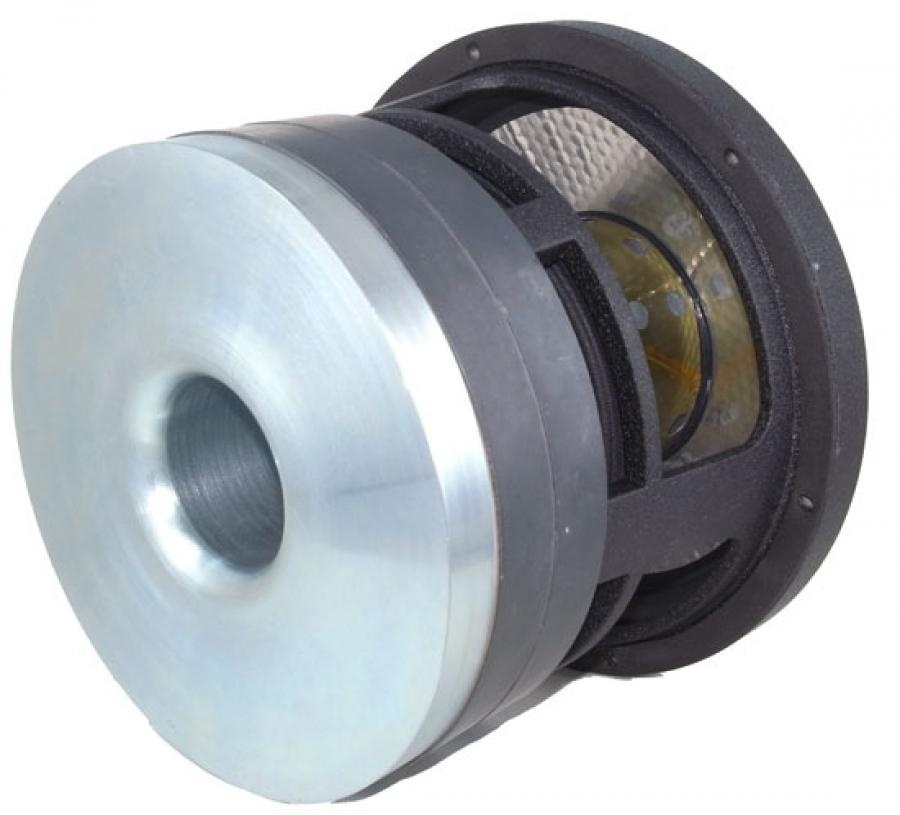

Name: Accuton AS190-4-251 Cell Bass-midwoofer
Brand: Accuton
SKU: AS190-4-251
Price: 1199.95 EUR
Availability: InStock

8'' | 4 Ω

€ 991,69€ 1.199,95 4 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

Descrizione del prodotto Accuton AS190-4-251 Cell Bass-midwoofer

The AS190-9-252 is an 8 inch Bass-midwoofer driver with aluminum honeycomb sandwich dome, being the first in an entirely new approach to accuton speaker design. An ideal acoustical center has been achieved, which is identical with our CELL tweeters and midranges.

Highlights

power handling (continuous/programme) = 250 W
frequency range = 30-1000 Hz
resonance frequency fs = 33,4 Hz
impedance R = 12 Ohm
sound pressure level SPL = 84 dB (2,83V; 1m)
DC resistance Re = 8,6 Ohm
force factor BL = 13,5 N/A
voice coil inductance L = 1,05 mH
effective piston radiating area Sd = 202 cm²
effective mechanical mass incl. air load mms = 49,4 g
equivalent volume of compliance Vas = 26,7 l
total Q factor Qts = 0,44 (Qms=4,75, Qes=0,49)
voice coil diameter = 78 mm
maximum peak linear excursion vibration x_lin = +/- 9 mm
mounting diameter d = 170 mm
overall diameter d = 190 mm
mounting depth (not countersunk) t = 137 mm
mass m = 7 kg

Product details

Accuton AS190-4-251 8'' Cell Bass-midwoofer

Its novel designed overhung motor combines the advantages of traditional over- and underhung designs, delivering high linear excursion and ultra low distortion. An exceptionally hard aluminum sandwich dome was developed for the CELL bass drivers that allows for negligible delay and energy storage. The hidden surround serves for reduced outer diameter and linear excursion of +/- 16mm. A new developed spider shape makes huge excursion without compression possible.

The speaker has a diameter of 190 mm and is designed for use in high-end audio systems. The new design of the speaker allows for a more accurate sound reproduction with minimal distortion. The speaker has a rear-ventilated voice coil and is recommended for use in applications from 30 Hz - 1000 Hz. The overall diameter of the speaker is 190 mm, while the hole cutout is 170 mm. The minimum front panel thickness should be 16 mm, while the overall height of 137 mm. The magnet height is 52 mm.
