SPST N.O. 19mm Waterproof Raised Push Button Switch

€ 8,64€ 10,45 4 In magazzino

Spedizione gratuita a partire da € 199
Ordinato prima delle 16:00, spedito oggi
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

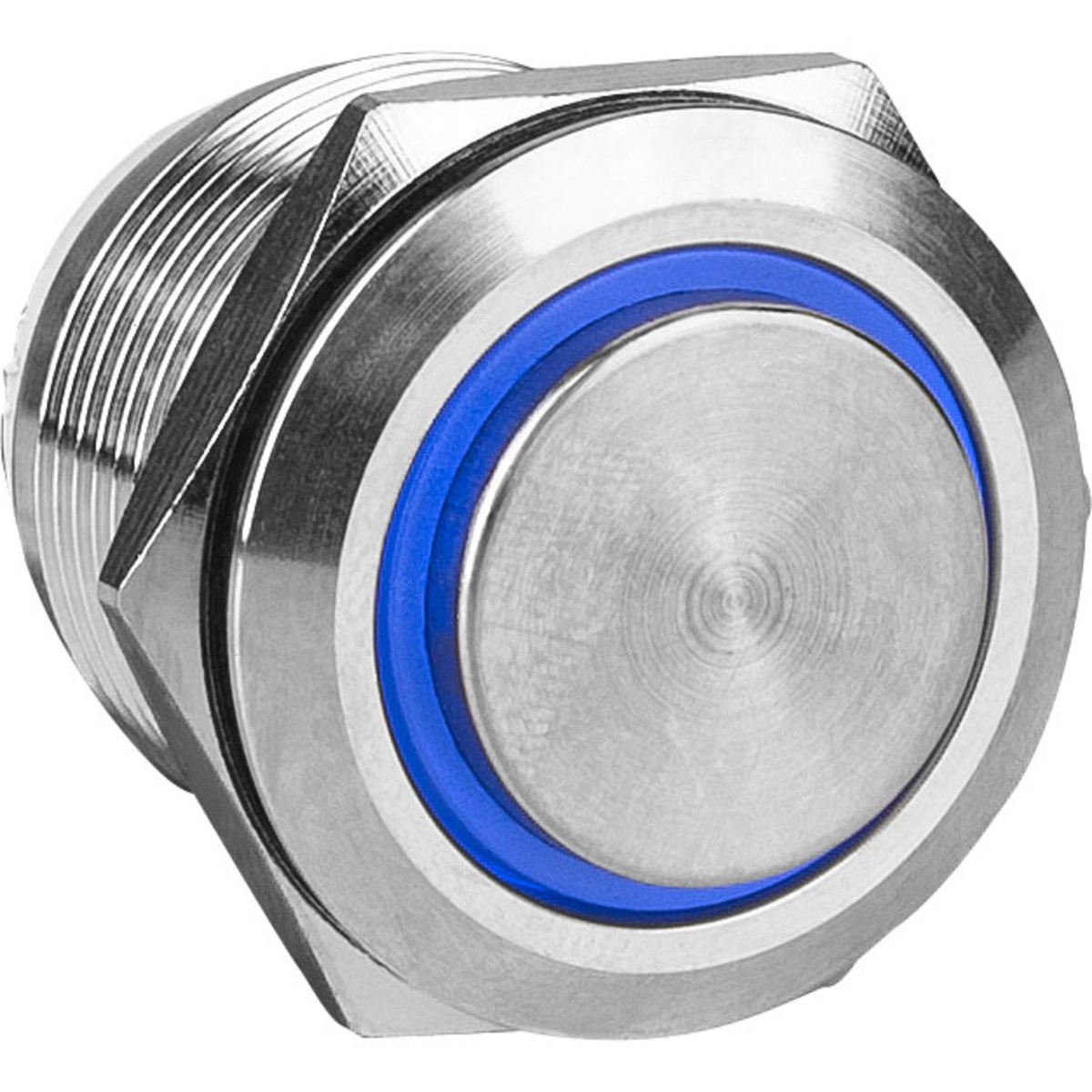

Descrizione del prodotto SPST N.O. 19mm Waterproof Raised Push Button Switch

Use this heavy duty, Stainless steel, anti-vandal, raised push button momentary switch for outdoor and other extreme condition applications. It has a built-in blue LED power ring light for 3V applications, or add a resistor for higher voltages.

Highlights

Popular for use in kiosk applications, ticket dispensers, and industrial-type applications
Stainless steel body and IP67 rating for extreme conditions
Built-in 3V blue LED with power ring illumination for low lit areas and connection identification
Easily mounts in a 3/4" hole with included shaft nut

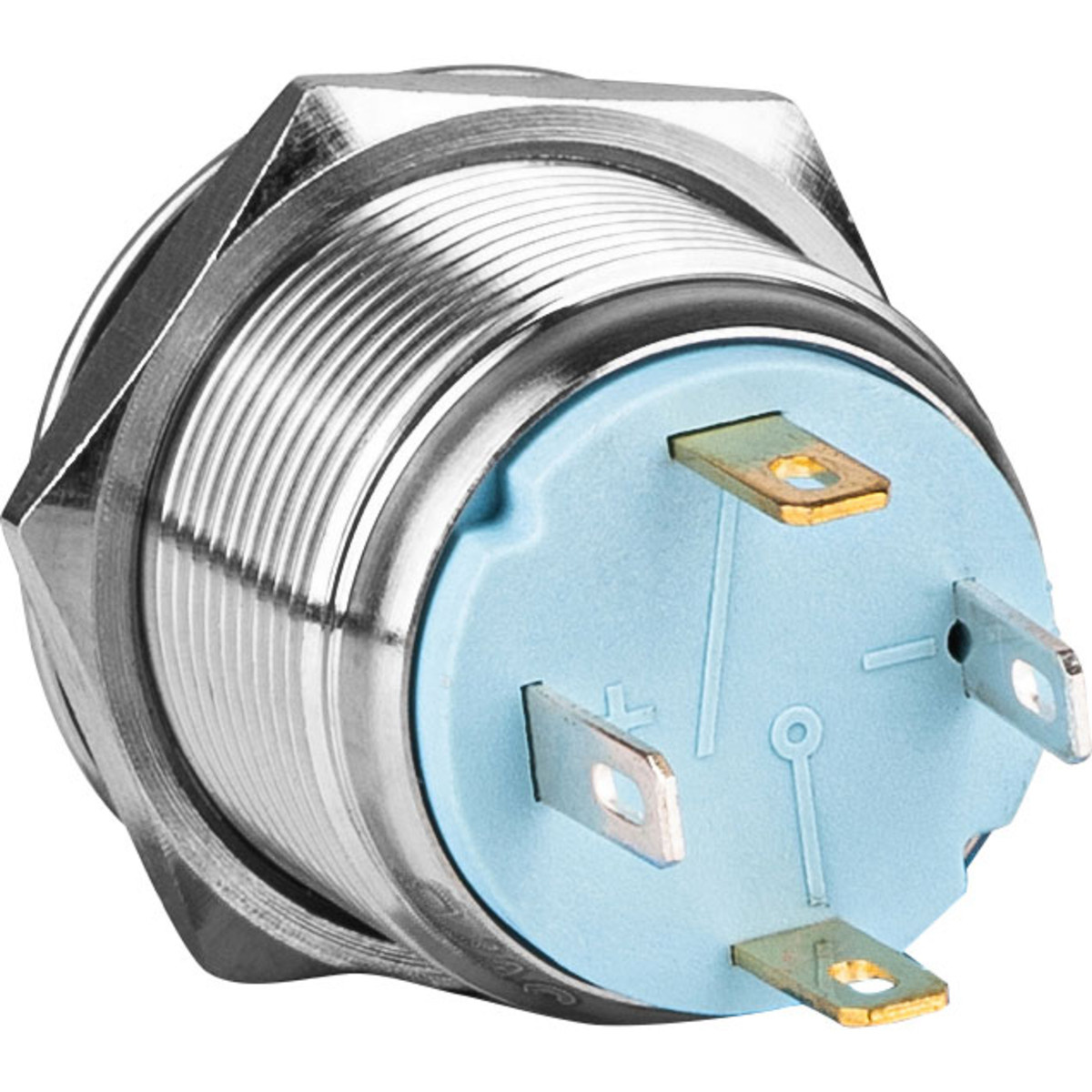

0.110" crimp/solder terminals for easy installation
RoHS certified
+ and - symbols on the switch body for polarity identification for the built-in LED

Product Details

SPST NO Momentary 19mm Stainless Steel Tamper/Waterproof Raised Push Button Switch with Blue Ring

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers and industrial-type applications. The stainless steel body and button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 3V blue LED light for locating in low lit areas.

Specifications: Switching: SPST N.O. momentary • Current rating: Up to 5A • Switch voltage rating: 1.5~240 VAC • Built-in blue LED: 3V without resistor (sold separately) • Switch total size with button raised without terminals: 0.89" L x 0.86" Dia. • Metal thread dimensions: 0.74" Dia. x 0.50" L • Button size: 0.53" Dia.
