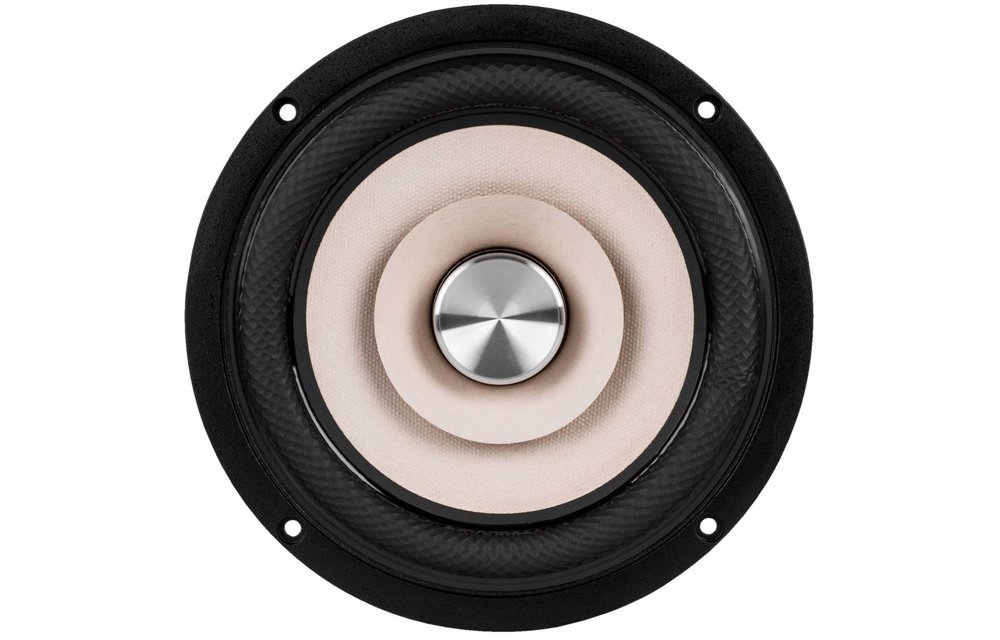

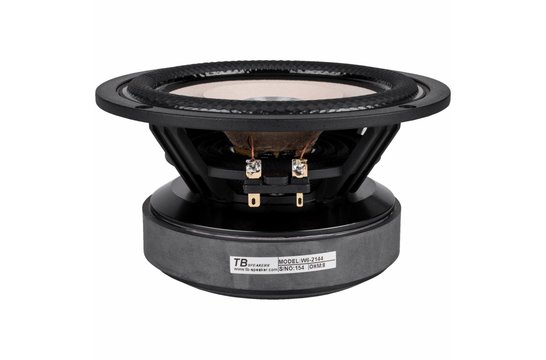

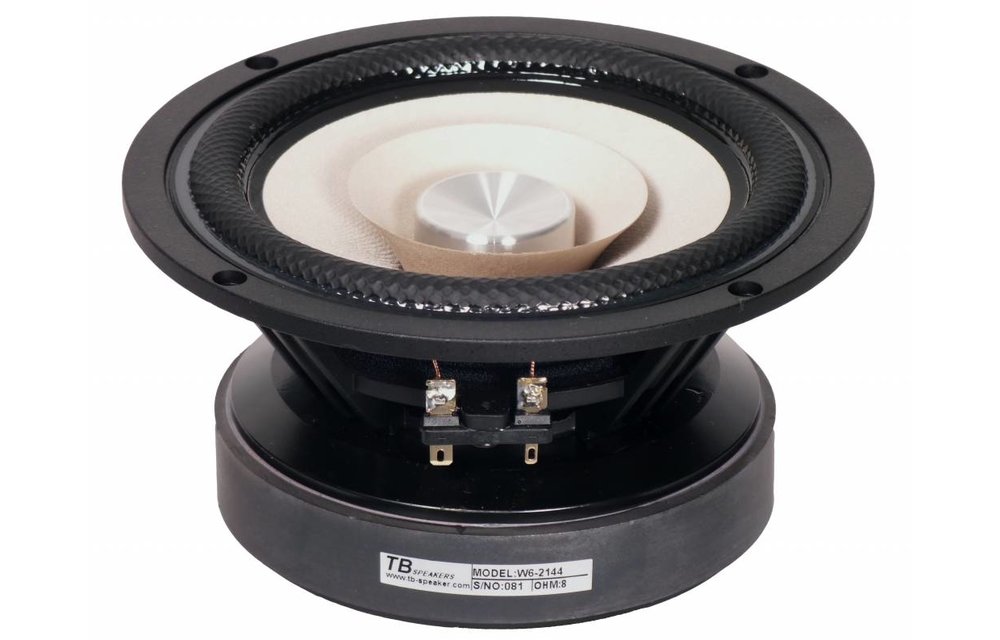

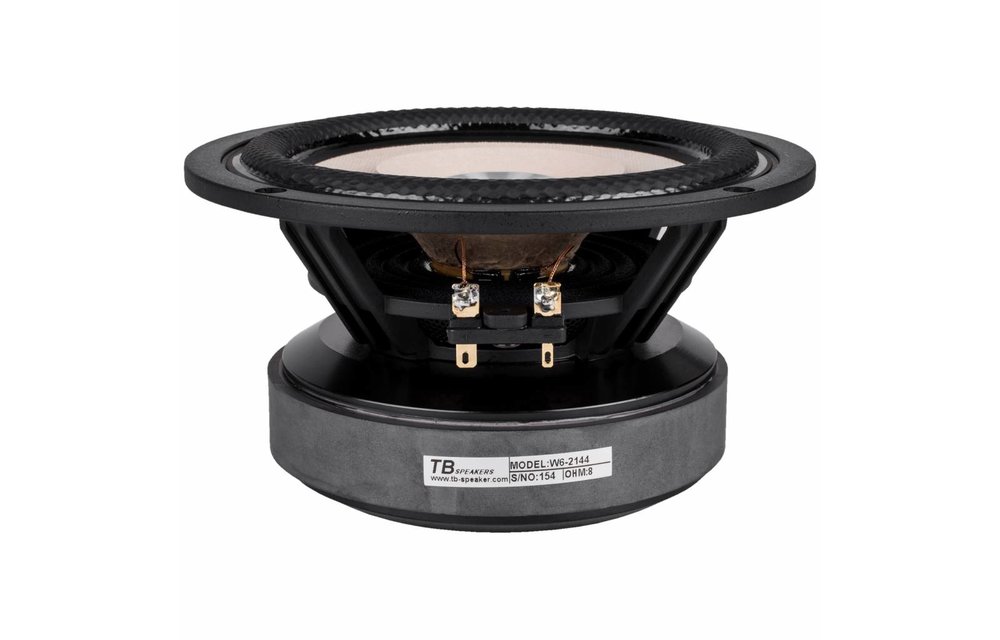

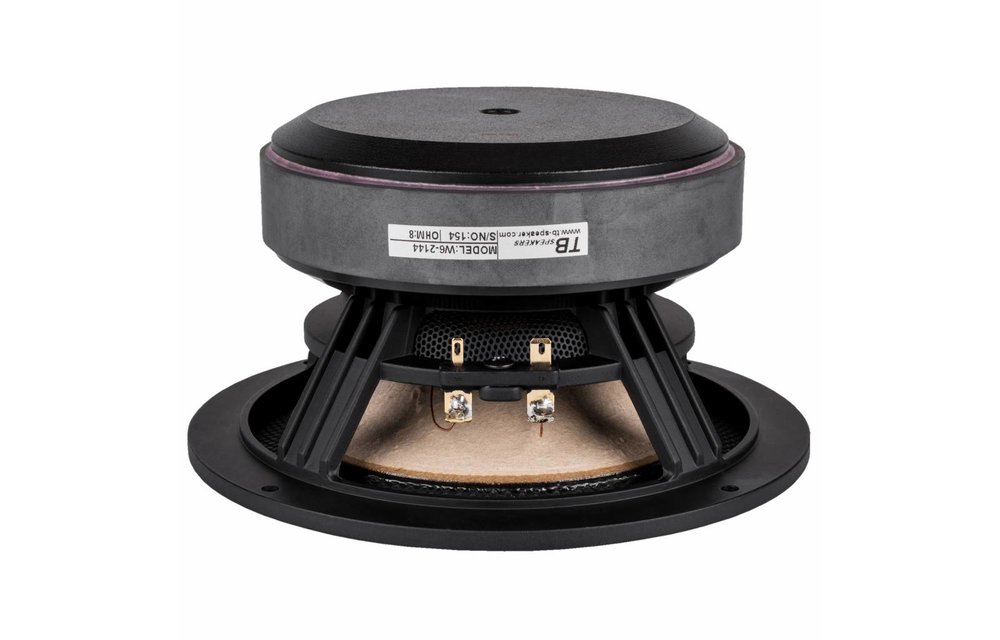

    Tang Band W6-2144 6-1/2" Paper Cone Full Range Driver 8 Ohm

    € 90,87€ 109,95 >10 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €104,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Tang Band's W6-2144 full-range driver uses and underhung motor to deliver linear response with minimal 2nd and 3rd order THD. The bamboo fiber reinforced paper cone uses a whizzer cone for improved high frequency and off axis response.



    Highlights

    • Aluminum phase plug also acts as a shorting ring for lower distortion
    • Underhung voice coil improves control for lower distortion
    • Whizzer cone design increases high frequency response
    • Unique surround and large spider keeps cone linear well beyond the rated xmax



    Product details

    Tang Band W6-2144 6-1/2" Paper Cone Full Range Driver 8 Ohm



    The W6-2144 full range driver from Tang Band with its bamboo fiber reinforced paper cone can provide incredibly smooth response from 45 to 20,000 Hz. With an underhung motor design, most of the voice coil stays within the magnetic gap for the highest possible control to keep 2nd and 3rd order harmonic distortion at a minimum. The unique whizzer cone with phase plug design allows for better dispersion while increasing high frequency response. This driver is ideally suited for small single driver speaker systems with incredibly smooth and full sound.

    Specificaties

    Artikelnummer
    W6-2144
    Woofer Type
    Full-range
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    35 Watts
    Power Handling (max)
    70 Watts
    Impedance
    8 ohms
    Sensitivity
    89 dB 1W/1m
    Frequency Response
    45 to 20,000 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    6.8 ohms
    Voice Coil Inductance (Le)
    0.01 mH
    Resonant Frequency (Fs)
    45 Hz
    Mechanical Q (Qms)
    1.73
    Electromagnetic Q (Qes)
    0.62
    Total Q (Qts)
    0.45
    Diaphragm Mass Inc. Airload (Mms)
    10g
    Mechanical Compliance of Suspension (Cms)
    1.243 mm/N
    Surface Area of Cone (Sd)
    140 cm²
    BL Product (BL)
    5.45 Tm
    Compliance Equivalent Volume (Vas)
    1.22 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Cone / Diaphragm Material
    Bamboo Fiber / Paper
    Surround Material
    Santoprene®
    Voice Coil Wire Material
    Copper
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    6.92"
    Overall Depth
    3.81"
    Baffle Cutout Diameter
    5.75"
    # Mounting Holes
    4
    Sealed Volume
    0.60 ft.³
    Sealed F3
    78 Hz
    Vented Volume
    1.5 ft.³
    Vented F3
    39 Hz

    Reviews

    5 from 5Based on 4 reviews
    Schrijf een review
    5 van 5
    Chasis wurde in Tubygehäuse eingebaut.
    Objektiv (gemesen mit Messmikrofon im Wohnraum) verringert sich die gemessene Lautstärke über 2 khz um ca 5dB. Subjektiv ist der Hochton etwas im Vordergrund. Durch Absenkung des Hochtones ( über einen Saugkreis) habe ich dies jedoch für mein Empfinden angepasst. Stimmen und Srache werden sehr sauber wiedergegeben. Tiefton fällt erst ab 45Hz ab. Ich hab selten so einen klaren sauberen Sound gehört. Preisleistung absolute Spitzenklasse.
    Door Jochen S. on 27 Maart 2020
    5 van 5
    Supersnelle levering en een prima product.
    Door Frank P. on 12 September 2019
