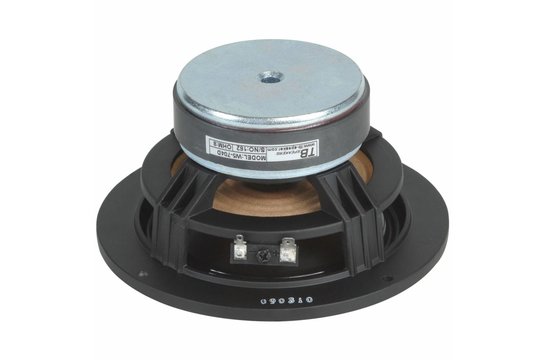

    Tang Band W5-704D 5-1/4" Woofer

    € 44,95 >10 Op voorraad: levertijd 1 werkdag
    This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €42,70 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response.



    Highlights

    • Twin-roll rubber surround
    • Durable aramid spider
    • Cast aluminum frame



    Product details

    Tang Band W5-704D 5-1/4" Woofer



    This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response. Great for compact vented two-way designs.

    Specificaties

    Artikelnummer
    W5-704D
    Woofer Type
    Full-range
    Nominal Diameter
    5-1/4"
    Power Handling (RMS)
    28 Watts
    Power Handling (max)
    56 Watts
    Impedance
    8 ohms
    Sensitivity
    88 dB 1W/1m
    Frequency Response
    55 to 9,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6 ohms
    Voice Coil Inductance (Le)
    0.06 mH
    Resonant Frequency (Fs)
    55 Hz
    Mechanical Q (Qms)
    2.07
    Electromagnetic Q (Qes)
    0.46
    Total Q (Qts)
    0.38
    Diaphragm Mass Inc. Airload (Mms)
    7.98g
    Mechanical Compliance of Suspension (Cms)
    0.92 mm/N
    Surface Area of Cone (Sd)
    94 cm²
    BL Product (BL)
    6.17 Tm
    Compliance Equivalent Volume (Vas)
    0.41 ft.³
    Maximum Linear Excursion (Xmax)
    3.3 mm
    Cone / Diaphragm Material
    Poly
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    6.16"
    Overall Depth
    2.75"
    Baffle Cutout Diameter
    4.875"
    # Mounting Holes
    4
    Sealed Volume
    0.1 ft.³
    Sealed F3
    127 Hz
    Vented Volume
    0.27 ft.³
    Vented F3
    73 Hz

    Reviews

    5 from 5Based on 3 reviews
    Schrijf een review
    5 van 5
    Extrem nice Sound, a wow effekt for the First play
    Door Daniel P. on 19 Januari 2021
    5 van 5
    No description was given
    Door Stephano P. on 23 September 2020
