    SMSL AD18 2 x 80W Stereo Bluetooth 4.2 Amplifier with USB DAC and Remote

    € 119,79€ 144,95 >10 Op voorraad: levertijd 1 werkdag
    AD18 supports a wide range of inputs, including USB, opticalm coaxial, auxiliary and Bluetooth 4.2. Connect it to your computer and use it to drive your headphones with an amp or to power your passive speakers.... Toon meer
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    AD18 supports a wide range of inputs, including USB, optical coaxial, auxiliary and Bluetooth 4.2. Connect it to your computer or TV and use it to drive your headphones with an amp or to power your passive speakers.



    Highlights

    • Wide range of inputs
    • Cutting edge technology ensures Hi-Fi sound quality
    • DSP capability
    • Slick design
    • NFC and Bluetooth 4.2



    Product details

    SMSL AD18 2 x 80W Stereo Amplifier with Bluetooth 4.2 DAC and Remote

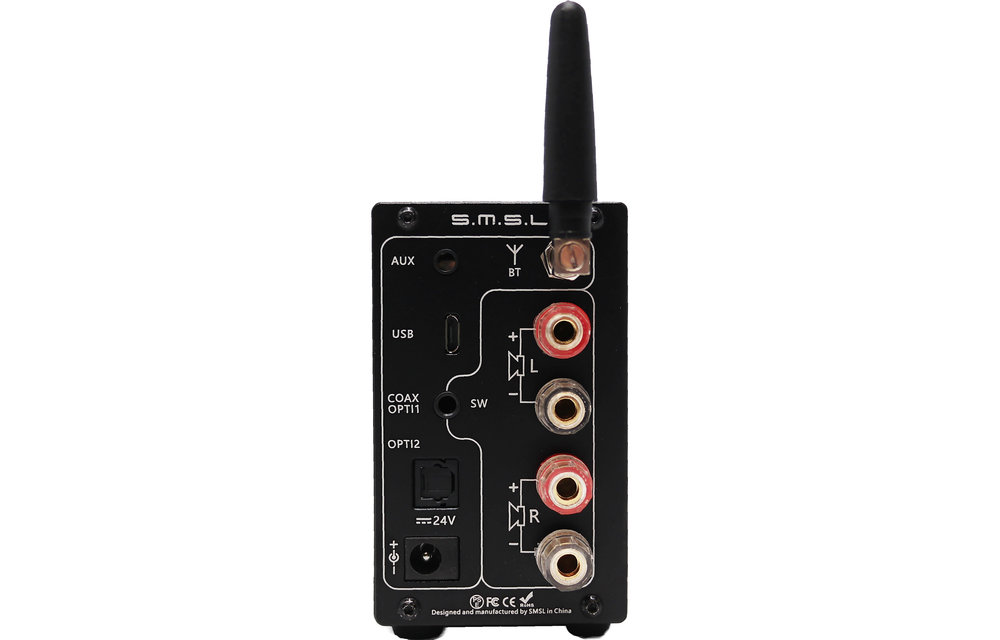

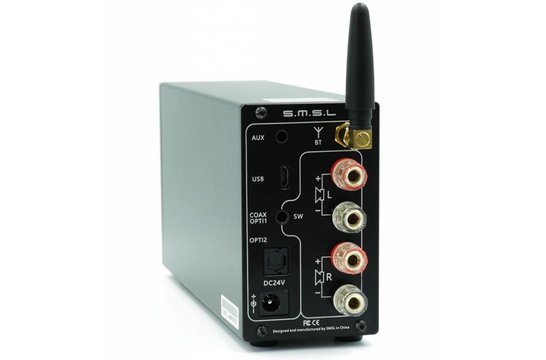

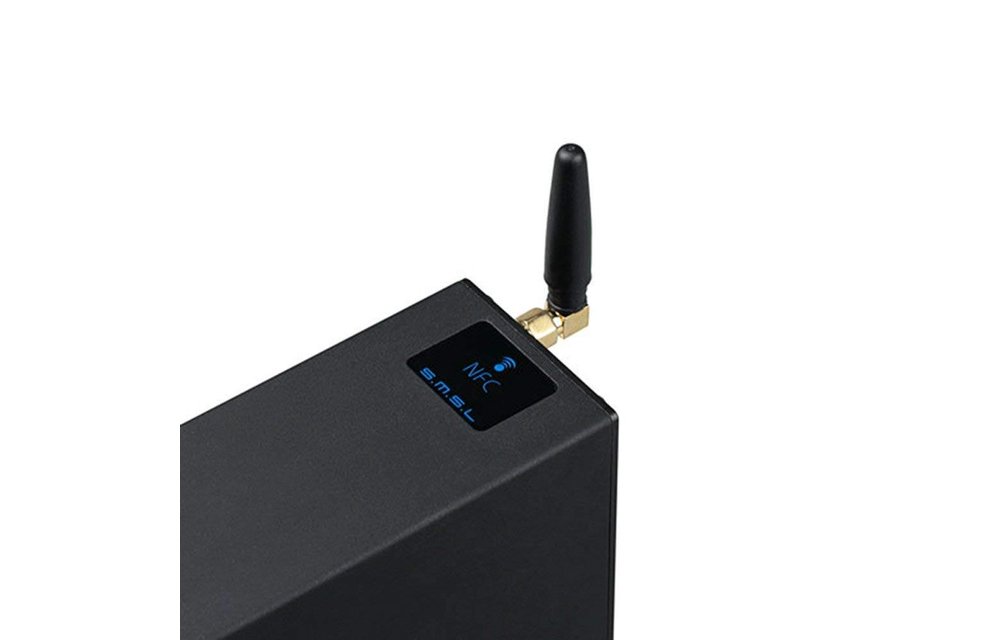

    The SMSL AD18 features NFC and Bluetooth 4.2 wireless connectivity but also sports your favorite wired inputs: AUX, 3.5mm coaxial, optical and USB. Now, the 3.5mm coaxial connector has a special trick up its sleeve: it also doubles as a subwoofer output. If you connect a regular 3.5mm to RCA cable, the left channel becomes the coaxial input and the right channel becomes your subwoofer output.

    The SMSL AD18 uses a DAC which features zero phase shift, a strong anti-inference ability using the CS8422 digital receiving chip. The signal then goes into to the TAS5508C chip for digital sound processing and pre-amplification, which then sends it to the highly efficient (90%) TAS5342A chip, boosting the output up to 80 watts per channel. Power supply included.

    Specificaties

    Artikelnummer
    AD18
    Rated power output (RMS)
    2 x 80 watts at 4 ohm
    Bridged power output (RMS)
    -
    Minimum load
    4 ohm
    Signal-to-noise ratio (SNR)

    Speakers: 90 dB
    Headphones: 100 dB

    Distortion

    Speakers: 0.04% THD
    Headphones: 0.008% THD

    Distortion bridged
    -
    Efficiency
    90%
    Frequency response
    -
    Input impedance
    -
    Input sensitivity
    -
    Auto turn-on sensitivity
    -
    DSP
    check
    DAC
    check
    Maximum sampling rate

    USB: 96 kHz
    Optical/coaxial: 192 kHz

    Circuit Topology
    TAS5508C+TAS5342A
    Amplifier classification
    D
    Speaker output channels
    2
    Subwoofer output channel
    -
    Analog in/out
    -/-
    Optical S/PDIF in/out
    1/0
    Coaxial in/out
    1/0
    RCA in/out
    -
    AUX in/out
    1/-
    Bus in/out
    -/-
    XLR in/out
    -/-
    USB
    check micro-USB
    Memory card slot
    -
    Network connection
    -
    Headphone jack
    check
    Subwoofer pre-out
    check
    Bluetooth
    check version 4.2
    NFC
    check
    Wi-Fi
    -
    Banana plug compatible
    check
    Remote control
    check
    App control
    -
    Auto turn-on
    -
    Accepted file formats
    WMA, MP3
    Equalizer (EQ) adjustment
    check
    Equalizer (EQ) profiles
    check 7
    Multi zone/room
    -
    Crossover frequency adjustment
    -
    Bridge mode
    -
    Power requirements
    24 VDC
    Power inlet connector
    -
    Power consumption
    50 watts
    Stand-by power consumption
    0.8 watts
    Dimensions (D x W x H)
    172 x 51 x 85 mm
