- 3/4" Textile Dome Diaphragm
- Dual Rear Chamber
- Wide Dispersion
- Vented pole piece
- No Ferro Fluid

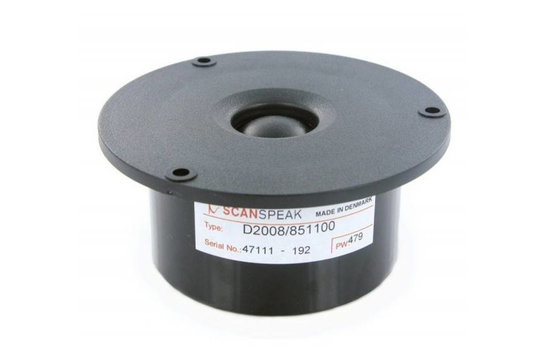

Scan-Speak Classic D2008/851100 3/4" Textile Dome Tweeter
Double chambered 3/4" damped textile dome tweeter. The voice coil is a precision wound aluminum wire with a 27 strand tinsel braid for a lower resonance. The magnet system is a special high flux ferrite with vented pole plates. The surround of the diaphragm is damped to reduce distortion.
The D2008 851200 tweeter's extremely linear response, low distortion and wide dispersion make it an attractive choice for any speaker system.
Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.4 Tm • Mechanical Compliance of Suspension (Cms): 0.30 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.2 g • Maximum Linear Excursion (Xmax): 0.8 mm • Surface Area of Cone (Sd): 3.8 cm2
