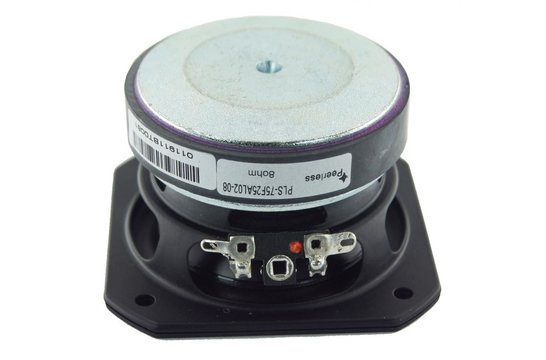

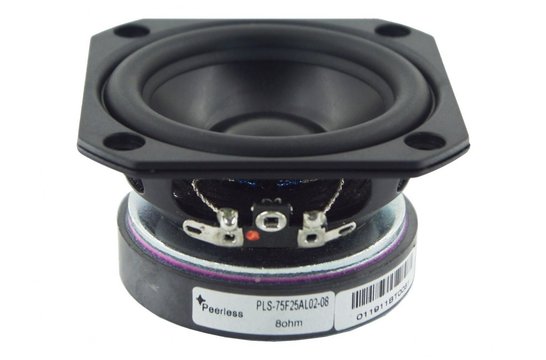

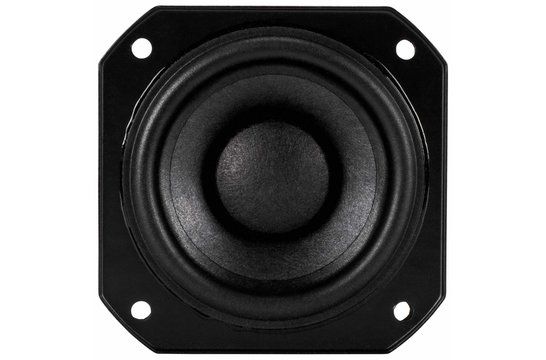

Peerless by Tymphany PLS-75F25AL02-08 3" Aluminum Full-Range Speaker

Levertijd: 1 werkdag

  • Artikelcode: PLS-75F25AL02-08
  • Voorraad: 4 Op voorraad

Tymphany raises the bar on full-range drivers with their PLS-75F25AL02 3" speaker. Advanced features such as a copper pole piece cap, semi-progressive surround, and large roll surround reduce distortion, even during extreme power transients!

€ 24,95 Incl. 21% btw

  • Bestel 4 voor €23,70 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Peerless by Tymphany PLS-75F25AL02-08 3" Aluminum Full-Range Speaker

Tymphany raises the bar on full-range drivers with their PLS-75F25AL02 3" speaker. Advanced features such as a copper pole piece cap, semi-progressive surround, and large roll surround reduce distortion, even during extreme power transients!



Highlights

  • Amazing full-range response from such a small speaker
  • Semi-progressive spider and large-roll rubber surround for extended mechanical excursion
  • Aluminum cone and voice coil cap for durability and use in high moisture environments
  • Truncated steel frame for close center-to-center placement in column line array speakers
  • Low inductance, low distortion motor with copper cap and maximum voice coil venting



Product Details

Peerless by Tymphany PLS-75F25AL02-08 3" Aluminum Full-Range Speaker



Tymphany's PLS-75F25AL02 3" full-range driver sets the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs, with its high power handling, smooth, even dispersion, and low distortion.



A ferrite motor structure and double-venting system keeps dynamic range intact, as the transducer can handle more power and dissipate excess heat efficiently. An anodized aluminum dome provides superior sound dispersion and off-axis response.



Reduced distortion, especially at high output, is the result of the 75F25AL02's semi-progressive spider and a large-roll rubber surround. This driver's direct connected dome dust cap (attached to the voice coil) improves dispersion at high frequencies, while the copper cap on the pole piece reduces speed, and high frequency, robbing inductance.

Specificaties

Specificaties voor: PLS-75F25AL02-08 3" Aluminum Full-Range Speaker

  • Woofer Series Specifieke woofer productlijn van de fabfrikant.
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Full-range woofer
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 3''
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 15 Watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 30 Watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 84.8 dB 2.83V/1m
  • Frequency Response 105 to 16,000 Hz
  • Voice Coil Diameter 1"
  • Magnet Weight
  • DC Resistance (Re) 6.3 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 105 Hz
  • Mechanical Q (Qms) 4.7
  • Electromagnetic Q (Qes) 0.89
  • Total Q (Qts) 0.75
  • Diaphragm Mass Inc. Airload (Mms) 2.50g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.924 mm/N
  • Surface Area of Cone (Sd) 29.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 3.42 Tm
  • Compliance Equivalent Volume (Vas) 0.04 ft.³
  • Maximum Linear Excursion (Xmax) 2.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Aluminum
  • Surround Material Rubber
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material
  • Shielded
  • Overall Outside Diameter
  • Overall Depth
  • Baffle Cutout Diameter
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
