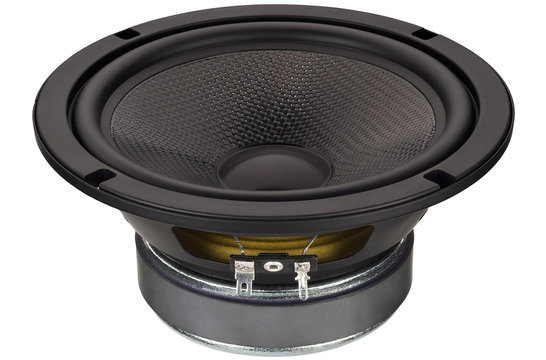

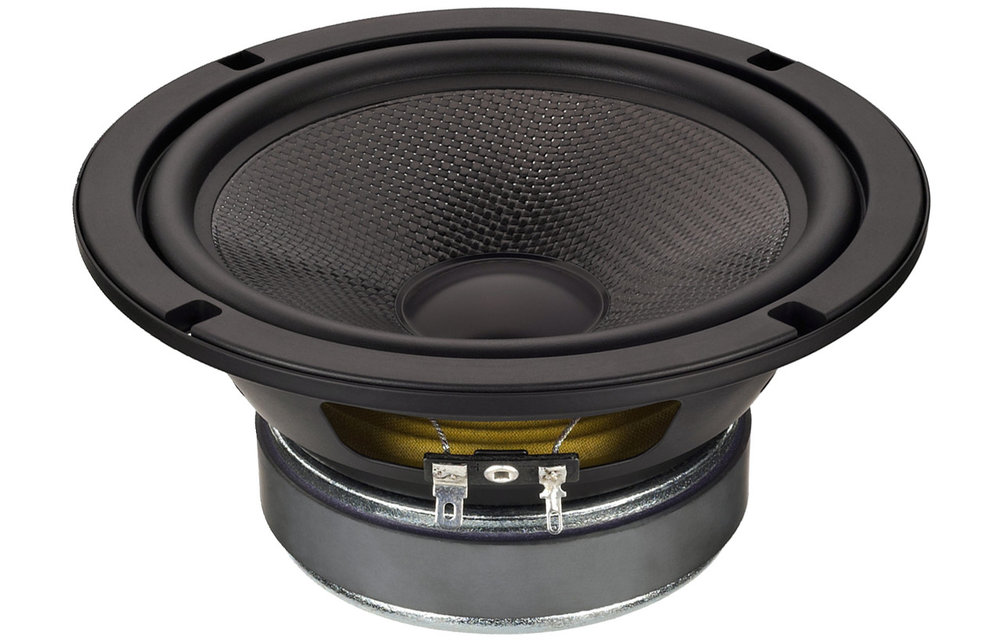

    Monacor SP-6/108PRO Carbon Fiber Cone PA Midbass Woofer

    € 62,95 6 Op voorraad: levertijd 1 werkdag
    6.5" professional bass-midrange speaker for PA and hi-fi. Featuring a high-quality carbon fiber cone, low distortion and a smooth frequency response.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €59,80 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    6.5" professional bass-midrange speaker for PA and hi-fi. Featuring a high-quality carbon fiber cone, low distortion and a smooth frequency response.



    Highlights

    • High-quality carbon fiber cone
    • Excellent sound and dynamic characteristics
    • Heat-resistant voice coil wound on the inside and outside
    • Low frequency response and low distortion, but nevertheless of a high efficiency



    Product details

    Monacor SP-6/108PRO Carbon Fiber Cone PA Midbass Woofer



    Proven to be very reliable in hi-fi, PA and monitor applications, the Monacor SP-6/108PRO Carbon Fiber Cone PA Midbass Woofer makes for a  compact bass-midrange speaker of high power capability for smaller PA applications. It is very well-suited for combination with the DT-300 dome tweeter and the WG-300 waveguide for both professional and home audio use.

    Specificaties

    Artikelnummer
    SP-6/108PRO
    Woofer Type
    Midwoofer
    Nominal Diameter
    6.5''
    Power Handling (max)
    150 Watts
    Impedance
    8 ohms
    Sensitivity
    92dB 1W/1m
    Frequency Response
    40-4,500Hz
    Voice Coil Diameter
    30 mm
    Magnet Weight
    570 g
    DC Resistance (Re)
    5.74 ohms
    Voice Coil Inductance (Le)
    0.43 mH
    Resonant Frequency (Fs)
    44 Hz
    Mechanical Q (Qms)
    4.28
    Electromagnetic Q (Qes)
    0.35
    Total Q (Qts)
    0.32
    Diaphragm Mass Inc. Airload (Mms)
    13.14 g
    Mechanical Compliance of Suspension (Cms)
    0.97 mm/N
    Surface Area of Cone (Sd)
    137 cm2
    BL Product (BL)
    7.46 Tm
    Compliance Equivalent Volume (Vas)
    25.5 l
    Maximum Linear Excursion (Xmax)
    ± 3 mm
    Cone / Diaphragm Material
    Carbon Fiber
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton
    Basket / Frame Material
    Stamped steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    168 mm
    Overall Depth
    78 mm
    Baffle Cutout Diameter
    142 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    4
