Robust 320 x 198mm constant directivity horn with 25mm throat with flange connection using the standard 2-hole and 3-hole bolt connection.
- 1’’ throat diameter
- CD design (constant directivity)
- Low-resonance horn design

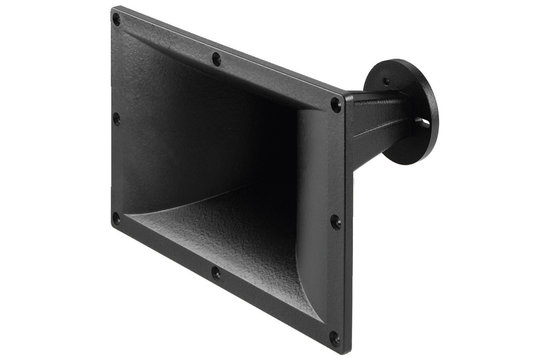

Monacor MRH-200 260 x 165mm Constant Directivity Horn
The Monacor MRH-200 is a constant directivity horn made out of 8mm glass fiber reinforced ABS plastic, thus suppressing possible resonances. It has an effective throat diameter of 25mm with flange connection using the standard 2-hole and 3-hole bolt connection. Measuring 320 x 198mm, it provides useful acoustical loading down to 700Hz.

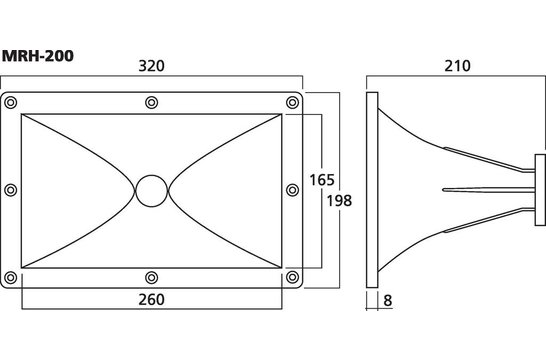

Dimensions: 320 x 198 x 210 mm (W x H x D)
Cutoutdimensions: 260 x 165 (W x H)
Recommended minimum crossover frequency: 1 kHz
