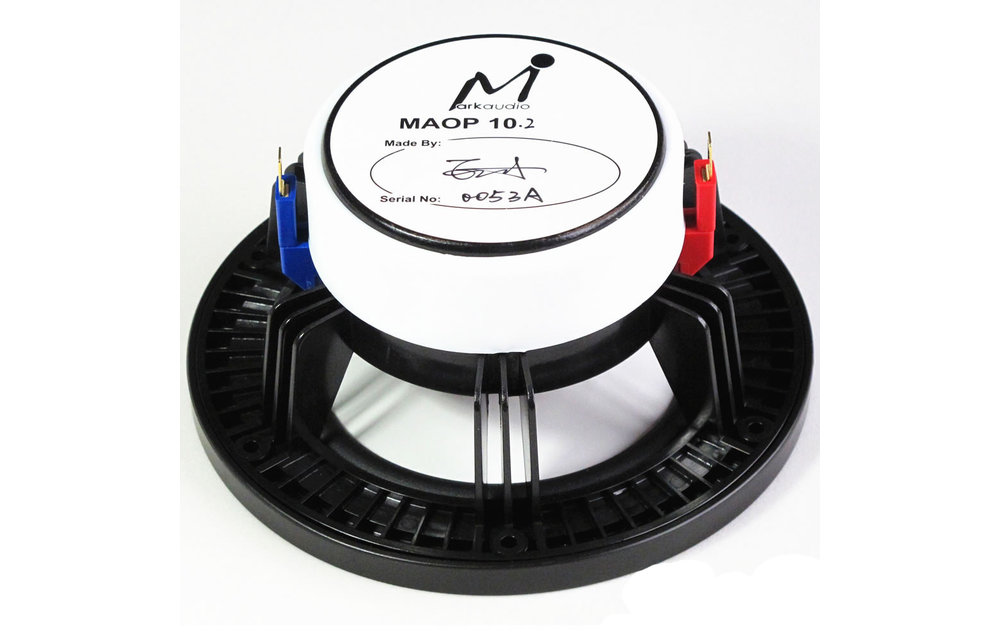

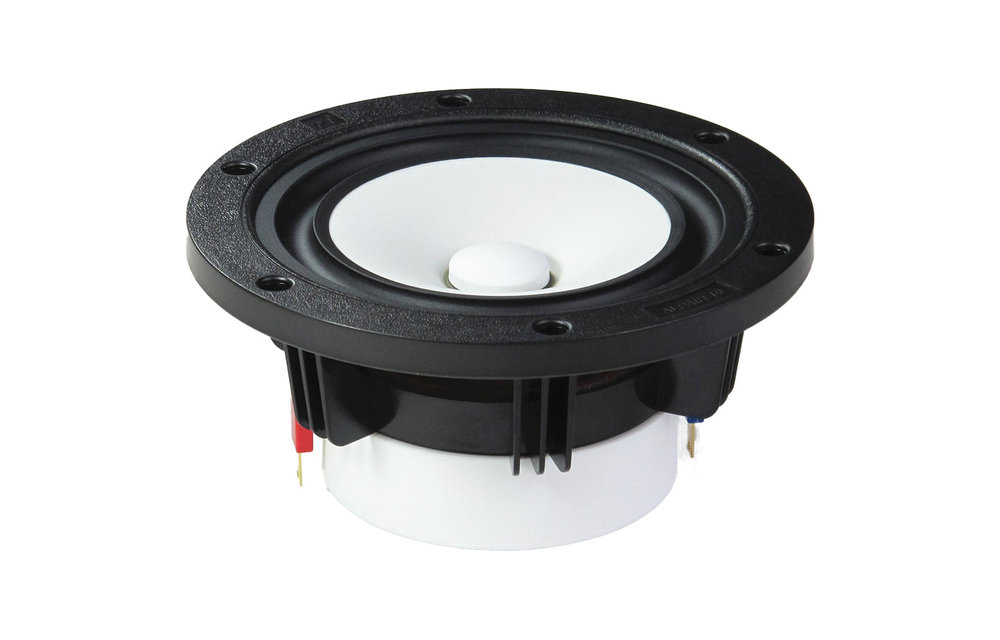

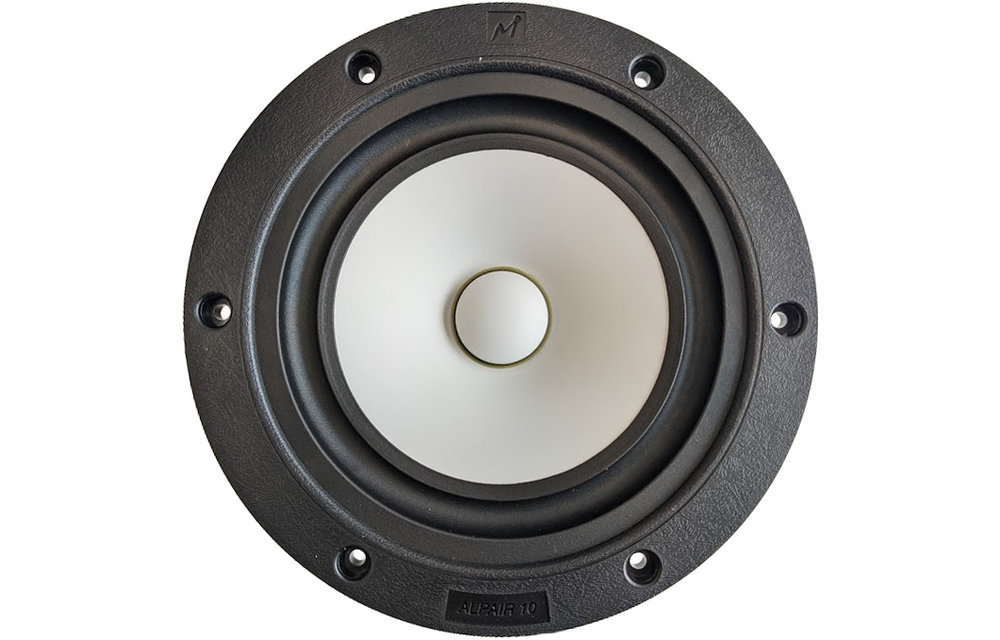

Markaudio MAOP-10.2 White 6" Full Range Woofer

    € 132,19€ 159,95 >10 Op voorraad: Levertijd: 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €151,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support


    The Mark Audio wide band drivers MAOP (Micro Arc Oxidation Process or Plasma Electrolytic Oxidization) have been made in extremely small production runs and are extremely collectable by the local customers.



    • Every pair is matched
    • Micro Arc Oxidation Process
    • Crystalline oxide cone
    • Wide band driver


    Product details

    Markaudio MAOP-10.2 White 6" Full Range Woofer | Each two drivers are sold as a matched pair.


    The uniqueness of Markaudio lays on their matching pairs of drivers. Each driver is tested and paired with another driver that shows the closest matching frequency response measurement. In order to respect this philosophy and added value to these great products, we at SoundImports, recomend you to purchase them as pairs.


    The Magnetic Arc Oxidisation Process is done at extremely high temperature in a flux bath that is prone to differential temperatures (hot/cold spots) which can warp the cones. The process is 10 times the cost of normal cone production, at least half are scrapped as it does render cones unusable if they are warped even slightly. The MAOP process involves a chemical conversion where the cone material is converted into its crystalline oxide. The crystal grows both inward into the substrate and outward. As such the new coating is not a deposited coating it is part of the original structure which gives excellent adhesion. The large crystal structure provides excellent stiffness and resistance to damage. The crystalline structure also encapsulates microscopic voids. It is supposed that it is the blend of microscopic voids and stiff structure that lend the cone the audio properties of both the metal cone and the paper cone, accuracy and a listen all day quality.


    After construction, each driver is individually measured in the anechoic chamber at the Markaudio factory and pair matched based on that data to within, 0.5% tolerance.  Each pair is supplied with individual electrical and acoustic measurements.


    MAOP-10.2 white
    Woofer series
    MAOP Series
    Woofer type
    Full-range Woofer
    Nominale diameter
    Belastbaarheid (RMS)
    30 Watts
    Impedantie (Z)
    8 Ohms
    87.493 dB
    Mechanische Q (Qms)
    Elektrische Q (Qes)
    Totale Q (Qts)
    Bewegende massa (Mms)
    7.764 g
    Moving Mass Of Diaphragm (Mmd)
    7.274m Kg
    Compliantie van de ophanging (Cms)
    1.997m M/N
    Effectief oppervlak (Sd)
    89.920 cm2
    Krachtsfactor (BL)
    5.848 TM
    Equivalentvolume (Vas)
    22.931 Ltr
    Maximale excursie (Xmax)
    8 mm 1 way
