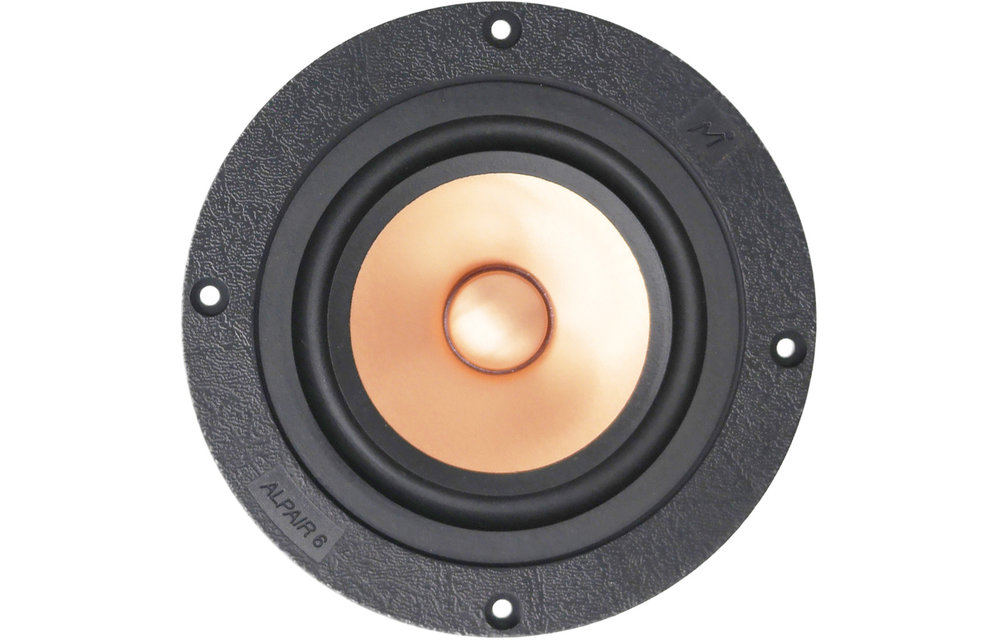

    Markaudio Alpair-6 Gold 3.5" Full Range Woofer

    € 41,28€ 49,95 >10 Op voorraad: Levertijd: 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Alpair-6 is well suited to smaller audio applications, particularly desk-top and nearfield uses. The bass-rich warm tone of this driver can act a balance for those installations using compressed or highly processed source music, complements the use of traditional and modern solid-state amplification. This new generation 2 model concentrates on refining the musicality of the Alpair-6 heritage.



    Highlights

    • Latest-model
    • New Multi-form cone design allows improvement of vocal clarity in the lower/lower mid-frequency ranges
    • New advanced Nomex rear suspension
    • New ultra-lightweight copper wound coil
    • New connector sets allow for remote soldering of cables making installation easy
    • Built-in overload protection (arrestor in motor sub-assembly)



    Product details

    Markaudio Alpair-6 Gold 3.5" Full Range Woofer



    The Alpair 6 has a mechanical X Max (1 way) of 5.5 mm (in flux). This feature is only designed to handle non-linear “peak-shock” loads, for example, the brief roll of a drum beat. For optimum movement, loads NOT exceeding 3.00 mm is within its capability for a period not exceeding 1.5 hours. The normal driven movement should remain inside 2.6 mm. For a driver of this size, this normal load X-max is generous; Together with a well-matched cabinet, a pleasing bass response can be generated.



    This new generation 2 driver has a new Multi-form cone design. The cone profile has been modified to improve vocal clarity in the lower/lower mid-frequency ranges. New advanced Nomex rear suspension and a new low mass copper wound coil are also included in this design. Other additional features include a revision of the polymer mix for the frame making it 10% stiffer than the old model. Lastly, the new connector sets allow for remote soldering of cables, making installation easy.

    Specificaties

    Artikelnummer
    Alpair-6 Gold
    Woofer series
    Alpair Series
    Woofer type
    Full-range
    Nominale diameter
    3.5"
    Belastbaarheid (RMS)
    15 Watts
    Belastbaarheid (max)
    30 Watts
    Impedantie (Z)
    4 ohms
    Gevoeligheid
    85.4 dB 2.83V/1m
    Spreekspoeldiameter
    0.7"
    Gelijkstroomweerstand (Re)
    3.6 ohms
    Resonantiefrequentie (Fs)
    63 Hz
    Mechanische Q (Qms)
    2.76
    Elektrische Q (Qes)
    0.45
    Totale Q (Qts)
    0.38
    Compliantie van de ophanging (Cms)
    2.58 mm/N
    Krachtsfactor (BL)
    2.81 Tm
    Equivalentvolume (Vas)
    0.16 ft.³
    Totale buitendiameter
    4.48"
    Totale diepte
    2.07"
    Montagegatdiameter
    3.77"
    # Bevestigingsgaten
    4
