Denovo Audio Knock-Down MDF 1.5 cu. ft. Subwoofer Cabinet for Dayton Audio 12" Reference Series HO
Highlights
- 5 cubic foot cabinet made of 3/4" MDF panels with a 1-1/2" thick front baffle
- CNC-machined dadoes, subwoofer cutout and recess, and a unique bracing system that increases cabinet rigidity
- Designed specifically for the Dayton Audio RSS315HO-4 12" subwoofer when used with a plate amp with bass boost
Product Details

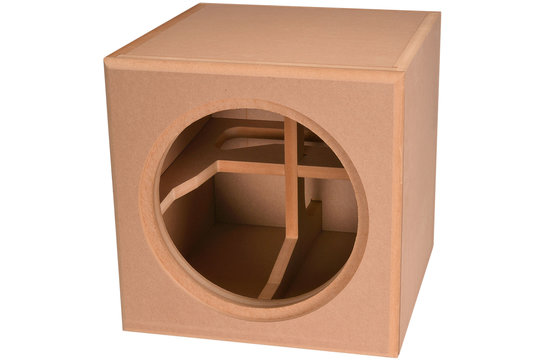

Denovo Audio Knock-Down MDF 1.5 cu. ft. Subwoofer Cabinet for Dayton Audio 12" Reference Series HO
Even the easiest do-it-yourself subwoofer can turn into an arduous project; from uneven cuts, to measuring mistakes. CNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to expensive tools or a woodshop.
This particular cabinet is designed specifically for the Dayton Audio RSS315HO-4 12" Reference Series High Output subwoofer, but works for any subwoofer with an overall diameter of 12-3/8" or less, and a cutout requirement of 11-1/8" or less. For optimum performance, the cabinet is oversized to allow for the use of a plate amplifier with bass boost (such as the Dayton Audio SPA250 or Dayton Audio SPA500 plate amplifiers) to extend the frequency response while staying musical.

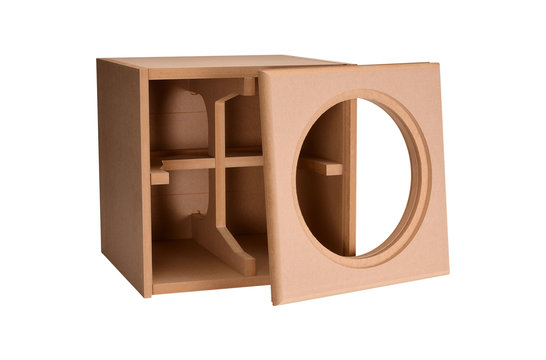

During the CNC manufacturing process, rabbets and dadoes are cut into the back panel for precise panel alignment. A unique two-piece brace adds superior rigidity without affecting the subwoofer's performance. Both side panels feature 3/4" rabbeted extensions with recesses to perfectly install the first piece of the two-part, double thick baffle.
The end result is a resonance-free, sealed subwoofer cabinet that is purpose-built to extract the best performance from Dayton Audio's 12" Reference Series High Output subwoofer. All that's left to do is finish it to match your décor or paint it to stand out.
Specifications: Panel thickness: 3/4", front baffle is 1-1/2" • Panel material: Medium Density Fiberboard (MDF) • Finished net cabinet volume (subtracting the double thick baffle, bracing, and subwoofer volume): 1.25 cubic feet • External dimensions: 15.5" H x 15.5" W x 16.25" D • Subwoofer recess: 1/2" • Weight: 37 lbs. • Made in the U.S.A.
