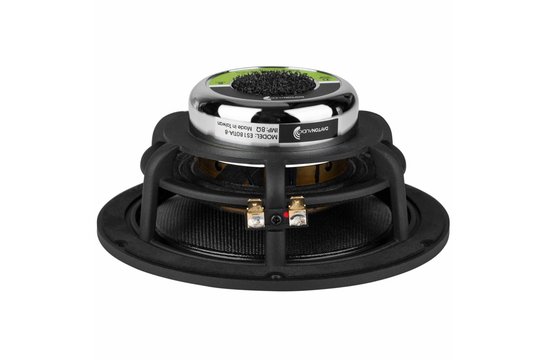

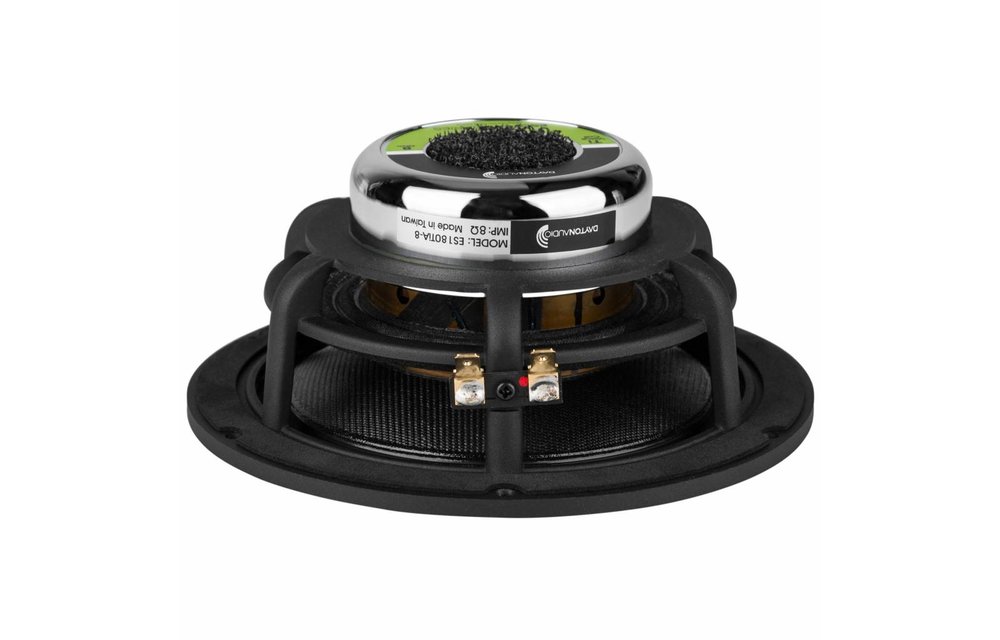

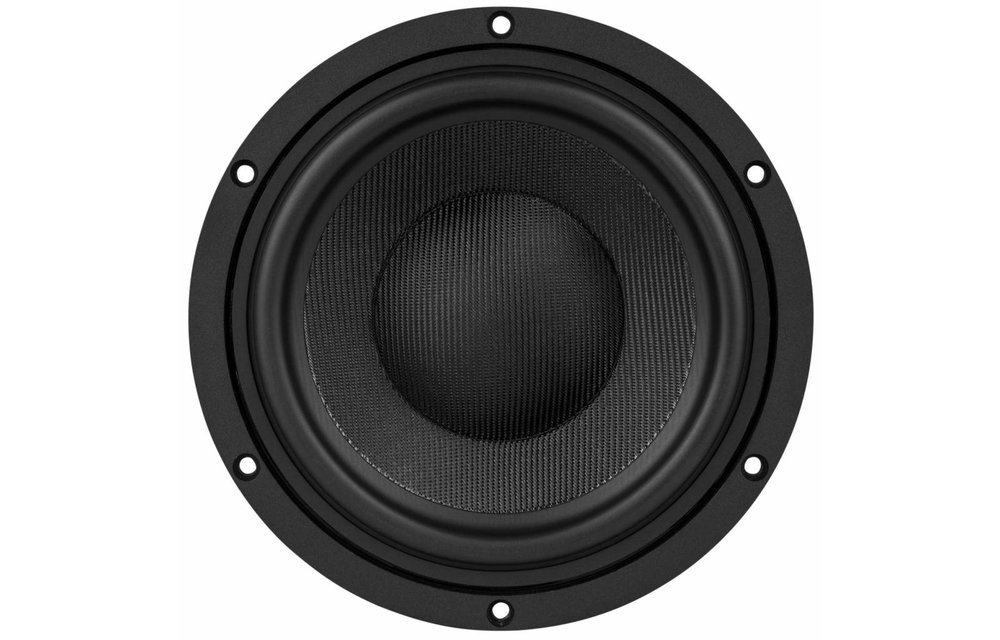

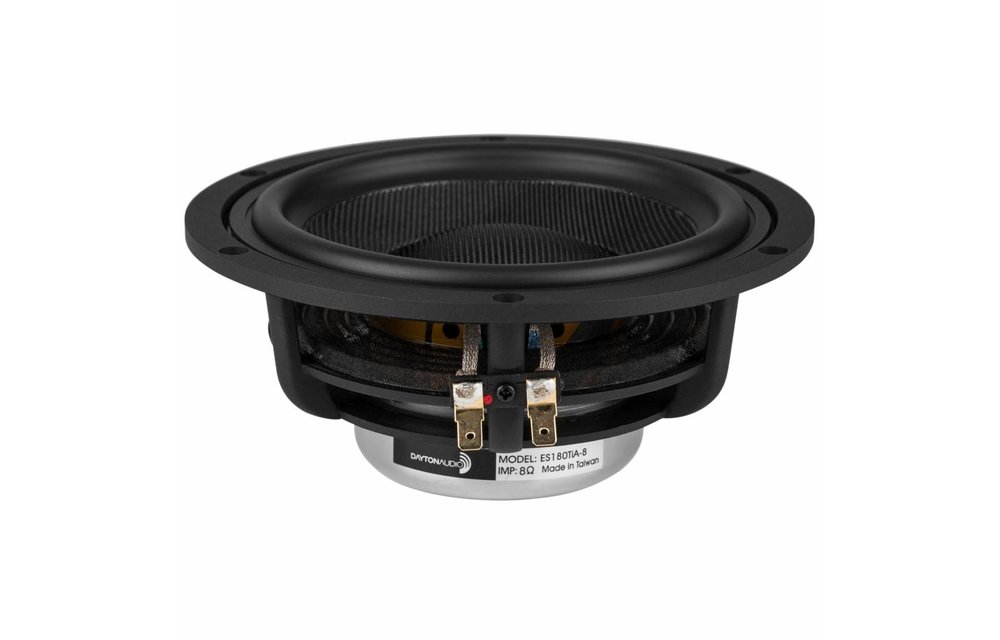

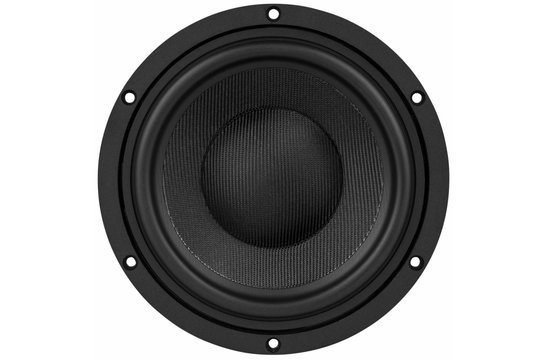

Dayton Audio ES180TiA-8 7" Esoteric Series Woofer 8 Ohm

Levertijd: 1 werkdag

  • Artikelcode: ES180TiA
  • Voorraad: 1 Op voorraad

The Dayton Audio ES180TiA-8 is a high-tech 7" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high power handlin

€ 152,95 Incl. 21% btw

  • Bestel 4 voor €145,30 per stuk en bespaar 5% Sale 5%

Zet op verlanglijst

  • Voor 16u besteld, morgen bezorgd Tooltip Op werkdagen voor 16:00 besteld - en voorradig - morgen geleverd (overmorgen in België)
  • Gratis verzending vanaf € 99,-
  • Betaal gemakkelijk en veilig
  • 45 dagen bedenktijd

Productomschrijving

Dayton Audio ES180TiA-8 7" Esoteric Series Woofer 8 Ohm

The Dayton Audio ES180TiA-8 is a high-tech 7" woofer featuring an FEA-optimized neodymium ring motor structure with dual copper shorting rings for ultra-low distortion. Its enormous 3" edge-wound voice coil on a titanium former provides high power handling and excellent transient response.



Highlights

  • Now with improved frequency response for easier crossover integration
  • Dual copper shorting rings in the motor for reduced energy storage
  • 3" edgewound voice coil on titanium former provides exceptional transient response
  • Woven glass-fiber cone provides excellent stiffness for minimal cone flex
  • High excursion suspension design with tethered tinsel leads and fully ventilated frame
  • High-power, ultra-low-distortion design



Product details

Dayton Audio ES180TiA-8 7" Esoteric Series Woofer 8 Ohm



Dayton Audio's Esoteric Series is the ultimate expression of Dayton Audio’s transducer engineering knowledge and finesse. Featuring high-end materials and advanced engineering throughout, the Esoteric Series collection of drivers elevates the state of the art in driver design. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.



The ES180TiA-8 7” woofer is a technological tour de force, with a fully FEA- and Klippel-optimized design from the powerful neodymium motor assembly with dual shorting rings to the moving structure with large 3” voice coil, titanium voice coil former, and tightly woven glass fiber cone. The voice coil is edgewound using rectangular copper-coated aluminum wire (CCAW) for maximum conductor density within the magnetic gap. The motor structure has been optimized using magnetic finite element analysis (FEA) to provide a symmetrical and extended flux field along the length of the gap, to permit longer excursion beyond the traditional limits in loudspeaker motor design. Dual shorting rings reduce coil inductance by shorting eddy currents created by the coil when it moves, for greatly reduced distortion. A titanium voice coil former was chosen to transmit motor force with maximum efficiency and minimal deformation of the coil former, for supreme resolution. The woven glass fiber cone supports the high force generated by the motor assembly with less deflection than other cone materials. Even the suspension system has been Klippel-optimized for excellent linearity. The attention to detail doesn’t end there – even the voice coil leads are tethered to the black Conex spider to eliminate mechanical resonance.



All of these elements combine to create a driver that breaks new ground with superb transient response and ultra-low distortion. By breaking free from established design conventions and rethinking how each part of the driver should behave, the ES180TiA-8 consistently delivers a musically accomplished performance, time after time. It works well as the woofer in a 2-way high-performance loudspeaker system, and the 8-ohm impedance makes it a natural choice for dual woofer configurations.

Specificaties

Specificaties voor: ES180TiA-8 7" Esoteric Series Woofer 8 Ohm

  • Woofer Series Specifieke woofer productlijn van de fabfrikant. Esoteric Series
  • Woofer Type Het type driver bijvoorbeeld subwoofer, mid-woofer, full range of coaxiale woofer. Midwoofer
  • Nominal Diameter Geschatte diameter van de driver in inch gemeten. 7"
  • Power Handling (RMS) De belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel kan opnemen voor een langere tijd, zonder de luidsprekerspoel te beschadigen. RMS staat voor Root Mean Square. 100 watts
  • Power Handling (max) De maximale belasting in elektrisch vermogen uitgedrukt in watt dat een luidsprekerspoel voor een zeer korte tijd kan opnemen zonder de luidspreker te beschadigen of het geluidskwaliteit niet hoorbaar beïnvloedt. 200 watts
  • Bekijk alle specificaties
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 84.8 dB @ 2.83V/1m
  • Frequency Response 35 - 5,500 Hz
  • Voice Coil Diameter 75 mm
  • Magnet Weight
  • DC Resistance (Re) 7.4 ohms
  • Voice Coil Inductance (Le) 1.13 mH @ 1 kHz
  • Resonant Frequency (Fs) 33.7 Hz
  • Mechanical Q (Qms) 4.90
  • Electromagnetic Q (Qes) 0.44
  • Total Q (Qts) 0.40
  • Diaphragm Mass Inc. Airload (Mms) 26.8g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 0.84 mm/N
  • Surface Area of Cone (Sd) 132.7 cm²
  • Volume of Displacement (Vd) 70.3 cm³
  • BL Product (BL) 9.8 Tm
  • Compliance Equivalent Volume (Vas) 20.7 liters
  • Maximum Linear Excursion (Xmax) 5.3 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Nomex Cone
  • Surround Material Rubber
  • Voice Coil Wire Material CCA
  • Voice Coil Former Titanium
  • Dual Voice Coil
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 175 mm
  • Overall Depth 74.3 mm
  • Baffle Cutout Diameter 148.3 mm
  • Bolt Circle Diameter
  • # Mounting Holes 6
  • Mounting Hole Diameter
  • Sealed Volume 0.19 ft.³
  • Sealed F3 71 Hz
  • Vented Volume 0.57 ft.³
  • Vented F3 40 Hz
