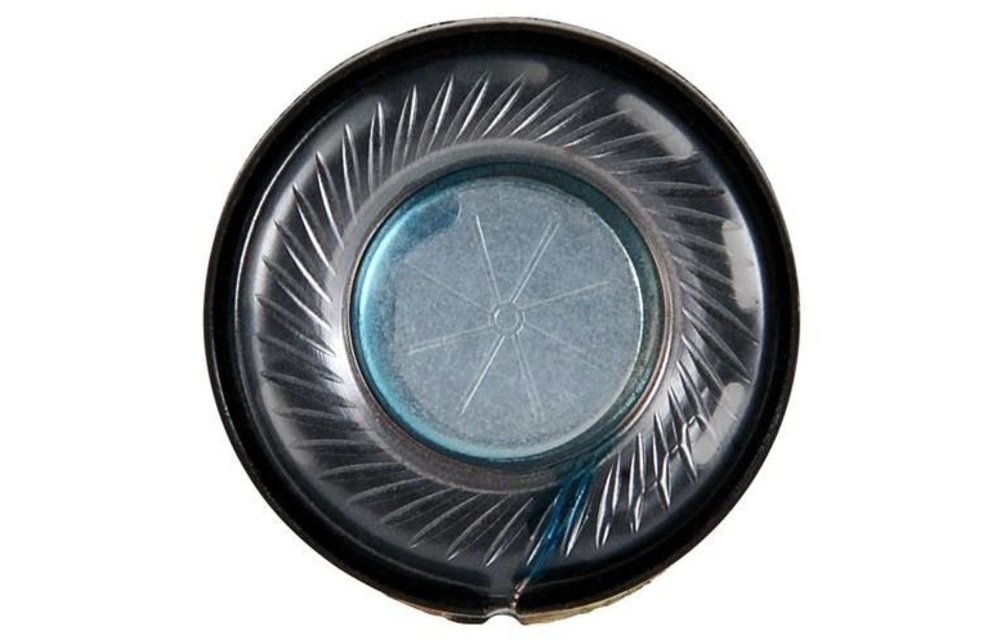

    Dayton Audio CE20M-16 3/4" Micro Speaker

    € 2,75 7 Op voorraad: levertijd 1 werkdag
    The Dayton Audio CE20M-16 is a versatile micro speaker with a round plastic frame, strong neodymium magnet, and lightweight Mylar diaphragm, for the smallest audio applications.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €2,61 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The Dayton Audio CE20M-16 is a versatile micro speaker with a round plastic frame, strong neodymium magnet, and lightweight Mylar diaphragm, for the smallest audio applications.



    Highlights

    • Lightweight headphone-style mylar diaphragm
    • Rugged plastic frame with round shape for adhesive mounting
    • Powerful neodymium magnet
    • Extended bandwidth from a miniature speaker



    Product details

    Dayton Audio CE Series CE20M-16 3/4" Micro Speaker 16 Ohm

    The drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

    The Dayton Audio CE20M-16 is a compact, high-efficiency "headphone-style" micro speaker with a lightweight Mylar diaphragm and extended frequency range. It’s a rugged choice for adding audio to inexpensive headphones, electronic toys, and portable electronics.



    Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

    Specificaties

    Artikelnummer
    CE20M-16
    Woofer Series
    CE series
    Woofer Type
    Micro speaker
    Nominal Diameter
    1"
    Power Handling (RMS)
    0.25 Watts
    Power Handling (max)
    0.50 Watts
    Impedance
    16 ohms
    Sensitivity
    76 dB 1W/1m
    Frequency Response
    690 to 20,000 Hz
    Voice Coil Diameter
    0.38"
    DC Resistance (Re)
    15.8 ohms
    Voice Coil Inductance (Le)
    0.61 mH
    Resonant Frequency (Fs)
    697 Hz
    Mechanical Q (Qms)
    9.17
    Electromagnetic Q (Qes)
    11.5
    Total Q (Qts)
    5.11
    Diaphragm Mass Inc. Airload (Mms)
    0.01g
    Mechanical Compliance of Suspension (Cms)
    4.61 mm/N
    Surface Area of Cone (Sd)
    1.7 cm²
    BL Product (BL)
    0.26 Tm
    Maximum Linear Excursion (Xmax)
    0.1 mm
    Cone / Diaphragm Material
    Poly / Mylar Diaphragm
    Magnet Material
    Neodymium
    Overall Outside Diameter
    0.78"
    Overall Depth
    0.17"
    Baffle Cutout Diameter
    0.76"
