20A

SPST Toggle Switch with Red LED and Cover

€ 3,43€ 4,15 3 In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo due anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Hai una domanda su questo prodotto?

Il nostro addetto è lieto di aiutarvi a trovare il prodotto giusto

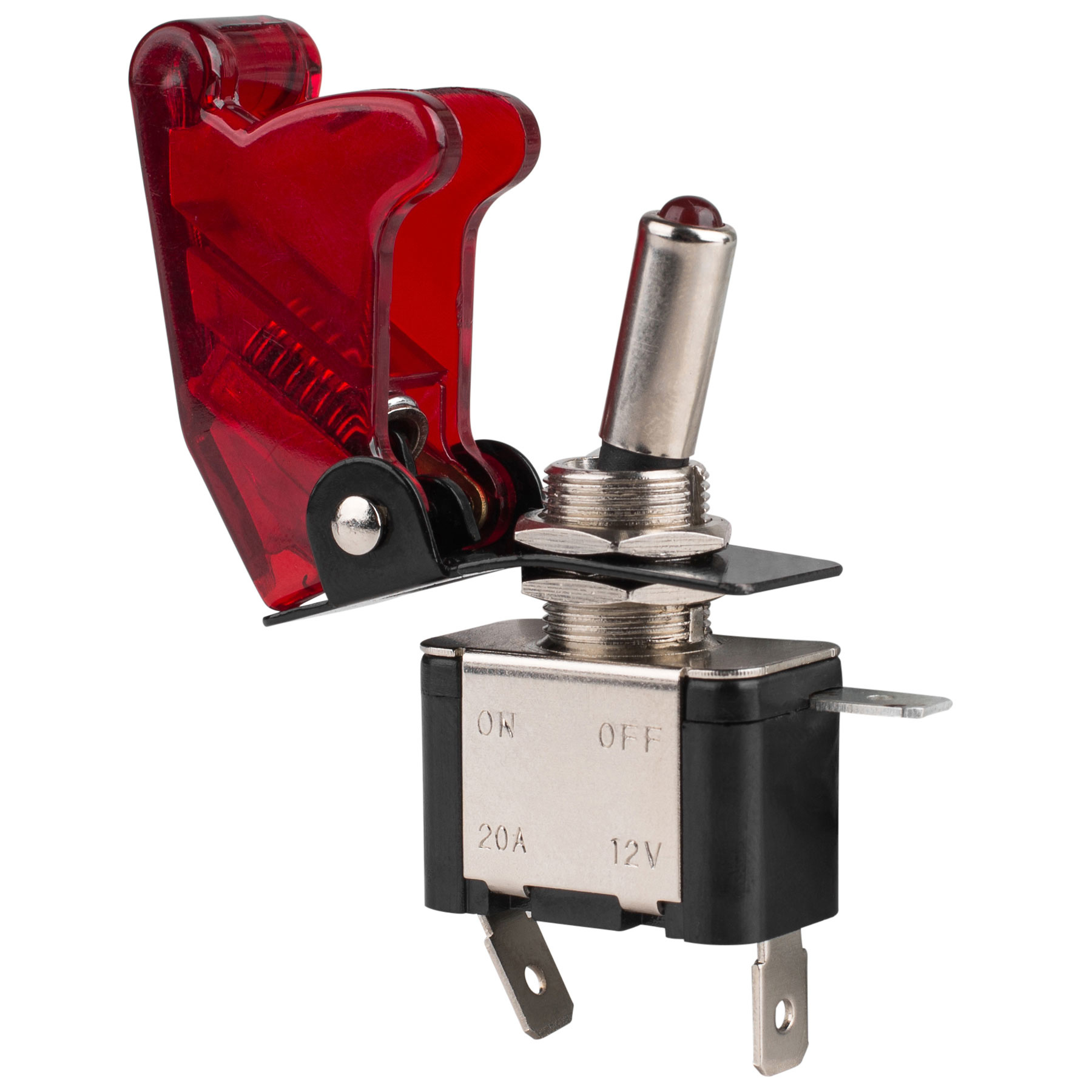

Descrizione del prodotto SPST Toggle Switch with Red LED and Cover

Metal covered toggle with metal pivot pin enables this switch to outlast illuminated plastic toggle switches. Red transparent cover prevents switch from being turned on accidently. Push up to 20 amps @ 12 VDC through it for automotive projects and more.

Highlights

Metal covered toggle and metal pivot pin enables it to outlast all illuminated plastic versions
Red LED can be wired always on or only on when switch is in closed position
Includes red transparent cover to prevent accidental switching
High current
Standard 1/4" spade terminals
Standard 1/2" mounting hole

Product details

12 VDC 20A Toggle Switch with Red LED and Cover

This switch's metal covered round toggle with a metal pivot pin delivers enduring performance. A long lasting 5 mm red LED at the tip of the toggle identifies on status, or rewire it to stay lit all the time making it easy to locate. The red transparent cover prevents the switch from being turned on accidently and turns the switch off when you close it after the switch has been turned off.

Product Specifications

Circuit	SPST
Contact rating @ Voltage	20A 12VDC
Illumination	Illuminated
Body dimensions	1.10" L x 0.64" W x 0.76" H
Shaft dimensions	0.45" H x 0.47" Dia.
Toggle dimensions	0.80" H x 0.28" Dia.
Terminal size	0.25" W x 0.40" H x 0.03" D
