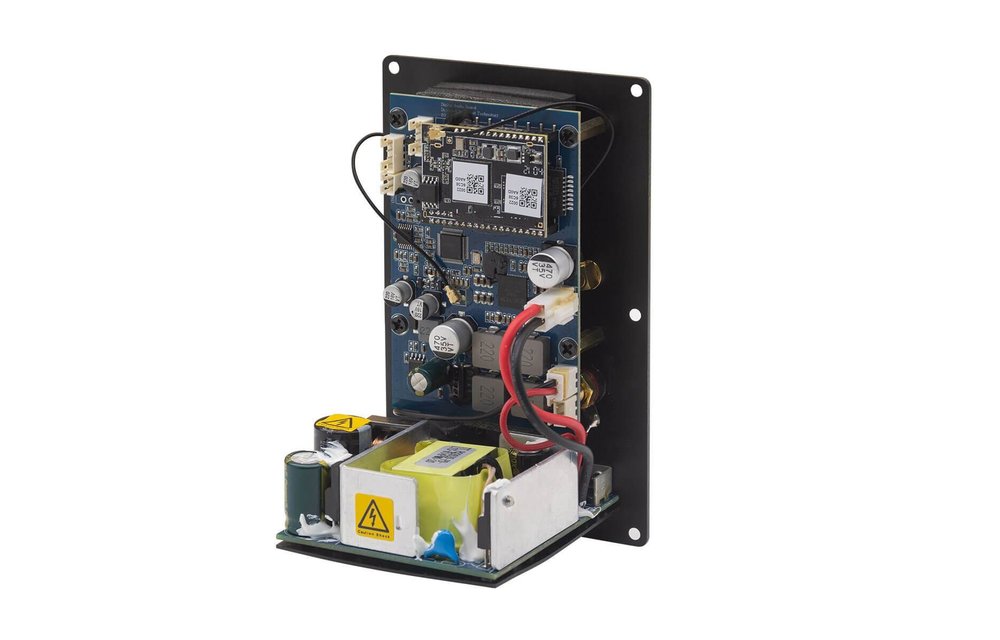

    Arylic Up2Stream Plate AMP 2x40W Plate Amplifier with Bluetooth 5.0, WiFi and LAN

    € 165,25€ 199,95 7 In stock: delivery time 1-4 business days
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €189,95 per piece
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    You can use this Plate AMP to easily build your own wireless stereo system and stream online music from many famous online music services like Spotify, Deezer, TuneIn and more. Control audio remotely by Wifi, Bluetooth, Airplay 1 and Spotify connect. Arylic Up2Stream AMP can provide you with 2 x 40 Watt power to 4 ohm speakers, perfect for building your own pair of active bookshelf or multimedia speakers.



    Highlights

    • Streaming music by Wi-Fi streaming using the free 4Stream Android/iOS application
    • Adjust volume by physical Volume Knob
    • 2.5Ghz WiFi or LAN internet connection
    • Subwoofer output makes it easy to add a powered subwoofer
    • Bluetooth version 5.0
    • USB port for PC connection and ACPWorkbench
    • 2 External antennas for WiFi and Bluetooth
    • 135.3 x 85.3 x 77.3 mm, one of the smallest in its form for creating small powered bookshelf or monitor speakers
    • Lifetime Firmware Online Update



    Product details

    Arylic Up2Stream Plate AMP 2x40W Plate Amplifier with Bluetooth 5.0, WiFi and LAN.



    Arylic Plate AMP offers you a small plate amplifier for creating small powered bookshelf or monitor speakers with the versatility of multimedia connections and the option of direct music streaming.



    With multiple input options including AUX (3.5mm), USB, Bluetooth 5.0, Wi-Fi and Ethernet, the Plate AMP is easy to integrate in any existing speaker or new project. The convenient wireless possibility with the 4Stream App allows full control of the amplifier's power, volume, and input. In addition, a mono line level subwoofer out makes it easy to integrate a powered subwoofer into the system if needed.



    To get optimal WiFi and Bluetooth range, the Plate AMP is equiped with 2 external antennas that improves the signal range and strenght. The sound output is immaculate and stunning, definitely enough to keep you partying at home all day long.



    The streamer can handle the most popular online music services such as Spotify, Deezer, Tidal, Amazon Music, Qobuz, Napstar, iHeartradio, Internet Radio and QQ Music. Not only the music services that you are used to are important, fast and reliable internet connection also matters. The Plate AMP is proviced with a 2.4Ghz WiFi module and LAN (RJ45) ethernet connector for a fast and reliable connection.



    Would you like to add an active subwoofer, this is possible! The Plate AMP features a subwoofer output (RCA - 20-200Hz Max 2V RMS). With this option you can make a 2.1 speaker set-up with all the wired and wireless connectivity of this time. Up2stream Plate Amp support streaming from PC directly and you can customize the precise EQ settings with our ACPWorkbench tuning tool.

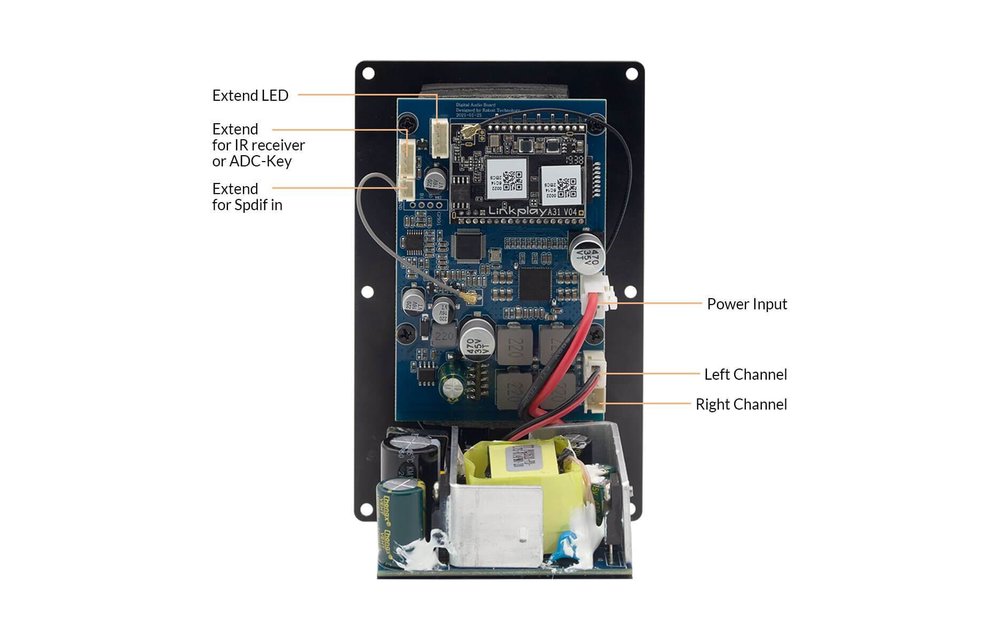

    Compatible Expansion Boards:

    Arylic ADC-KEY Button Expansion Board
    Arylic SPIDF IN Expansaion Board
    Arylic SPDIF OUT Expansion Board
    Arylic IR Extension Board (need to use with ADC-KEY board)



    What's Included:

    • 1 x Up2Stream Plate AMP
    • 1 x Internal Speaker Cable
    • 2 x Antenna's
    • 4 x Sealing Tape (EVA Sticker)
    • 1 x USB Cable
    • 1 x C7 Power Cord
    • 1 x User Manual

    Specifications

    Article number
    Up2Stream Plate AMP
    Rated power output

    2 x 40 watts at 4 ohms
    2 x 20 watts at 8 ohms

    Minimum load
    4 ohm
    Signal-to-noise ratio (SNR)
    ≥ 85 dB at max
    Distortion
    <0.9% at 1kHz, 1 watts
    Amplifier classification
    Class D
    Frequency response
    20 - 20.000 Hz (Sub out 20-200Hz)
    Input sensitivity
    AUX max 1V RMS input
    DSP
    Yes via ACPWorkbench
    Speaker output channels
    1
    Jack in/out
    1/0 3.5mm
    USB connection
    USB A for PC Connection (16bit/44.1kHz) and ACPWorkbench
    Network connection
    WiFi + LAN
    Bluetooth
    5.0 AAC, SBC
    Subwoofer pre-out
    20-200Hz Max 2V RMS
    App control
    Arylic 4Stream Appliciation Android/iOS
    Equalizer (EQ) adjustment
    Via Arylic 4Stream Appliciation and ACPWorkbench
    Equalizer (EQ) profiles
    Via Arylic 4Stream Appliciation and ACPWorkbench
    Control software
    ACPWorkbench
    Power requirements
    100-240 VAC, 50/60Hz, 1A
