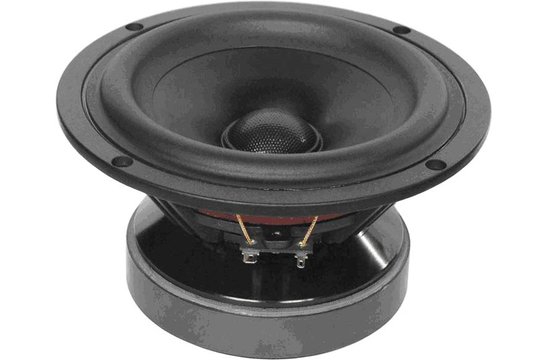

    Tang Band W6-1721 6-1/2" Underhung Midbass Driver

    € 95,-€ 114,95 1 In stock: delivery time 1-4 business days
    The W6-1721 6" midbass features a long throw, underhung 1-1/2" voice coil driven by a massive 50 oz. ferrite magnet.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €109,20 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    The W6-1721 6" midbass features a long throw, underhung 1-1/2" voice coil driven by a massive 50 oz. ferrite magnet.



    Highlights

    • Huge ferrite magnet, under hung motor design
    • Short ring on pole piece, VC = 38mm
    • Very low 2nd and 3rd distortion (low THD)
    • Long throw, high power loading, X-max = 8mm
    • Naturally high frequency roll off, good for crossover design



    Product details

    Tang Band W6-1721 6-1/2" Underhung Midbass Driver



    The W6-1721 6" midbass features a long throw, underhung 1-1/2" voice coil driven by a massive 50 oz. ferrite magnet. A shorting ring on the polepiece is responsible for the speaker's extremely low levels of second and third order harmonic distortion. This impressive motor is coupled to an optimized paper cone with rubber surround, supported by a cast aluminum frame. The driver's naturally high and smooth upper frequency rolloff facilitates simplified crossover designs.

    Specifications

    Article number
    W6-1721
    Woofer Type
    Full-range
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    50 Watts
    Impedance
    4 ohms
    Sensitivity
    88 dB 2.83V/1m
    Frequency Response
    40 to 5,000 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    3.4 ohms
    Voice Coil Inductance (Le)
    0.084 mH
    Resonant Frequency (Fs)
    40 Hz
    Mechanical Q (Qms)
    3.58
    Electromagnetic Q (Qes)
    0.49
    Total Q (Qts)
    0.43
    Diaphragm Mass Inc. Airload (Mms)
    14.97g
    Mechanical Compliance of Suspension (Cms)
    1.058 mm/N
    Surface Area of Cone (Sd)
    139.9 cm²
    BL Product (BL)
    5.12 Tm
    Compliance Equivalent Volume (Vas)
    1.04 ft.³
    Maximum Linear Excursion (Xmax)
    8 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    6.94"
    Overall Depth
    4.3"
    Baffle Cutout Diameter
    5.8"
    Bolt Circle Diameter
    6.5"
    # Mounting Holes
    4
    Sealed Volume
    0.33 ft.³
    Sealed F3
    79 Hz
    Vented Volume
    1.0 ft.³
    Vented F3
    42 Hz
