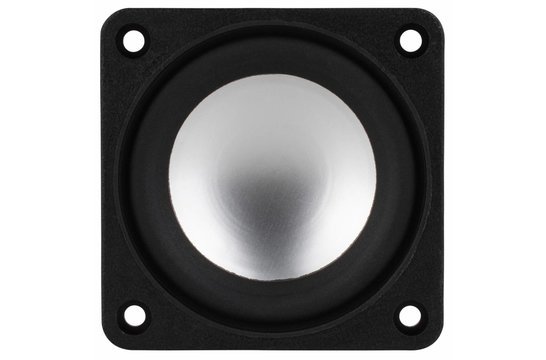

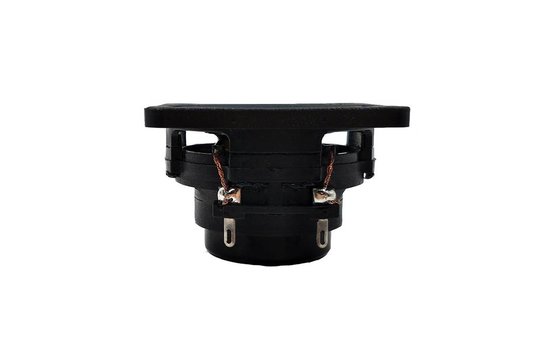

Tang Band W2-2243S Full-range Woofer

Brand: Tang Band

Show all Full-range woofer

Compare

2" | 4 Ω

W2-2243S Full-range Woofer

W2-2243S Full-range Woofer

W2-2243S Full-range Woofer

W2-2243S Full-range Woofer

W2-2243S Full-range Woofer

W2-2243S Full-range Woofer

€ 24,75€ 29,95 1 In stock

24h express shipping available
Same day shipping
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Tang Band improved upon the reliability of the popular W2-800SL and the result is the W2-2243S full range wide dispersion driver. Similar to the original, this driver features an aluminum/magnesium diaphragm, a shielded neodymium magnet, and a sturdy nylon composite plastic basket.

Highlights

Full-range design with smooth response up to 20,000 Hz (±3 dB from 250 to 20,000 Hz)
Compact but powerful neodymium motor system is magnetically shielded elimination stray magnetic fields
Extensive venting for quiet excursion and high continuous power handling
Rigid composite nylon frame with flat mounting flange installs easily into a 2" diameter hole

Product details

Tang Band W2-2243S 2" Aluminum/Magnesium Full Range Driver

Capable of providing an impressive amount of output for its size, Tang Band's W2-2243S 2" full-range driver is ideal for use in any compact speaker design. This well-built driver uses an aluminum/magnesium cone with a TPR surround to improve damping and provide smooth response from 260 to 20,000 Hz. With inset terminals and a flat mounting flange, the W2-2243S is easy to install on a flat mounting surface.

Show more

Specifications

Article number: W2-2243S
Woofer Type: Full-range
Nominal Diameter: 2"
Power Handling (RMS): 10 Watts
Power Handling (max): 20 Watts
Impedance (Z): 4 ohms
Sensitivity: 87 dB 1W/1m
Frequency Response: 160 to 20,000 Hz
Voice Coil Diameter: 0.75"
DC Resistance (Re): 3.4 ohms
Voice Coil Inductance (Le): 0.036 mH
Resonant Frequency (Fs): 160 Hz
Mechanical Q (Qms): 4.5
Electromagnetic Q (Qes): 0.32
Total Q (Qts): 0.30
Diaphragm Mass Inc. Airload (Mms): 1.35g
Mechanical Compliance of Suspension (Cms): 0.79 mm/N
Surface Area of Cone (Sd): 13 cm²
BL Product (BL): 3.8 Tm
Compliance Equivalent Volume (Vas): 0.0081 ft.³
Maximum Linear Excursion (Xmax): 1 mm
Cone / Diaphragm Material: Aluminum
Surround Material: Rubber
Basket / Frame Material: Polymer
Magnet Material: Neodymium
Shielded: Yes
Overall Outside Diameter: 2.24"
Overall Depth: 1.41"
Baffle Cutout Diameter: 2.03"
# Mounting Holes: 4
Sealed Volume: 0.01 ft.³
Sealed F3: 516 Hz
Vented Volume: 0.01 ft.³
Vented F3: 334 Hz
