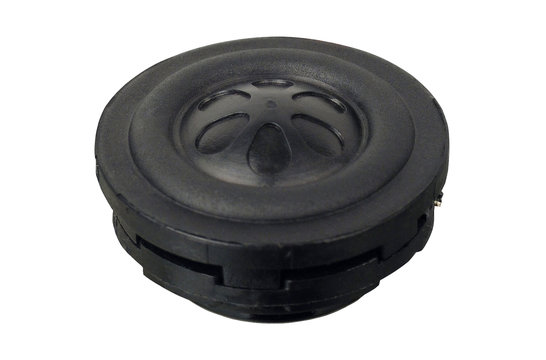

- Article number
- W1-1925SB
- Woofer Type
- Full-range
- Nominal Diameter
- 1"
- Power Handling (RMS)
- 3.5 Watts
- Power Handling (max)
- 7 Watts
- Impedance (Z)
- 4 ohms
- Sensitivity
- 75 dB 1W/1m
- Frequency Response
- 220 to 20,000 Hz
- Voice Coil Diameter
- 0.5"
- DC Resistance (Re)
- 3.5 ohms
- Voice Coil Inductance (Le)
- 0.008 mH
- Resonant Frequency (Fs)
- 220 Hz
- Mechanical Q (Qms)
- 0.61
- Electromagnetic Q (Qes)
- 0.82
- Total Q (Qts)
- 0.54
- Diaphragm Mass Inc. Airload (Mms)
- 0.2g
- Surface Area of Cone (Sd)
- 2.3 cm²
- BL Product (BL)
- 1.12 Tm
- Maximum Linear Excursion (Xmax)
- 0.75 mm
- Cone / Diaphragm Material
- Poly
- Surround Material
- Santoprene®
- Basket / Frame Material
- Polymer
- Magnet Material
- Neodymium
- Overall Outside Diameter
- 1"
- Overall Depth
- 0.54"
- Baffle Cutout Diameter
- 0.93"
- Sealed Volume
- 0.0000972 ft.³
- Sealed F3
- 535.1 Hz
- Vented Volume
- 0.000253 ft.³
- Vented F3
- 304.4 Hz
